Product Description

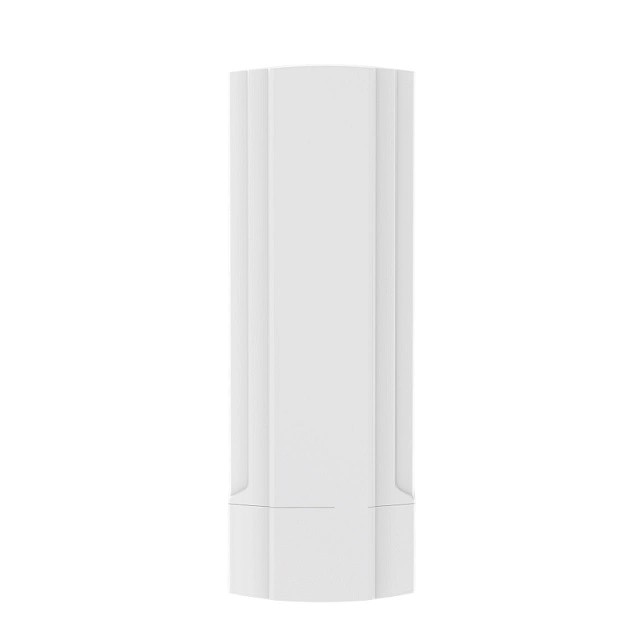

Water proof outdoor LTE CPE with SIM Card Slot, 4G router
| Specification | |
| Model | LTE-H320 |
| CPU | MT7628DAN |
| Flash | SPI NOR 8MB |
| DDR | 64MB |
| 2.4G Frequency | 2.4GHz - 2.484GHz |
| 2.4G WIFI Protocol | 802.11b / g / n |
| Data Rate | 300Mbps |
| 4G Antenna | Gain: 3dbi |
| 2.4G WIFI antenna | Gain: 2dbi |
| SSID Hidden | Support |
| Maxi end users access | 30+ |
| TX power | < 22 dBm |

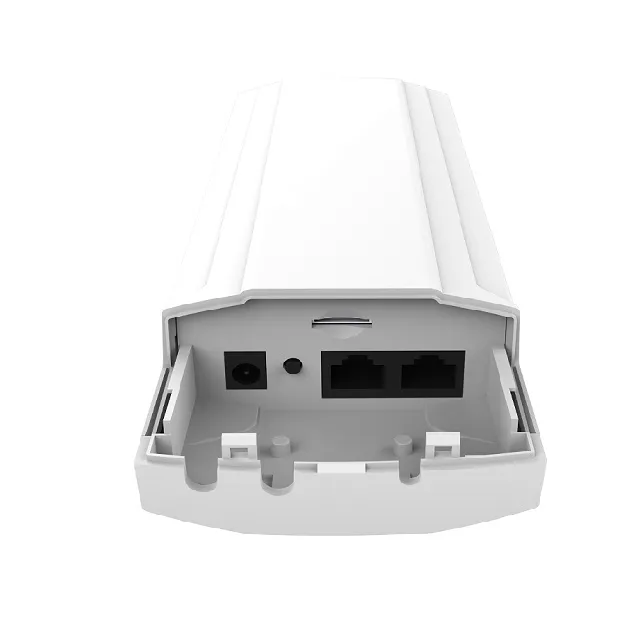

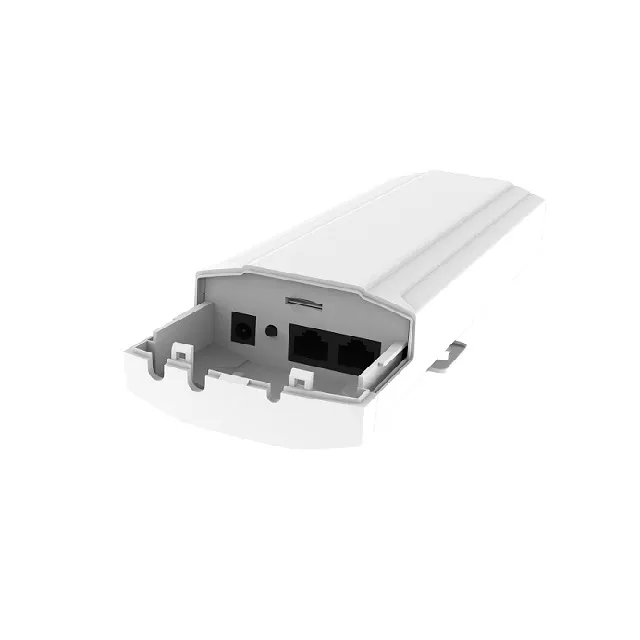

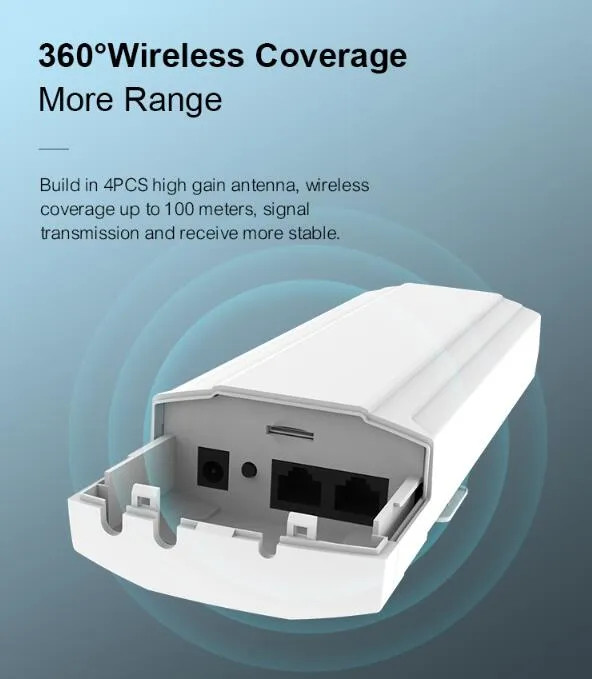

| WAN | 1 * 10/100M RJ45 WAN port,support PoE |
| LAN | 1 * 10/100M RJ45 LAN port |

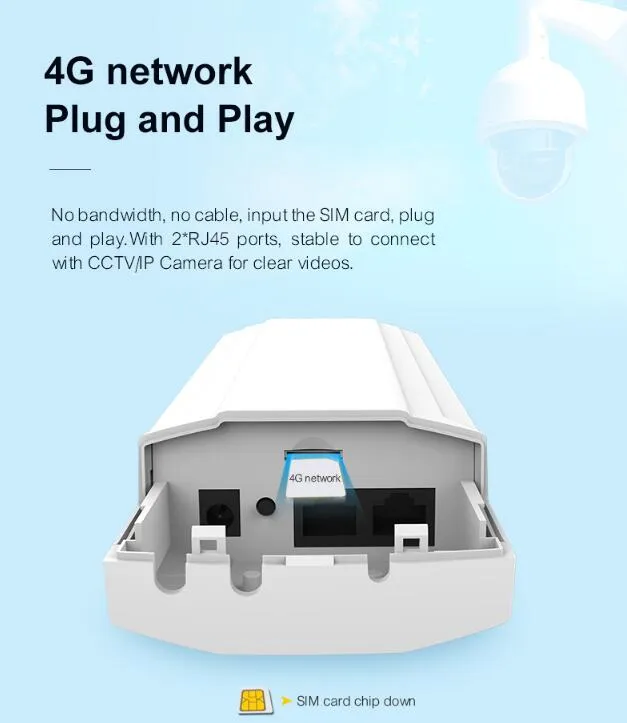

| SIM Card | 1 * 4G SIM card slot |

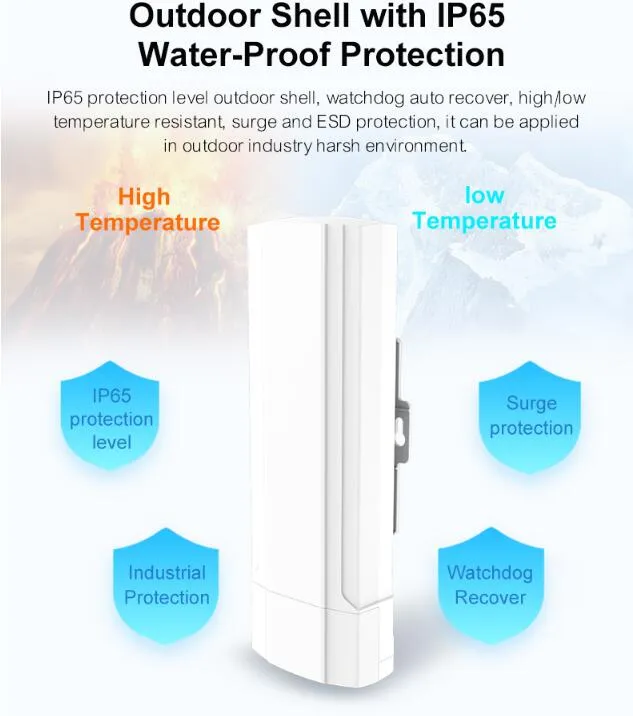

| Water-Proof Level | IP65 |
| DC | 12V /1A |
| POE | 24V / 0.5A |
| Reset | reset×1(Press 10 seconds to revert to factory settings) |

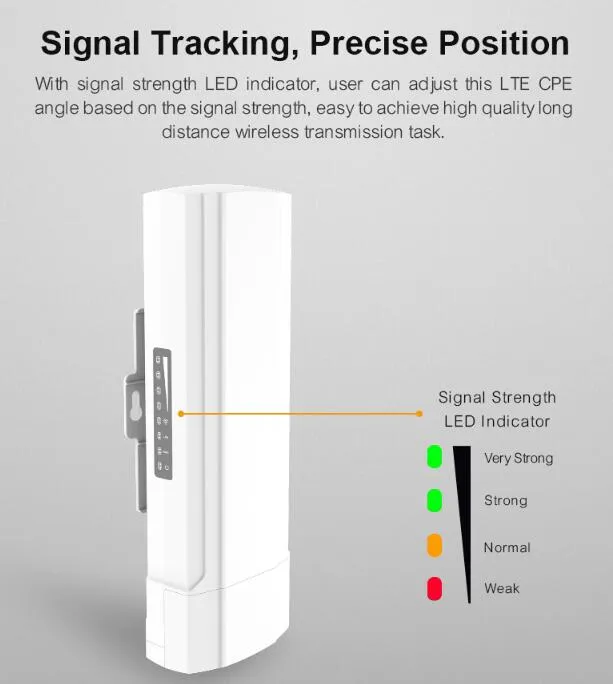

| LED indicator | POWER ,WAN ,LAN,WLAN, Signal strength * 4 |
| Power consumption | < 11W |
| Size | 230mm * 75 mm * 40 mm |
| Working Environment | Working temperature: -30°C to 55°C Limited working temperature:-40°C to 70°C Storage Temperature: -40°C to 70°C Humidity:5%~95%(No-considering) |
| Name | Content |
| Wi-Fi | Support Auto Channal, Guest SSID, SSID hide, Wireless MAC filter, white and black list |
| Net | PPPoE, Automatic IP, Static IP, L2TP, PPTP, 4G |
| Support automatically switch between WAN/ISP and 4G | |

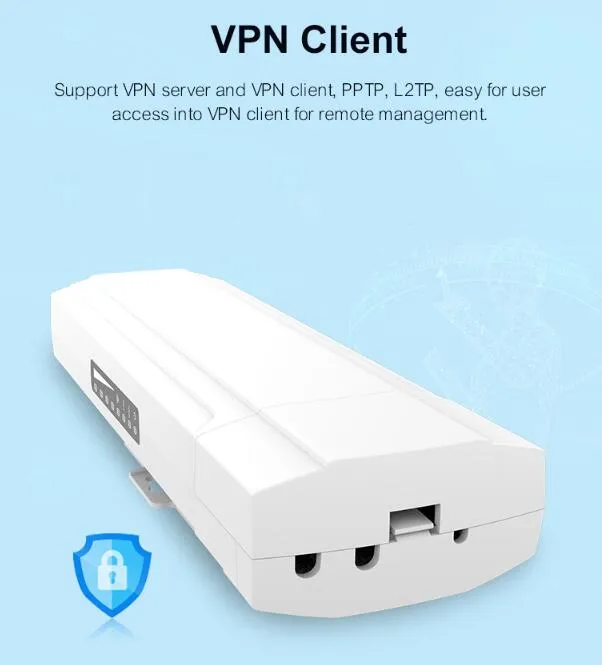

| Support VPN server and VPN client: PPTP, L2TP and OpenVPN | |
| Support AP+Client | |
| Firewall | Support NAT, URL Filter, MAC Filter and Network Service Filter |
| Support DoS attack protection, SYN flood attack | |
| WAN PING,SSH, HTTP Access | |
| Other functions | NTP and account setup; Port forwarding Virtual Server Watchdog DMZ DDNS |
G band Support:
| Name | Content |
| LTE Module Model | Quectel EC20 R2.1 (India) |
| Band Support | GSM: B3/8; CDMA2000 1X/EVDO: BC0; WCDMA: B1/8; TD-SCDMA: B34/39; LTE FDD: B1/3/5/8; LTE TDD: B34/38/39/40/41 Data Rate: LTE-FDD: Max 150M (DL) / Max 50 (UL) |
| LTE Module Model | Quectel EC25-E (Middle East) |
| Band Support | GSM: B3/8; WCDMA: B1/5/8; LTE FDD: B1/3/5/7/8/20; LTE TDD: B38/40/41 Data Rate: LTE-FDD: Max 150M (DL) / Max 50 (UL) |
| LTE Module Model | Customized available to meet with different operators |
If any questions, pls feel free to contact with our professional sales team with below contacts.
