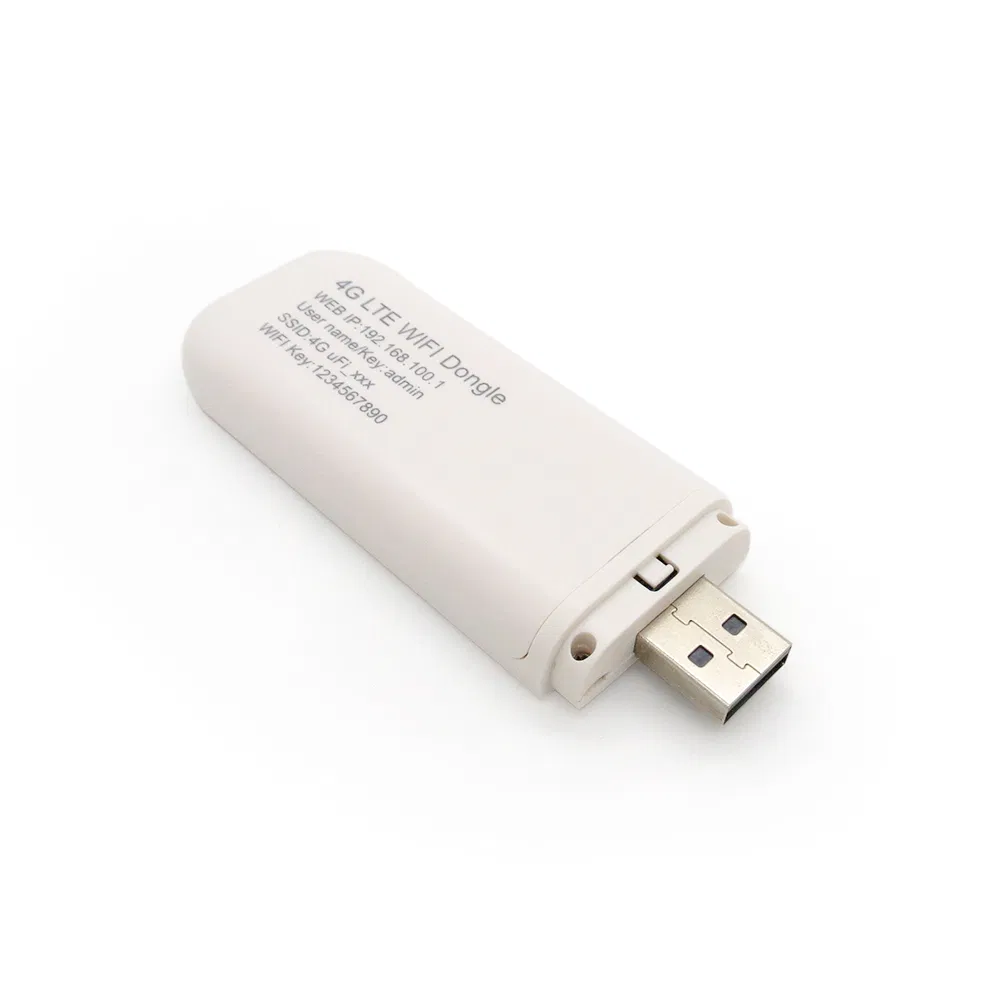

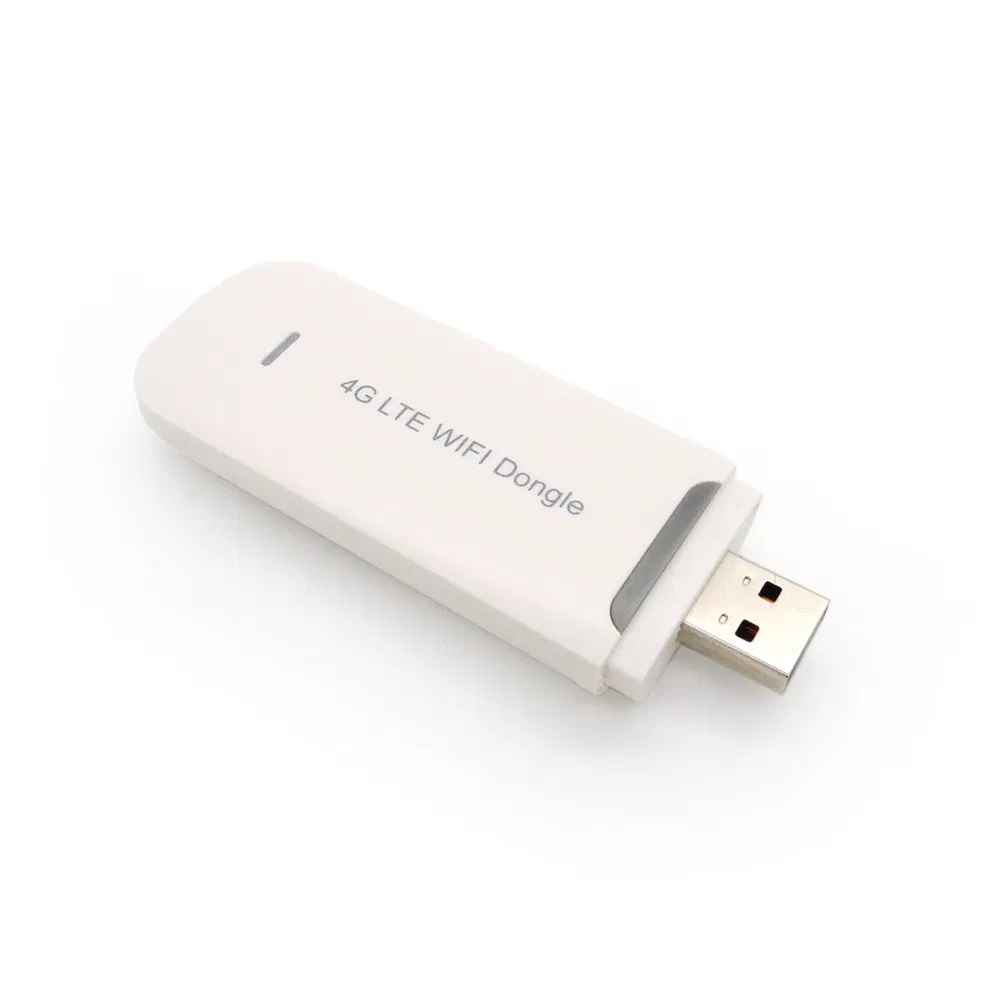

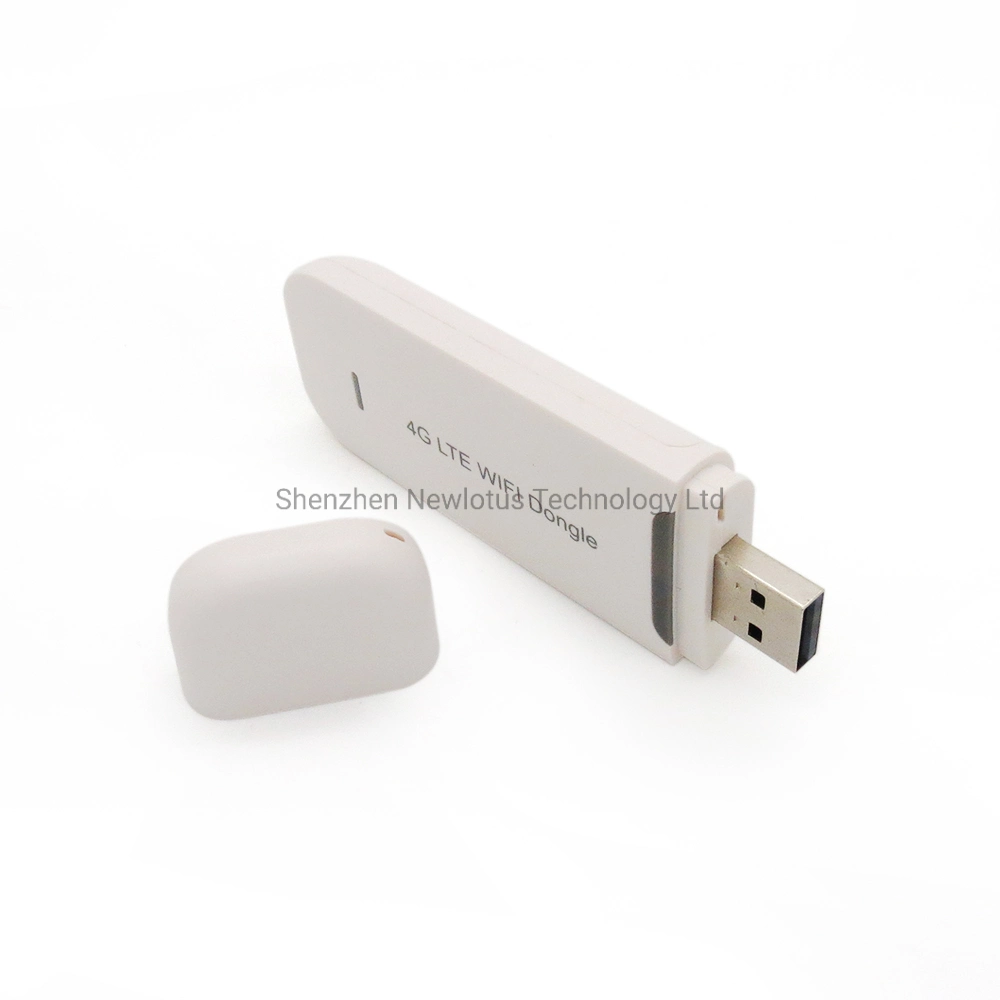

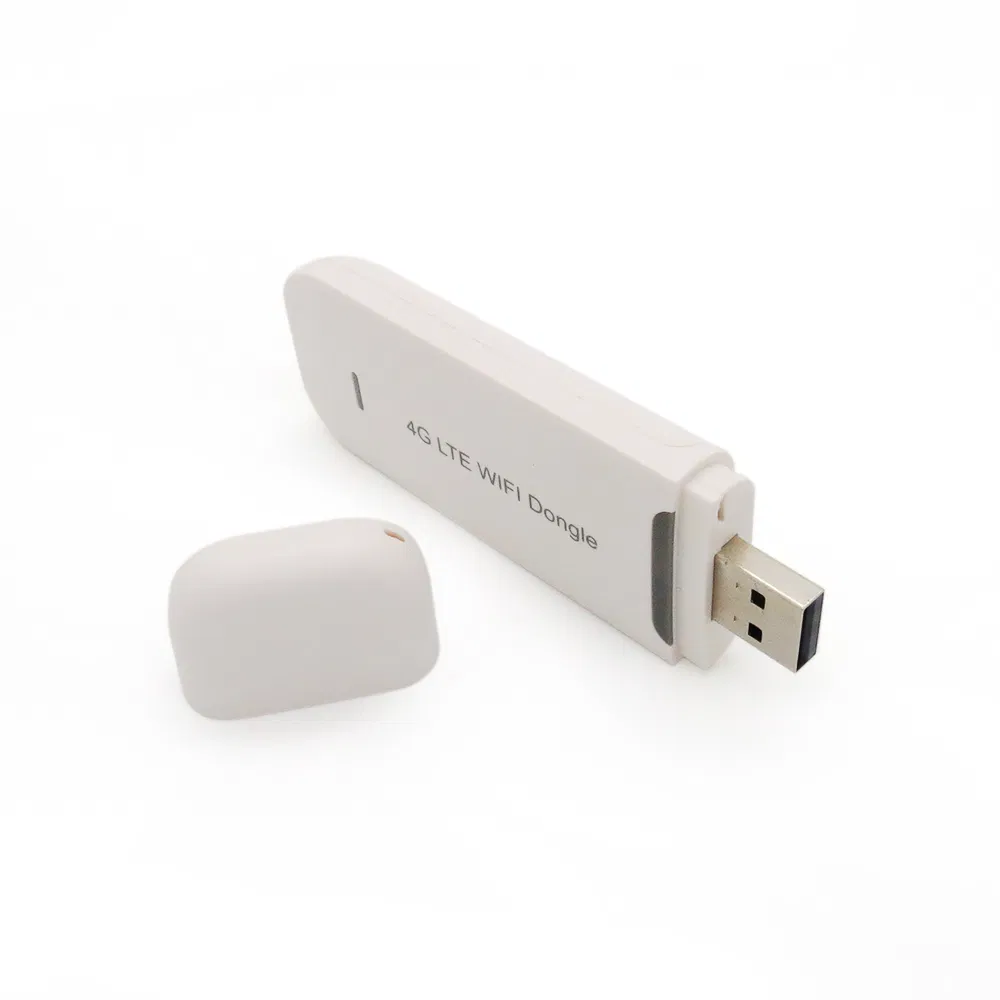

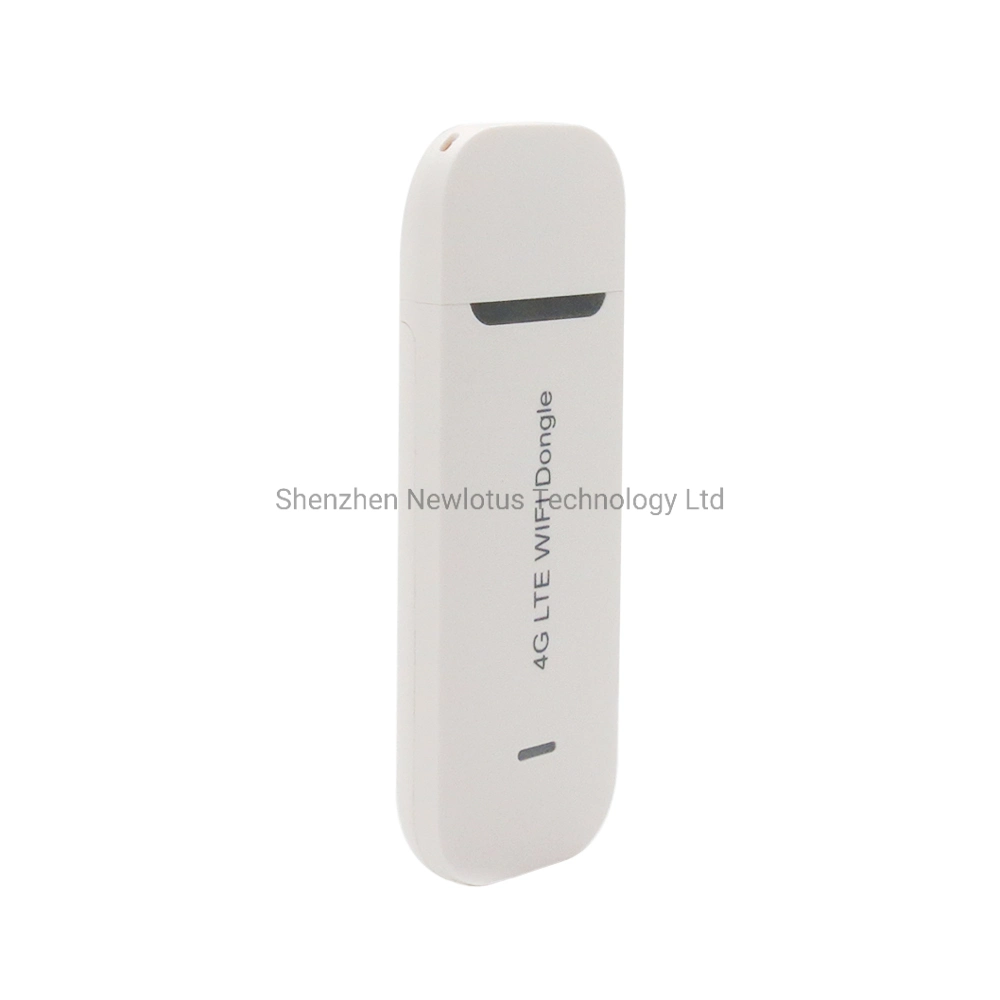

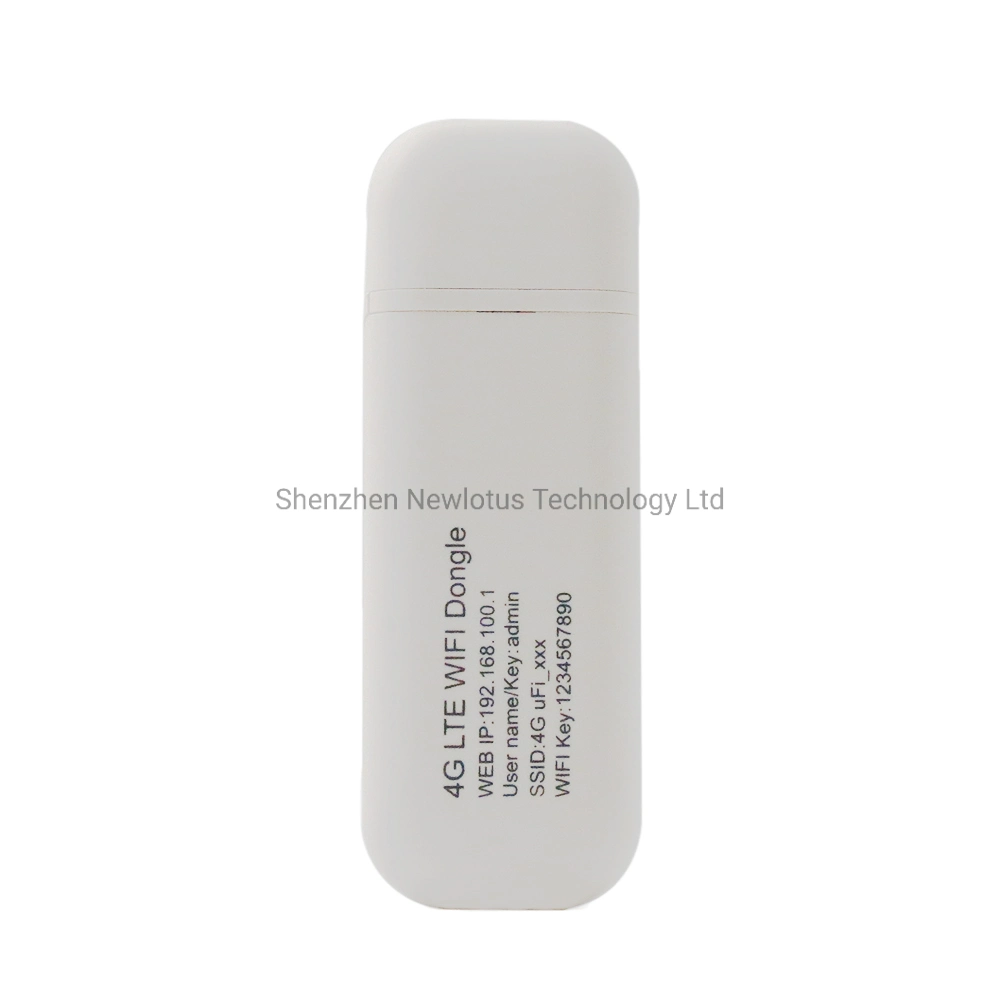

Portable Wireless USB V2.0 Adapter Shm1802D 150Mbps 3G 4G Lte Cat4 WiFi Dongle Router with SIM Card Slot
Sunhans Usb Modem 150Mbps LTE FDD 2G 3G 4G Portable Mini Wifi Router with SIM Card Slot Mifis Dongle Product DescriptionMain futures : 1. The WiFi router can support more than 30 frequencies, suitable for operators in more than 30 countries, support frequency customization, OEM & ODM. 2. W......
Send Inquiry
Product Description
Sunhans Usb Modem 150Mbps LTE FDD 2G 3G 4G Portable Mini Wifi Router with SIM Card Slot Mifis Dongle
Package contents:
♦ Short leading time: 1-2.5 working days for samples or small order, 10-15 working days for bulk order.
♦ One year warranty: for you without trouble of after-sales maintenance.
♦ Quality Guarantee: Return rate is only 0.001.
♦ Support small orders: help your business from small to big.
♦ OEM & ODM are welcome.
Main futures :
1. The WiFi router can support more than 30 frequencies, suitable for operators in more than 30 countries, support frequency customization, OEM & ODM.
2. WiFi hotspot designed with sim card slot, more convenient to use.
3. Wireless connection up to 150Mbps, you will enjoy a powerful network experience for surfing, chatting, or playing online.
4. Supports multiple 4G LTE Bands and 2.4GHz WiFi.
5. Design lightweight, easy to carry, you can use anytime and anywhere.
6. Supports micro SD memory extension up to 32GB (not included), more capacity for more doing.
7. Supports Standard 6 PIN SIM card interface, SIM/USIM card, compliant with 3GPP 31.101 and 31.102.
8. Built-in 4G / 3G + WiFi antenna, offer optimal coverage and reliability, boost signal strength.
2. WiFi hotspot designed with sim card slot, more convenient to use.
3. Wireless connection up to 150Mbps, you will enjoy a powerful network experience for surfing, chatting, or playing online.
4. Supports multiple 4G LTE Bands and 2.4GHz WiFi.
5. Design lightweight, easy to carry, you can use anytime and anywhere.
6. Supports micro SD memory extension up to 32GB (not included), more capacity for more doing.
7. Supports Standard 6 PIN SIM card interface, SIM/USIM card, compliant with 3GPP 31.101 and 31.102.
8. Built-in 4G / 3G + WiFi antenna, offer optimal coverage and reliability, boost signal strength.
| SHM1802D 4G WiFi Dongle V2.0 | |||
| Basic Product Information | Item | Remark | |
| Model | 4G WIFI Dongle | 4G WIFI Dongle | |
| Platform | Marvell 88MP1802 | ||
| Band/Mode | Frequancy | FDD-LTE: B1/B3/B7/B8 or B20 UMTS:B1/B2/B5/B8 GSM Quad Band | FDD-LTE: B1(2100)/B3(1800)/B7(2600)/B8(900) or B20(800) UMTS(WCDMA): B1(2100)/B2(1900)/B5(850)/B8(900) GSM: Quad Band (850/900/1800/1900) Remark: you can only choose one band on this model for B8 or B20 |
| HW Description | Item | Remark | |
| CPU (MHz) | CPU (MHz) | 550MHz | |
| Air interfaces | GSM/GPRS/EDGE | GSM/GPRS/EDGE | DTM (simple class A), multislot class 12 |
| TD-SCDMA | TD-SCDMA | R5 1.28 TDD-HSDPA 2.8 Mbps DL R7 1.28 TDD-HSUPA 2.2 Mbps UL R8 1.28 TDD-HSPA+ 4.2 Mbps DL / 2.2 Mbps UL | |
| UMTS | UMTS | R99 384 kbps DL / UL R5 HSDPA 7.2 Mbps DL R6 HSUPA 5.76 Mbps UL R7 HSPA+ 21 Mbps DL / 5.76 Mbps UL | |
| TDD-LTE | TDD-LTE | Cat4 150 Mbps DL / 50 Mbps UL | |
| FDD-LTE | FDD-LTE | Cat4 150 Mbps DL / 50Mbps UL | |
| Memory | Item | Remark | |
| System memory | 256MB | ||
| External memory | up to 32GB | Micro-SD | |
| WIFI | Item | Remark | |
| Frequency Band | 2.4GHz | ||
| 802.11b/g/n | up to 150Mbps | Modes supported: 802.11b mode 802.11g only mode 802.11n only mode 802.11b/g only mode 802.11b/g/n mode 802.11n 1x1 (2.4GHz, 20MHz) | |
| User amount | Max to 10 | ||
| Interface | |||
| Antenna | 4G/3G/2G Main antenna 4G + 3G antenna WiFi antenna | Internal | |
| USB | USB | Standard USB 2.0 | USB 2.0 High Speed |
| SIM/USIM Card slot | SIM/USIM | Yes | Standard 6 PIN SIM card interface, compliant with 3GPP 31.101 and 31.102 |
| Micro-SD Card slot | SD | Yes | Micro-SD Card |
| L*H*W (mm) | 96*34*12mm | ||
| Weight(g) | 32g | ||
| Other Description | Item | Remark | |
| RF Power Spec | Class 4 for UMTS/HSPA/LTE; Class 4 for GSM 850/900; Class 1 for GSM 1800/1900; Class E2 for EDGE 850/900/1800/1900 | ||

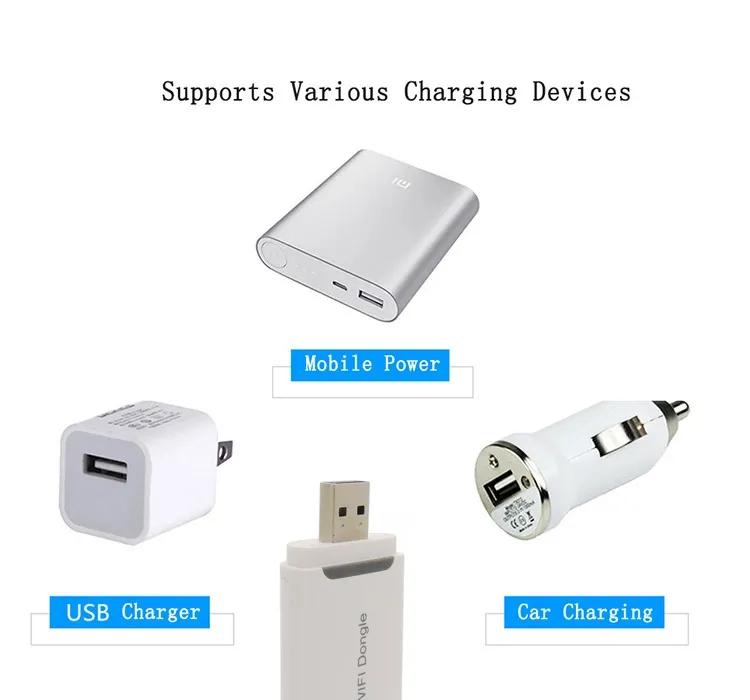

| Power supply input | USB 2.0 5V-1A | ||
| Software | Item | Remark | |
| System | ucos | ||
| UI | UI | WEB UI | |

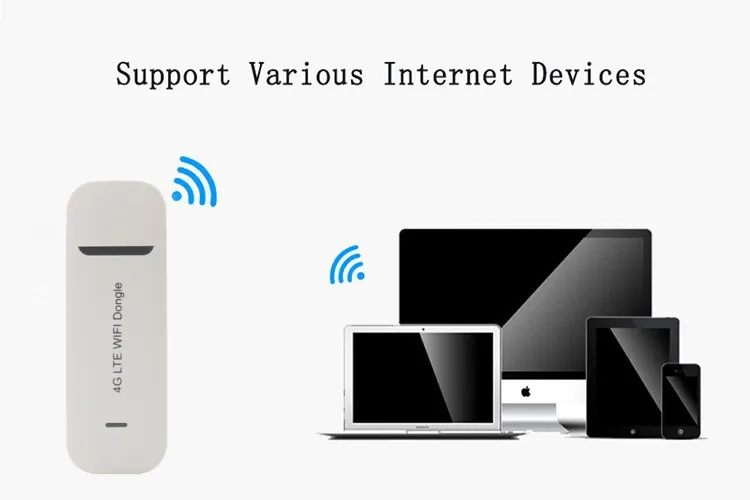

| Operation system | Windows / Mac OS /IOS /Android | ||
| Operation | Internet Explorer/ Mozilla Firefox/ Google Chrome/ Safari | ||
| Environmental reliability test condition | Item | Remark | |
| Normal Operation | 0°C to +45°C | ||
| Restricted Operation | -10°C to +55°C | ||
| Storage | -20°C to +70°C | ||
Thin, small and light
High compatibility
Plug and play, install automatically
Standard USB port, very convenient to use
Wireless WiFi is available when there is power supply
Wireless WiFi is available when there is power supply
Package contents:
1 x Wireless 4G dongle
1 x User manual
About us
Our Service:
♦ Test process : every items will be testing before shipping, to make sure the quality.♦ Short leading time: 1-2.5 working days for samples or small order, 10-15 working days for bulk order.
♦ One year warranty: for you without trouble of after-sales maintenance.
♦ Quality Guarantee: Return rate is only 0.001.
♦ Support small orders: help your business from small to big.
♦ OEM & ODM are welcome.
