              Product Description

              Multi LAN Ports Enterprise Application with dual sim card slots router 4g lte industrial router

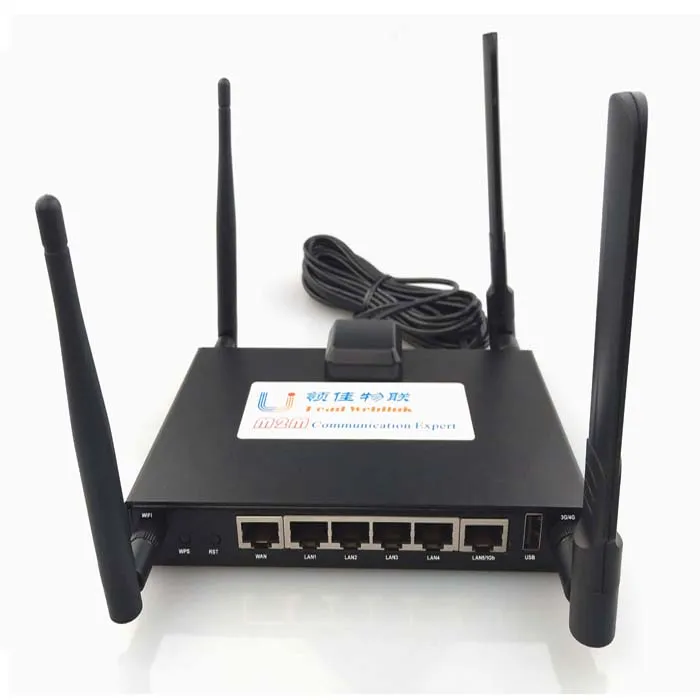

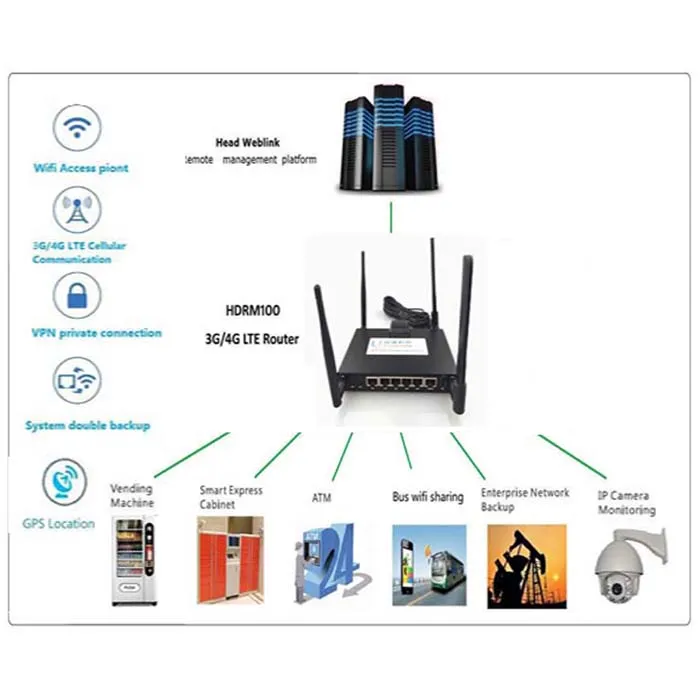

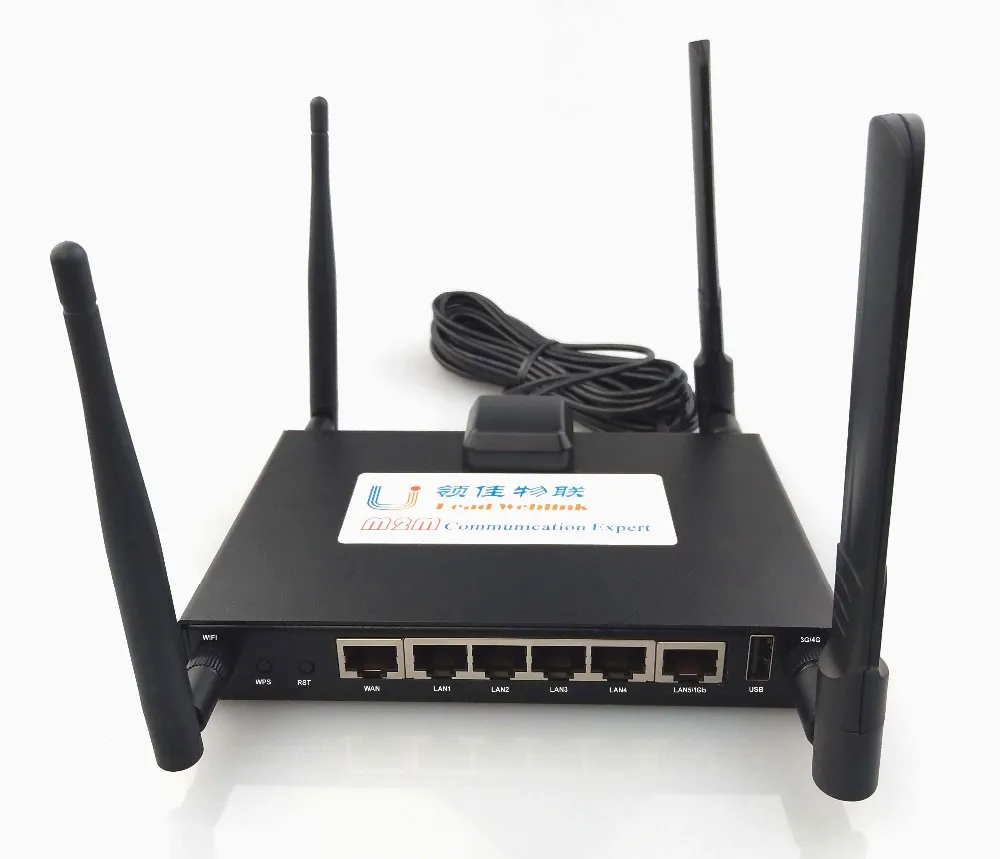

                       HDRM200  six LAN ports industrial Gigabit router integrated machine, is designed for global market.It provides 4G LTE/WIFI/GPS/SD storage funtion.2.4G/5.8G WIFI. It provides stable and reliable data connection for user device such as RTU, Broadband, Intelligent Transportation, Financial self-service terminal, Express cabinet ,Power Ammeter and other remote device management application. In order to achieve permanent online, some key features such as watch-dog function, wide temperature and multiple RF band/mode are supported by HDRM200 industrial router, making it can be used in any environment of worldwide.Provides one WAN port,four fast ethernet ports,one Gigabit LAN port.Support VLAN feature.Multi LAN Ports Enterprise Application with Dual SIM Card Slots Router 4G Lte Industrial Router




              Specification
              ITEMVERSIONDescription
              CPUMTK7620A+MTK7612
              MemoryFLASH 16MByte,  DDR2 64MByte
              Network mode4G VersionFDD LTE, TDD LTE,HSPA+,WCDMA,GPRS,GSM
              3G versionWCDMA,GPRS,GSM
              EVDO,CDMA 1X
              Frequency bands2G version GSM/GPRS 850/900/1800/1900MHz
              3G versionWCDMA 850/1900MHz, 850/2100MHz & 900/2100MHz
              EVDO 800MHz & 800/1900MHz
              4G VersionVersion A.     LTE FDD. B2,4,5,17.  UMTS. 850/1900MHz
              Version C.  LTE FDD. B1,3,7,8 .LTE TDD B38, B39, B40, B41.
               UMTS. 900/2100MHz.
              TD-SCDMA. 1880~1920MHz & 2010~2025MHz
              GSM. 900/1800MHz
              Version E.LTE FDD. B1,3,7,8,20 ,LTE TDD B38, B40.
              UMTS. 900/2100MHz.
              GSM. 900/1800MHz
              Version JCLTE FDD. B1,B3,B8,B18,B19. LTE TDD. B41.
              UMTS. B1,B6,B8.
              GSM. 900/1800MHz
              Version JELTE FDD. B1,B8
              UMTS. B1,B8
              GSM. 900/1800MHz
              Version SALTE-FDD B1/B3/B4/B5/B7/B8/B28, LTE-TDD B38/B40/B41
              UMTS/HSDPA/HSPA+ B1/B2/B5/B8
              GSM/GPRS/EDGE B2/B3/B5/B8
              GPSGPS/GNSS/BD,gpsOne Gen 8B, standalone;assisted,XTRA;
              Data rates
              3G RouterWCDMADL 14.4Mbps,    UL 5.76Mbps
              EVDODL 3.1Mbps,     UL 1.8Mbps
              4G LTE routerLTE FDDDL  100Mbps~300Mbps,    UL  50Mbps
              LTE TDDDL  50Mbps,   UL  25Mbps
              HSPA+DL 42Mbps,   UL 5.76Mbps
              TD-SCDMADL 2.8Mbps,   UL 2.2Mbps
              GPRSMax. 85.6Kbps(DL), Max. 85.6Kbps(UL)
              WIFI802.11AC,  1200Mbps, 2.4G/5.8G WIFI dual frequency bands.

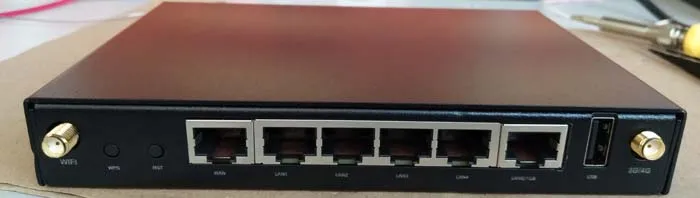

              WAN1*WAN Port, 100Mbps,It can be setted to LAN  port.
              LAN5* LAN Ports, (1* 1Gbit LAN port,  4* 100Mbps LAN ports)
              Software
              Security EncryptionSupport WEP,WPA,WPA2 encryption ways
              WatchdogEmbedded watchdog , System auto recovery;
              Data linkActive auto connect;
              ProtocolPPTP,L2TP,IPSEC VPN,Open VPN,GRE,TCP,UDP, DHCP,HTTP,DDNS,TR-069, HTTPS, SSH,SNMP etc.
              VLANSupport VLAN feature
              Data backupDouble backup, keep data safe and reliable
              ServerRemote management platform;
              Operating systemLinux or OpenWRT
              Hardware interface
              SD card1*SD card,Data storage.
              SIM card2*SIM card, dual SIM card load balance.Standard draw card interface, support 1.8V/3V SIM/UIM card, built-in ESD protection.
              RS4851*RS485 port
              UART1*RS232 port
              USB1*USB port
              GPIOs4*GPIO ports
              Press key1*Reset, 1* WPS
              LED IndicatorSYS, Net, WAN, LAN1,LAN2,LAN3,LAN4,LAN5,RSSI
              RF connectorsSMA connector , 4G(female),WIFI(male),GPS(male), the characteristic impedance 50Ω .
              Antenna2*2  4G/WIFI MIMO antenna, One GPS antenna
              Power supplyInput. +6V/2.5A~48V/0.5A
              Environmental parameters
              ConditionsOperating temperature -40ºC - +75ºC
              Storage temperature -45ºC - +80ºC
              Operating humidity. 5%-95%
              CaseBlack steel Shell
              Size155mm*106mm*25mm
              Weight525g
