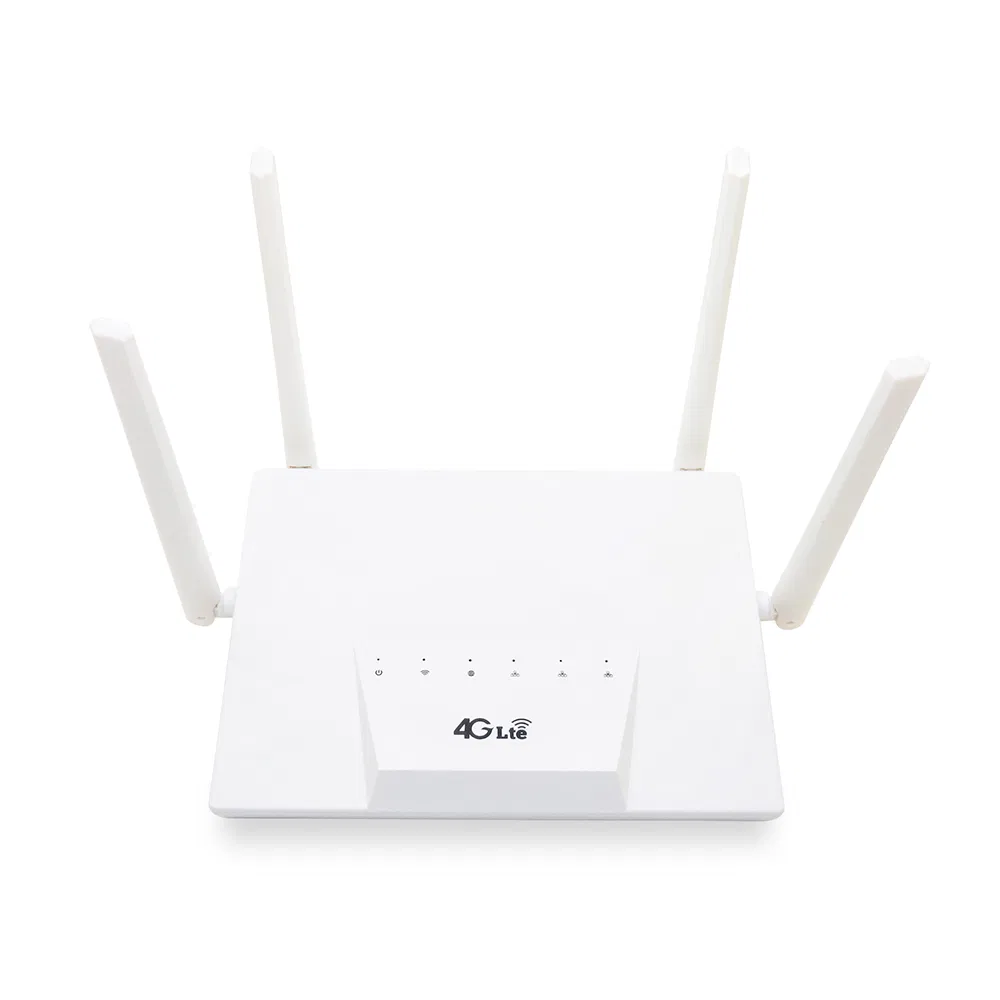

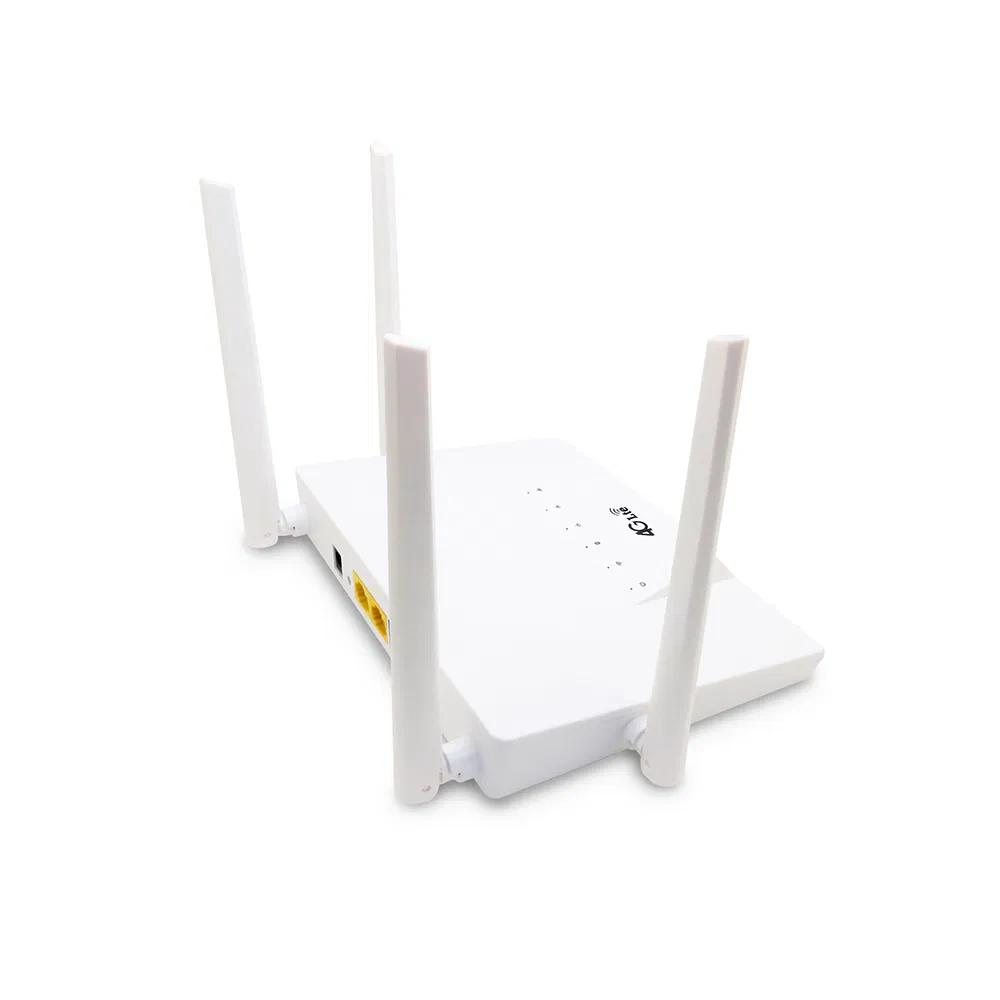

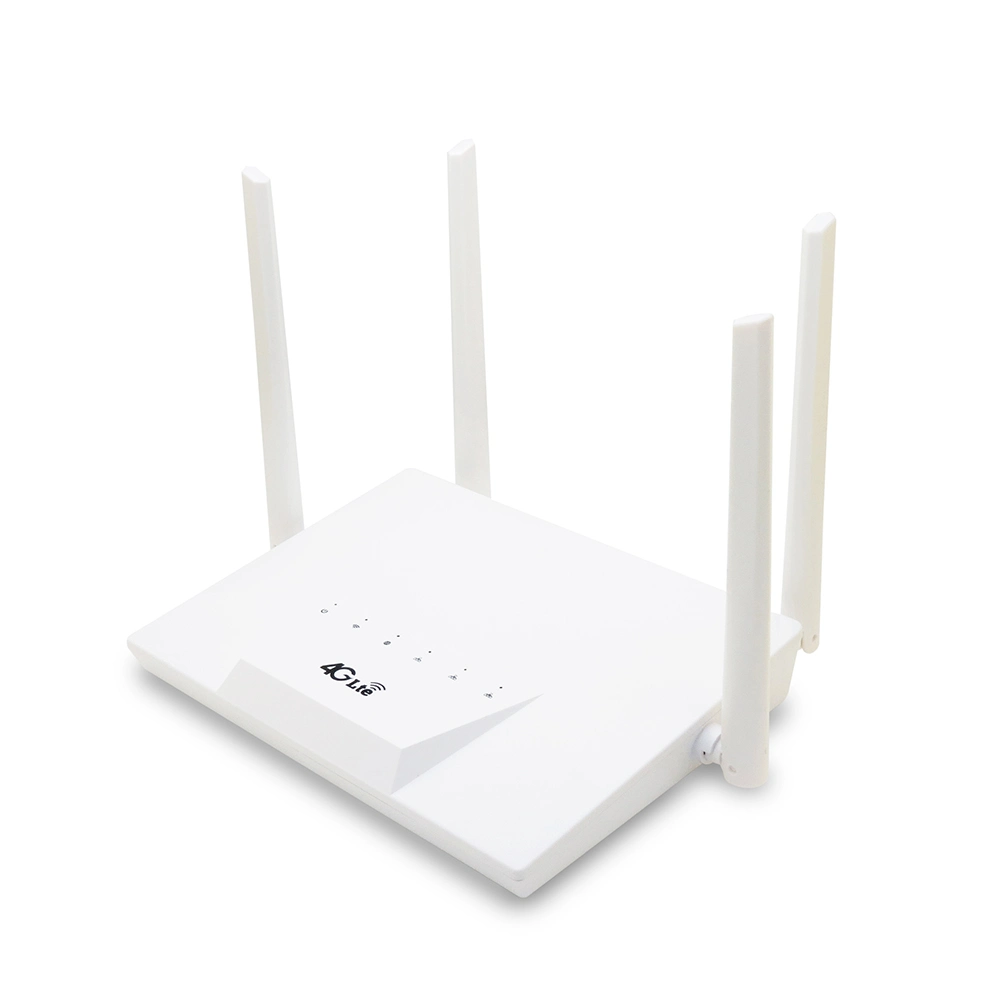

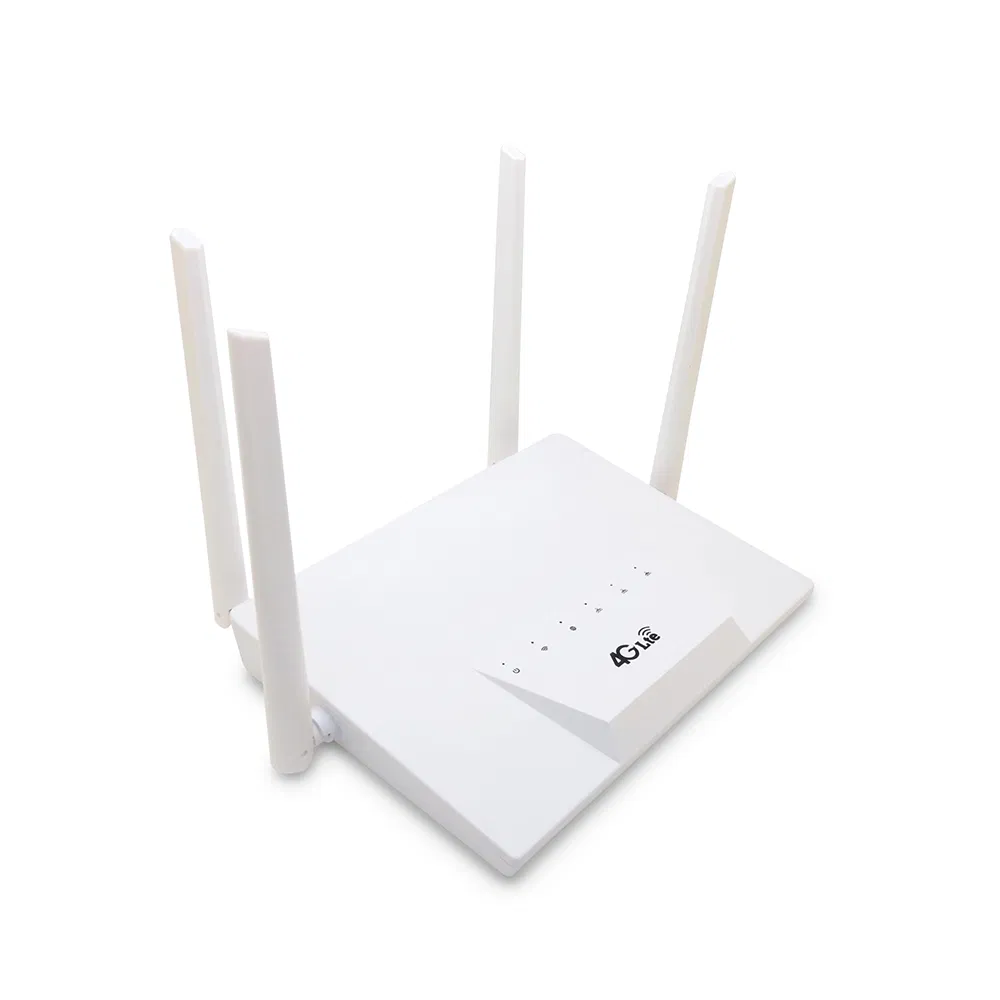

High Speed 300Mbps LTE Wireless Hotspot Modem 4G LTE CPE CAT6 WiFi Router with LAN Port 4 Antennas
Sunhans 2G 3G 4G LTE Indoor Wireless CPE 300Mbps Powerful Network Desktop WiFi Router with RJ11 portProduct DescriptionFeatures:1. Powerful 2* 5dBi external antennas, with stable performance;2. Economical solution, ZTE chip. Rate level DL 150Mbps/UL 50Mbps, getting high speed internet;3. Support WiF......
Send Inquiry
Product Description
Sunhans 2G 3G 4G LTE Indoor Wireless CPE 300Mbps Powerful Network Desktop WiFi Router with RJ11 port
♦ Short leading time: 1-2.5 working days for samples or small order, 10-15 working days for bulk order.
♦ One year warranty: for you without trouble of after-sales maintenance.
♦ Quality Guarantee: Return rate is only 0.001.
♦ Support small orders: help your business from small to big.
♦ OEM & ODM are welcome.
Features:
1. Powerful 2* 5dBi external antennas, with stable performance;
2. Economical solution, ZTE chip. Rate level DL 150Mbps/UL 50Mbps, getting high speed internet;
3. Support WiFi & Cable connecting simultaneous, can support internet browsing with RJ45 ethernet port connected.
Parameters:
| SHFi4G8X9 SPECIFICATION | ||||
| Specific | Description | |||
| Model | SHFi4G8X9 | |||
| Chipset | QCA9531+QCA9887 | |||
| CPU Frequency | 650Mhz | |||
| ROM+RAM | 64Mb+1Gb | |||
| WIFI Standards | IEEE802.11a/b/g/n/ac | |||
| WIFI Frequency Range | 2.4G:2412-2472MHZ 5.8G:5700-5825MHZ | |||
| WiFi Rate | MIMO 2*2 [email protected] MIMO 1*1 [email protected] | |||
| Reset Button | Support | |||

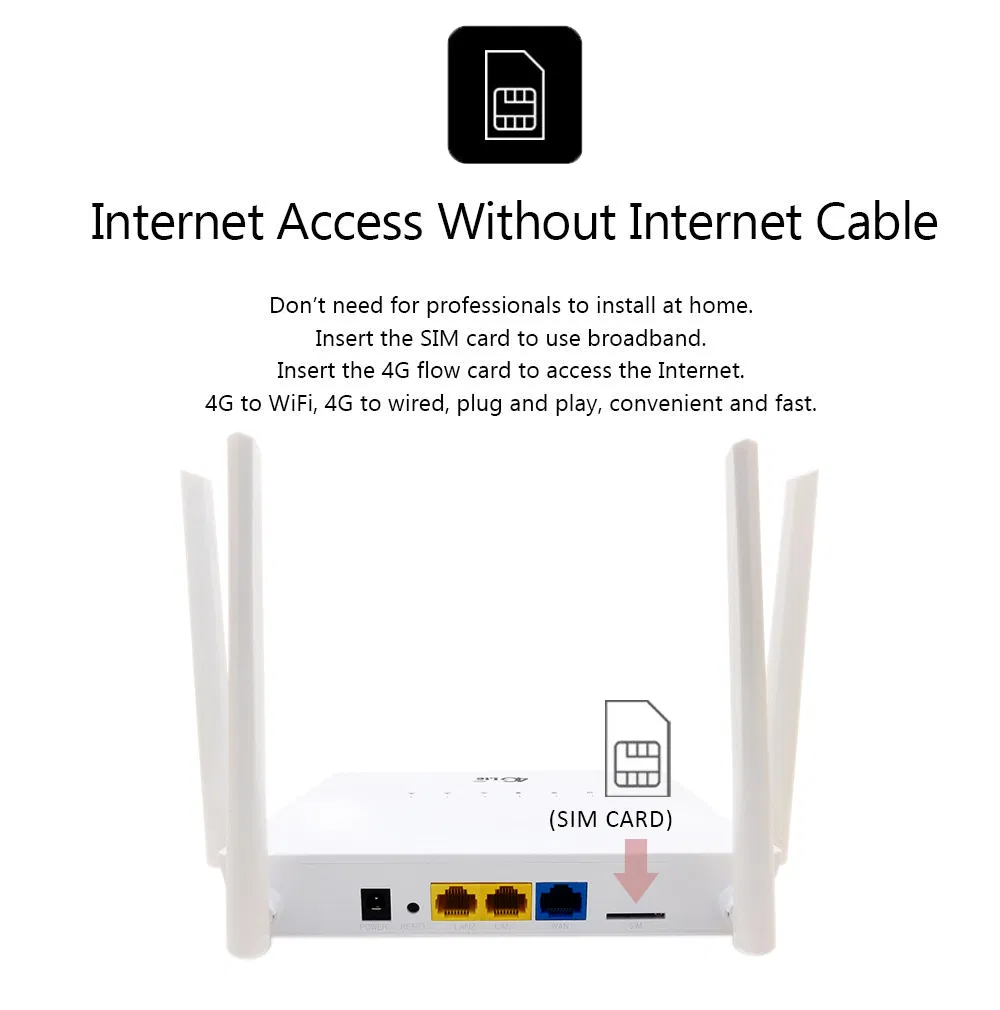

| Sim card | Standard Sim | |||

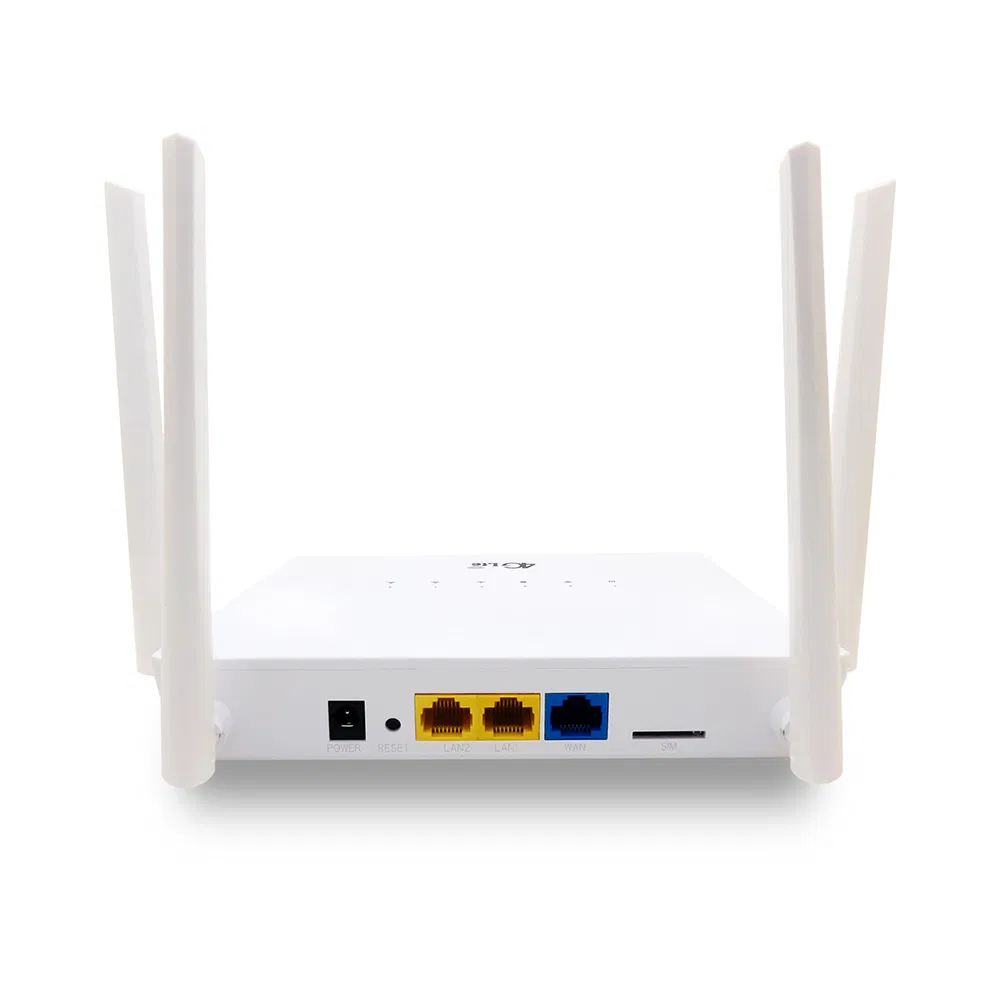

| WAN/LAN | 1 WAN+2 LAN | |||
| Power | Power Adapter (12V-1A) | |||
| Modulation Mode | OFDM/BPSK/QPSK/CCK/DQPSK/DBPSK/256-QAM | |||
| 4G-LTE Frequency | Cat4 150Mbps: FDD-LTE:B1/B2/B3/B4/B5/B7/B8/B12/B17/B14/B18/B19/B26/B28AB/B31/B 42/B43/B66/B71 TDD-LTE: B38/B39/B40/B41 TD-SCDMA: B34/B39 UMTS(WCDMA):B1/B2/B5/B8 GSM:Quad Band (850/900/1800/1900) (Band option ) -------------------------------------- Cat6 300Mbps (2×CA): Asia Europe version: LTE-FDD: B1/B3/B5/B7/B8/B20/B28/B32 LTE-TDD: B38/B40/B41 WCDMA: B1/B3/B5/B8 America version: LTE-FDD: B2/B4/B5/B7/B12/B13/B25/B26/ B29/B30/B66 WCDMA: B2/B4/B5SHFi4G8X9 Specification V2.0 Global version: LTE FDD:B1/B2/B3/B4B5/B7/B12/B13/B17/ B20/B25/B26/B29/B30 TDD:B41 WCDMA: B1/B2/B3/B4/B5/B8 | |||
| WIFI SPC | ||||
| QCA9887 | ||||
| 5.8GHz Transmission Speed | 11a: 54MMbps | |||
| HT20: 144.4Mbps HT40: 300Mbps | ||||
| 11ac(HT80): 433.3Mbps | ||||
| 5.8GHz Output Power | 802.11a | 6Mbps(-10@EVM) | 21.0 ±2.0dBm | |
| 54Mbps(-25@EVM) | 18.0 ±2.0dBm | |||
| 802.11n | HT20(-28@EVM) | MCS 7 | 17.0 ±2.0dBm | |
| HT40(-28@EVM) | MCS 7 | 17.0 ±2.0dBm | ||
| 802.11ac | AC80(-32@EVM) | MCS 9 | 16.0 ±2.0dBm | |
| 5.8GHz Sensitivity | IEEE 802.11a 6Mbps<=-89dBm 54Mbps<=-70dBm | |||
| IEEE 802.11n HT 20 MCS 7<=-65dBm | ||||
| IEEE 802.11n HT 40 MCS 7<=-62dBm | ||||
| IEEE 802.11ac AC 80 MCS 9<=-51dBm | ||||
| QCA9531 | ||||
| 2.4GHz Transmission Speed | 11b: 11Mbps | |||
| 11g: 54 Mbps | ||||
| HT20: 144M | ||||
| HT40: 300M | ||||
| 2.4GHz Output Power | 802.11b(-10@EVM) 23± 1.5dBm | |||
| 802.11g(-25@EVM) 20± 1.5dBm | ||||
| 802.11n(-28@EVM) 18± 1.5dBm | ||||
| 2.4GHz Sensitivity | IEEE 802.11b 11Mbps<=-90dBm | |||
| IEEE 802.11g 6Mbps<=-89dBm 54Mbps<=-70dBm | ||||
| HT 20 MCS 7<=-68dBm | ||||
| HT 40 MCS 7<=-65dBm | ||||
| Environmental specifications | ||||
| Specific | Description | |||
| Working Temperature | -20~+55 degree | |||
| Operating Humidity | 10%~95% RH | |||
| Storage Temperature | -40~+80 degree | |||
| Storage Humidity | 10%~95% RH | |||
| Environmental Certification | RoHs | |||
| Certification | Support CE, Rohs ,FCC ID, Telec ,KC | |||
