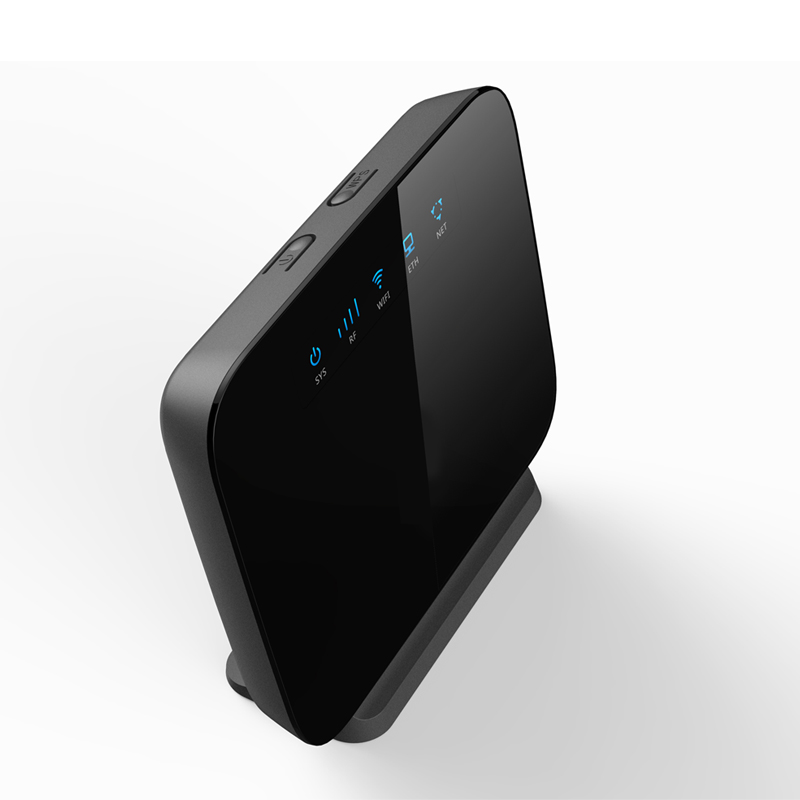

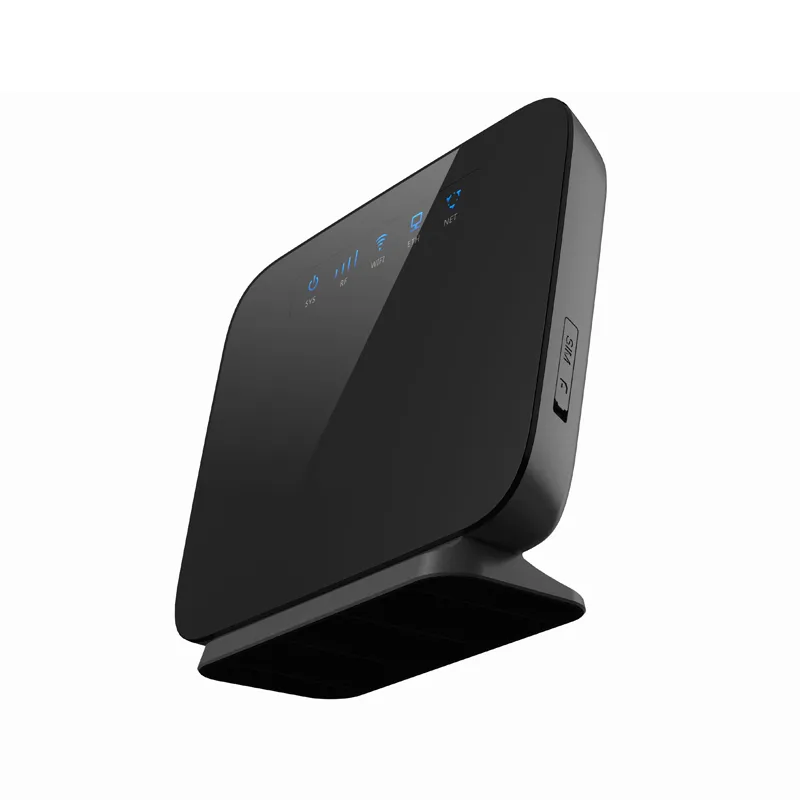

Universal 4G LTE CPE Modem Router Antenna Cat4 150Mbps WiFi Unlimited Hotspot with 4 Rj11 Port Wan/LAN Mobile SIM Card Mobile WiFi Router
Technical StandardCompatible with FDD/TDD-LTE, UMTS, EDGE/GPRS/GSM802.11 b/g/nFrequencyLTE :1/2/3/5/7/8/28(20)/40 or 2/4/5/7/28(20)/66/40UMTS: 1/2/5/8GSM: 850/900/1800/1900MHzWIFI2.4GHz, WIFI 2*2 MIMO,802.11 b/g/nMaximum Data ThroughputFDD-LTE (CAT 4): Max 150Mbps(DL)/50Mbps(UL)TDD-LTE (CAT 4): Ma......
Send Inquiry
Product Description
| Technical Standard | Compatible with FDD/TDD-LTE, UMTS, EDGE/GPRS/GSM 802.11 b/g/n |
| Frequency | LTE :1/2/3/5/7/8/28(20)/40 or 2/4/5/7/28(20)/66/40 UMTS: 1/2/5/8 GSM: 850/900/1800/1900MHz |
| WIFI | 2.4GHz, WIFI 2*2 MIMO,802.11 b/g/n |
| Maximum Data Throughput | FDD-LTE (CAT 4): Max 150Mbps(DL)/50Mbps(UL) TDD-LTE (CAT 4): Max 130Mbps(DL)/35Mbps(UL) |
| Transmit Power: | FDD-LTE 23±2.7dBm; TDD-LTE 23±2.7dBm; |
| Receive Diversity | Support Receive Diversity |
| MIMO | Support DL 2x2 MIMO |
| BB Chipset | ZX297520V3 |
| RF Chipset | ZX234220 |
| WiFi Chipset | RTL 8192ES |
| Memory | Flash: 128MBytes RAM: 64MBytes |
| power consumption | <12W |
| Power Voltage | DC12V/1A |
| USIM/SIM | 2FF SIM card support SIM/USIM/UIM,standard 6 PIN SIM card interface, support 3V SIM card and 1.8V SIM card;internal push-push SIM slot |
| LED | Power Indication LED,WAN Signal Strength, WiFi/WPS Indication LED, WAN/LAN Status LED,Internet Status LED, |
| USB | USB 2.0 |
| Antenna | Internal Antenna or external |
| Buttons | POWER,Reset, WPS |
| Slic | SI32185 |
| Ethernet | 1WAN/LAN, 10BaseT/100Base automatic adaptive port |
| RJ11 | RJ11x1 |
| Reset | Pinhole |
| ESD | ESD Protection circuit;Contact±8KV,Air±10KV |
| Battery | Optional |
| SW Update | TR069 &FOTA Update |
| WIFI Mode | AP mode only, AP+STA is Optional |
| WIFI Security | OPEN & WPA-PSK& WPA2-PSK & WPA-PSK/WPA2-PSK; |
| SMS & Phone Book | Support |
| USSD | Support |
| USB Function | Default no USB port, can be customized |
| Voice | VoLTE |
| IPv4 | Support IPv4 |
| IPv6 | Support IPv6 |
| IPv4v6 | Support IPv4v6 |
| Firewall | Mac/IP address filter, Port forwarding, WiFi Black/Whilte list |
| Data Statistics | Support |
| SIM Lock | Support |
| WAN Fallback to ETH | Automatically |
| WeUI | Support |
| Language | English by default, can be customized. |
| HTTP | Support |
| Depends on customization, cost related | |
| Operating Temperature | Normal:-10°C to +65°C; |
| Storage Temperature | -20° C to +85° C |
| Humidity | 5%~ 95% |
