Support Europe-Asia, American, Ocean 4G Outdoor Router with SIM Card and Waterproof IP67
M2M Outdoor Wi-Fi LTE industrial router with dual LAN ports Product Highlight 3G/4G LTE data transmission; Active auto connect; Embedded watchdog , Auto recovery; 2*2 4G/WIFI MIMO antenna; 4G LTE antenna gain: >10DBi Integrate 3G/4G LTE,WIFI,GPS feature; 2 LAN ports; POE power supply, Supported......
Send Inquiry
Product Description

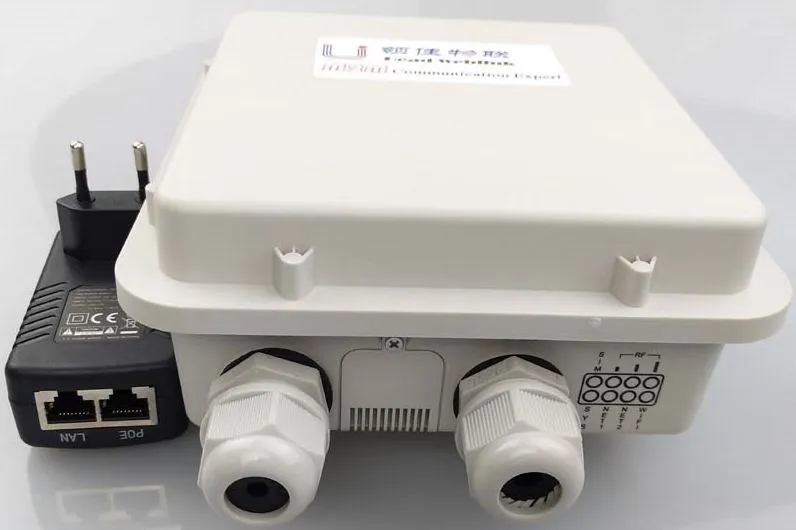

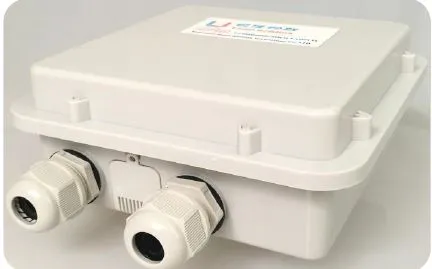

M2M Outdoor Wi-Fi LTE industrial router with dual LAN ports

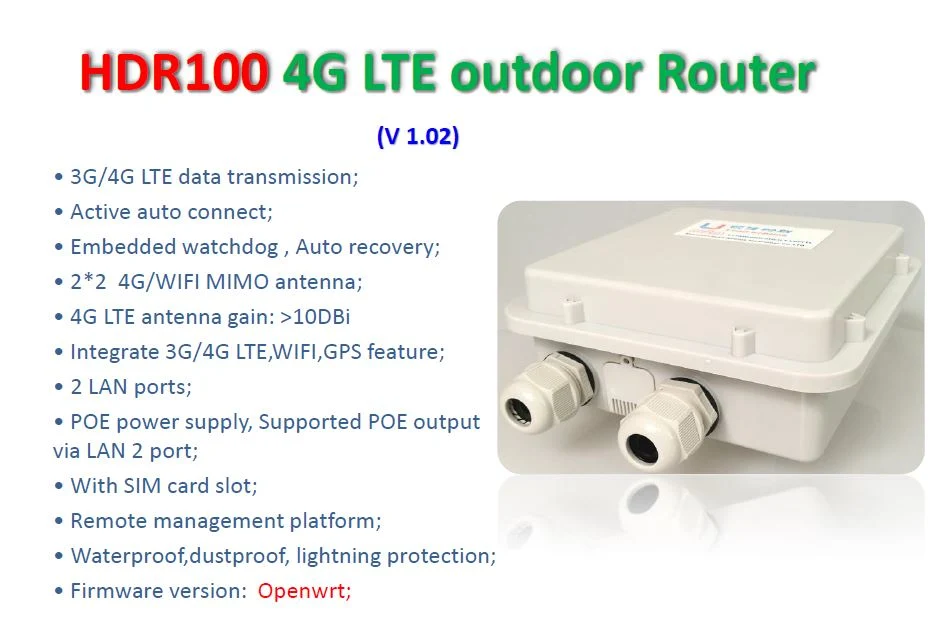

Product Highlight
• 3G/4G LTE data transmission;
• Active auto connect;
• Embedded watchdog , Auto recovery;
• 2*2 4G/WIFI MIMO antenna;
• 4G LTE antenna gain: >10DBi
• Integrate 3G/4G LTE,WIFI,GPS feature;
• 2 LAN ports;
• POE power supply, Supported POE output via LAN 2 port;
• With SIM card slot;

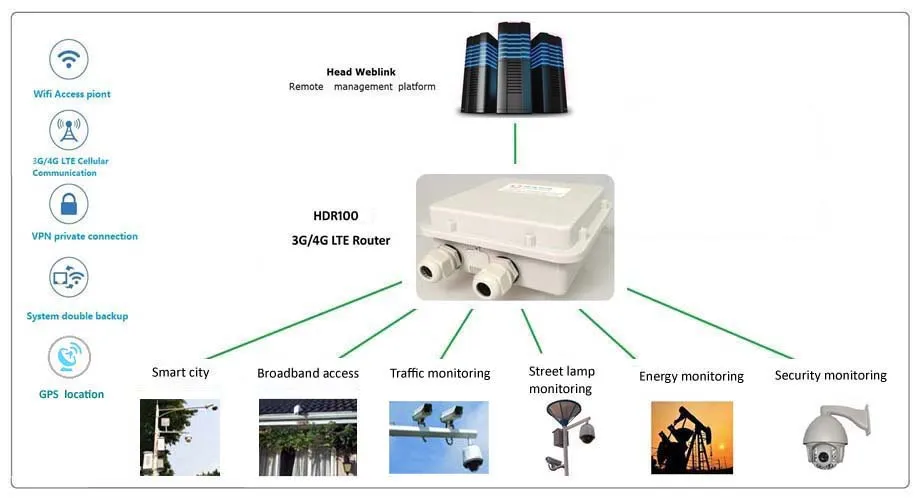

• Remote management platform;
• Firmware version: Openwrt;
• Waterproof,dustproof,lightning protection. Protection level, IP67

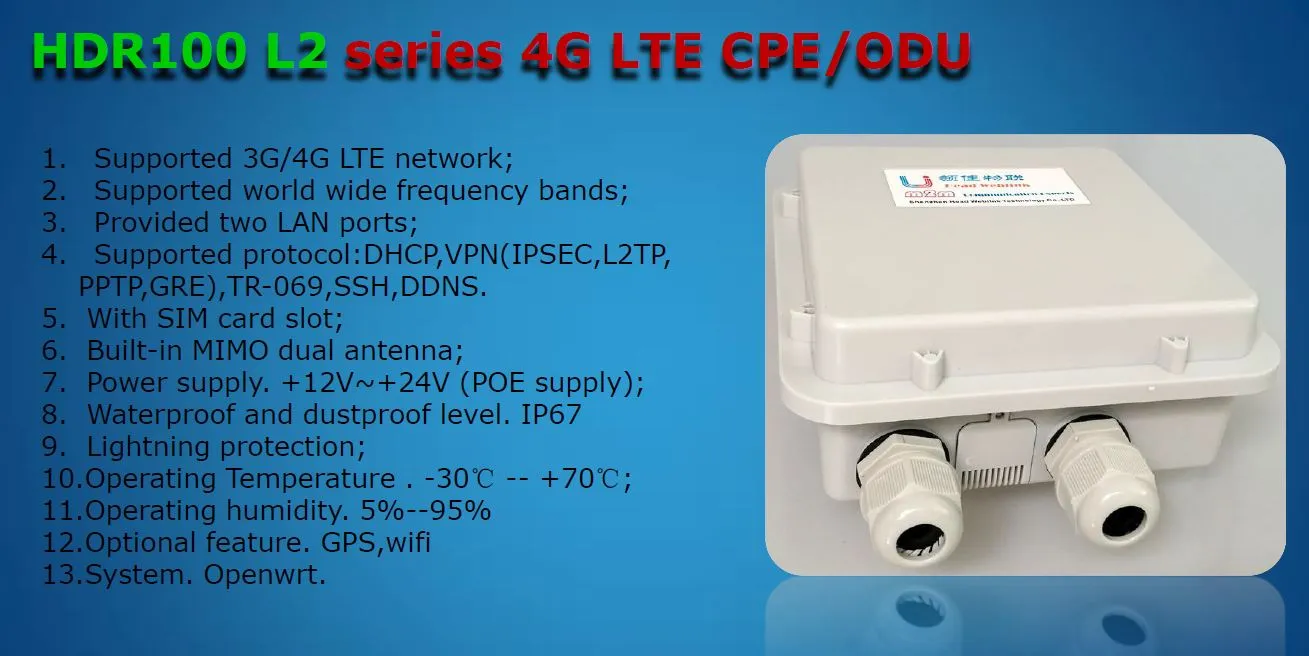

Product Highlight
• 3G/4G LTE data transmission;
• Active auto connect;
• Embedded watchdog , Auto recovery;
• 2*2 4G/WIFI MIMO antenna;
• 4G LTE antenna gain: >10DBi
• Integrate 3G/4G LTE,WIFI,GPS feature;
• 2 LAN ports;
• POE power supply, Supported POE output via LAN 2 port;
• With SIM card slot;
• Remote management platform;
• Firmware version: Openwrt;
• Waterproof,dustproof,lightning protection. Protection level, IP67
| Item | Product specification |
| Hardware interface | 2*LAN 10/100Mbps, Console port(Be used as DTU, is available to connect serial devices) |
| RF connectors | SMA connector , 4G(female),WIFI(male),the characteristic impedance 50Ω |
| Security Encryption | Support WEP,WPA,WPA2 encryption ways |
| Protocol | PPTP,L2TP,IPSEC VPN,TCP,UDP, DHCP,HTTP,DDNS,TR-069,GRE, HTTPS, SSH,Open VPN,SNMP |
| LED Indicator | "SYS", "Net", "WAN", "LAN",RSSI |
| SIM/UIM | Standard draw card interface, support 1.8V/3V SIM/UIM card, built-in ESD protection |
| Key button | Reset |
| Standard Power | DC 12V/1A |
| Power Supply | DC 5~48V |
| Working current | 2A (Max Current) |
| Temperature | Operating Temperature -40~+75ºC |
| Storage Temperature -45~+85ºC | |
| Environment humidty | 95% |
| Case | Aluminum Alloy Shell |
| Size | 115mm*73mm*20mm |
| Weight | 160g |
| Frequency bands | ||
| 2G Version | GSM/GPRS 850/900/1800/1900MHz | |
| 3G Version | WCDMA. 850/1900MHz, 850/2100MHz & 900/2100MHz | EVDO 800MHz & 800/1900MHz |
| GSM. 850/900/1800/1900MHz | ||
| 4G Version | Version A | LTE FDD. B2,4,5,17 |
| UMTS. 850/1900MHz | ||
| LTE FDD. B1,3,7,8 | ||
| Version C | LTE TDD B38, B39, B40, B41 | |
| UMTS. 900/2100MHz | ||
| TD-SCDMA. 1880~1920MHz & 2010~2025MHz | ||
| GSM. 900/1800MHz | ||
| Version E | LTE FDD. B1,3,7,8,20 | |
| LTE TDD B38, B40 | ||
| UMTS. 900/2100MHz | ||
| GSM. 900/1800MHz | ||
| LTE FDD. B1,B3,B8,B18,B19 | ||
| Version JC | LTE TDD. B41 | |
| UMTS. B1,B6,B8 | ||
| GSM. 900/1800MHz | ||
| Version JE | LTE FDD. B1,B8 | |
| UMTS. B1,B8 | ||
| GSM. 900/1800MHz | ||
| Seven-BLTE-FDD B1/B3/B4/B5/B7/B8/B28and | ||
| Version SA | Tri-Band LTE-TDD B38/B40/B41 | |
| Qual-Band UMTS/HSDPA/HSPA+ B1/B2/B5/B8 | ||
| Qual-Band GSM/GPRS/EDGE B2/B3/B5/B8 | ||
| Data rates | ||
| 3G LTE router | WCDMA. DL 14.4Mbps, UL 5.76Mbps | EVDO. DL 3.1Mbps, UL 1.8Mbps |
| 4G LTE router | FDD LTE. DL,100Mbps UL,50Mbps | Or |
| TDD LTE. DL,50Mbps UL,25Mbps | LTE Category 4 - 150 Mbps (DL) | |
| WCDMA. DL 42Mbps UL5.76Mbps | LTE Category 4 - 50 Mbps (UL) | |
| TD-SCDMA. DL 2.8Mbps UL 2.2Mbps | ||
| Power supply | Input. 5~24V,1000mA | |
| Conditions | Operating Temperature . -30ºC -- +70ºC | |
| Operating humidity. 5%--95% | ||
| Item | Product specification | |
| CPU | MTK7620 | |
| MEMORY | FLASH 16MByte, DDR2 64MByte | |
| Embeddedsystem | Openwrt | |
| Network | FDD LTE,TDD LTE,WCDMA,EVDO,GPRS,GSM,CDMA 1X | |
| WIFI | WIFI 802.11 b/g/n, 300Mbps | |
| Data rate | 4g: CAT 3, DL 100bps , UL 50Mbps ( Or CAT 4 DL 150Mbps , UL 50Mbps) WCDMA HSPA+: DL 42Mbps, UL 5.76Mbps GPRS DL/UL 85.6Kbps | |
| WIFI Tx Power | 14 dBm(11g),17 dBm(11b),14dBm(11n) | |
| WIFI Rx Sensitivity | <-70 dBm@54Mpbs | |
| 2G/3G/4G Transmitting Power | GSM/GPRS: Class 4 (2W): GSM850,EGSM900 Class 1 (1W): DCS1800,PCS1900 EDGE: Class E2 (0.5W): GSM850,EGSM900 Class E1 (0.4W): DCS1800,PCS1900 UMTS: Class 3 (0.25W): WCDMA Class 3 (0.25W): CDMA2000 Class 2 (0.25W): TD-SCDMA LTE: Class 3 (0.25W) | |
| GPS | GPS/GLONASS,Protocol: NMEA | |
| WIFI Frequency | 2.4G | |
| Hardware interface | 2*LAN 10/100Mbps | |
| POE Output | Supportsecond LAN port POE power supply output(Optional) , Same as input power loadcapacity. It can be select switch on/off on web UI. | |
| RF | Built-in WIFI, 4G LTE, GPS antenna | |
| Security Encryption | Support WEP,WPA,WPA2 encryption ways | |
| Protocol | PPTP,L2TP,IPSEC VPN,TCP,UDP, DHCP,HTTP,DDNS,TR-069,GRE, HTTPS, SSH, Open VPN,SNMP | |
| LED Indicator | "SYS", "Net", "WAN", "LAN",RSSI | |
| SIM/UIM | Standard draw card interface, support 1.8V/3V SIM/UIM card, built-in ESD protection | |
| Key button | Reset | |
| Standard Power | POE input: DC 18V/1A | |
| Power Supply | POE input: DC 5~48V | |
| Working current | 2A (Max Current) | |
| Temperature | Operating Temperature -40~+80ºC Storage Temperature -45~+85ºC | |
| Environment humidty | 95% | |
| Case | Waterproof plastic shell, IP67 | |
| Size | 172mm*165mm*90mm | |
| Weight | 554g | |
