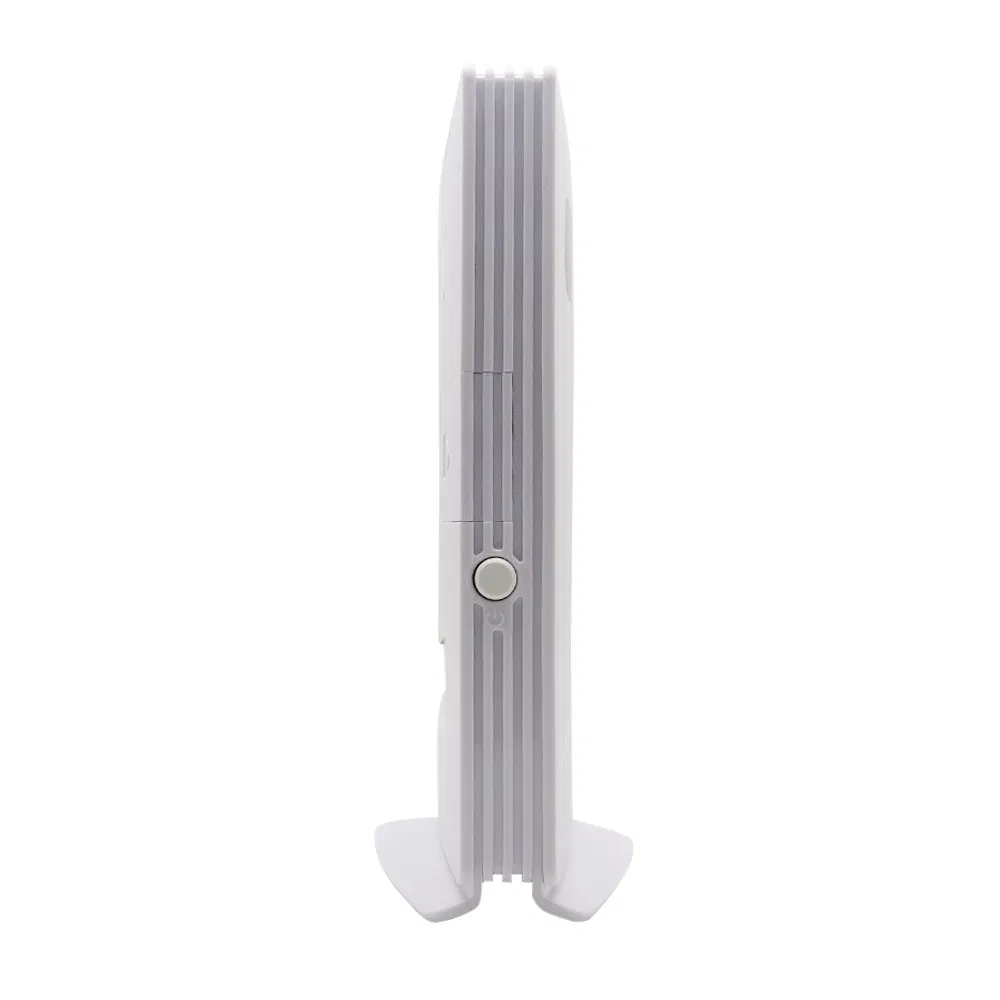

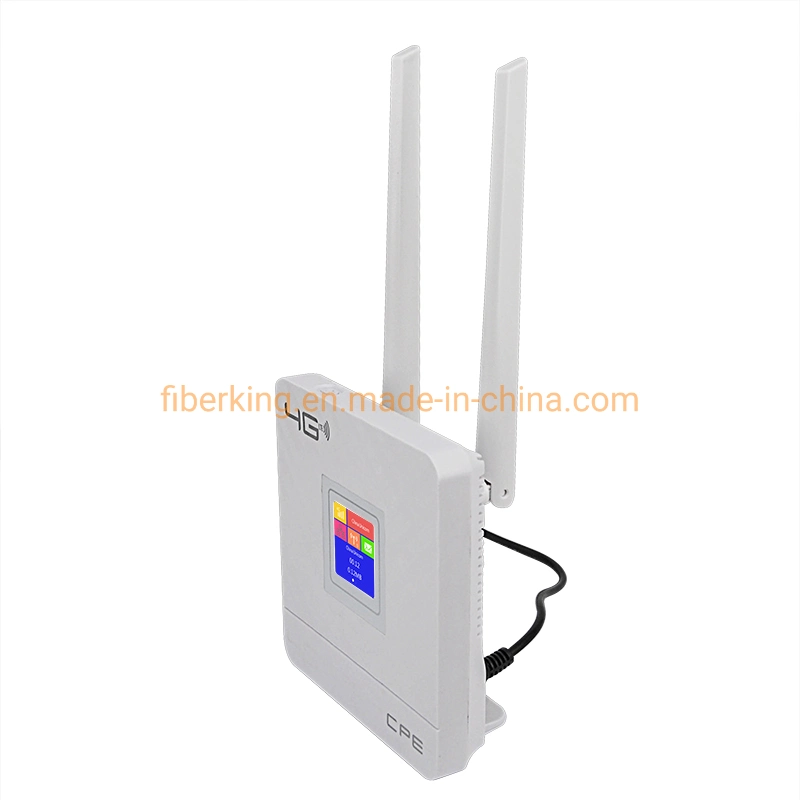

Sunhans Cat4 High Speed SIM Card 2g/3G/4G Lte CPE WiFi Router with Antenna for Indoor Home
CPE Wireless 2G/3G/4G LTE High Speed 300Mbps WiFi Router with SIM CardMain futures : 1. Qualcomm chipset, better performance. 2. High Speed: 150Mbps via 4G LTE, 300Mbps via WiFi. 3. Strong signal with 2 external SMA antennas. 4. Support Max. 32 WiFi devices online simultaneously. 5. ......
Send Inquiry
Product Description
CPE Wireless 2G/3G/4G LTE High Speed 300Mbps WiFi Router with SIM Card
Main futures :
1. Qualcomm chipset, better performance.
2. High Speed: 150Mbps via 4G LTE, 300Mbps via WiFi.

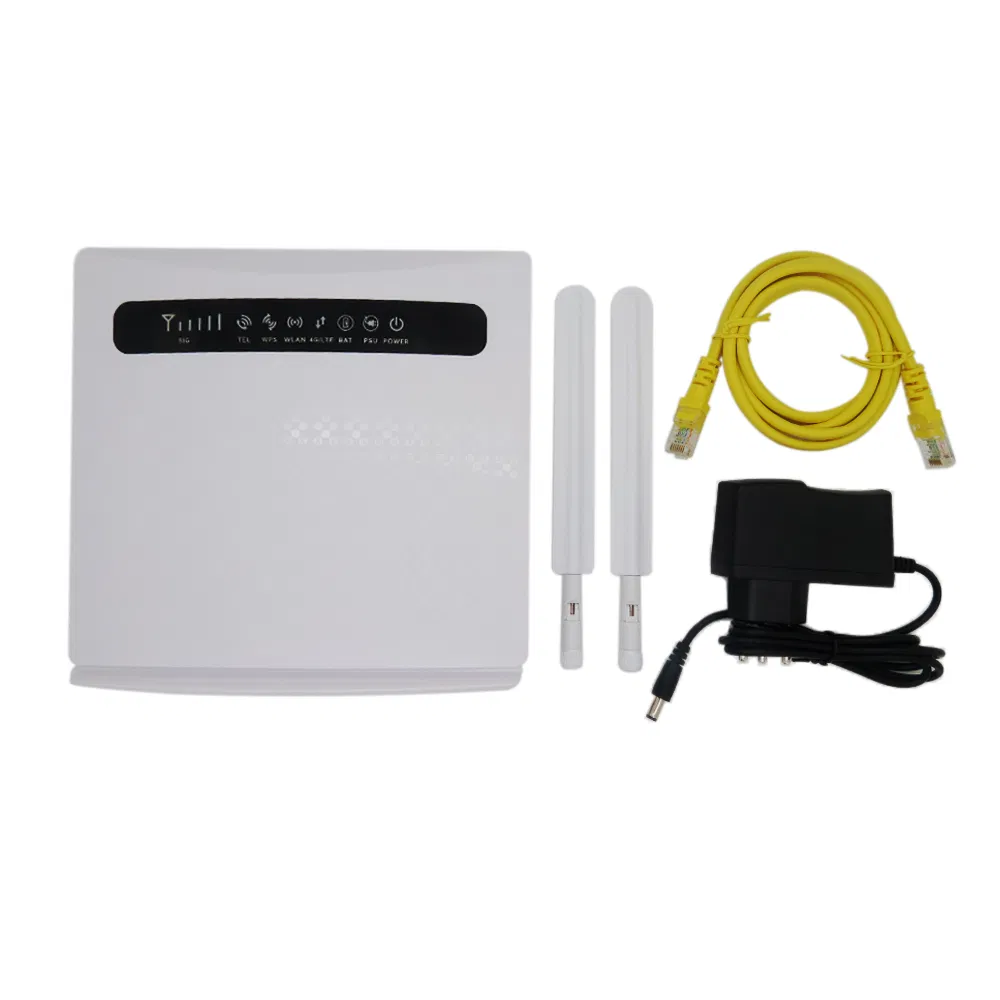

3. Strong signal with 2 external SMA antennas.
4. Support Max. 32 WiFi devices online simultaneously.
5. Build-in battery: keep working when power is off suddenly.
Parameters:

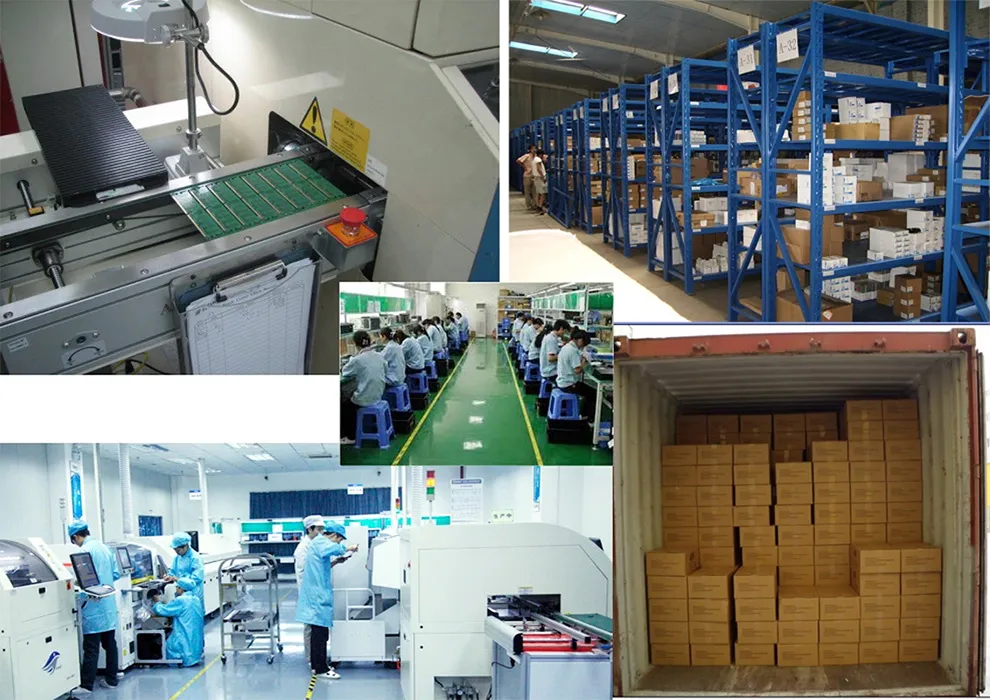

About us
Our Service:
♦ Test process : every items will be testing before shipping, to make sure the quality.
♦ Short leading time: 1-2.5 working days for samples or small order, 10-15 working days for bulk order.
♦ One year warranty: for you without trouble of after-sales maintenance.
♦ Quality Guarantee: Return rate is only 0.001.
♦ Support small orders: help your business from small to big.
♦ OEM & ODM are welcome.
Main futures :
1. Qualcomm chipset, better performance.
2. High Speed: 150Mbps via 4G LTE, 300Mbps via WiFi.
3. Strong signal with 2 external SMA antennas.
4. Support Max. 32 WiFi devices online simultaneously.
5. Build-in battery: keep working when power is off suddenly.
Parameters:
| SHFi4G8X5 | Technical specifications |
| 4G Platform | Qualcomm MDM9225 |
| Qualcomm MDM9225 | LTE-FDD/ TDD-LTE/ WCDMA |
| LTE | Option 1: FDD:B1/B2/B3 or B4/B5/B7/B8/B28 TDD:B38/B39/B40/B41(can be customized) Option 2: FDD:B1/B2/B3 or B4/B5/B7/B8/B17/B20 TDD:B38/40(can be customized) Please confrim your frequencies, frequencies can be customized |
| 3G/2G | WCDMA:B1/B2/B5/B8 GSM: B2/B3/B5/B8 |
| Rate level | CAT4 DL:150Mbps / UL:50Mbps |
| Transmitting power | 23dBm |
| Antenna | External antenna and internal antenna,Gain>3db |
| WiFi | |
| WiFi Band | 2.4GHz,802.11b/g/n |
| WiFi Rate | Highest rate 300Mbps |
| WiFi Standard | IEEE 802.11b/g/n |
| WiFi RF Characteristics | Highest transmit power 22dBm,sensitivity is better than -77dBm |
| Number of linking users | Maximum 32 user connected |
| CSFB | support |
| Network Features | |
| Networking protocols | PPTP,L2TP,PPPoE,DHCP,Client/Server,NAPT,NTP |
| High-speed router | Built-in DHCP Server,DNS Clinet,support NAT |
| Dialing function | Manual dialing,autodialing,PPPOE dialing |
| SIM card Features | Support 1.8V/3V powered SIM/USIM card,Support encryption card,Support |
| Management | |
| Web smart | support |
| Centralized network management | support |
| TR069 | support |
| Remote Upgrade | support |
| Security | |
| Security Features | Support port filtering, IP filtering, MAC filtering, URL filtering, MAC address binding |
| Speed control | Support UL and DL speed limit , port speed limit |
| Hardware | |

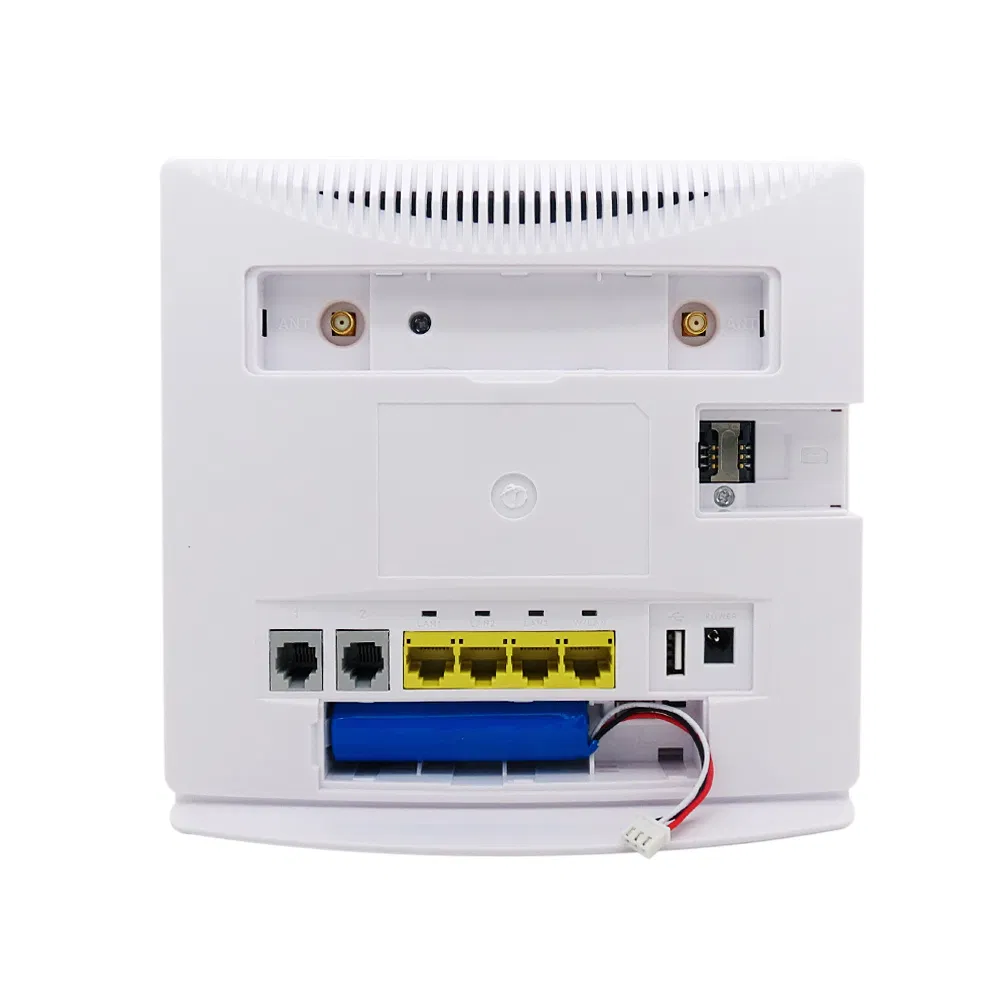

| LAN/WAN | RJ-45x4 |
| FXS | RJ-11x2 by paralleling(optional) |
| PSU | DC2.0 15V @ 500mA |
| Power | 3.0W |

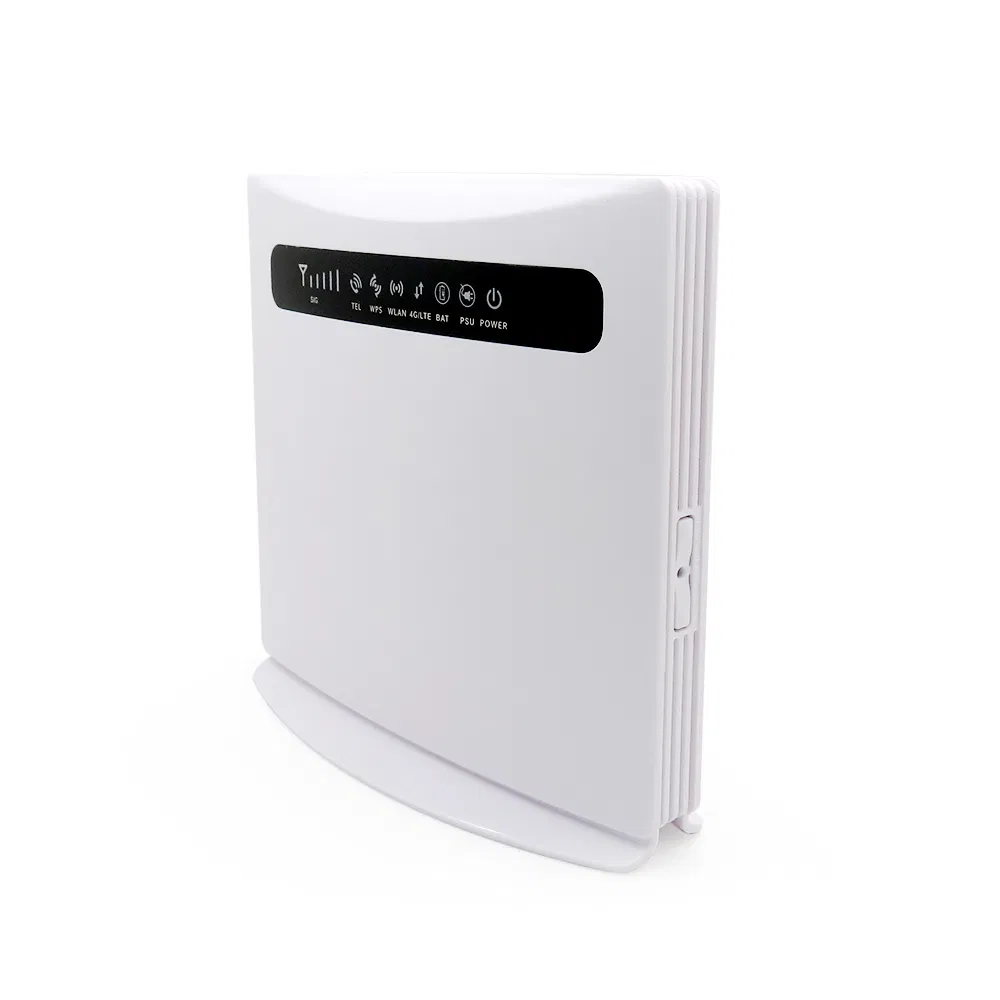

| Light | power,network,signal,LAN |
| Physical Characteristics | |
| Working temperature | -20~50ºC |
| Stock temperature | -40~85ºC |
| Huminity | ≤95% |
About us
Our Service:
♦ Test process : every items will be testing before shipping, to make sure the quality.
♦ Short leading time: 1-2.5 working days for samples or small order, 10-15 working days for bulk order.
♦ One year warranty: for you without trouble of after-sales maintenance.
♦ Quality Guarantee: Return rate is only 0.001.
♦ Support small orders: help your business from small to big.
♦ OEM & ODM are welcome.
