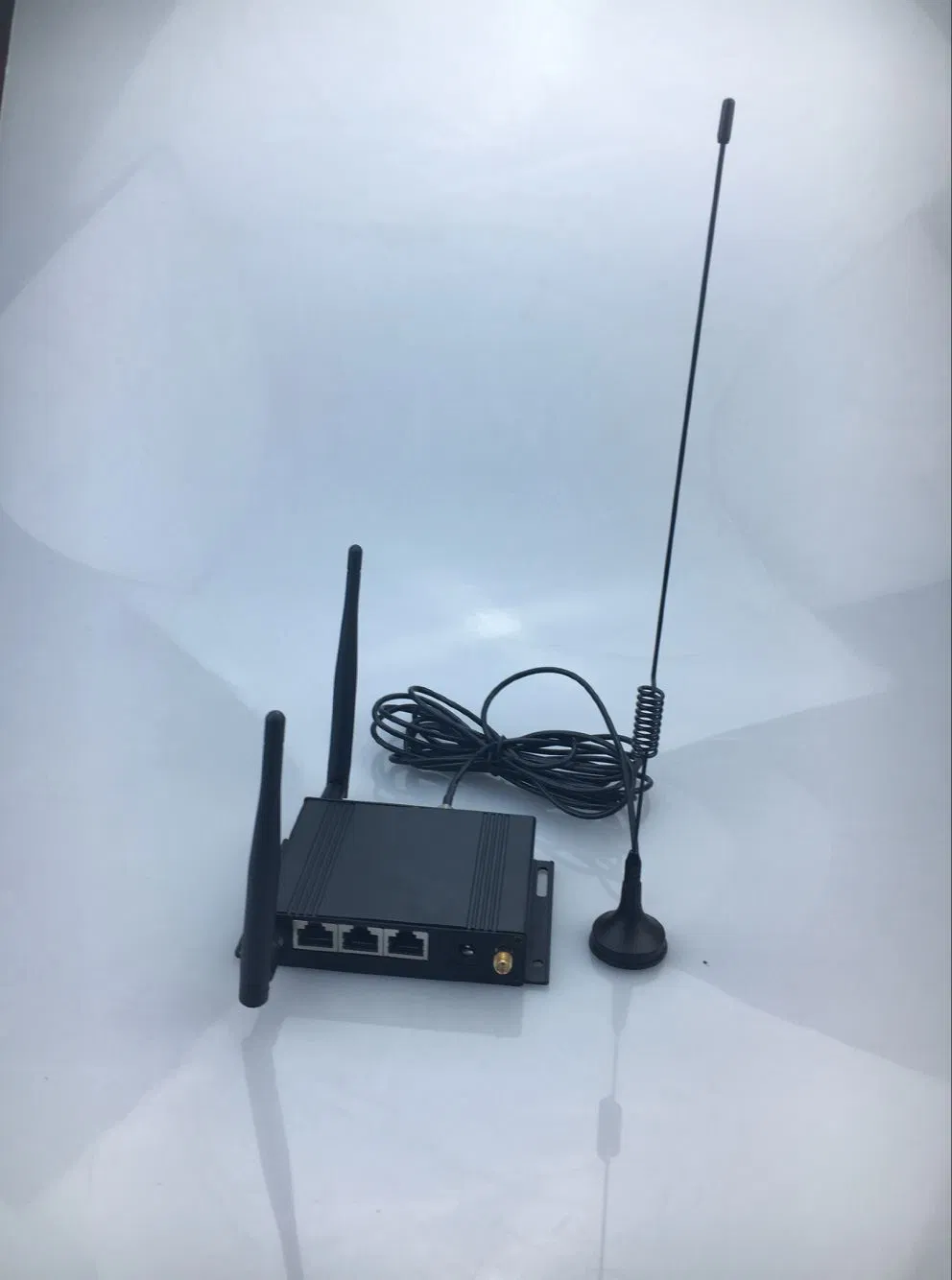

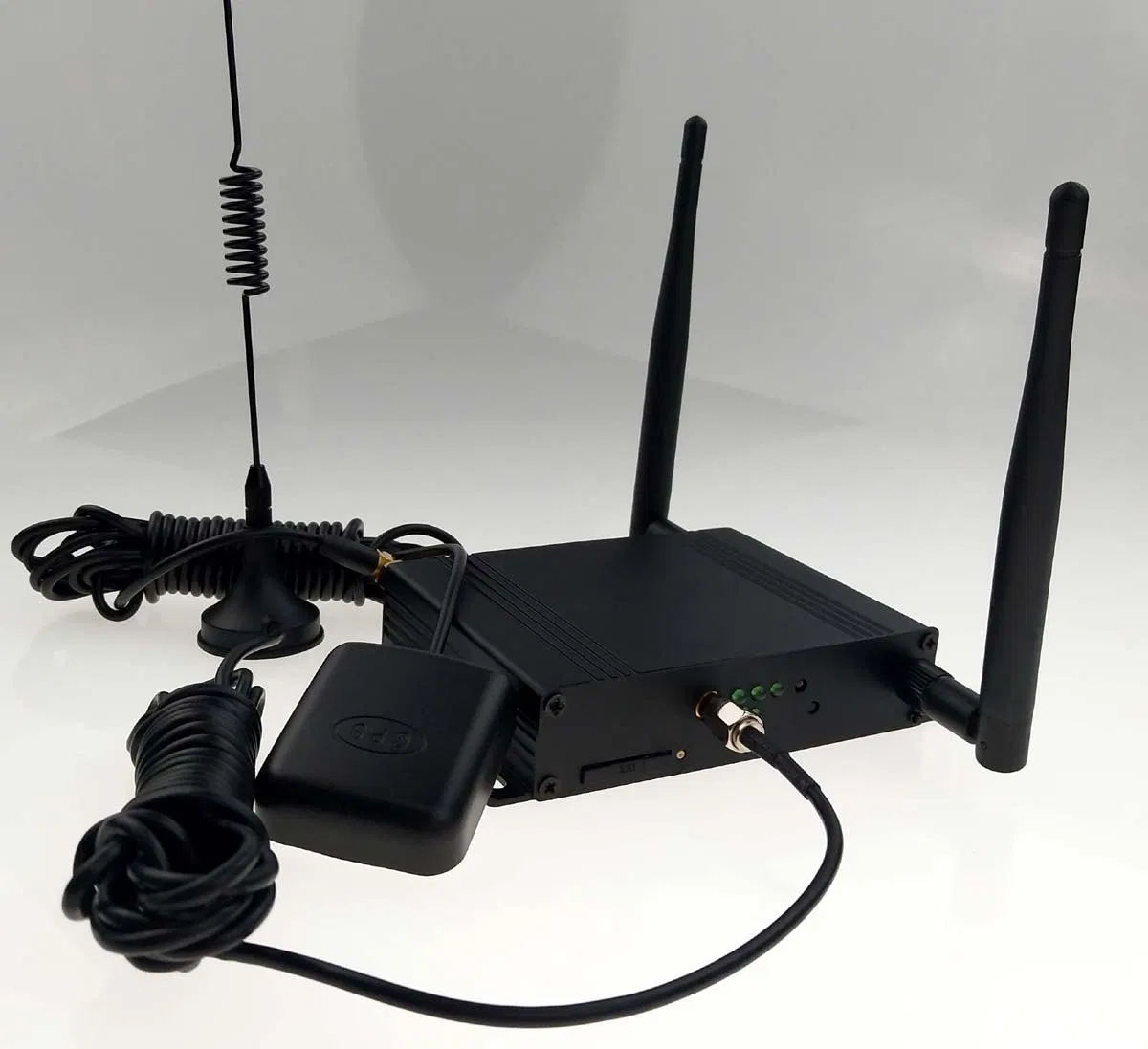

Small Size Lte Wi-Fi Indoor Router for Soho Use

Product Description

small size LTE Wi-Fi indoor router for SOHO use

• 3G/4G LTE data transmission;
• Active auto connect;
• Embedded watchdog , Auto recovery;
• 2*2 4G/WIFI MIMO antenna;
• Integrate 3G/4G LTE,WIFI,GPS feature;
• WIFI High quality performance without congestion;

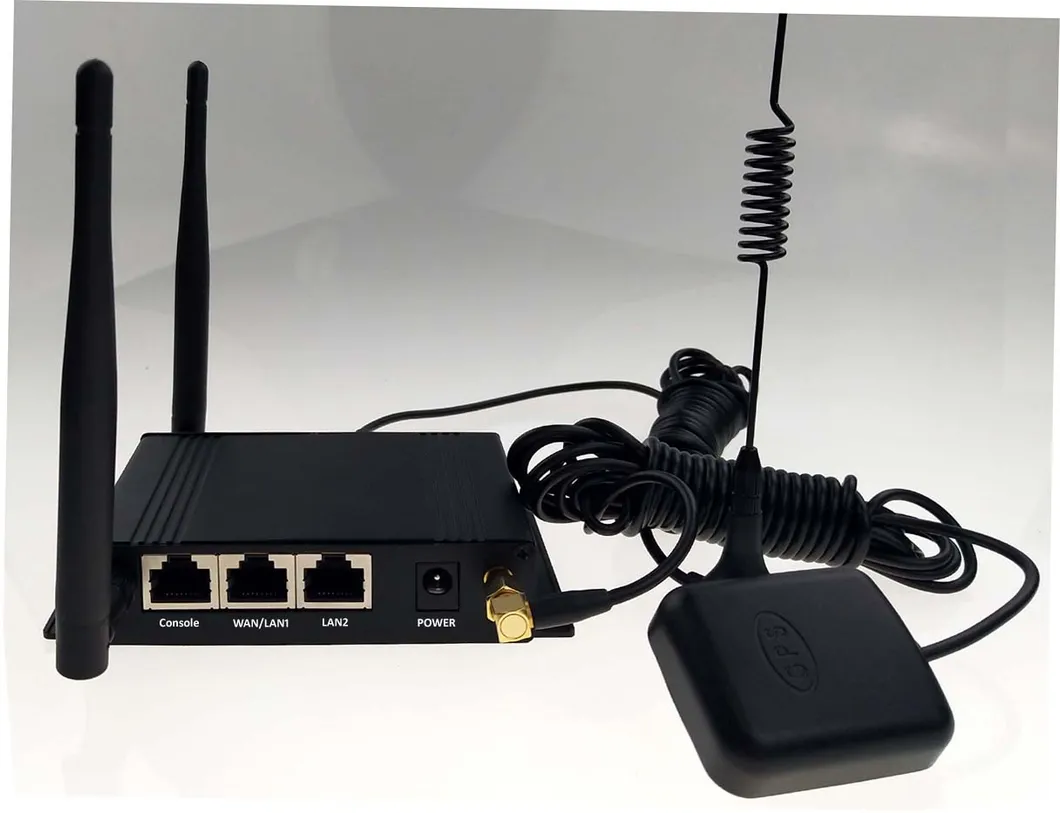

• 1 WAN/1 LAN or 2 LAN ports, One console port;
• With SIM card slot;
• Wide power supply: +5V~+48V/1A

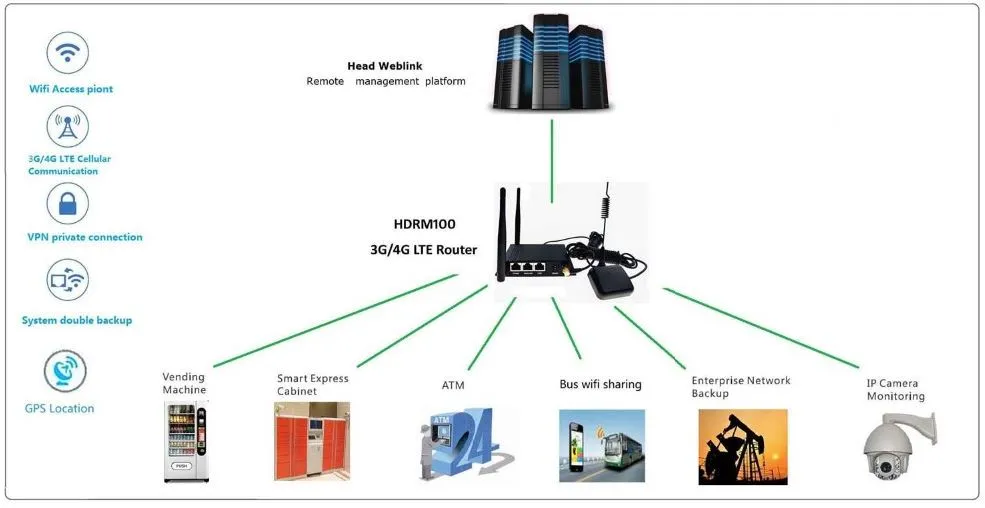

• Remote management platform;
• Firmware version: Linux or Openwrt;
• Small size dimension:115mm*73mm*20mm ,

Small Size Lte Wi-Fi Indoor Router for Soho Use

Item	Product specification
CPU	MTK7628
MEMORY	FLASH 16MByte, DDR2 64MByte
Embeddedsystem	Linux or Openwrt
Network	FDD LTE,TDD LTE,WCDMA,EVDO,GPRS,GSM,CDMA 1X
WIFI	WIFI 802.11 b/g/n, 300Mbps
Data rate	4g: CAT 3, DL 100bps , UL 50Mbps ( Or CAT 4 DL 150Mbps , UL 50Mbps) WCDMA HSPA+: DL 42Mbps, UL 5.76Mbps GPRS DL/UL 85.6Kbps
WIFI Tx Power	14 dBm(11g),17 dBm(11b),14dBm(11n)
WIFI Rx Sensitivity	<-70 dBm@54Mpbs
2G/3G/4G Transmitting Power	GSM/GPRS: Class 4 (2W); GSM850,EGSM900 Class 1 (1W): DCS1800,PCS1900 EDGE: Class E2 (0.5W): GSM850,EGSM900 Class E1 (0.4W): DCS1800,PCS1900 UMTS: Class 3 (0.25W): WCDMA Class 3 (0.25W): CDMA2000 Class 2 (0.25W): TD-SCDMA LTE:Class 3 (0.25W)
GPS	GPS/GLONASS,Protocol: NMEA
WIFI Frequency	2.4G
Hardware interface	2*LAN 10/100Mbps, Console port(Be used as DTU, is available to connect serial devices)
RF connectors	SMA connector , 4G(female),WIFI(male),the characteristic impedance 50Ω
Security Encryption	Support WEP,WPA,WPA2 encryption ways
Protocol	PPTP,L2TP,IPSEC VPN,TCP,UDP, DHCP,HTTP,DDNS,TR-069,GRE, HTTPS, SSH,Open VPN,SNMP
LED Indicator	"SYS", "Net", "WAN", "LAN",RSSI
SIM/UIM	Standard draw card interface, support 1.8V/3V SIM/UIM card, built-in ESD protection
Key button	Reset
Standard Power	DC 12V/1A
Power Supply	DC 5~48V
Working current	2A (Max Current)
Temperature	Operating Temperature -40~+75ºC Storage Temperature -45~+85ºC
Environment humidty	95%
Case	Aluminum Alloy Shell
Size	115mm73mm20mm
Weight	160g

Frequency bands
2G Version	GSM/GPRS 850/900/1800/1900MHz
3G Version	WCDMA. 850/1900MHz, 850/2100MHz & 900/2100MHz	EVDO 800MHz & 800/1900MHz
3G Version	GSM. 850/900/1800/1900MHz	EVDO 800MHz & 800/1900MHz
4G Version	Version A	LTE FDD. B2,4,5,17
	Version A	UMTS. 850/1900MHz
		LTE FDD. B1,3,7,8
	Version C	LTE TDD B38, B39, B40, B41
		UMTS. 900/2100MHz
		TD-SCDMA. 1880~1920MHz & 2010~2025MHz
		GSM. 900/1800MHz
	Version E	LTE FDD. B1,3,7,8,20
		LTE TDD B38, B40
		UMTS. 900/2100MHz
		GSM. 900/1800MHz
		LTE FDD. B1,B3,B8,B18,B19
	Version JC	LTE TDD. B41
		UMTS. B1,B6,B8
		GSM. 900/1800MHz
	Version JE	LTE FDD. B1,B8
		UMTS. B1,B8
		GSM. 900/1800MHz
		Seven-Band LTE-FDD B1/B3/B4/B5/B7/B8/B28
	Version SA	Tri-Band LTE-TDD B38/B40/B41
		Qual-Band UMTS/HSDPA/HSPA+ B1/B2/B5/B8
		Qual-Band GSM/GPRS/EDGE B2/B3/B5/B8
Data rates
3G LTE router	WCDMA. DL 14.4Mbps, UL 5.76Mbps	EVDO. DL 3.1Mbps, UL 1.8Mbps
4G LTE router	FDD LTE. DL,100Mbps UL,50Mbps	Or
	TDD LTE. DL,50Mbps UL,25Mbps	LTE Category 4 - 150 Mbps (DL)
	WCDMA. DL 42Mbps UL5.76Mbps	LTE Category 4 - 50 Mbps (UL)
	TD-SCDMA. DL 2.8Mbps UL 2.2Mbps
