Public Car Bus WiFi 4G Wireless Router with SIM Card Slot

Product Description

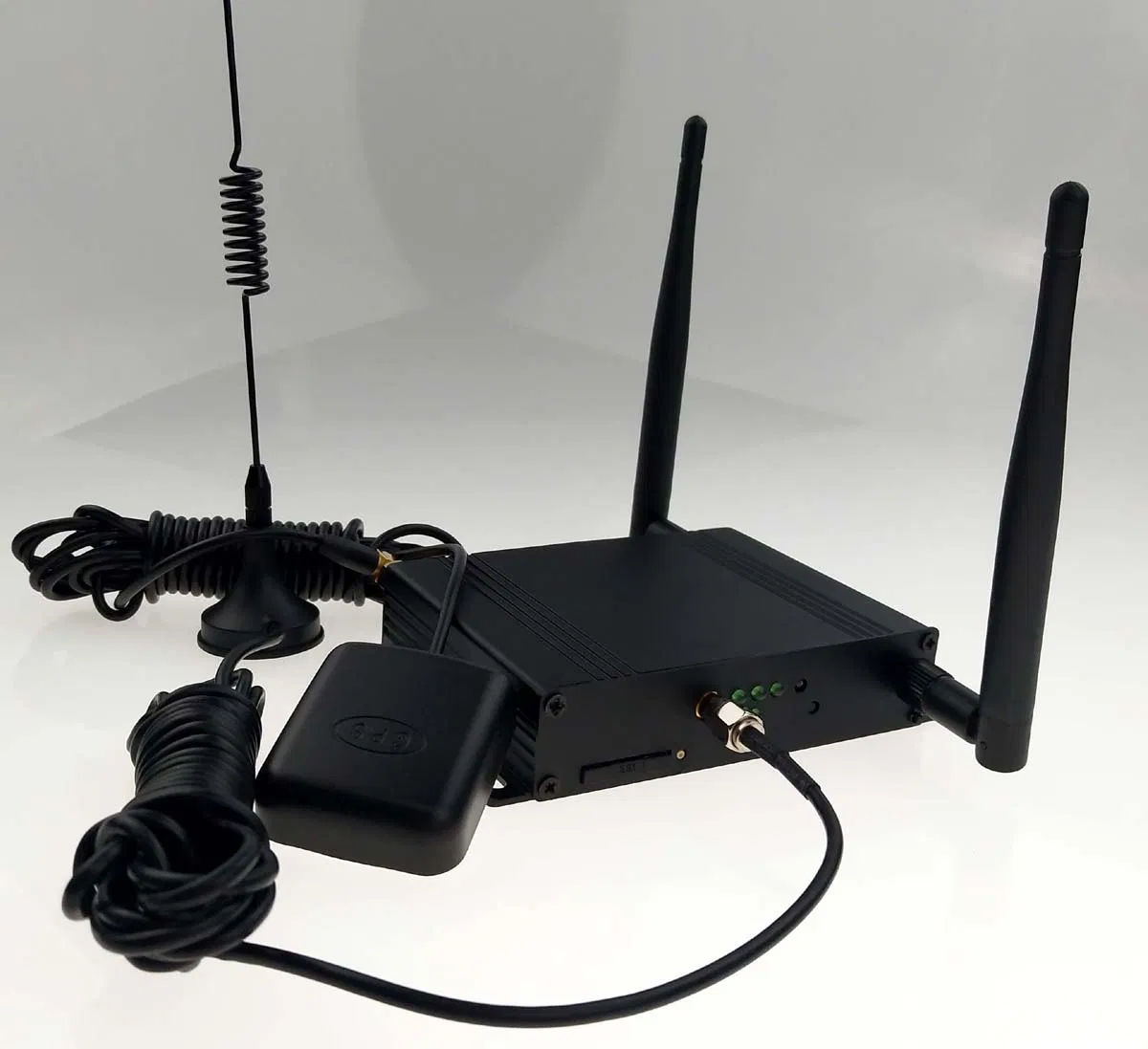

HDRM100 4G LTE Router

• 3G/4G LTE data transmission;

• Active auto connect;

• Embedded watchdog , Auto recovery;

• 2*2 4G/WIFI MIMO antenna;

• Integrate 3G/4G LTE,WIFI,GPS feature;

• WIFI High quality performance without congestion;

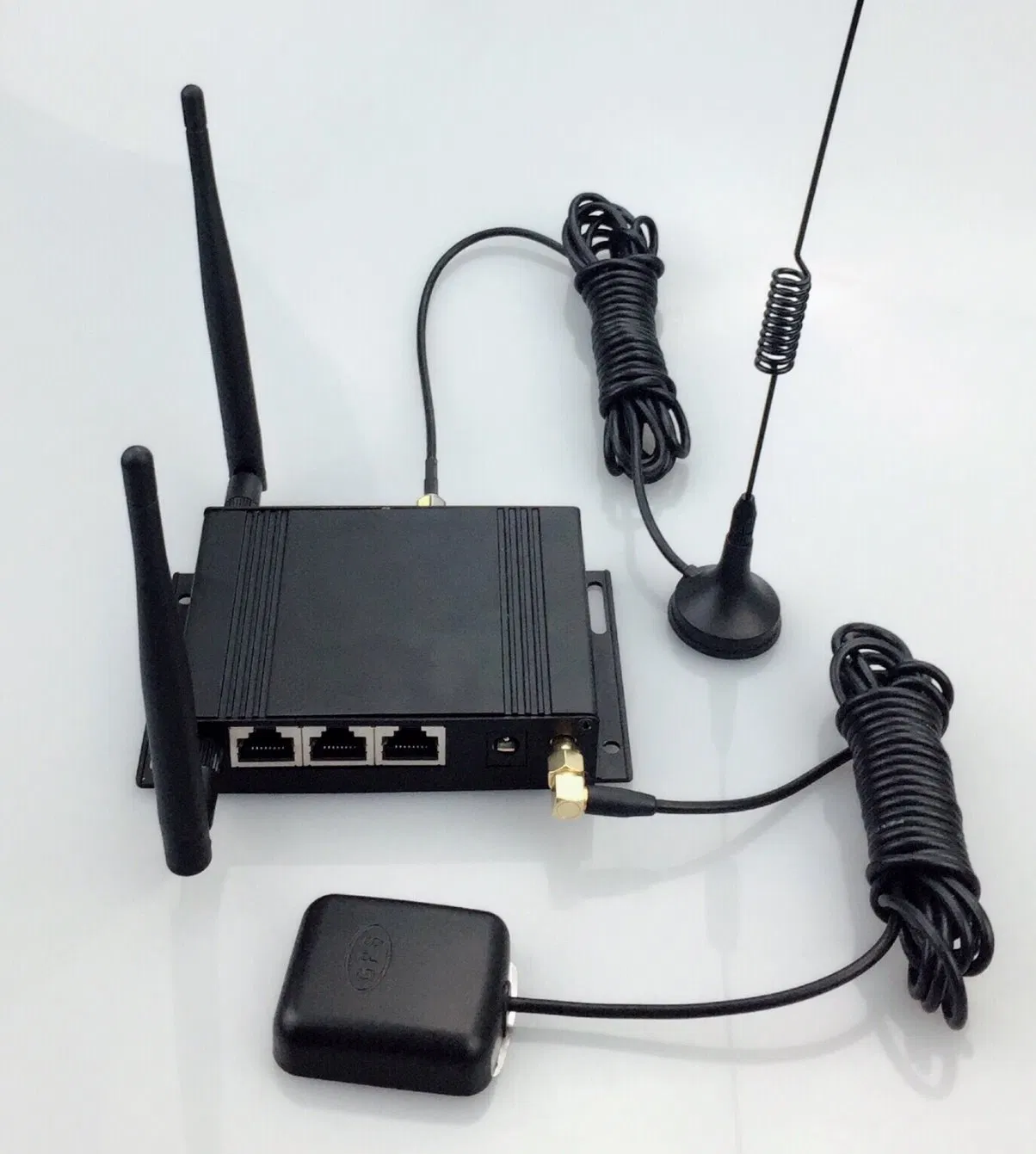

• 1 WAN/1 LAN or 2 LAN ports, One console port;

• With SIM card slot;

• Wide power supply: +5V~+48V/1A

• Remote management platform;

• Firmware version: Linux or Openwrt;

• Small size dimension:115mm*73mm*20mm

Any question you can contact me: +86 18565785009;

	Product specification

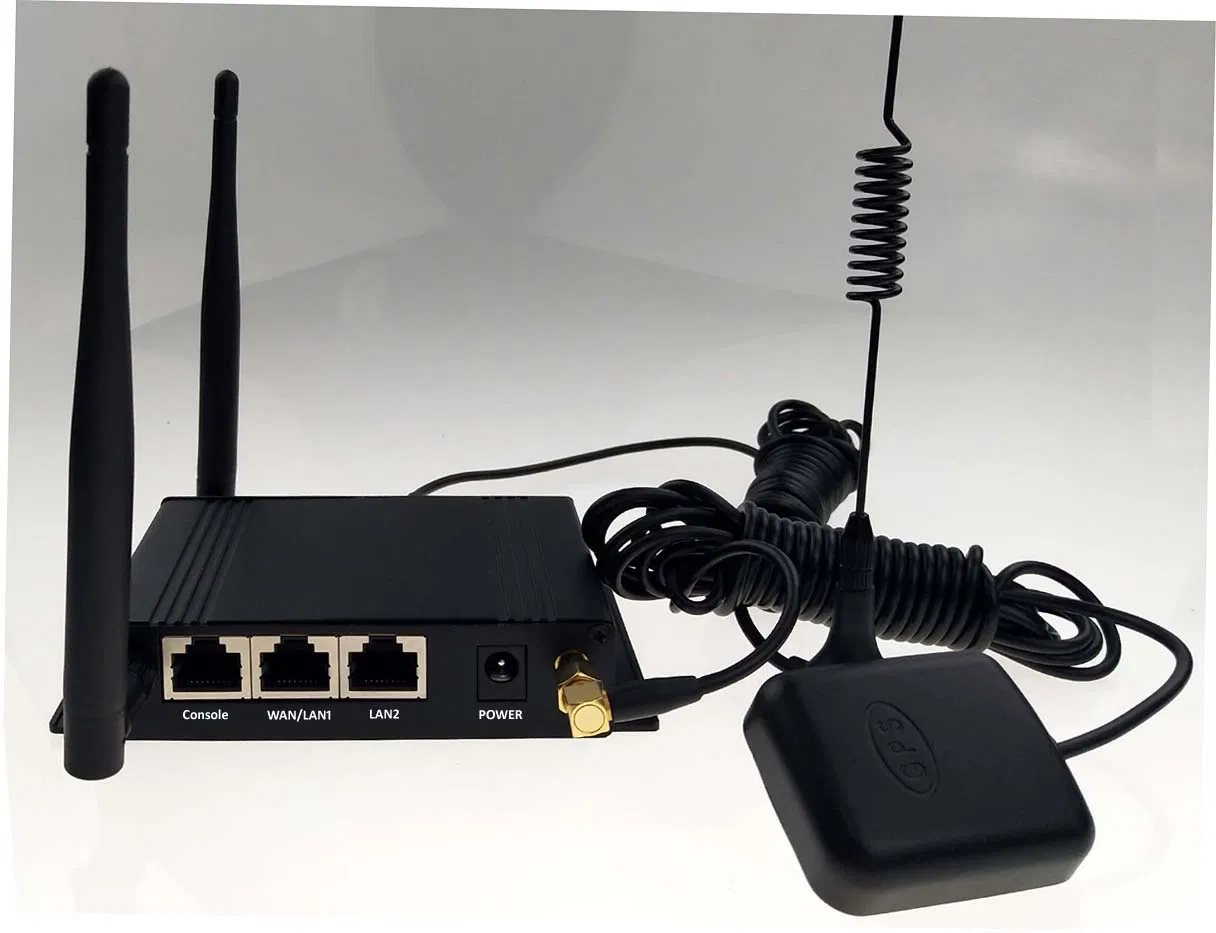

Hardware interface	2*LAN 10/100Mbps, Console port(Be used as DTU, is available to connect serial devices)

RF connectors	SMA connector , 4G(female),WIFI(male),the characteristic impedance 50Ω
Security Encryption	Support WEP,WPA,WPA2 encryption ways
Protocol	PPTP,L2TP,IPSEC VPN,TCP,UDP, DHCP,HTTP,DDNS,TR-069,GRE, HTTPS, SSH,Open VPN,SNMP

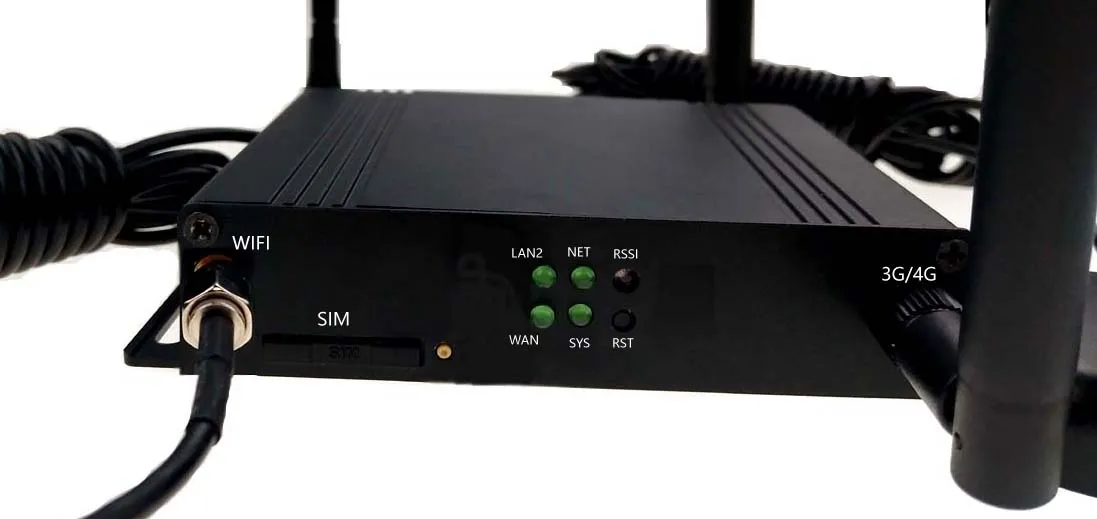

LED Indicator	"SYS", "Net", "WAN", "LAN",RSSI
SIM/UIM	Standard draw card interface, support 1.8V/3V SIM/UIM card, built-in ESD protection
Key button	Reset
Standard Power	DC 12V/1A
Power Supply	DC 5~48V
Working current	2A (Max Current)
Temperature	Operating Temperature -40~+75ºC
Temperature	Storage Temperature -45~+85ºC
Environment humidty	95%
Case	Aluminum Alloy Shell
Size	115mm73mm20mm
Weight	160g

2G/3G/4G Frequency bands

Version C
        LTE-FDD. B1,3,7,8
        LTE-TDD.B38,39,40,41
        WCDMA.900/2100MHz
        TDSCDMA. band A and band B
        GSM.900/1800MHz
Version CE.
      LTE-FDD. B1,B3,B8
        LTE-TDD.B38,B39,B40,B41
       WCDMA.900/2100MHz
       CDMA 1X/EVDO  BC0
       TDSCDMA. B34,B39
       GSM.900/1800MHz
Version E.
        LTE-FDD. B1,3,7,8,20
        LTE-TDD.B38,40
       WCDMA.900/2100MHz
       GSM.900/1800MHz
Version A.
     LTE-FDD. B2,4,5,17
      WCDMA.850/1900MHz
Version SA.
        LTE-FDD. B1/B3/B4/B5/B7/B8/B28
        LTE-TDD B38/B40/B41
       UMTS/HSDPA/HSPA+  B1/B2/B5/B8
       GSM/GPRS/EDGE  B2/B3/B5/B8
Version JC
      LTE FDD. B1,B3,B8,B18,B19

         LTE TDD. B41
         UMTS. B1,B6,B8
         GSM. 900/1800MHz
Version JE
       LTE FDD. B1,B8
          UMTS. B1,B8
          GSM. 900/1800MHz

Item	Product specification
CPU	MTK7628
MEMORY	FLASH 16MByte, DDR2 64MByte
Embedded system	Linux or Openwrt
Network	FDD LTE,TDD LTE,WCDMA,EVDO,GPRS,GSM,CDMA 1X
WIFI	WIFI 802.11 b/g/n, 300Mbps
Data rate	4g: CAT 3, DL 100bps , UL 50Mbps ( Or CAT 4 DL 150Mbps , UL 50Mbps)
	WCDMA HSPA+: DL 42Mbps, UL 5.76Mbps
	GPRS DL/UL 85.6Kbps
WIFI Tx Power	14 dBm(11g),17 dBm(11b),14dBm(11n)
WIFI Rx Sensitivity	<-70 dBm@54Mpbs
2G/3G/4G Transmitting Power	GSM/GPRS: Class 4 (2W): GSM850,EGSM900 CLass 1 (1W): DCS1800, PCS1900 EDGE: Class E2 (0.5W): GSM850,EGSM900 Class E1 (0.4W): DCS1800,PCS1900 UMTS: Class 3 (0.25W): WCDMA Class 3 (0.25W): CDMA2000 Class 2 (0.25W): TD-SCDMA LTE: Class 3 (0.25W)
GPS	GPS/GLONASS,Protocol: NMEA
WIFI Frequency	2.4G

Public Car Bus WiFi 4G Wireless Router with SIM Card Slot

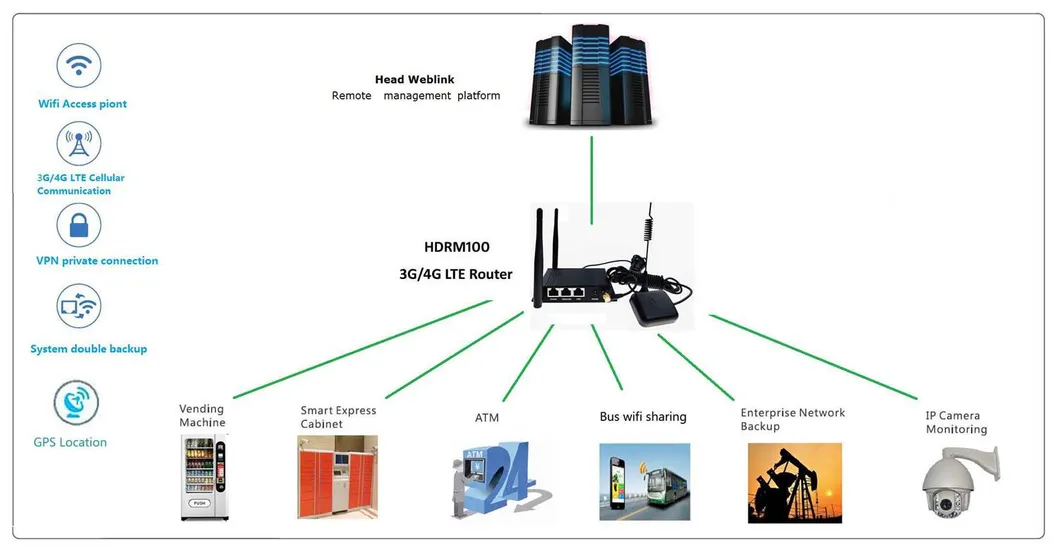

Application"

CeBIT Show Germany CeBIT Show In 2016:
Welcome our customer to join NETCOM show in Brazil in Y2017/Aug.

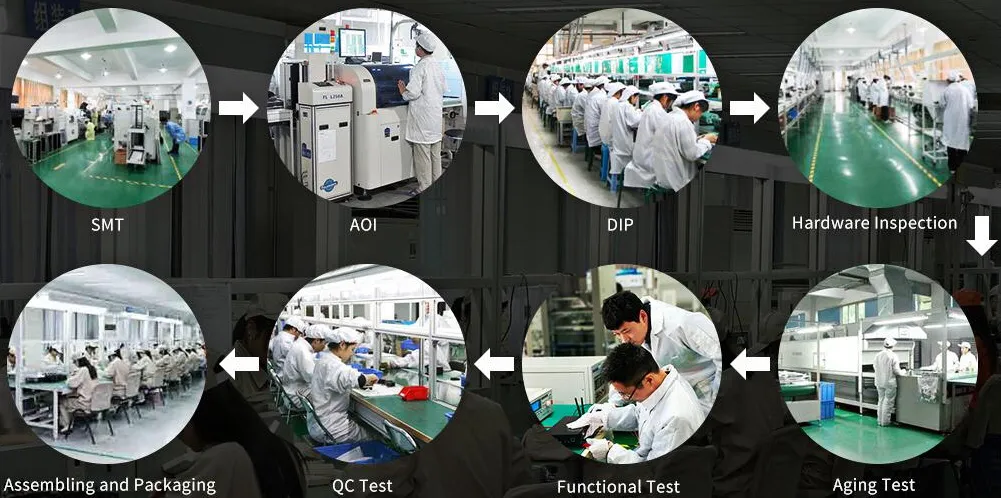

FACTORY:
