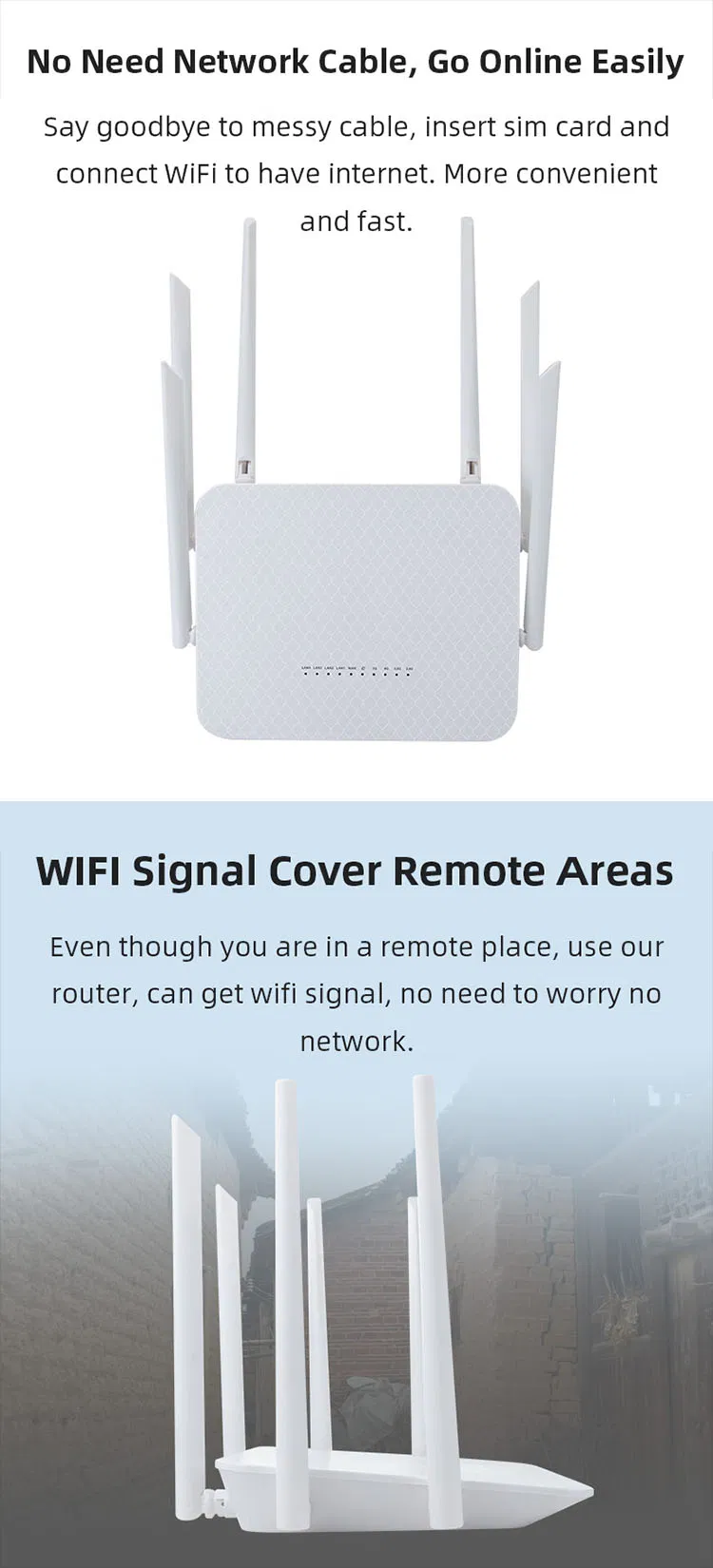

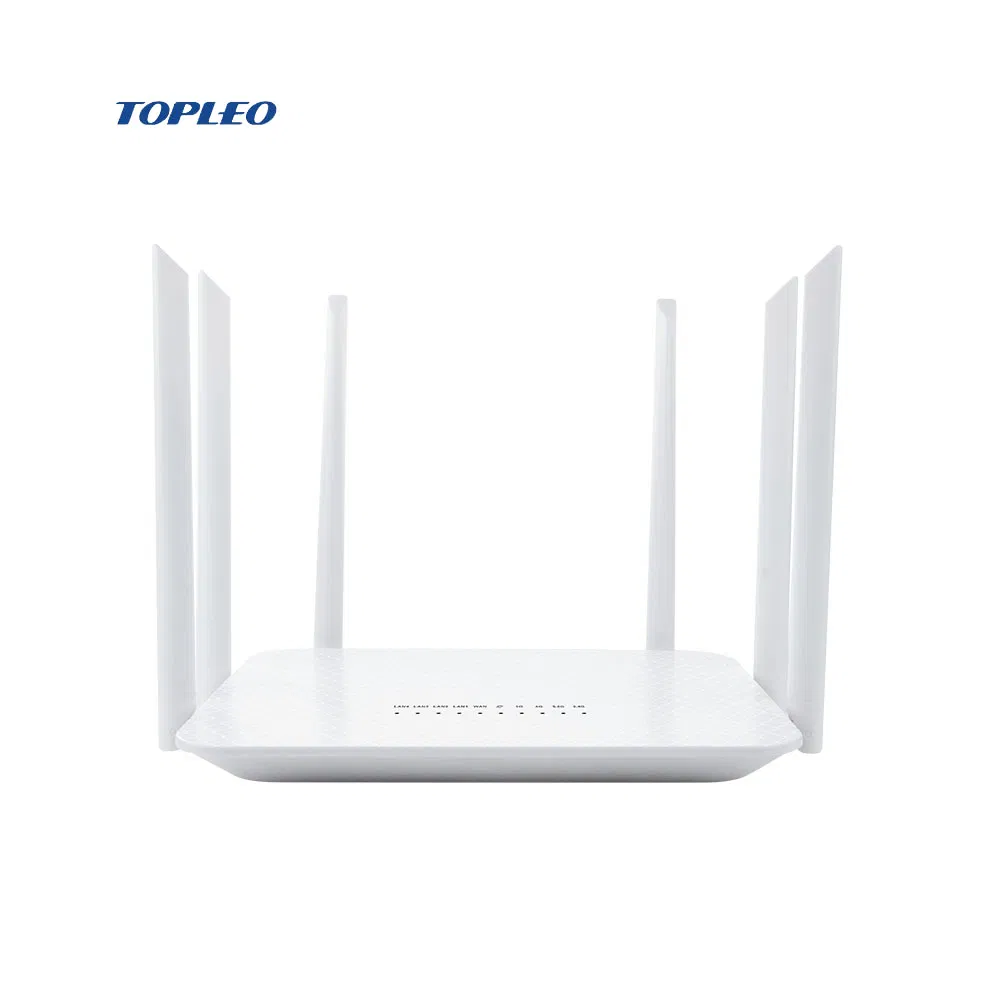

Portable Mesh 6 Antenna 2.4G 5g Dual Band WiFi Modem VPN Network Router 3G 4G LTE Wireless Routers with SIM Card Slot
Portable mesh 6 antenna 2.4g 5g dual band wifi modem vpn network router 3g 4g lte wireless routers with sim card slot Product DescriptionSpecification parameter1.Interface: Network , 4*Lan, 1*Wan2.SIM :2FF SIM3.Buttom :Reset4.DC Adapter:Input voltage 12V 1.5A5.Solution:Routing and WiFi chipset supp......
Send Inquiry
Product Description
Specification parameter

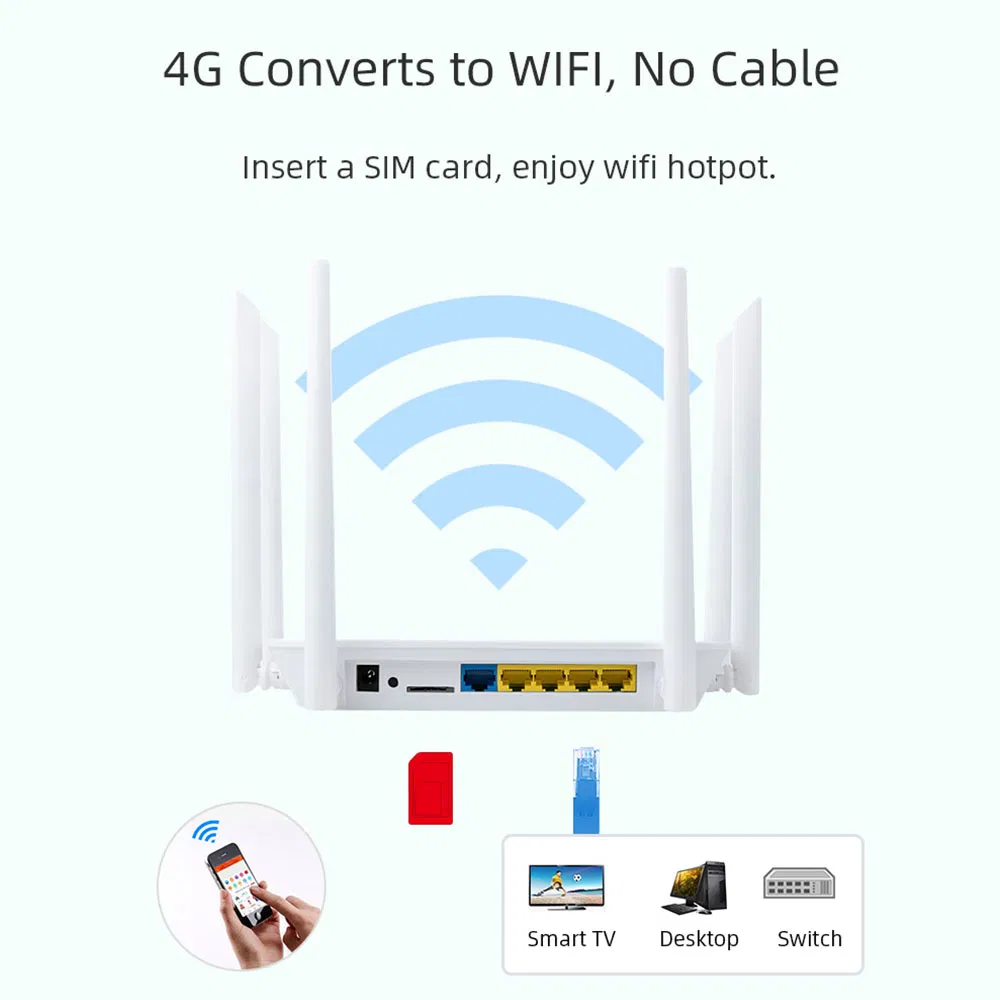

1.Interface: Network , 4*Lan, 1*Wan

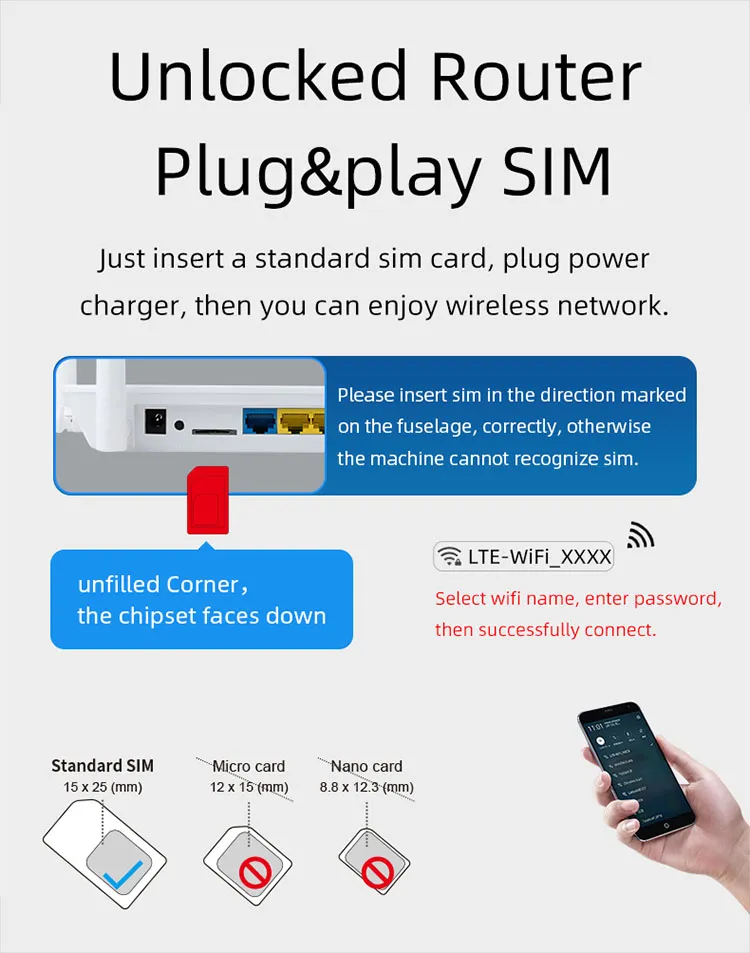

2.SIM :2FF SIM
3.Buttom :Reset
4.DC Adapter:Input voltage 12V 1.5A
5.Solution:Routing and WiFi chipset supplier,MTK
| Model | LT210 AC | ||
| Specification parameter | |||
| Interface | Network | 4*Lan, 1*Wan | |
| SIM | 2FF SIM | ||
| Buttom | Reset | ||
| DC Adapter | Input voltage: 12V 1.5A | ||
| Solution | Routing and WiFi chipset supplier | MTK | |

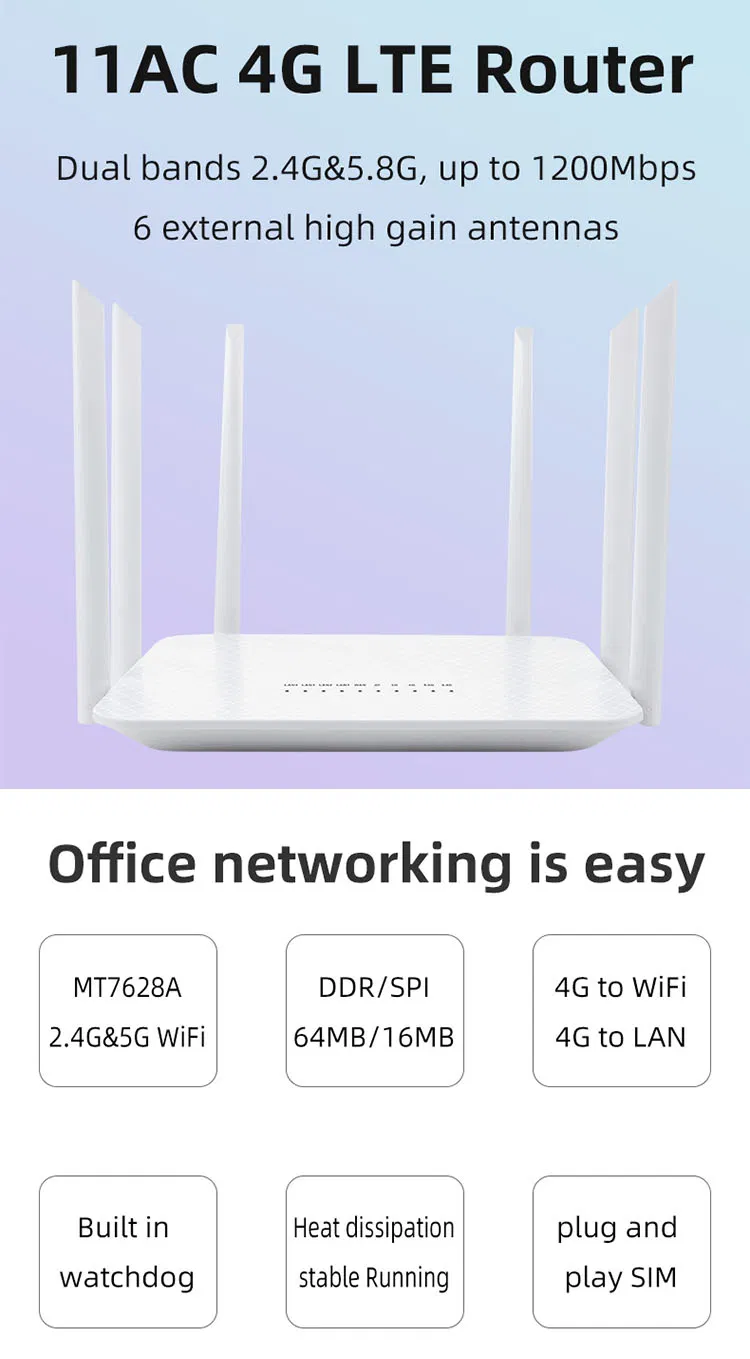

| BASE | Routing and WiFi chipset model | MT7628A+MT7612E
| |
| Routing and WiFi processor info | IEEE 802.11 a/b/g/n/ac
| ||
DDR/SPI | 64MBytes/16MBytes
| ||
| RF | Main antenna | Internal antenna | |
| Receive diversity antenna | Internal antenna | ||

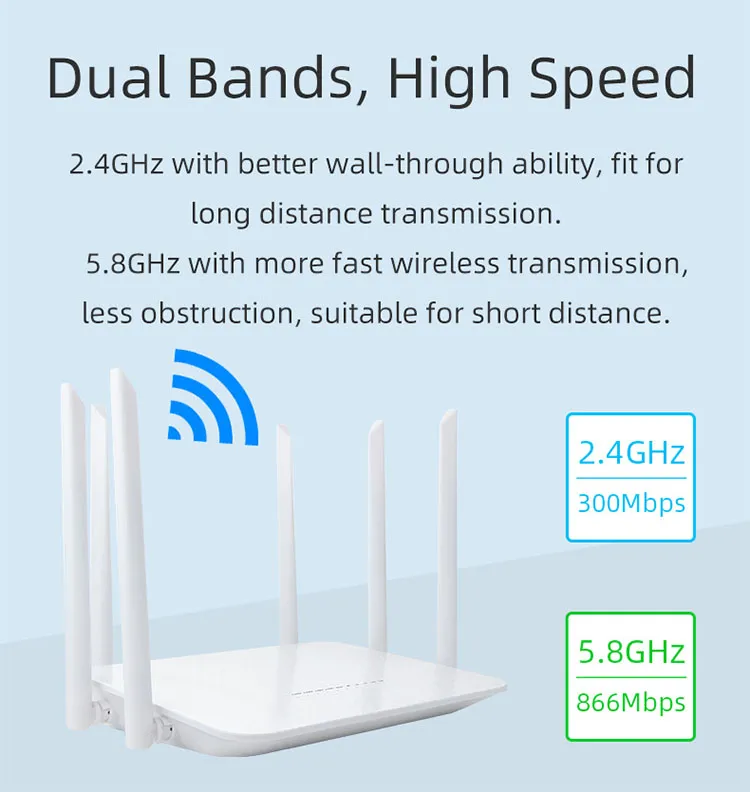

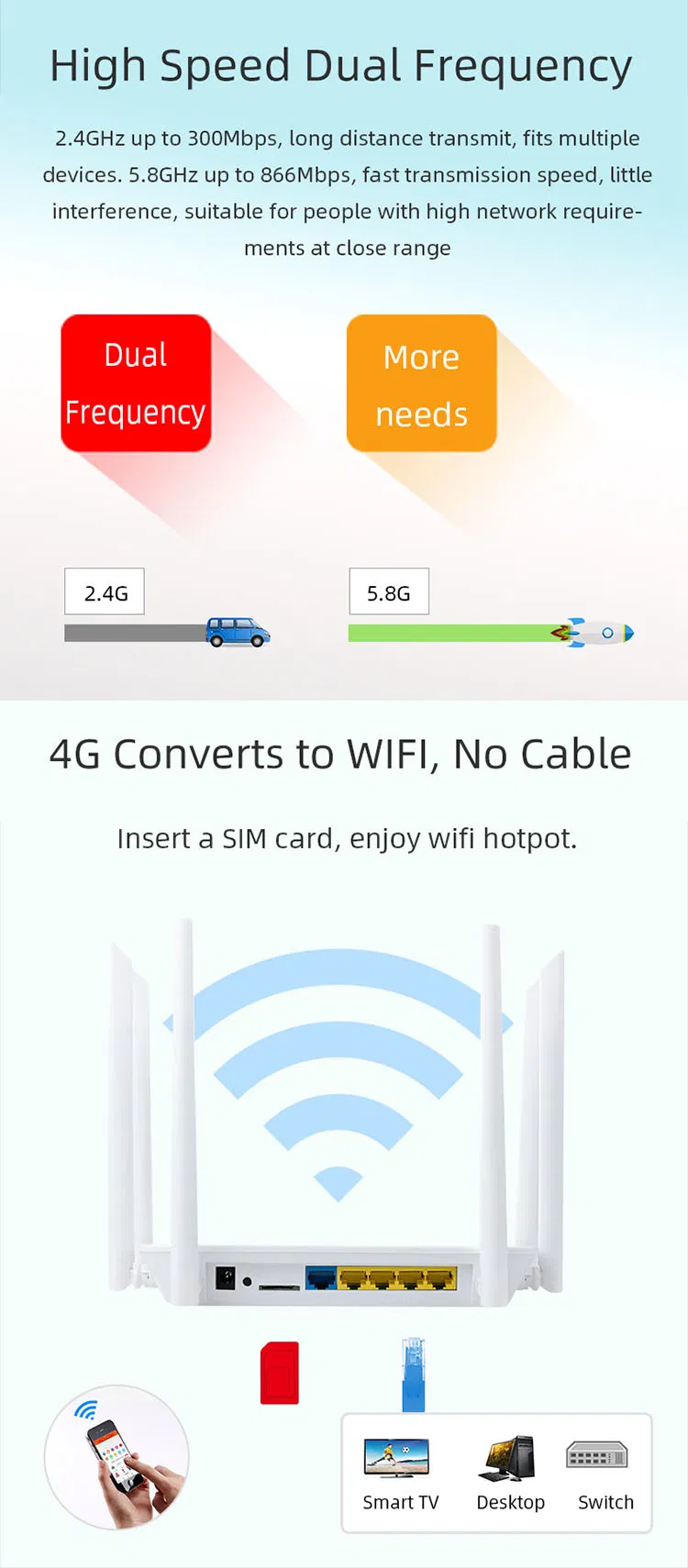

WiFi band | 2400MHz-2483.5MHz 5170MHz-5835MHz | ||
| MIMO for WiFi | 2.4G 5dbi X 2 5G 5dbi X 2 | ||
| Max. transmitter power for WiFi | 802.11a 14dBm±2dBm; 802.11b 22dBm±2dBm; 802.11g 18dBm±2dBm; 802.11n 16dBm±2dBm; 802.11ac 15dBm±2dBm; | ||
| Software | Language | Chinese&English | |

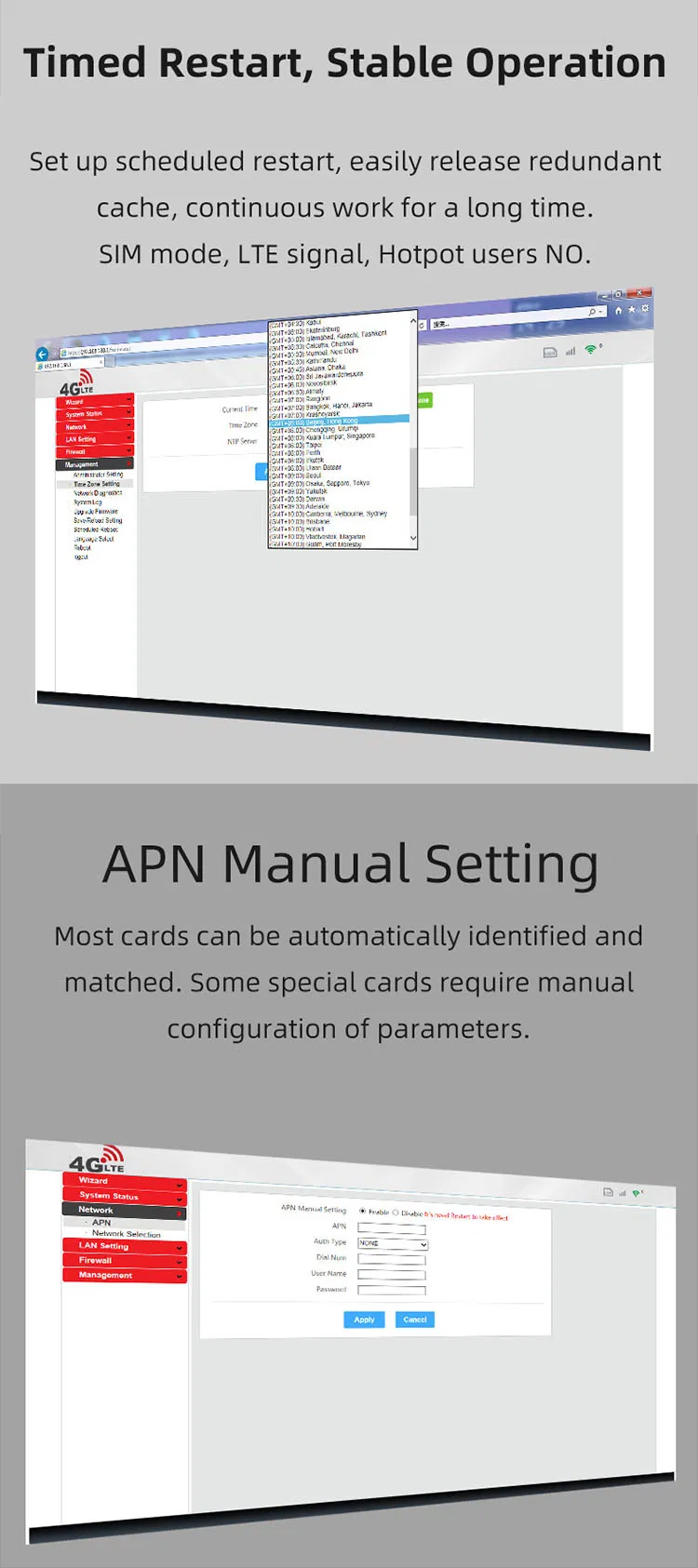

| APN Setting | Supported | ||
Device Settings | Supported | ||
WIFI Settings | Supported | ||
Routing Settings | Supported | ||
Firewall Settings | Supported | ||
| Technical standard | LED | Supported | |
WiFi standard | 802.11b/g/n(2*2 11n features) | ||
| WiFi security | WPA/WPA2 | ||
| OS | Windows XP,Windows Vista,Windows 7,Windows 10,MAC,Linux | ||
| Browser | IE (8.0 and later),Firefox (3.0 and later),Safari (4.0 and later),Opera (10.0 and later),Chrome (10.0 and later) | ||
| Envionment | Operating temperature | 0 to 50° C | |
| Storage temperature | -40 to 70° C | ||
| Humidity | 5% to 95% | ||
| Module information | |||
| Solution | Qualcomm solution CAT4 | ASR CAT4 | Qualcomm solution CAT6 |
| Inteface | LCC | LCC | Mini PCIe |
| Size | 29.0x32.0x2.4mm | 29.0x32.0x2.4mm | 51.0x30.0x4.3mm |
| Wireless chipset supplier | Qualcomm | ASR | Qualcomm |
| Wireless chipset model | MDM9607 | 1802S | MDM9x40 |
| Wireless processor info | CAT4 | CAT4 | CAT6 |
| USIM/SIM slot | Standard 6 PIN SIM card interface 3V SIM card and 1.8V SIM card | Standard 6 PIN SIM card interface 3V SIM card and 1.8V SIM card | Standard 6 PIN SIM card interface 3V SIM card and 1.8V SIM card |
| Operating temperature | -20 to 60° C | -35 to 75° C | -40°C ~ +85°C |
