              OEM Best Home 200m WiFi Range 300Mbps Hotspot VPN Mobile GSM CDMA 3G SIM 4G Lte Wireless Router
              • OEM Best Home 200m WiFi Range 300Mbps Hotspot VPN Mobile GSM CDMA 3G SIM 4G Lte Wireless RouterOEM Best Home 200m WiFi Range 300Mbps Hotspot VPN Mobile GSM CDMA 3G SIM 4G Lte Wireless Router
              • OEM Best Home 200m WiFi Range 300Mbps Hotspot VPN Mobile GSM CDMA 3G SIM 4G Lte Wireless RouterOEM Best Home 200m WiFi Range 300Mbps Hotspot VPN Mobile GSM CDMA 3G SIM 4G Lte Wireless Router
              • OEM Best Home 200m WiFi Range 300Mbps Hotspot VPN Mobile GSM CDMA 3G SIM 4G Lte Wireless RouterOEM Best Home 200m WiFi Range 300Mbps Hotspot VPN Mobile GSM CDMA 3G SIM 4G Lte Wireless Router
              • OEM Best Home 200m WiFi Range 300Mbps Hotspot VPN Mobile GSM CDMA 3G SIM 4G Lte Wireless RouterOEM Best Home 200m WiFi Range 300Mbps Hotspot VPN Mobile GSM CDMA 3G SIM 4G Lte Wireless Router

              OEM Best Home 200m WiFi Range 300Mbps Hotspot VPN Mobile GSM CDMA 3G SIM 4G Lte Wireless Router

              OEM best home 200m wifi range 300mbps hotspot VPN mobile gsm CDMA 3g sim 4g LTE wireless router WHY CHOOSE OUR MC118? 3G/4G Signal To LanInsert relevant SIM card, then you can transmit the 3G/4G signal to Lan 3G/4G Signal to WIFI Signal Insert relevant SIM card, then you c......

              Send Inquiry

              Product Description

              OEM best home 200m wifi range 300mbps hotspot VPN mobile gsm CDMA 3g sim 4g LTE wireless router

              WHY CHOOSE OUR MC118?

              OEM Best Home 200m WiFi Range 300Mbps Hotspot VPN Mobile GSM CDMA 3G SIM 4G Lte Wireless Router

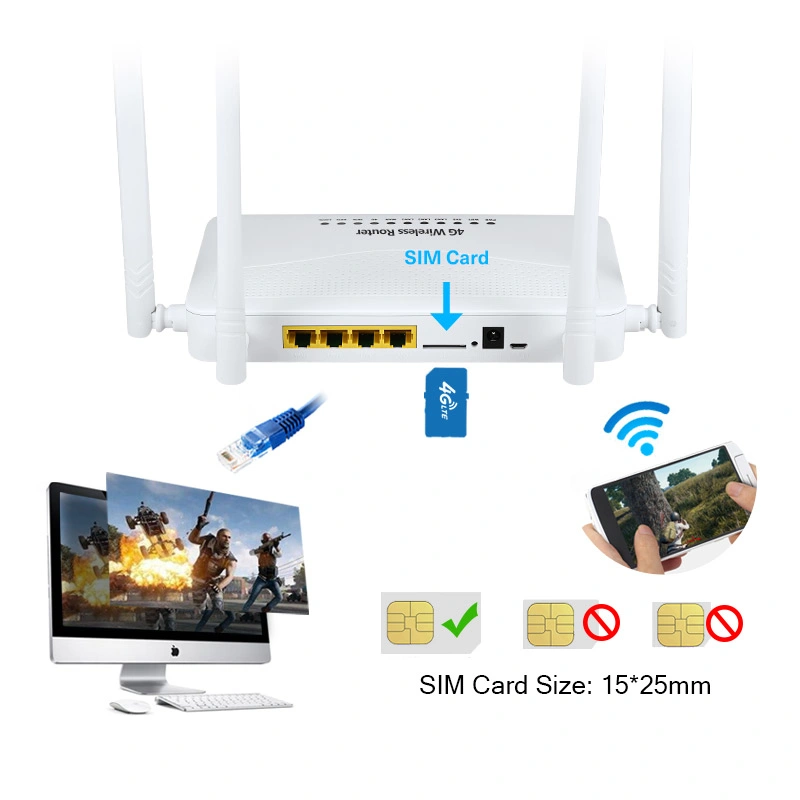

              3G/4G Signal To Lan

              Insert relevant SIM card, then you can transmit the 3G/4G signal to Lan


              OEM Best Home 200m WiFi Range 300Mbps Hotspot VPN Mobile GSM CDMA 3G SIM 4G Lte Wireless Router



              3G/4G Signal to WIFI Signal

              Insert relevant SIM card, then you can transmit 3G/4G signal to wifi signal


              OEM Best Home 200m WiFi Range 300Mbps Hotspot VPN Mobile GSM CDMA 3G SIM 4G Lte Wireless Router


              Hardware Watch Dog Design Support

              Support anticrash functions. Protect equipment work stable and reliable


              OEM Best Home 200m WiFi Range 300Mbps Hotspot VPN Mobile GSM CDMA 3G SIM 4G Lte Wireless Router

               Compatible With Power Bank Charging

              Equipped with a micro USB interface, which does not need a voltage convert line and can be charged directly with power bank


              OEM Best Home 200m WiFi Range 300Mbps Hotspot VPN Mobile GSM CDMA 3G SIM 4G Lte Wireless Router


              4 High Gain Antennas

              Inbuild dual 3G/4G antennas+duel 2.4G antennas), to keep strong signal receiving


              OEM Best Home 200m WiFi Range 300Mbps Hotspot VPN Mobile GSM CDMA 3G SIM 4G Lte Wireless Router



              Strong Heat Dissipation

              Add UART port, GPIO port, and micro USB port, multi-interface to meet your different needs


              OEM Best Home 200m WiFi Range 300Mbps Hotspot VPN Mobile GSM CDMA 3G SIM 4G Lte Wireless Router

              Industry Grade PCB Board

              Use Qualcomm brand chipset and PCB design, with overcurrent protection more stable and safe


              OEM Best Home 200m WiFi Range 300Mbps Hotspot VPN Mobile GSM CDMA 3G SIM 4G Lte Wireless Router


              Support 32Max Terminal Customers

              In 300mbps wifi mode, you can connect up to 32 users or terminals at the same time



              APPLICATIONS


              OEM Best Home 200m WiFi Range 300Mbps Hotspot VPN Mobile GSM CDMA 3G SIM 4G Lte Wireless Router
              1. Mobile Phone and Computer Game

              2. Free Broadband In the Countryside

              3. Surfing the internet in Shops

              4. Provide the Network to Camera

              5. Outdoor Tourism( Charge with portable power bank)

              6. Webcast

              7. Online Movie

              8. Office Network

              SPECIFICATIONS
              Device ModelMC118 4G Wireless Router
              CPUMTK RT7628, MIPS CPU, Basic frequency: 580Mhz
              LTE ChipsetUSE Qualcomm 9X07
              RAM512Mb   DDR2
              Flash64Mb SPI Flash
              Wireless communication Speed2.4Ghz 2T2R MIMO max300Mbps
              Optional Version
              CAT4
              TD5
              MDM9607, CAT4
              (Aisa, Euro, Au, LA, AF, Middle East, Ocean)
              LTE FDD: B1/B2/B3/B4/B5/B7/B8/B17/B20/B28
              TDD-LTE: B38/39/40/41
              WCDMA: B1/B2/B5/B8
              TDSCDMA: B34/B39
              CDMA&EVDO: BC0
              GSM: 850/900/1800/1900
              TE5
              MDM9207, CAT4
              (Asia, Africa, Euro, AU)
              LTE FDD: B1/B3/B5/B7/B8/B20
              TDD-LTE: B38/39/40/41
              WCDMA: B1/B5/B8
              GSM: 850/900/1800/1900
              ML7820+ XCI_SUFDD-LTE B1/3/5/8
              TDD-LTE B34/38/39/40/41
              TDS B34/39 +WCDMA B1/8
              ML7820+ CeI_SUFDD B1/3/5/8
              TDD B38/39/40/41
              TDS B34/39
              WCDMA B1/8
              GSM 900/1800
              Note: Customization of  3G.4G frequencies are available.
              Data service
              CAT4
              TDD-LTE3GPP R9 CAT4 DL: 112.5Mbps, UL: 12.5Mbps
              FDD-LTE3GPP R9 CAT4 DL: 150Mbps, UL: 50Mbps
              WCDMADL: 21Mbps, UL: 5.76Mbps
              TD-SCDMADL: 2.8Mbps, UL: 2.2Mbps
              EDGEClass12, DL: 236.8kbps, UL:118kbps
              GPRSClass10, DL: 85.6kbps, UL: 85.6kbps
              GSMCSD:9.6kbps
              Transmit powerTD-LTE/FDD-LTE: +23 ±2dBm(Power class 3)
              TD-SCDMA:24dBm +1dB/-3dB (power class 2)
              WCDMA: +24 +1/-3dBm(Power class 2)
              GSM B5/8: +33 ±2dBm(Power class 4)
              GSM B2/3: +30 ±2dBm(Power class 1)
              Interface Type micro USB DC IN power port  *1(5-12V adaptive)
              5.5*2.1mm DC IN port port *1(5-12V adaptive)
              RESET button *1
              LAN*4 (WAN/LAN0adaptive)10/100Mbpsadaptive
              IndicatorPWR WiFi SYS LAN3 LAN2 LAN1 WAN/LAN0 4G/3G 30% 60% 100%
              AntennasDual external high gain 4G/3G omnidirectional antenna
              Dual external high gain 2.4G omnidirectional antenna
              Device ColorWhite
              Device Size19.5*12.2*2.6 (not including antennas)
              Power ConsumptionTypical power consumption <7W
              Protocol Standard IEEE 802.11b/g/n
              Operating frequency2.4G
              Default gateway192.168.10.1
              Default SSID4G-CPE-****
              Default password 12345678
              Working Mode3G/4G Wireless router mode
              Standard router mode
              Wireless AP+Wireless client bridging mode
              Wireless AP+Client mode
              Working Temperature-10ºC to 40ºC
              storage temperature-40ºC to 70ºC
              operating humidity40% to 90% RH No condensation
              storage humidity10% to 95% RH No condensation



              ACCESSORIES
              Router Power AdapterUser Manual



              FEATURES

              ♦  MTK RT7628, MIPS CPU, Basic frequency:580Mhz, powerful performance and work stably;
              ♦  Support IEEE 802.11b, IEEE 802.11g, IEEE 802.11n wireless network protocol.
              ♦  LAN*4 (WAN/LAN0 adaptive)10/100Mbps adaptive.
              ♦  Wireless rate up to 300Mbps.
              ♦  One key recovery production setting.
              ♦  Support several encryption mode, such as FDD-LTE, TDD-LTE, TD-SCDMA, WCDMA, EVDO, GSM and so on.

              CERTIFICATES

              CE                 RoHS                ISO9001              Patent

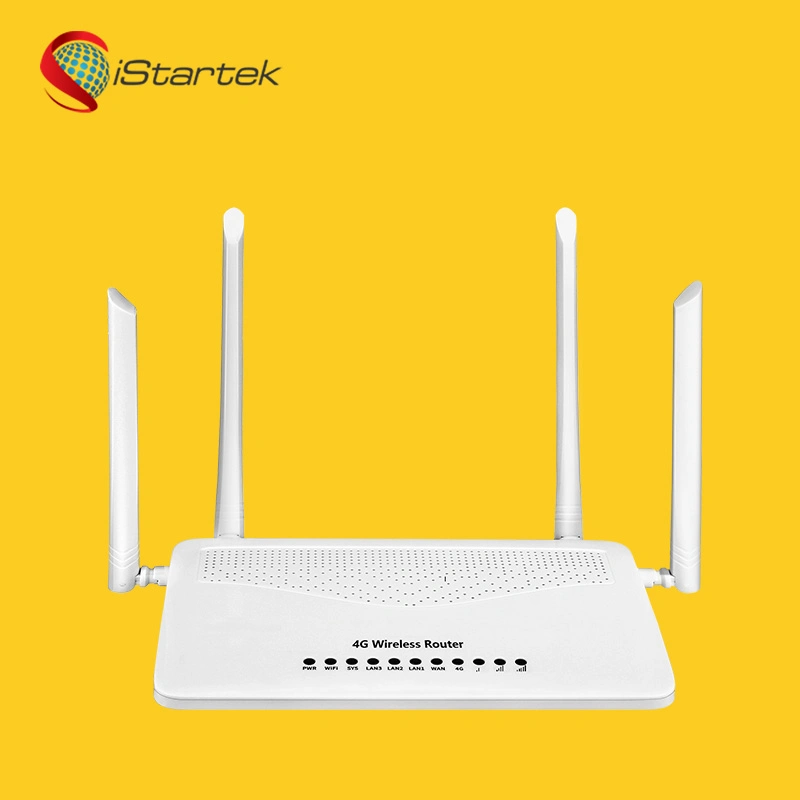

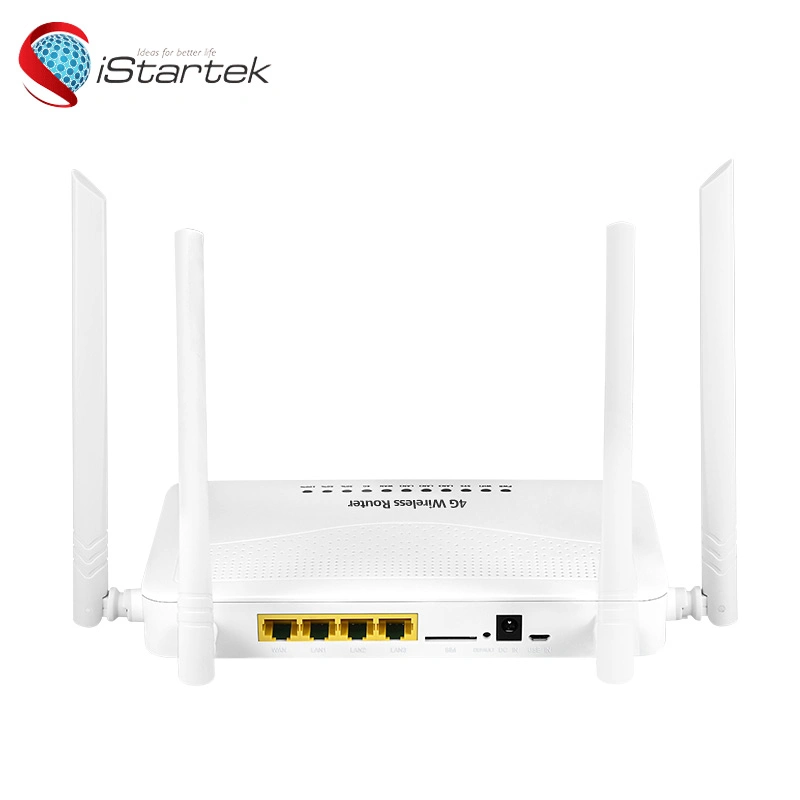

              PICTURES


              OEM Best Home 200m WiFi Range 300Mbps Hotspot VPN Mobile GSM CDMA 3G SIM 4G Lte Wireless Router


              TRADE CAPACITY

              Export Market Distribution:

              Main CapacityTotal Revenue (%)
              Southeast Asia50.00%
              Mid East20.00%
              South America10.00%
              Africa5.00%
              North America5.00%
              Western Europe3.00%
              Southern Europe2.00%
              Eastern Asia2.00%
              South Asia1.00%
              Eastern Europe1.00%
              Central America1.00%

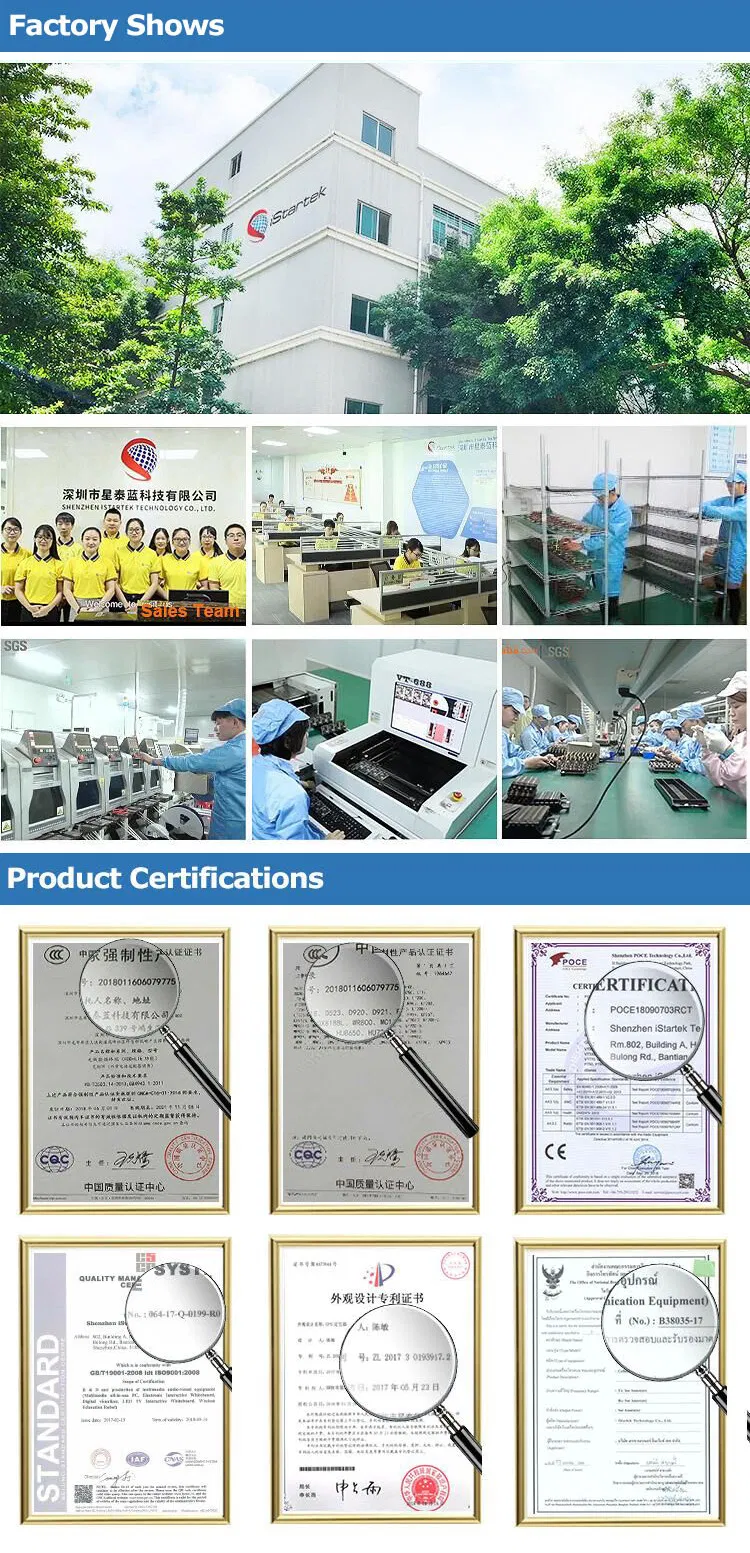

               COMPANY INFORMATION

              Shenzhen iStartek Technology Co., Ltd is a quality manufacturer with 10 years industry experience.

              We dedicated to providing customized service and integrated solutions for:

              GPS Tracking Solution---GPS Vehicle Tracker, GPS Personal Tracker, GPS Pet Tracker and GPS Tracking System

              M2M--- Smart PDA with RFID Reader, Scanner

              ICT---3G.4G Wireless Router/Modem

              With the comprehensive product ranges, we are confident to support our partner to increase market shares quickly.


              OEM Best Home 200m WiFi Range 300Mbps Hotspot VPN Mobile GSM CDMA 3G SIM 4G Lte Wireless Router

              OEM Best Home 200m WiFi Range 300Mbps Hotspot VPN Mobile GSM CDMA 3G SIM 4G Lte Wireless Router

               FAQ

              How to Start Business With US?

              1. Send us an inquiry from Alibaba or contact us directly via trade manager

              2. Place sample order online or provide details to us for issuing an invoice

              3. Payment via Alibaba online order or PayPal, Western Union, T/T, etc.

              4. We will arrange delivery in 2-3 days upon payment for the order quantity is 500pcs



              What Certificates available?
              CE, RoHS, ISO9001:2008 and Patent Certification



              How is Quality Control and Warranty?

              1. All products have been 100% strictly Quality Checked in-house before packing.

              2. All products have been well packed before shipping.
              3. 24 Months warranty is provided for 4g Wireless Router MC118. We will bear maintenance cost during the warranty.


              Please ask me if you have any question about 3g or 4g wireless router before order here! Thanks!

              Welcome to the iStartek shop homepage, there are more discount products waiting for you.

              Click us: The web price is not including any 3G or 4G module, which means you can not get the Internet by inserting a SIM card. Because the different country has different operators, here need to install different 3G or 4G or 5G module. If you want to order here and also need the 3G or 4G, Please sent us an inquiry immediately. We will give you a big discount.
