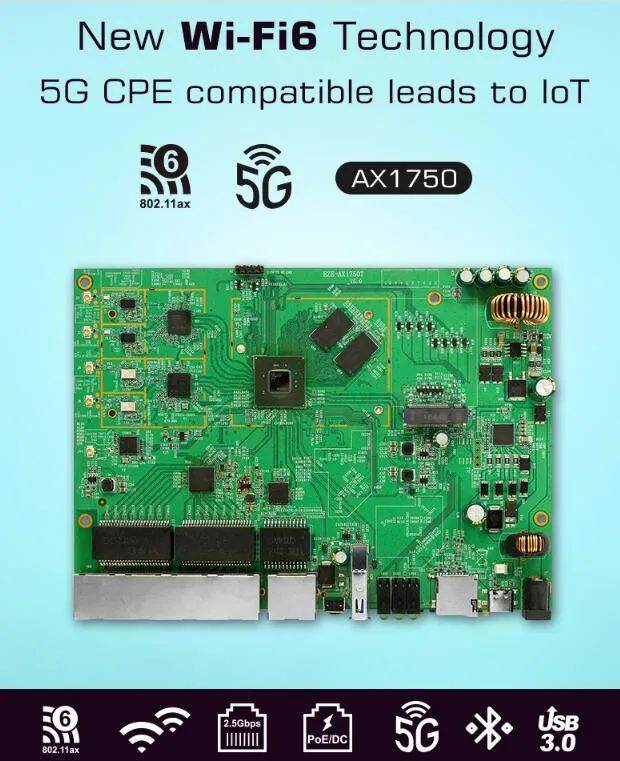

New Indoor Use Ipq6010 11ax 5g Nr Router with M. 2 Pcie SIM Card Slot

Product Description

New indoor use IPQ6010 11AX 5G NR Router with M.2 PCIE Sim card slot

Hardware
Chipset	IPQ6010+5022+5052+QCA8081+QCA8075
Standard	802.11ax/ac/b/g/n
DDR	512MB(16bit)*2=1GB, maxi up to 2GB
Flash	NOR-8MB AND NAND-128MB
2.4G Frequency	2.4GHz - 2.484GHz
2.4G Wi-Fi standard	802.11b/g/n
5.8G Frequency	5150~5850MHz
5.8G Wi-Fi Standard	802.11 ax/ac
Interface	1 * 10/100 /1000/2500Mbps RJ45 WAN Port (WAN port support 24~48V passive in if need, but if WAN port support PoE in, LAN ports can't support PoE out)
	4 * 10/100 / 1000Mbps RJ45 LAN Ports(Support 48V active PoE out if powered by DC)
	1 * Reset
	1 * SIM card slot support 4G/5G, M.2 interface
	1 * USB3.0 Port
	1 * SD Card Slot
	1 * Type C USB
	1 * Circular DC Connector, support 12~48V Mark: If with 12V DC power adapter, WAN/LAN ports no PoE function; If with 48V/3A DC power adapter, LAN ports support 48V active PoE out, WAN port no PoE function. If with 24V PoE adapter, WAN port support 24V Passive PoE in, LAN ports no PoE function For home use model, it with 12V/1.5A DC power adapter
Antenna	SMA Connector, for home use 45dBi omni WiFi antennas 44G/5G antenna
Data Rate	1800Mbps (2.4G: 591Mbps (11ax 2x2); 5.8G: 1238Mbps (11ax 2x2))
End Users	150+
RF Power	2.4g ≤ 24dBm 5.8g ≤ 24dBm
DC	12V~48V
LED light	Sys; 5.8G wifi; 2.4G wifi; WAN; LAN, 5G; 4G, GPS
Max Power Consumption	≤ 60W
Size	TBD
Weight	TBD
Working Temperature	-20°C to 45°C
Storage Temperature	0°C to 70°C
Humidity	5%~95% (non-condensing)
