Product Description

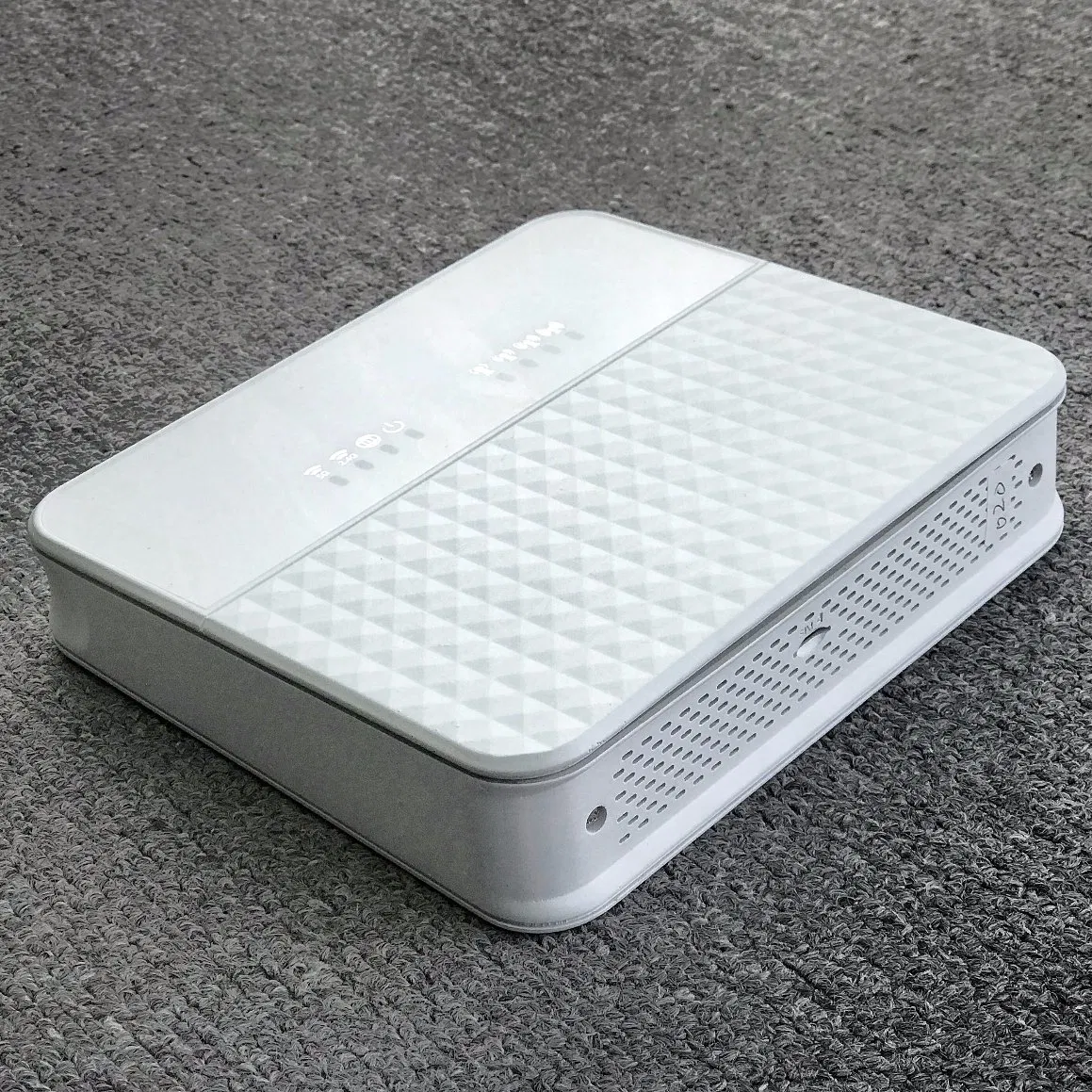

New Design WiFi Indoor 3G 4G gateway for home use

HDR1046i is a highly advanced 4G LTE CAT 6 indoor multi-service product solution specifically designed to meet integrated data, and
802.11b/g/n dual bands Wi-Fi access needs for residential, business and enterprise users. The product supports advanced Gigabit
networking and dual bands Wi-Fi AP functionalities. It enables wide service coverage and provides high data throughput and networking
features to customers who needs easy broadband access, hot-spot Wi-Fi connectivity
New Design WiFi Indoor 3G 4G Gateway for Home Use

Feature Highlights

Cost effective &compact design with built-in high gain 4G LTE\3G indoor antenna

Full compliance to 3GPP TDD/FDD-LTE Release 10/11 specifications

Advanced MIMO support and Category 6 throughput
Giga ETH support

802.11b/g/n MIMO Wi-Fi support

Router, bridge and by-pass networking, IPv4&v6 and Multiple PDN support

Built-in VPN and L2/L3 GRE client support

FTP, HTTP and TR-069 management support

SIM card authentication

Item	Description
Chip Platform	QCA4531+ Qualcomm MDM9640
LTE Standard	3GPP Release 10/11 CAT6
Flash	128Mb
RAM	512Mb

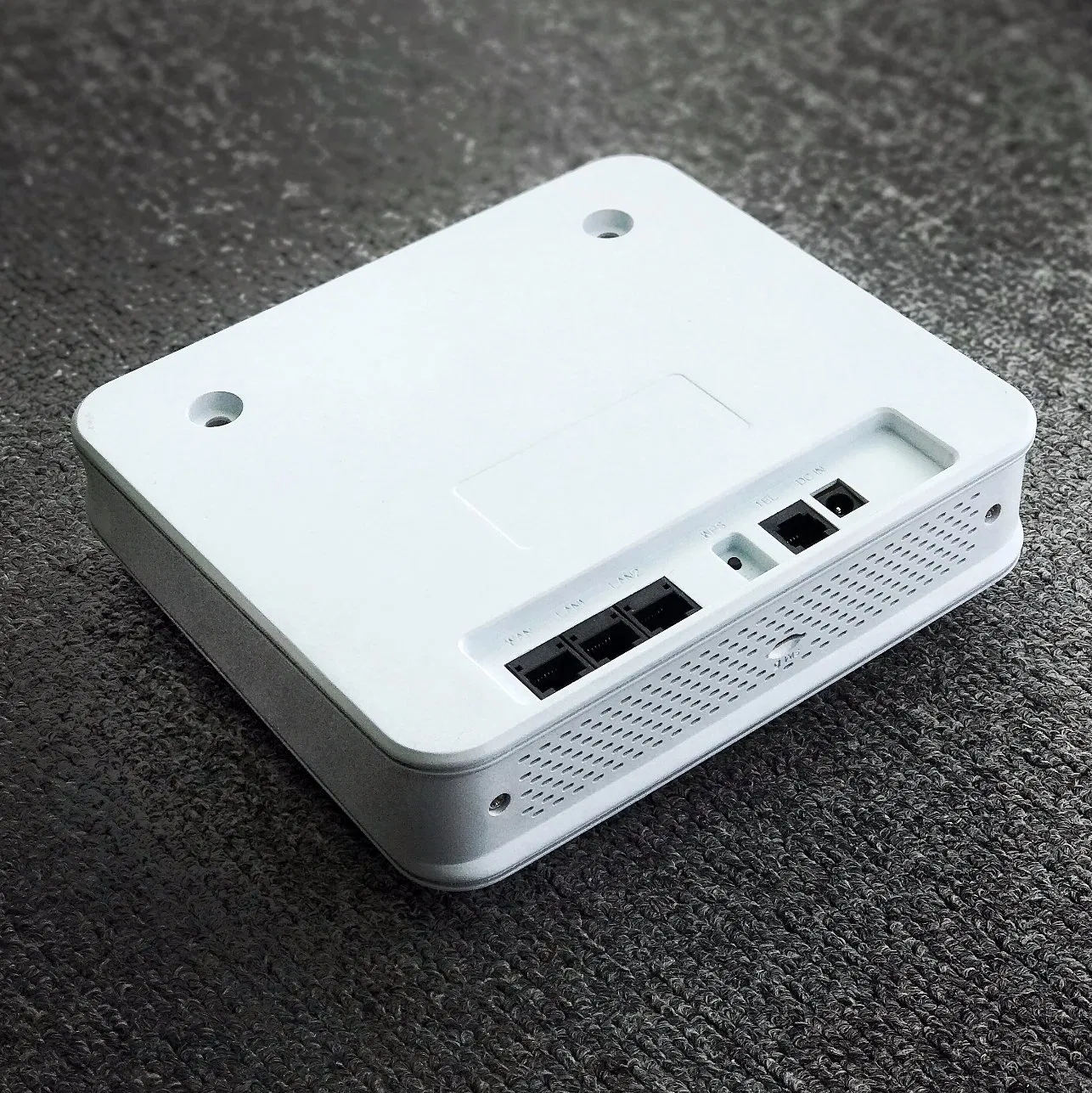

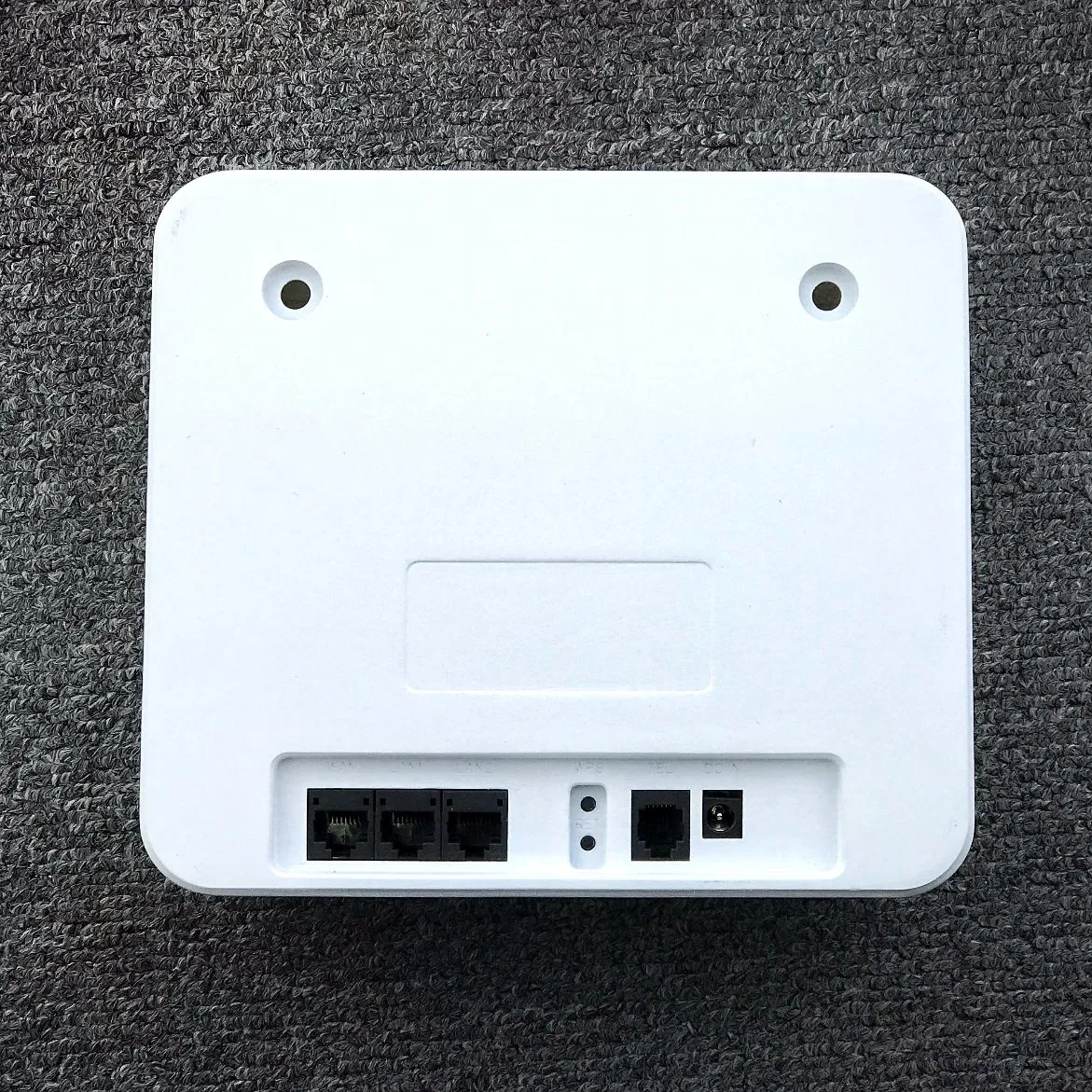

Interface	Two or three Gigabit RJ45 LAN Ports, 10/100/1000 auto-sensing, auto-MDI/MDIX

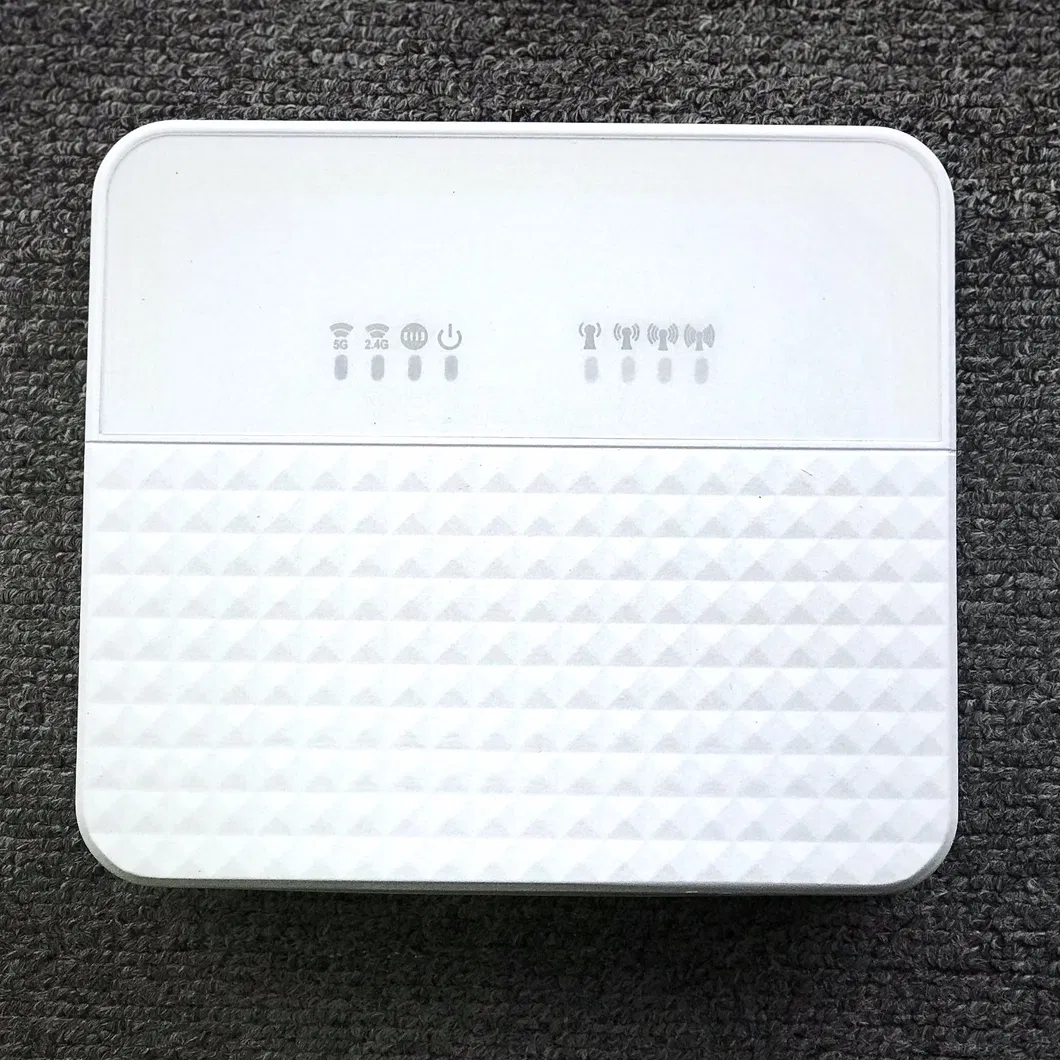

LED	8 LED, Power/2.4G WiFi/Telephone/Internet/4 Signal Strength
SIM Card	1.8V/3V 3FF USIM
Voice (Optinal)	VOLTE
Button	Reset/Reboot
Power Supply	DC 12V/1A
Power Consumption	<10W
Weight	<500g
Dimensions	187mm(H) x 168mm(W) x 55mm(T)
Frequency Bands	CAT 6 Version Version E LTE-FDD: B1/B3/B5/B7/B8/B20/B28/B32 LTE-TDD: B38/B40/B41 2×CA: B1+B1/B5/B8/B20/B28; B3+B3/B5/B7/B8/B20/B28; B7+B5/B7/B8/B20/B28; B20+B32; B38+B38; B40+B40; B41+B41 WCDMA: B1/B3/B5/B8 Version A LTE-FDD: B2/B4/B5/B7/B12/B13/B25/B26/B29/ B30/B66 2×CA: B2+B2/B5/B12/B13/B26/B29; B4+B4/B5/B12/B13/B26/B29; B7+B5/B7/B12/B13/B26/B29; B25+B5/B12/B13/B25/B26/B29 30+B5/B12/B13/B26/B29; B66+B5/B12/B13/B26/B29/B66 WCDMA: B2/B4/B5	Version LA (On planning) LTE-FDD: B2/B3/B4/B5/B7/B8/B20/B28 2×CA: B2+B2/B5/B8/B20/B28; B3+B3/B5/B7/B8/B20/B28; B4+B4/B5/B8/B20/B28; B7+B5/B7/B8/B20/B28 WCDMA: B2/B3/B4/B5/B8 Version APAC (On planning) LTE-FDD: B1/B3/B5/B7/B8/B18/B19/B21/B26 LTE-TDD: B38/B39/B40/B41 2×CA: B1+B3/B8/B18/B19; B3+B5/B19; B7+B5/B7; B21+B19; B38+B38; B39+B39; B39+B41; B40+B40; B41+B41 WCDMA: B1/B5/B6/B8/B9/B19

Frequency
Bands

Version CAT 4
Version CE
LTE FDD: B1/B3/B5/B8
LTE TDD: B38/B39/B40/B41
WCDMA: B1/B8
TD-SCDMA: B34/B39
CDMA: BC0
GSM: 900/1800MHz
Version E
LTE FDD: B1/B3/B5/B7/B8/B20
LTE TDD: B38/B40/B41
WCDMA: B1/B5/B8
GSM: B3/B8
Version EU.
LTE FDD: B1/B3/B7/B8/B20/B28A
LTE TDD: B38/B40/B41
WCDMA: B1/B8
GSM: B3/B8
EC25-EC:
LTE FDD: B1/B3/B7/B8/B20/B28A
WCDMA: B1/B8
GSM: B3/B8
Version A
LTE FDD: B2/B4/B12
WCDMA: B2/B4/B5
EC25-V:
LTE FDD: B4/B13
EC25-AF:
LTE FDD: B2/B4/B5/B12/B13/B14/B66/B71
WCDMA: B2/B4/B5
Version AU
LTE FDD: B1/B2 (Optional)/B3/B4/B5/B7/B8/B28
LTE TDD: B40
WCDMA: B1/B2/B5/B8
GSM: B2/B3/B5/B8
Version J
LTE FDD: B1/B3/B8/B18/B19/B26
LTE TDD: B41
WCDMA: B1/B6/B8/B19

Carrier Aggregation	Inter/Intra 2CA
DL MIMO	22MIMO or 42MIMO
Max. Transmit Power	LTE: 23 ±2dBm (Power Class 3) Wi-Fi: 18dBm
LTE Antenna Gain	700M~1GHz: 3dBi 1.5G~2.7GHz: 6dBi
Wi-Fi Standard	802.11b/g/n 22 [email protected], 802.11n/ac 22 MIMO@ 5GHz
Wi-Fi Antenna	Build-in 3 dBi high gain Wi-Fi antenna, 2.4GHz, 5GHz separate
Reliability	Operating Temperature: -10~+45ºC Storage Temperature: -20~+60ºC Operating Humidity: 0~95% Storage Humidity: 0~95%
