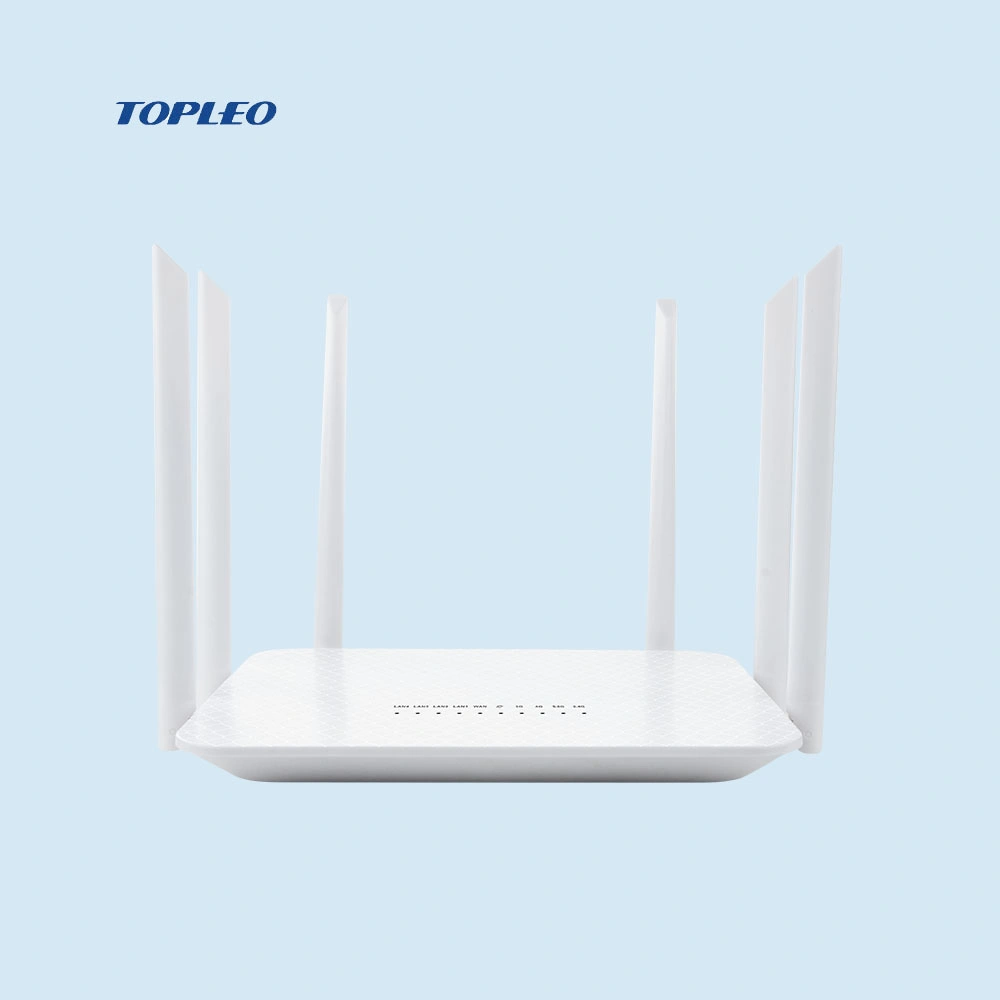

Lt210 AC Portable Mesh Dual Band WiFi Modem Network Router 3G 4G LTE Wireless Routers with SIM Card Slot
LT210 AC Portable mesh dual band wifi modem network router 3g 4g lte wireless routers with sim card slotProduct DescriptionSpecification parameter1.Interface: Network , 4*Lan, 1*Wan2.SIM :2FF SIM3.Buttom :Reset4.DC Adapter:Input voltage 12V 1.5A5.Solution:Routing and WiFi chipset supplier,MTK Produc......
Send Inquiry
Product Description
Specification parameter
1.Interface: Network , 4*Lan, 1*Wan

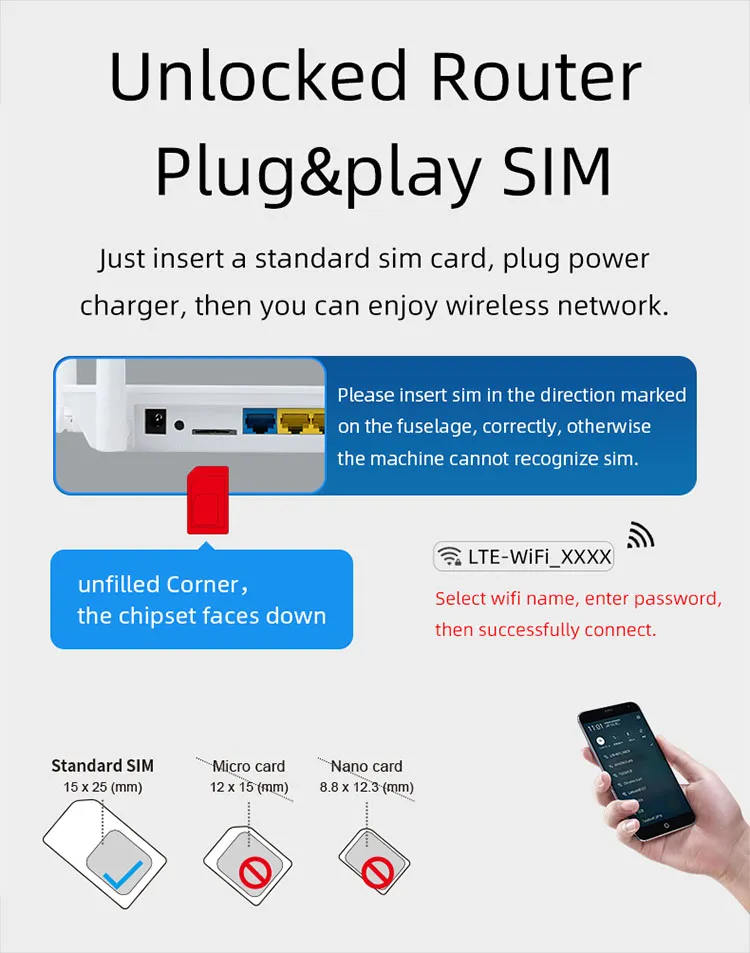

2.SIM :2FF SIM
3.Buttom :Reset
4.DC Adapter:Input voltage 12V 1.5A
5.Solution:Routing and WiFi chipset supplier,MTK
| Model | LT210 AC | ||
| Specification parameter | |||
| Interface | Network | 4*Lan, 1*Wan | |
| SIM | 2FF SIM | ||
| Buttom | Reset | ||
| DC Adapter | Input voltage: 12V 1.5A | ||
| Solution | Routing and WiFi chipset supplier | MTK | |

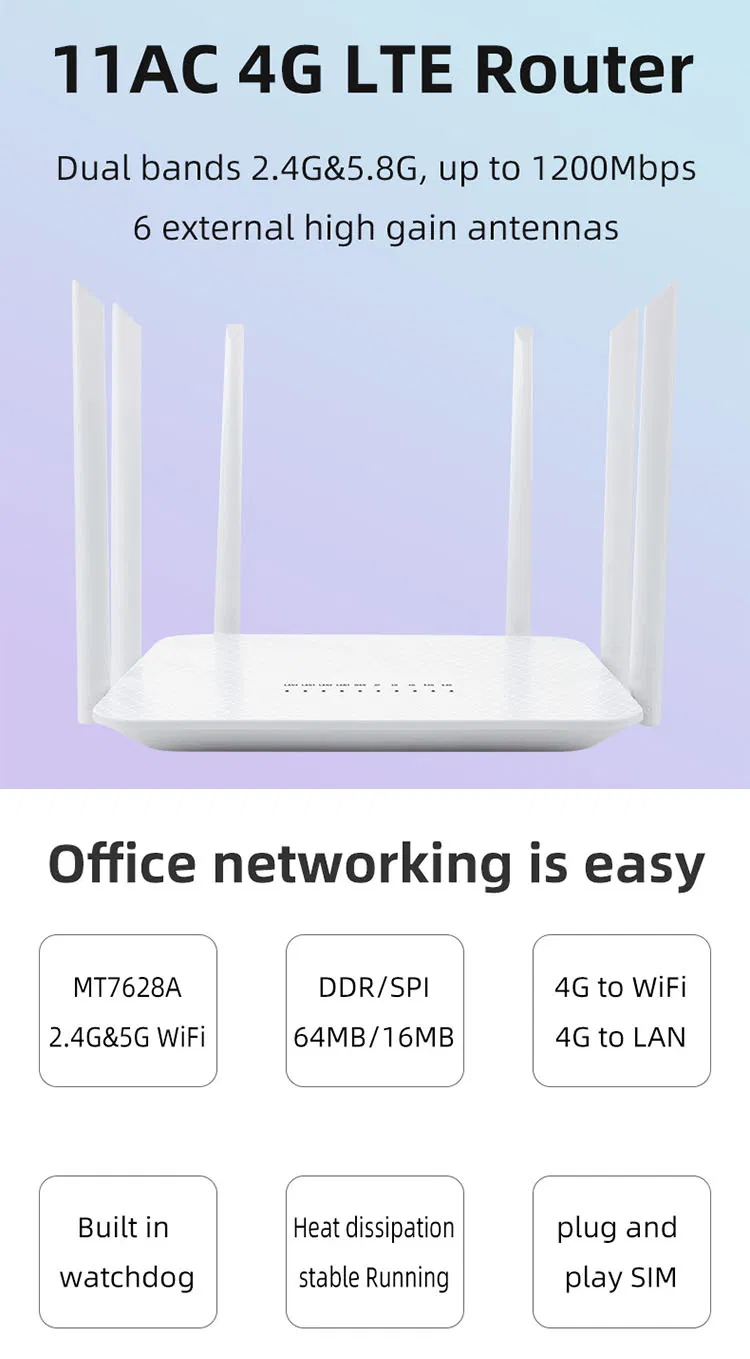

| BASE | Routing and WiFi chipset model | MT7628A+MT7612E
| |
| Routing and WiFi processor info | IEEE 802.11 a/b/g/n/ac
| ||
DDR/SPI | 64MBytes/16MBytes
| ||
| RF | Main antenna | Internal antenna | |
| Receive diversity antenna | Internal antenna | ||

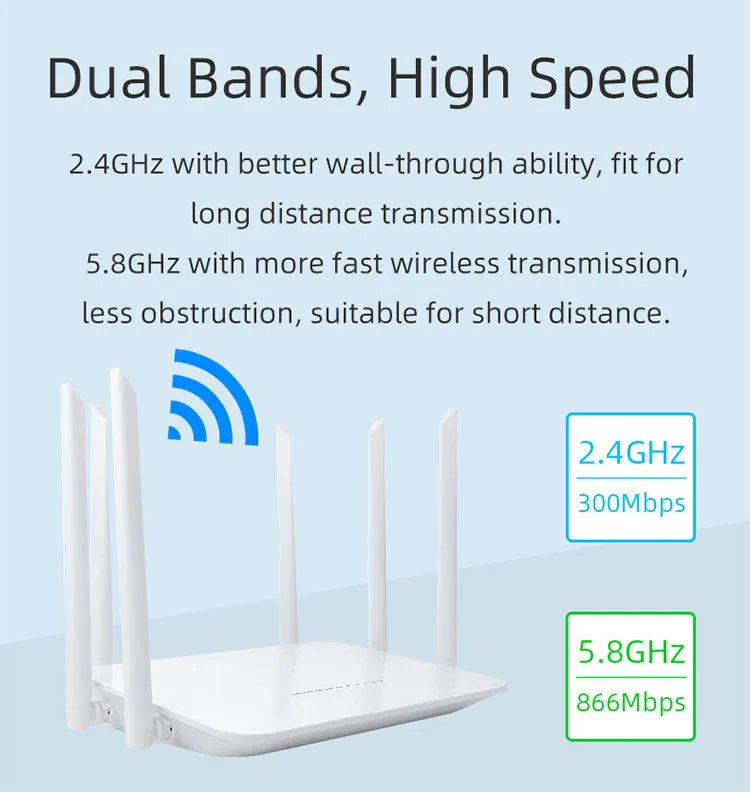

WiFi band | 2400MHz-2483.5MHz 5170MHz-5835MHz | ||
| MIMO for WiFi | 2.4G 5dbi X 2 5G 5dbi X 2 | ||
| Max. transmitter power for WiFi | 802.11a 14dBm±2dBm; 802.11b 22dBm±2dBm; 802.11g 18dBm±2dBm; 802.11n 16dBm±2dBm; 802.11ac 15dBm±2dBm; | ||
| Software | Language | Chinese&English | |

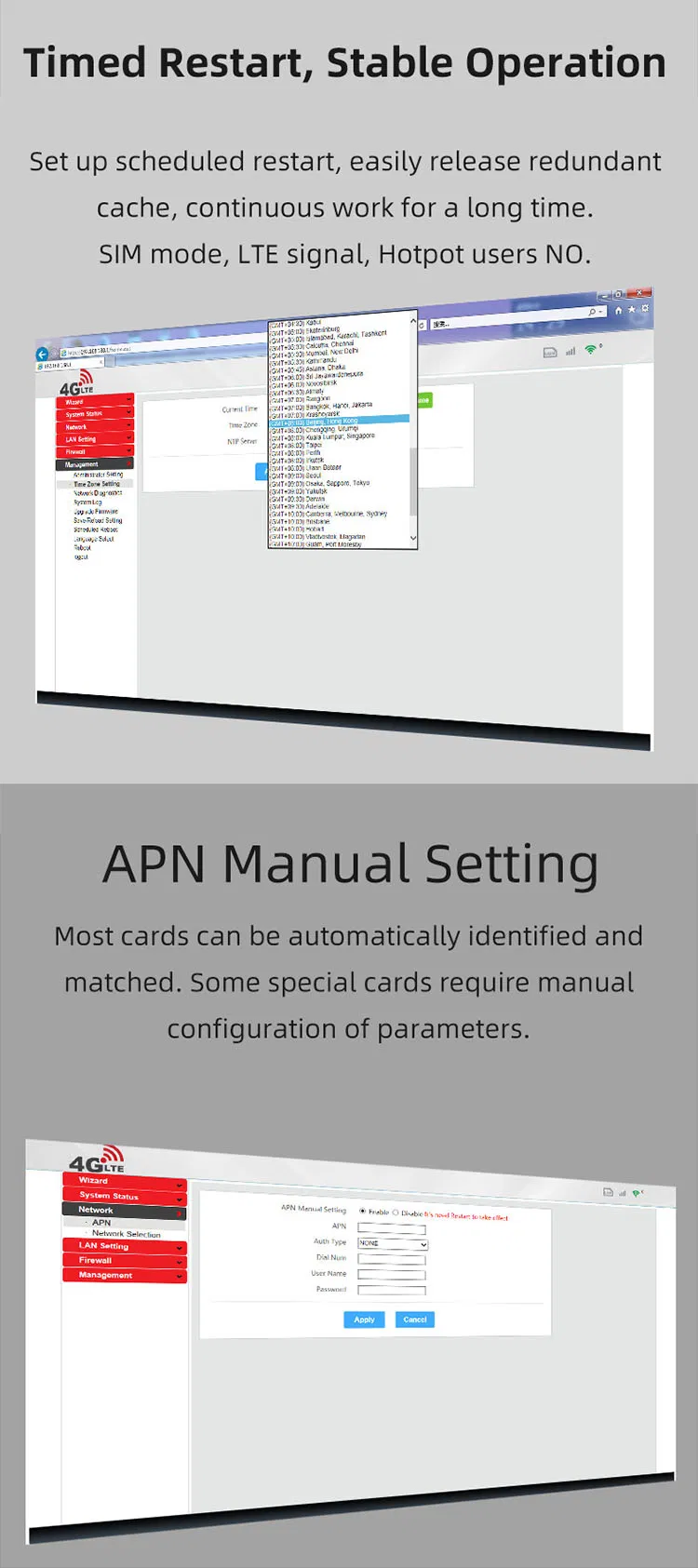

| APN Setting | Supported | ||
Device Settings | Supported | ||
WIFI Settings | Supported | ||
Routing Settings | Supported | ||
Firewall Settings | Supported | ||
| Technical standard | LED | Supported | |
WiFi standard | 802.11b/g/n(2*2 11n features) | ||
| WiFi security | WPA/WPA2 | ||
| OS | Windows XP,Windows Vista,Windows 7,Windows 10,MAC,Linux | ||
| Browser | IE (8.0 and later),Firefox (3.0 and later),Safari (4.0 and later),Opera (10.0 and later),Chrome (10.0 and later) | ||
| Envionment | Operating temperature | 0 to 50° C | |
| Storage temperature | -40 to 70° C | ||
| Humidity | 5% to 95% | ||
| Module information | |||
| Solution | Qualcomm solution CAT4 | ASR CAT4 | Qualcomm solution CAT6 |
| Inteface | LCC | LCC | Mini PCIe |
| Size | 29.0x32.0x2.4mm | 29.0x32.0x2.4mm | 51.0x30.0x4.3mm |
| Wireless chipset supplier | Qualcomm | ASR | Qualcomm |
| Wireless chipset model | MDM9607 | 1802S | MDM9x40 |
| Wireless processor info | CAT4 | CAT4 | CAT6 |
| USIM/SIM slot | Standard 6 PIN SIM card interface 3V SIM card and 1.8V SIM card | Standard 6 PIN SIM card interface 3V SIM card and 1.8V SIM card | Standard 6 PIN SIM card interface 3V SIM card and 1.8V SIM card |
| Operating temperature | -20 to 60° C | -35 to 75° C | -40°C ~ +85°C |
About US---Quality---Customer Service---Honesty
TOPLEO TECHNOLOGY LIMITED is a professional high-tech enterprise with independent R&D, production lines, marketing, after services department. We are leading OEM & ODM Manufacture for tv box, mini pc, projector, air mouse and mini keyboard.
ODM:
1 Android based STB packaging: color, shape, logo, etc.
2 Multiple industries adaptation: hospitality industry, community, LAN, education industry, etc.
3 UI design, user interface, language, etc.
OEM:
1 Short lean time guaranteed;
2 On-time delivery;
3 Customer oriented
AFTER SERVICE:
1.Warranty and after- sale service ,
2.We will do everything we can to reply your question .
3.Please clearly descrip your problem and send email to me and I will answer you in 24 hours.
Packaging & Shipping
Package:
Standard export carton packing.
Delivery Time:
DHL:3-4 Days arrive
ups:4-5 Days arrive
Fedex:4-5 Days arrive
EUEXP:7-10 Days arrive
USPS:10-20 Days arrive
FAQ
Q1: What is the Warranty for Topleo android smart tv box?
A: All products have 3 years warranty. If there is no man-made problem,we Will replace or repair for you freely.
Q2: Does Topleo is factory?
A: Topleo is a professional android smart tv box high-tech enterprise ,we are in this filed more than ten years,and we have a huge tech team specially for OEM and ODM in this field,MOQ 500PCS OEM/ODM no need add any extra fees.
Q3: What's the delivery time?
A: normally under 100pcs we shippedin 1-3 business day after the payment ok!
200-1000pcs we will send the goods within 3-7 business days after the full payment has been confirmed.
Q4: Does the device pre-install KODI / XBMC?
A: Yes,all our boxes have preinstalled the lastest XBMC KODI 17.1/17.3/17.4/17.5 above upgrading and we can also help customers to pre install their own apps or add ons.
Q5: What should i do if the box cannot boot up properly or crashes many times?
A:You need to upgrade the firmware (which is provided by the manufacturer).
Q6: Why is the screen blurry on start up?
A:Change to a new HDMI cable.
Q7: Why does the box stay on the splash screen and cannot get into the system?
A:This is mainly caused by incorrect power cut when the box is still operating, try to reset your box.
How to select expected items in the various & complex market?
How to Select = High Quality + Strict Quality Control + Aging Time + Prompt Shipping Time + Professional & Quick Reply + Risk Free
Topleo = Assured Quality + 5 Steps Strict QC + 48 Hours Aging Time + Ship in 24 Hours + Superior 99.8% Customer Satisfaction + 3 year Warranty + Easy Returns Policy
