Industrial 4G LTE Wireless Router with SIM Card Slot, Full 3G 4G Bands Support
T530 is an 4G wireless router with metal case; Design in Qualcomm Chipset, Comply with IEEE 802.11b/g/n MIMO standard, the data rate up to 300Mbps, more than 50 end users can access into it; With SIM card slot, build in ZTE/Huawei/Quectel LTE module, it support FDD-LTE/TDD-LTE for worldwide use with......
Send Inquiry
Product Description

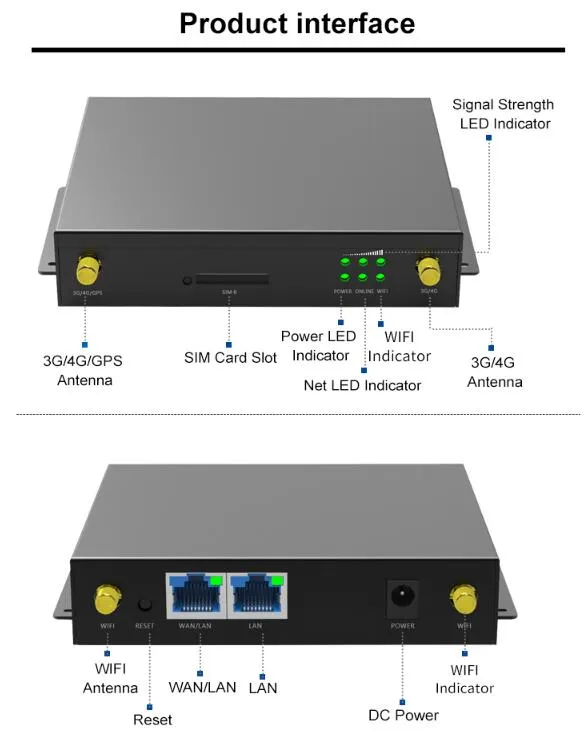

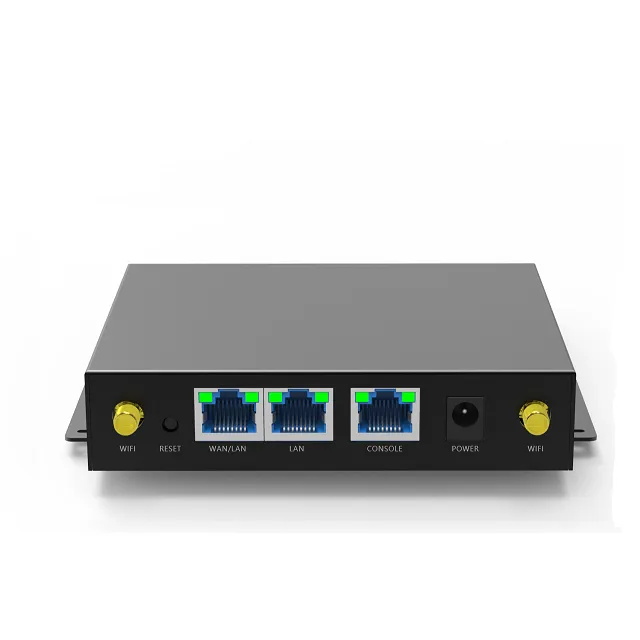

T530 is an 4G wireless router with metal case; Design in Qualcomm Chipset, Comply with IEEE 802.11b/g/n MIMO standard, the data rate up to 300Mbps, more than 50 end users can access into it; With SIM card slot, build in ZTE/Huawei/Quectel LTE module, it support FDD-LTE/TDD-LTE for worldwide use with 100Mbps uplink/downlink speed. Beside that, there are 2*10/100Mbps WAN/LAN ports, support PPPoE/Static IP/Dynamic IP if no 4G Ethernet. What's more, there is console port, easy for engineering debug.
Main Features:

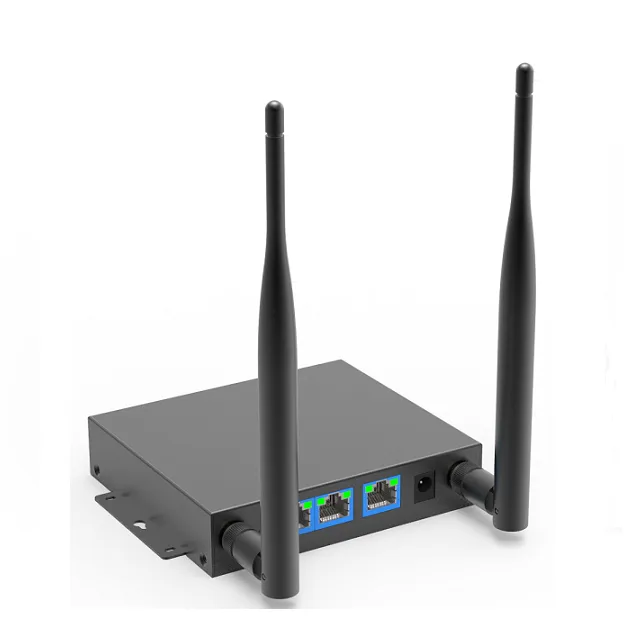

T530 wireless 4G router is a router based on 4G technology. It uses mobile network to provide wireless data transmission, faster and more stable. Comes with 2PCS external 5dBi high gain moni antennas, it can be widely used for indoor wireless coverage.
300Mbps High Speed. Comply with IEEE802.11n technology, the wireless data rate is up to 300Mbps, allows more end users access.
Support Watchdog. It will self inspect, then reboot to recover itself when failed, reduce the device maintenance cost.
Hardware Specification
| Chipset | QCA9531 |
| Flash | 16MB |
| DDR | 128MB |
| 2.4G Frequency | 2.4GHz - 2.484GHz |
| 2.4G WIFI Protocol | 802.11b/ g/ n |
| Data Rate | 300Mbps |
| 4G Antenna | Gain: 5dbi |
| 2.4G WIFI antenna | Gain: 5dbi |
| SSID Hidden | Support |
| Max Users | 30+ |
| TX Power | < 26 dBm |
| WAN | 1 * 10/100M RJ45; It is LAN port in 4G Ethernet, WAN port in ADSL Ethernet |
| LAN | 1 * 10/100M RJ45; |
| SIM Card | 1 * 4G SIM card slot |
| DC | 12V 1.5A |
| Reset | reset×1 (Press 10 seconds to revert to factory settings) |
| LED indicator | POWER ,WAN, LAN, WiFi, Internet, Signal strength * 3 |
| Power consumption | < 7W |
| Size | 133mm*101.5mm*25mm |
| Working Environment | Working temperature: -30°C to 55°C Limited working temperature:-40°C to 85°C Storage Temperature: -40°C to 70°C Humidity:5% to 95%(No-considering) |
