Industrial 4G LTE Wireless Router, Full 3G 4G Bands Support

Product Description

Specifications
Model	M330
CPU	QCA9531
Flash	NOR Flash 16M + NAND flash 128M
DDR2	128MB
2.4G Frequency	2.4GHz - 2.484GHz
2.4G WIFI Protocol	802.11 b / g / n
2 .4G Antenna	2.4G omnidirectional antenna×2
4G Antenna	LTE_4G omnidirectional antenna×2
GPS Antenna	GPS omnidirectional antenna×1
SSID Hidden	Support
Maximum Data Rate	300Mbps
Maximum User	50+
2.4G RF Power	802.11b	11M	17±2dBm	1M	19±2dBm
	802.11g	54M	16±2dBm	6M	18±2dBm
	802.11n HT20	MCS7	15±2dBm	MCS0	17±2dBm
	802.11n HT40	MCS7	14±2dBm	MCS0	16±2dBm
2.4G Sensitivity	802.11b	11M	-85dBm	1M	-94dBm
	802.11g	54M	-72dBm	6M	-90dBm
	802.11n HT20	MCS7	-70dBm	MCS0	-88dBm
	802.11n HT40	MCS7	-68dBm	MCS0	-86dBm
2.4G EVM	802.11b_11M: ≤-10 dB ;802.11g_54M: ≤-25 dB ;802.11n_MCS7: ≤-28dB
PPM	±20ppm
WAN Ports	1*10/100M WAN/LAN port, auto-negotiation
LAN Ports	1*10/100M LAN port, auto-negotiation

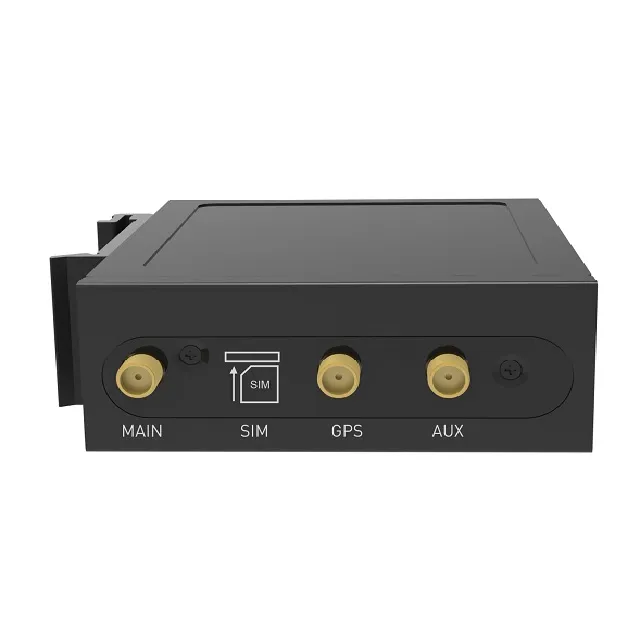

SIM Slot	MICRO-SIM Slot×1
4G Module	×1(can choose different kind of 4G module)

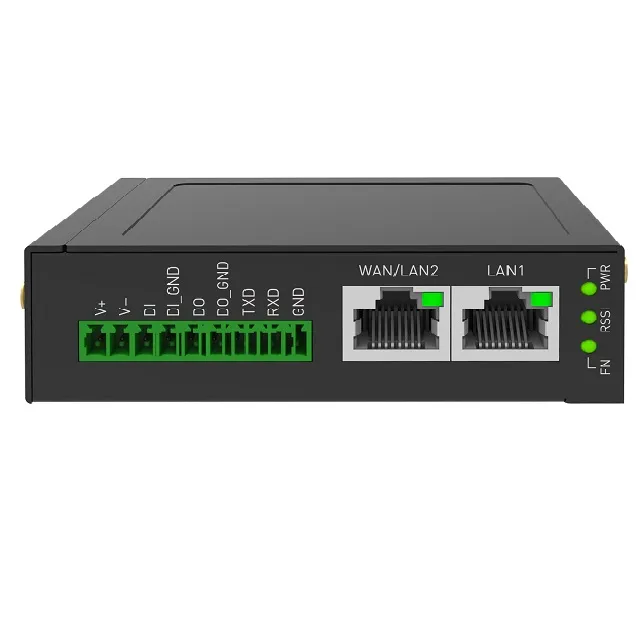

1*9PIN Interface	V+/V- for power, DI/DI_GND/DO/DO_GND for control, TXD/RXD/GND for serial
Reset Button	Press it 10 seconds, Reset to factory default
LED Light	Power,RSSI(support user-defined),FN(support user-defined)
Power Consumption	< 10 W
Dimensions	92.5mm74.3mm28mm
Environment	Normal Working Temperature:-30°C to 55°C Max Working Temperature:-40°C to 70°C Storage Temperature: -40°C to 70°C Humidity:5%~95%(No Condensation)
