Product Description
Industrial 4g LTE router support 802.11 b/g/n CAT4/CAT6 wifi network with openWRT

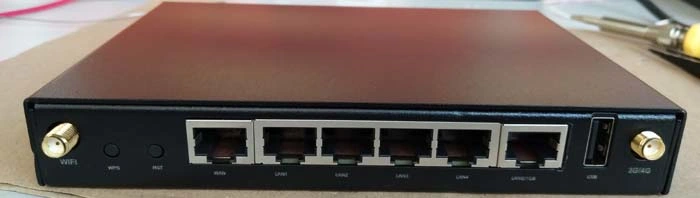

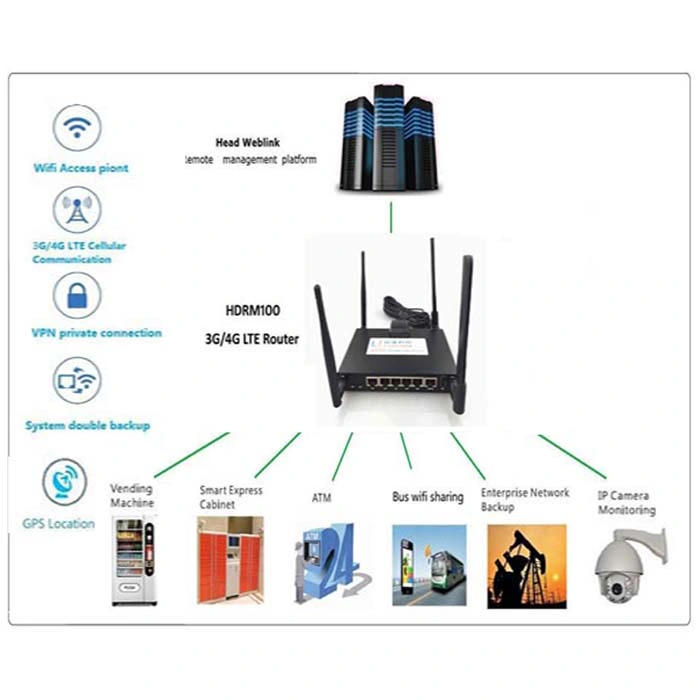

HDRM200 six LAN ports industrial Gigabit router integrated machine, is designed for global market.It provides 4G LTE/WIFI/GPS/SD storage funtion.2.4G/5.8G WIFI. It provides stable and reliable data connection for user device such as RTU, Broadband, Intelligent Transportation, Financial self-service terminal, Express cabinet ,Power Ammeter and other remote device management application. In order to achieve permanent online, some key features such as watch-dog function, wide temperature and multiple RF band/mode are supported by HDRM200 industrial router, making it can be used in any environment of worldwide.Provides one WAN port,four fast ethernet ports,one Gigabit LAN port.Support VLAN feature.
| Specification | |||
| ITEM | VERSION | Description | |
| CPU | MTK7620A+MTK7612 | ||
| Memory | FLASH 16MByte, DDR2 64MByte | ||
| Network mode | 4G Version | FDD LTE, TDD LTE,HSPA+,WCDMA,GPRS,GSM | |
| 3G version | WCDMA,GPRS,GSM | ||
| EVDO,CDMA 1X | |||
| Frequency bands | 2G version | GSM/GPRS | 850/900/1800/1900MHz |
| 3G version | WCDMA | 850/1900MHz, 850/2100MHz & 900/2100MHz | |
| EVDO | 800MHz & 800/1900MHz | ||
| 4G Version | Version A. | LTE FDD. B2,4,5,17. UMTS. 850/1900MHz | |
| Version C. | LTE FDD. B1,3,7,8 .LTE TDD B38, B39, B40, B41. | ||
| UMTS. 900/2100MHz. | |||
| TD-SCDMA. 1880~1920MHz & 2010~2025MHz | |||
| GSM. 900/1800MHz | |||
| Version E. | LTE FDD. B1,3,7,8,20 ,LTE TDD B38, B40. | ||
| UMTS. 900/2100MHz. | |||
| GSM. 900/1800MHz | |||
| Version JC | LTE FDD. B1,B3,B8,B18,B19. LTE TDD. B41. | ||
| UMTS. B1,B6,B8. | |||
| GSM. 900/1800MHz | |||
| Version JE | LTE FDD. B1,B8 | ||
| UMTS. B1,B8 | |||
| GSM. 900/1800MHz | |||
| Version SA | LTE-FDD B1/B3/B4/B5/B7/B8/B28, LTE-TDD B38/B40/B41 | ||
| UMTS/HSDPA/HSPA+ B1/B2/B5/B8 | |||
| GSM/GPRS/EDGE B2/B3/B5/B8 | |||
| GPS | GPS/GNSS/BD,gpsOne Gen 8B, standalone;assisted,XTRA; | ||
| Data rates | |||
| 3G Router | WCDMA | DL 14.4Mbps, UL 5.76Mbps | |
| EVDO | DL 3.1Mbps, UL 1.8Mbps | ||
| 4G LTE router | LTE FDD | DL 100Mbps~300Mbps, UL 50Mbps | |
| LTE TDD | DL 50Mbps, UL 25Mbps | ||
| HSPA+ | DL 42Mbps, UL 5.76Mbps | ||
| TD-SCDMA | DL 2.8Mbps, UL 2.2Mbps | ||
| GPRS | Max. 85.6Kbps(DL), Max. 85.6Kbps(UL) | ||
| WIFI | 802.11AC, 1200Mbps, 2.4G/5.8G WIFI dual frequency bands. | ||
| WAN | 1*WAN Port, 100Mbps,It can be setted to LAN port. | ||
| LAN | 5* LAN Ports, (1* 1Gbit LAN port, 4* 100Mbps LAN ports) | ||
| Software | |||
| Security Encryption | Support WEP,WPA,WPA2 encryption ways | ||
| Watchdog | Embedded watchdog , System auto recovery; | ||
| Data link | Active auto connect; | ||
| Protocol | PPTP,L2TP,IPSEC VPN,Open VPN,GRE,TCP,UDP, DHCP,HTTP,DDNS,TR-069, HTTPS, SSH,SNMP etc. | ||
| VLAN | Support VLAN feature | ||
| Data backup | Double backup, keep data safe and reliable | ||
| Server | Remote management platform; | ||
| Operating system | Linux or OpenWRT | ||
| Hardware interface | |||
| SD card | 1*SD card,Data storage. | ||
| SIM card | 2*SIM card, dual SIM card load balance.Standard draw card interface, support 1.8V/3V SIM/UIM card, built-in ESD protection. | ||
| RS485 | 1*RS485 port | ||
| UART | 1*RS232 port | ||
| USB | 1*USB port | ||
| GPIOs | 4*GPIO ports | ||
| Press key | 1*Reset, 1* WPS | ||
| LED Indicator | SYS, Net, WAN, LAN1,LAN2,LAN3,LAN4,LAN5,RSSI | ||
| RF connectors | SMA connector , 4G(female),WIFI(male),GPS(male), the characteristic impedance 50Ω . | ||
| Antenna | 2*2 4G/WIFI MIMO antenna, One GPS antenna | ||
| Power supply | Input. +6V/2.5A~48V/0.5A | ||
| Environmental parameters | |||
| Conditions | Operating temperature | -40ºC - +75ºC | |
| Storage temperature | -45ºC - +80ºC | ||
| Operating humidity. | 5%-95% | ||
| Case | Black steel Shell | ||
| Size | 155mm*106mm*25mm | ||
| Weight | 525g | ||
