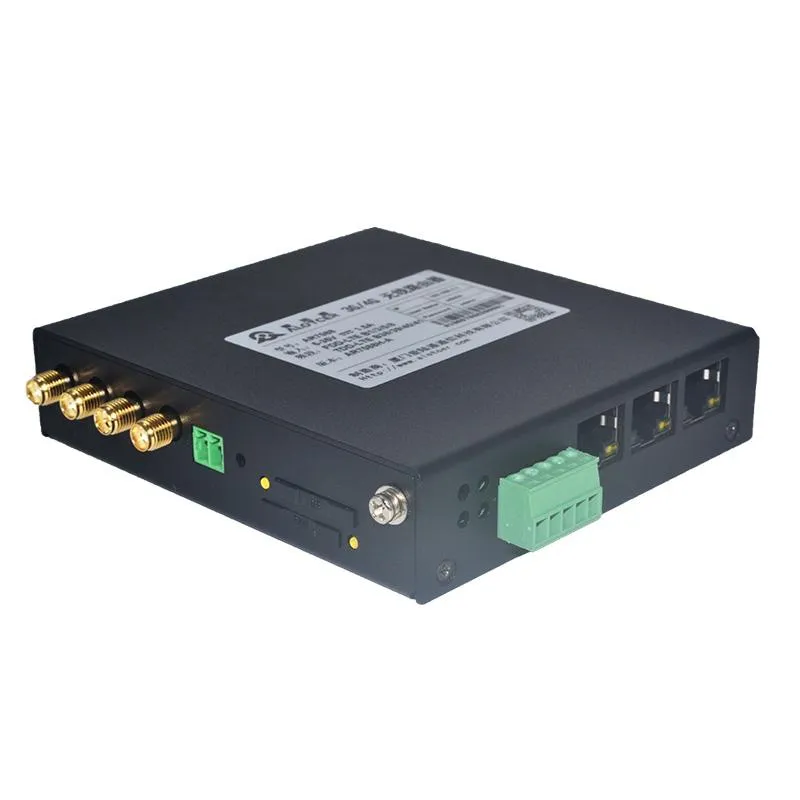

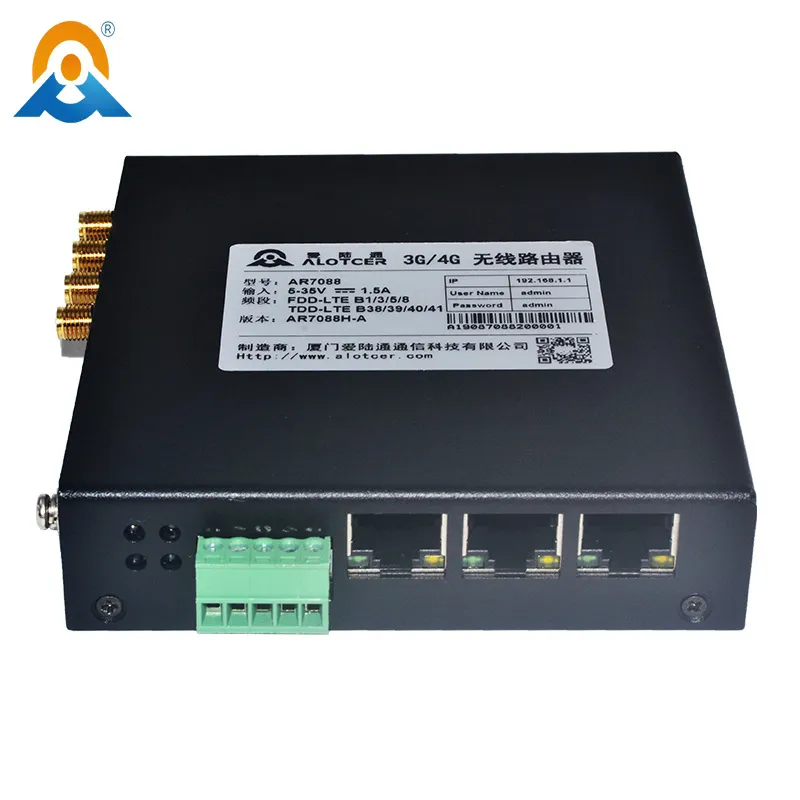

Hot Selling Industrial LTE Modem Ar7088h for Remote Monitoring for Hydraulic Press
Product DescriptionSpecification Items Contents Hardware System CPU Industrial 32 bits CPU FLASH 16MB (Extendable to 64MB) SDRAM 128MB Interface Serial 1 RS232 and 1 RS485, 15KV ESD protectionSerial port: 5 PIN industrial terminal, 3.5mm pitchData bits: 5, 6 ,7, 8Stop bits: 1, 1.5(optional), 2Pari......
Send Inquiry
Product Description
Product Description
Specification
SpecificationItems | Contents | |
Hardware System | CPU | Industrial 32 bits CPU |
FLASH | 16MB (Extendable to 64MB) | |
SDRAM | 128MB | |

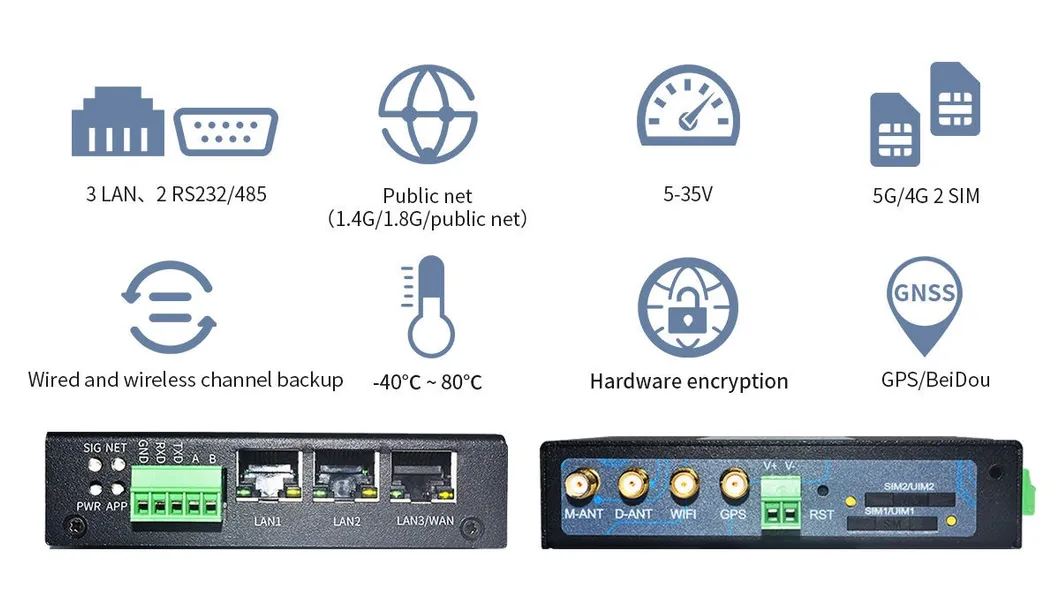

Interface | Serial | 1 RS232 and 1 RS485, 15KV ESD protection Serial port: 5 PIN industrial terminal, 3.5mm pitch Data bits: 5, 6 ,7, 8 Stop bits: 1, 1.5(optional), 2 Parity: none, even, odd, space, mark Baud rate: 110~230400 bps Large serial port data cache:10MB |
WAN/LAN | 1 10/100Mbps WAN(RJ45,can configurable as LAN) port, auto MDI/MDIX, 1.5KV magnetic isolation protection | |
LAN | 2 10/100Mbps Ethernet ports(RJ45), auto MDI/MDIX, 1.5KV magnetic isolation protection | |
Antenna | Cellular/GPS: Standard SMA female interface, 50 ohm WIFI: Standard SMA male interface, 50 ohm | |
SIM/UIM | Standard 3V/1.8V user card interface, 15KV ESD protection | |
Power | 2 PIN industrial terminal, 3.81mm pitch, reverse- voltage and over voltage protection | |
Reset | Press this key for 8 seconds to restore the Router to its original factory default settings | |
Indicator | "PWR","SIG","NET","APP" ,"Link"(RJ45) | |
Network | Wireless Network | GSM/GPRS/EDGE: 850/900/1800/1900MHz CDMA: 800/1900MHz WCDMA/HSUPA/HSPA+: 850/900/1900/2100MHz CDMA2000 1x/ EVDO Rev. A: 800/1900MHz TD-SCDMA: 1880-1920/2010-2025MHz(A/F) TDD-LTE:Band 38/39/40/41& Band 61/62 (Private Network) FDD-LTE:Band1/2/3/4/5/7/8/12/13/17/18/19/20/21/25/26/28/66 |
PPP Protocol | Support PPP Protocol | |
PPP Heartbeat | Maintaining links with the cellular network to prevent forced sleep, to ensure the stability of dial-up link. | |
Network Authentication | Support CHAP/PAP Authentication | |
TCP Heartbeat | Monitor the server connection | |

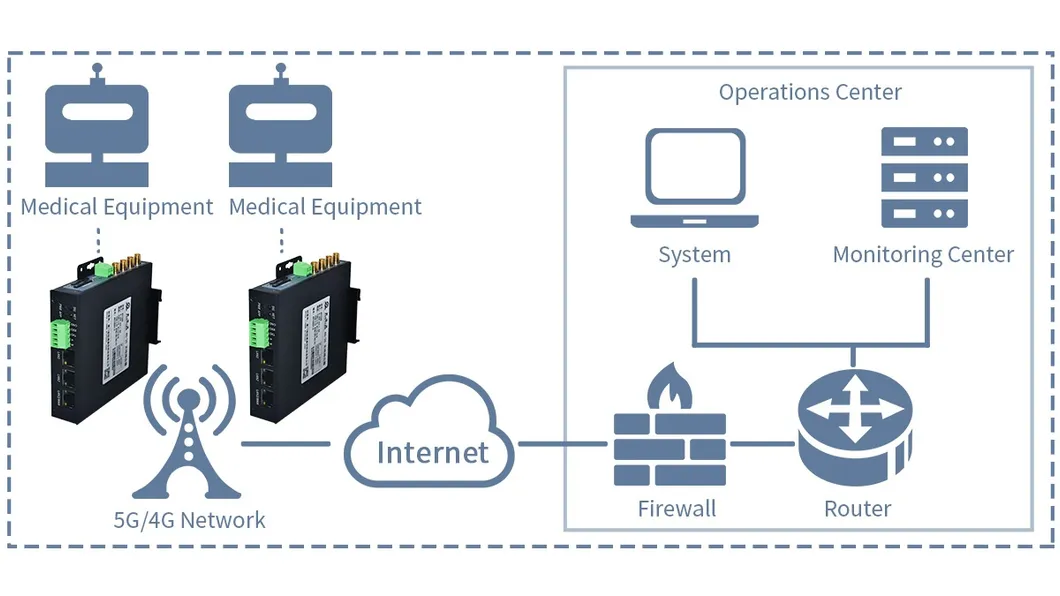

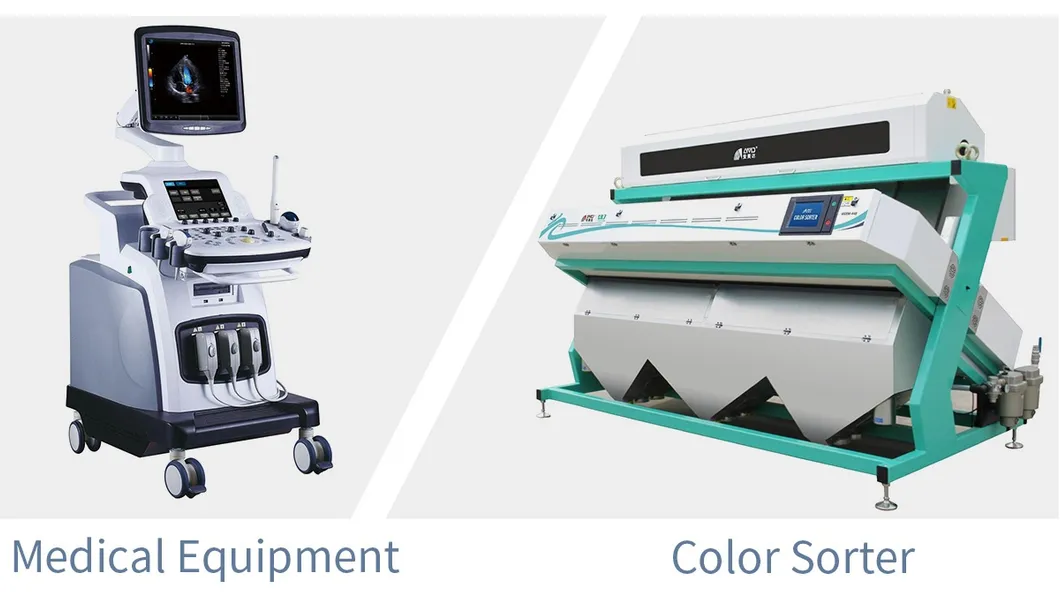

Application
Packing & DeliveryTo better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
Alotcer has been cultivating the Internet of Things industry for many years. It is the only manufacturer in the industry to complete all production processes such as placement, processing, assembly, testing and aging in the company. There are more than 200 employees, 3000 square meters office, 4 Panasonic fully automatic high speed SMT production lines, 3 wave soldering lines, 3 assembly & test lines in Alotcer. The product has high quality, high reliability and cost-effective features. Feel free to contact us.
FAQ
1. who are we?
We are based in Fujian, China, start from 2014,sell to Domestic Market(55.00%),Southeast Asia(10.00%),Central America(8.00%),Southern Europe(7.00%),South Asia(5.00%),South America(5.00%),Western Europe(3.00%),North America(1.00%),Oceania(1.00%),Africa(1.00%),Northern Europe(1.00%),Eastern Europe(1.00%),Mid East(1.00%),Eastern Asia(1.00%). There are total about 201-300 people in our office.
2. how can we guarantee quality?Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?Industrial Cellular Router,Industrial embedded Cellular Router,Industrial IP Modem,Industrial Modem,Monitoring Platform
4. why should you buy from us not from other suppliers?Main industrial router vendor for China National Power Grid.
Industrial 5G/4G cellular router/Modem Manufacturer for Worldwide.
Alotcer have passed ISO9001. Product have CE certification.
More than 200 people with more than 30% RD and technical.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES;
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
Company ProfileAlotcer has been cultivating the Internet of Things industry for many years. It is the only manufacturer in the industry to complete all production processes such as placement, processing, assembly, testing and aging in the company. There are more than 200 employees, 3000 square meters office, 4 Panasonic fully automatic high speed SMT production lines, 3 wave soldering lines, 3 assembly & test lines in Alotcer. The product has high quality, high reliability and cost-effective features. Feel free to contact us.FAQ
1. who are we?
We are based in Fujian, China, start from 2014,sell to Domestic Market(55.00%),Southeast Asia(10.00%),Central America(8.00%),Southern Europe(7.00%),South Asia(5.00%),South America(5.00%),Western Europe(3.00%),North America(1.00%),Oceania(1.00%),Africa(1.00%),Northern Europe(1.00%),Eastern Europe(1.00%),Mid East(1.00%),Eastern Asia(1.00%). There are total about 201-300 people in our office.
2. how can we guarantee quality?Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?Industrial Cellular Router,Industrial embedded Cellular Router,Industrial IP Modem,Industrial Modem,Monitoring Platform
4. why should you buy from us not from other suppliers?Main industrial router vendor for China National Power Grid.
Industrial 5G/4G cellular router/Modem Manufacturer for Worldwide.
Alotcer have passed ISO9001. Product have CE certification.
More than 200 people with more than 30% RD and technical.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES;
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
