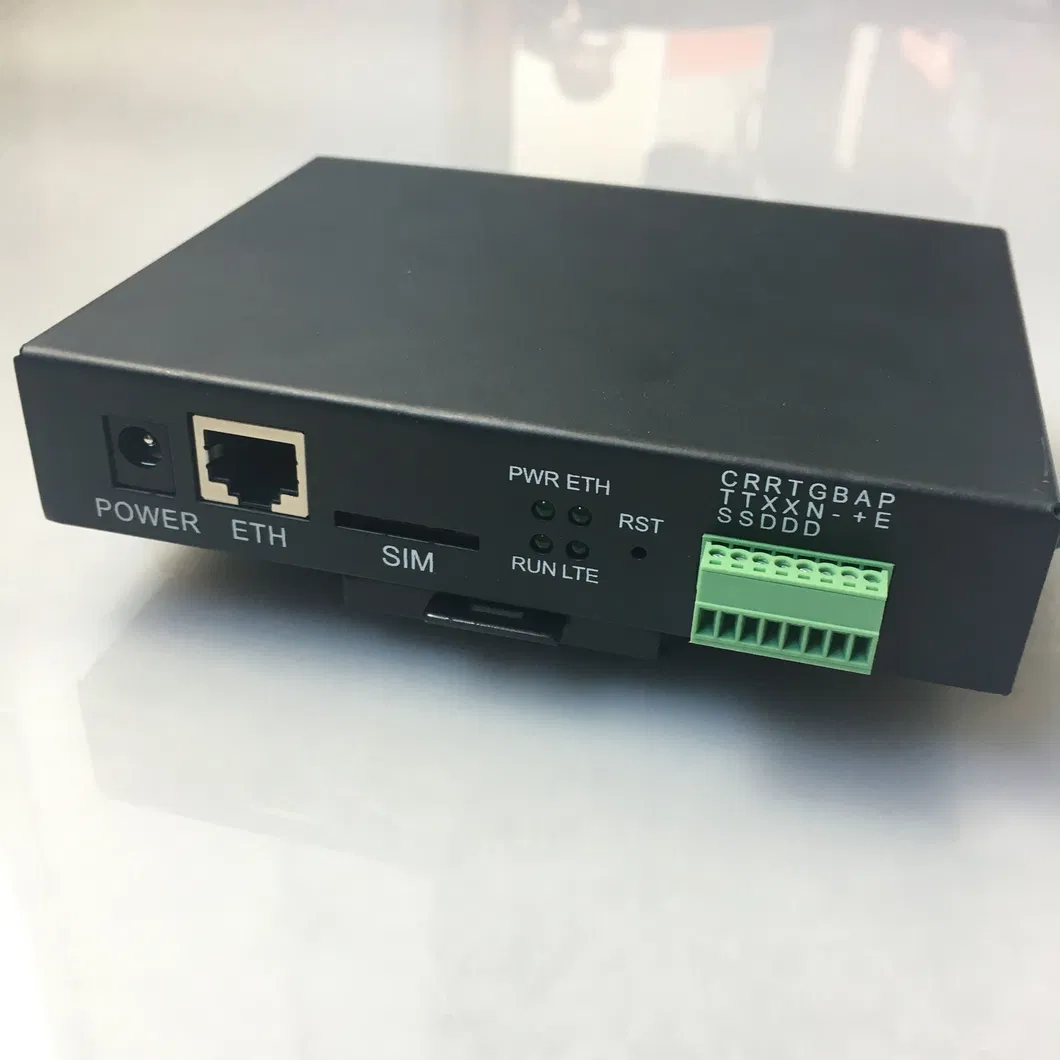

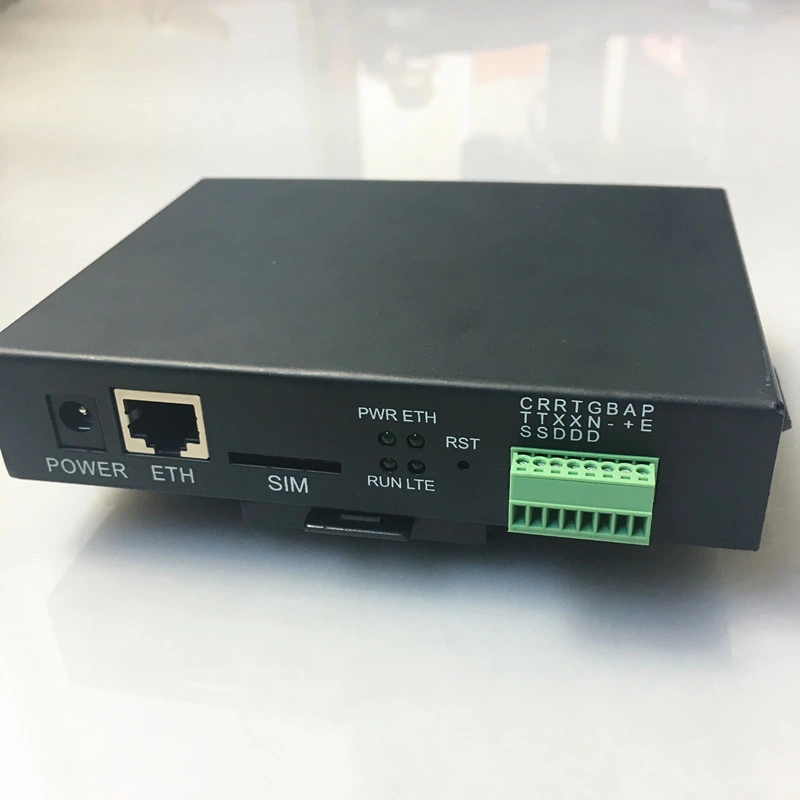

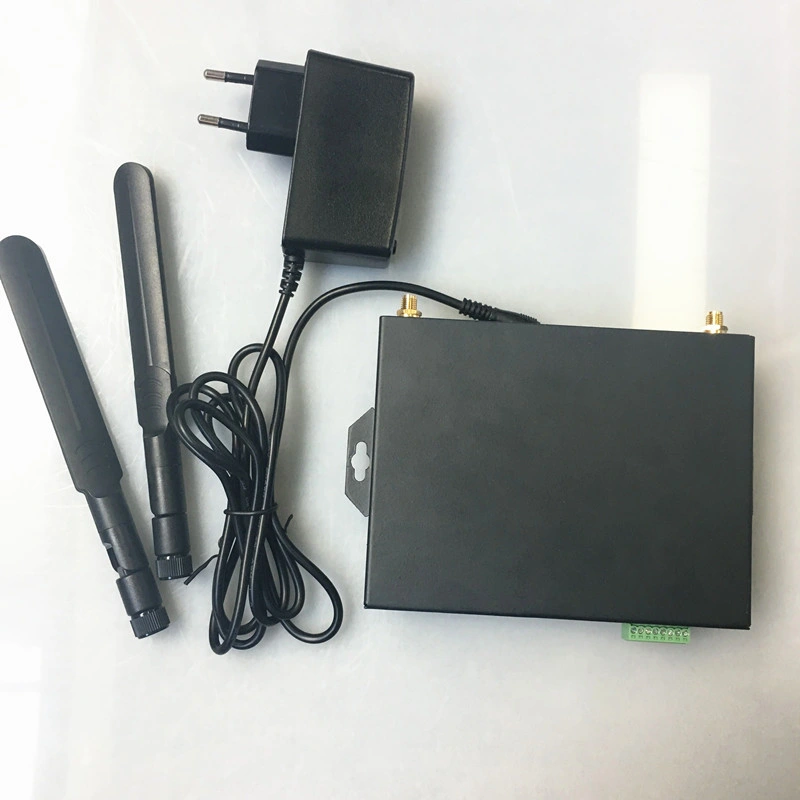

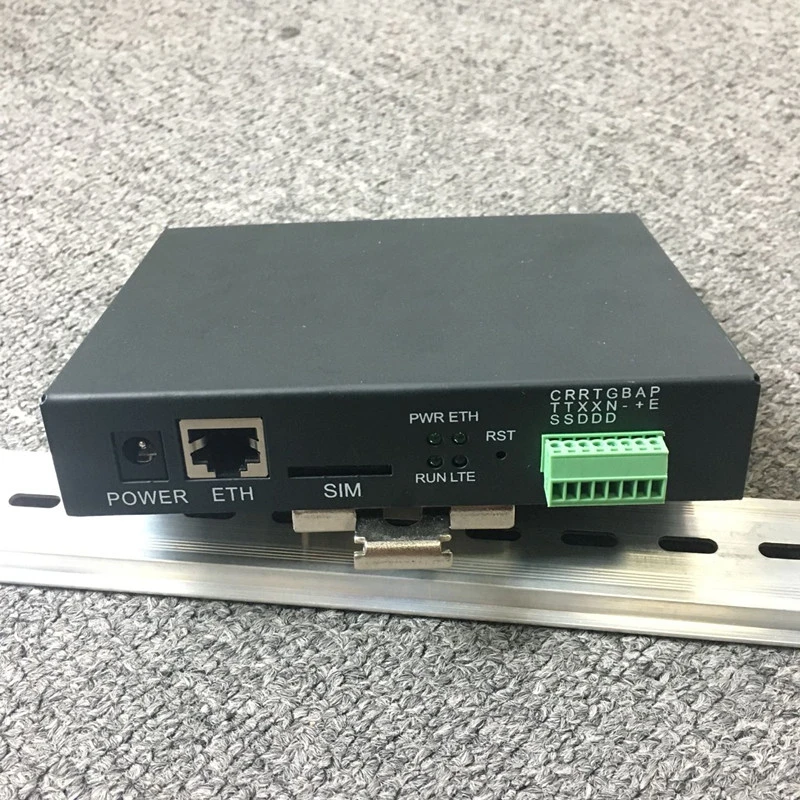

Hot Sale Wireless 4G Lte Router with Support Wep\Wpa\ Wpa2 Encryption Ways
hot sale wireless 4G LTE router with Support WEP\WPA\ WPA2 encryption ways 3G/4G LTE data transmission; Active auto connect; Embedded watchdog , Auto recovery; 2*2 4G LTE MIMO antenna; Integrate 3G/4G LTE, GPS feature; One LAN port, One RS232 or RS485 port; With SIM card slot; Wide power supply: +12......
Send Inquiry
Product Description
hot sale wireless 4G LTE router with Support WEP\WPA\ WPA2 encryption ways
• 3G/4G LTE data transmission;
• Active auto connect;
• Embedded watchdog , Auto recovery;
• 2*2 4G LTE MIMO antenna;
• Integrate 3G/4G LTE, GPS feature;
• One LAN port, One RS232 or RS485 port;
• With SIM card slot;
• Wide power supply: +12V~+30V/1A
• Firmware version: Linux;
• Small size dimension:150mm*100mm*26mm
| Product Specification | |
| Item | Product specification |
| CPU | Qualcomm MDM9215 |
| MEMORY | FLASH 8MByte, DDR2 64MByte Embedded system Linux |
| Network | FDD LTE,TDD LTE,WCDMA,EVDO,GPRS,GSM,CDMA 1X |
| Data rate | 4g: CAT 3, DL 100bps , UL 50Mbps . WCDMA HSPA+: DL 42Mbps, UL 5.76Mbps GPRS DL/UL 85.6Kbps |
| WIFI Tx Power | 14 dBm( 11g), 17 dBm( 11b), 14dBm( 11n) |
| WIFI Rx Sensitivity | <-70 dBm@54Mpbs |
| GPS | GPS/GLONASS,Protocol: NMEA (Optional) |
| 2G/3G/4G Transmitting Power | GSM/GPRS: Class 4 (2W): GSM850, EGSM900 Class 1 (1W): DCS1800, PCS1900 EDGE: Class E2 (0.5W): GSM850, EGSM900 Class E1 (0.4W): DCS1800, PCS1900 UMTS: Class 3 (0.25W): WCDMA Class 3 (0.25W): CDMA2000 Class 2 (0.25W): TD-SCDMA LTE: Class 3 (0.25W) |
| Hardware interface | 1*LAN 10/100Mbps, 1*RS232 or RS485 port |
| RF connectors | SMA connector ,the characteristic impedance 50Ω |
| Security Encryption | Support WEP, WPA, WPA2 encryption ways |
| Protocol | PPTP,L2TP,IPSEC VPN,TCP,UDP, DHCP,HTTP,DDNS,TR-069,GRE, HTTPS, SSH, Open VPN,SNMP |
| SIM/UIM | Standard draw card interface, support 1.8V/3V SIM/UIM card, built-in ESD protection |
| LED Indicator | "PWR", "ETH", "RUN", "LTE" |
| Key button | Reset |
| Standard Power | DC 12V/1A |
| Power Supply | DC 12V~30V |
| Working current | 2A (Max Current) |
| Temperature | Operating Temperature -40~+80ºC Storage Temperature -45~+85ºC |
| Environment humidty | 95% |
| Case | Aluminum Alloy Shell |
| Size | 150mm*100mm*26mm |
| Weight | 160g |
| 2G/3G/4G Frequency bands | Version C LTE-FDD. B1,3,7,8 LTE-TDD.B38,39,40,41 WCDMA.900/2100MHz TDSCDMA. band A and band B GSM.900/1800MHz Version E. LTE-FDD. B1,3,7,8,20 LTE-TDD.B38,40 WCDMA.900/2100MHz GSM.900/1800MHz Version A. LTE-FDD. B2,4,5,17 WCDMA.850/1900MHz Version JC LTE FDD. B1,B3,B8,B18,B19 LTE TDD. B41 UMTS. B1,B6,B8 GSM. 900/1800MHz Version JE LTE FDD. B1,B8 UMTS. B1,B8 GSM. 900/1800MHz |
