Product Description

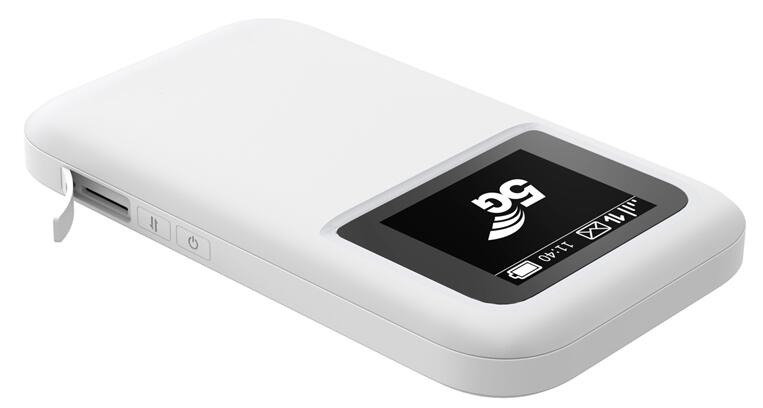

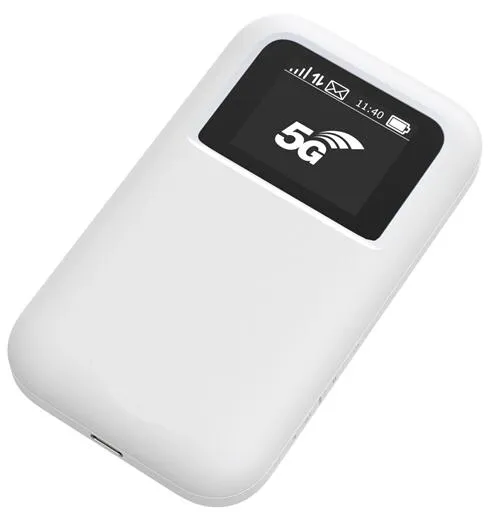

HDR400 5G mini pocket router , wifi hotspot
Product Specification
| Product Definition | |||
| Essential Points | |||
| Product Name | HDR400 | ||
| Product Orientation | Primary Orientaton: Operators Individual consumers | ||
| Highlight | 1, Multi-mode/Multi-band 5G 2, WIFI6 | ||
| Time To Come Into The Market | CS: 20/10/10 PP:20/11/31 MP: 20/12/20 | ||
| Item | Description | Remark | |
| Key features | |||
| Platform | SDX55+QCA6391 | 7nm LPE | |
| Processors | Arm Cortex-A7 up to 1.5 GHz | ||
| Package | See ID sheet | ||
| Basical Information | Dimension | 145.0 x 78.0 x 17.5mm | |
| Color | Black+Gray See ID | ||
| Battery | Li-ion Battery 5000mAh | ||
| OLED | 2.4" TFT-LCD screen support touch Capacitive touch screen | ||
| Weight | about 250 g (including the battery) | ||
| Supported mode: 5G NR/LTE FDD/TDD/DC-HSPA+/HSPA+/HSPA | 5G NR | 5G NR sub6Hz Bands: n1,n2,n3,n5,n7,n8,n12,n20,n25,n28,n38,n40,n41,n48,n66,n71,n77,n78,n79 | |
| DL 4*4 MIMO Bands: n1,n2,n3,n7,n25,n38,n40,n41,n48,n66,n77,n78,n79 | |||
| DL 256 QAM: FR1 | |||
| UL 256 QAM: FR1 | |||
| EN-DC Combinations (NSA): typical EN_DC combos B1+N41 B12+N78 B40+N41 B1+N77 B13+N48 B40+N77 B1+N78 B13+N78 B40+N78 B1+N79 B18+N77 B40+N79 B2+N41 B18+N78 B41+N41 B2+N78 B19+N78 B41+N77 B3+N41 B19+N79 B41+N78 B3+N77 B20+N41 B41+N79 B3+N78 B20+N77 B66+N41 B3+N79 B20+N78 B66+N48 B4+N41 B26+N41 B66+N78 B4+N78 B28+N41 B71+N78 B5+N78 B28+N77 B7+N77 B28+N78 B7+N78 B28+N79 B8+N41 B38+N78 B8+N77 B39+N41 B8+N78 B39+N79 B8+N79 more EN_DC combos request, please confirm with T&W | |||
| LTE | LTE Band: B1,B2,B3,B4,B5,B7,B8,B12,,B13,B14,B17,B18,B19,B20,B25,B26,B28,B29,B30,B32,B34,B38,B39,B40,B41,B42,B43,B48,B66,B71 LAA:B46 | ||
| DL 4*4 MIMO Bands: LTE:B1,B2,B3,B4,B7,B25,B30,B34,B38,B39,B40,B41,B42,B43,B48,B66 LAA:B46 | |||
| DL 2×CA: B1+/B1/B3/B5/B7/B8/B18/B19/B20/B26/B28/B32/B38/B40/B41/B42/B46 B2+/B2/B4/B5/B7/B12/B13/B14/B17/B28/B29/B30/B46/B48/B66/B71 B3+/B1/B3/B5/B7/B8/B18/B19/B20/B26/B28/B32/B38/B40/B41/B42/B46 B4+/B2/B4/B5/B7/B12/B13/B17/B28/B29/B30/B46/B48/B71 B5+/B1/B2/B3/B4/B5/B7/B12/B13/B25/B29/B30/B38/B40/B41/B46/B48/B66 B7+/B1/B2/B3/B4/B5/B7/B8/B12/B13/B20/B26/B28/B29/B32/B40/B42/B46/B66 B8+/B1/B3/B7/B20/B28/B32/B38/B39/B40/B41/B42/B46 B12+/B2/B4/B5/B7/B12/B25/B30/B46/B66 B13+/B2/B4/B5/B7/B46/B48/B66 B14+/B2/B30/B66 B17+/B2/B4 B18+/B1/B3/B28/B42 B19+/B1/B3/B42 B20+/B1/B3/B7/B8/B32/B38/B40/B42 B25+/B5/B12/B25/B26/B41/B46 B26+/B1/B3/B7/B25/B41/B46 B28+/B1/B2/B3/B4/B7/B8/B18/B32/B38/B40/B41/B42/B46 B30+/B2/B4/B5/B12/B14/B29/B66 B38+/B1/B3/B5/B8/B20/B28/B38/B40 B39+B8/B8/B39/B41 B40+/B1/B3/B5/B7/B8/B20/B28/B38/B40/B41/B42 B41+/B1/B3/B5/B8/B26/B28/B39/B40/B41/B42/B46/B48 B42+/B1/B3/B7/B8/B18/B19/B20/B28/B40/B41/B42 B43+B43 B48+/B2/B4/B5/B13/B41/B46/B48/B66/B71 B66+/B2/B5/B7/B12/B13/B14/B29/B30/B46/B48/B66/B71 B71+/B2/B4/B46/B48/B66 (Note: B29, B32 is only for secondary component carrier) | |||
| DL 3×CA: MB/HB +MB/HB+MB/HB 3xCA: 25 + 66 + 30, 25 + 66 + 30, 1 + 3 + 41, DL inter-band 3CA: 1+3+7, 1+3+19, 1+3+20, 1+3+5, 1+3+8, 1+3+28,1+7+20, 2+4+5, 2+4+13, 2+5+30, 2+12+30, 2+29+30 , 3+7+20, 3+7+28 , 3+7+8, 4+5+30, 4+12+30, 4+29+30 , 5+66+2, 13+66+2, 66+12+30,66+29+30,66+5+30; B2+B14+B66; DL 2 intra-band plus inter-band 3CA: 2+2+5, 2+2+13 , 3+3+7, 3+7+7, 3+3+20 , 3+3+28,3+3+1, 4+4+5, 4+4+13, 7+7+28, 5+66+66, 13+66+66, 66+66+2, B39+B39+B41; B39+B41+B41; B14+B66+B66 B25+B25+B26, B25+B41+B41 DL 3 intra-band 3CA: 40+40+40, 41+41+41, 66+66+66 | |||
| DL 4×CA: MB/HB +MB/HB+MB/HB+MB/HB 4xCA: 1 + 3 + 7 +32,1 + 3 + 7 + 40, DL inter-band 4CA: 1+3+7+20, 1+3+7+28, 1+3+5+7, 1+3+8+40, 2+4+5+30, 2+5+30+66, 2+12+30+66, 2+29+30+66, DL 2 intra-band CA plus inter-band 4CA: 1+3+7, 1+3+19, 1+3+20, 1+3+5, 1+3+8, 1+3+28,1+7+20,1+3+5, // Band 1/3/7 support up to 40MHz 2+4+5, 2+4+13, 2+5+30, 2+12+30, 2+29+30 , // Band 2/4 support up to 40MHz 3+7+20, 3+7+28 , 3+7+8, //Band 3/7 support up to 40MHz 4+5+30, 4+12+30, 4+29+30 , // Band 4 support up to 40MHz 5+66+2, 13+66+2, // Band 66 support up to 40MHz 66+12+30,66+29+30,66+5+30; // Band 66 support up to 40MHz B39+39+41; B39+B41+B41; DL 3 intra-band plus inter-band 4CA: 5+66+66+66, 13+66+66+66, 66+66+66+2 B39+39+B41+B41; B39+B41+B41+B41; DL intra-band 4CA: 40+40+40+40, 41+41+41+41, | |||
| DL 5×CA: MB/HB +MB/HB+MB/HB+MB/HB+MB/HB 5xCA: 1 + 3 + 7 + 32 + 38, DL2 intra-band CA plus inter-band 5CA: 1+3+7+20, 1+3+7+28, 1+3+5+7, 1+3+8+40, // Band 1/3/7 support up to 40MHz DL 3 intra-band CA plus inter-band 5CA: 1+3+7, 1+3+19, 1+3+20, 1+3+5, 1+3+8, 1+3+28,1+7+20,1+3+5, // Band 1/3/7 support up to 40MHz 3+7+20, 3+7+28 , 3+7+8, //Band 3/7 support up to 40MHz DL 4 intra-band plus inter-band 5CA: 3+40E, 39C+41D, | |||
| UL Intra-band Continuous CA: 1C, 3C, 5B, 7C, 8B, 39C, 40C, 41C, 42C, 43C | |||
| support DL 256QAM | |||
| support UL 256QAM | |||
| WCDMA | Bands: B1/B2/B3/B4/B5/B6/B8/B19 | ||
supported mode: IEEE 802.11a/b/g/n/ac/ax | General Features | Wi-Fi 2.4GHz + 5GHz | |
| Frequency Range | 2.4 ~ 2.4835GHz 4.9 ~ 5.9250GHz | ||
| WLAN Standard | 802.11a/b/g/n/ac/ax | ||
| BT Standard* | NO | ||
| Channel Number | 2.4G:1~13 5G:36/40/44/48/52/56/60/64/149/153/157/161/165 | ||
| Modulation Mode | DBPSK, DQPSK, CCK, BPSK, QPSK, 16QAM, 64QAM,256-QAM ,1024-QAM | ||
| Encryption Mode | None(Open), WPA-PSK,WPA2-PSK,WPA-PSK/WPA2-PSK,WPA3-SAE | ||
| AP (Max Access Point) | 32 TBD | ||
| Operator Mode | AP and STA | ||
| WLAN Encryption | None(Open), WPA-PSK,WPA2-PSK,WPA-PSK/WPA2-PSK,WPA3-SAE | ||
| None(Open), WPA-PSK,WPA2-PSK,WPA-PSK/WPA2-PSK,WPA3-SAE | |||
| WLAN EAP | PEAPv0/EAP-MSCHAPv2, EAP-AKA | ||
| EAP-MD5, EAP-TLS, EAP-TTLS/MSCHAPv2, PEAPv1/EAP-GTC | |||
| WLAN Modulation | 11b:CCK,QPSK,BPSK | ||
| 11g:OFDM | |||
| 11n:QPSK,BPSK,16-QAM,64-QAM | |||
| 11ac:QPSK,BPSK,64-QAM,256-QAM | |||
| 11ax: OFDM: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM | |||
| Data | |||
| 5G NR(2T4R) | NSA sub6 | DL 5 Gbps; UL 650Mbps;(apprx.) | |
| SA sub6 | DL 4.2Gbps; UL 900Mbps (apprx.) | ||
| LTE | DL 2.0Gbps, UL 150Mbps | ||
| HSPA+ | DL 42Mbps, UL 5.76Mbps | ||
| UMTS | DL 384Kbps, UL384Kbps | ||
| TD-SCDMA | none | ||
| CDMA | none | ||
| EDGE | none | none | |
| GPRS | none | none | |
| WLAN speed | 802.11a: Up to 54 Mbit/s | ||
| 802.11b: Up to 11 Mbit/s | |||
| 802.11g: Up to 54 Mbit/s | |||
| 802.11n HT20: Support MCS0-MCS7; Up to 72.2 Mbit/s. Support MCS8-MCS15; Up to 144.4 Mbit/s. HT40: Support MCS0-MCS7; Up to 150 Mbit/s. Support MCS8-MCS15; Up to 300 Mbit/s | |||
| 802.11ac Up to 1000 Mbps | |||
| 802.11ax Up to 1774.5 Mbps | |||
| HW Interfaces | |||
| USB Type-C interface | USB 2.0 / 3.1 | Type C Charge & internet | |
| USIM1 Standard Nano SIM card interface | x1, support 1.8 / 3V, with detection | support 1 SIM interface, support SIM presence detection | |
| USIM2 (Optional) | x1, support 1.8 / 3V, with detection | Esim | |
| eUICC | Y | integrated eUICC into the board. | |
| Power supply | DC: 9V, 2A | ||
| OTG charge | DC: 5V,1.5A | Support | |
| Charging time | <3.5 hours | Depends on adapter type | |
| Working time | up to10h | power <XXX mA @ 500kbytes/min, -80dBm TBD | |
| Standby time | 400h | standby power < 4mA | |
| RF | Built-in Antenna | WIFI: 2.4G/5.8G: 2*2 MIMO Sub6G 5G: 4*4 | |
| PWRKEY | Turn on/off the MIFI | ||
| RESET | reset to factory mode | Pull up internally | |
| WPS | Button or LCD display | ||
| DBG | Support | Debug UART Interface 2 Lines (DBG_RXD,DBG_TXD) | |
| Touch | Capacitive touch screen | ||
| Software | |||
| ITEM | Description | Yes/No | |
| USSD | |||
| SMS | Writing/Sending/Receiving | Support | |
| Sending/Receiving extra-long messages | Support | ||
| Storage: Up to 300 messages can be saved in the internal memory of the 5G MIFI. | Support | ||
| Network connection setup | APN management: create, delete and edit. | Support | |
| APN Configure | Support | ||
| APN self-adaptation scheme | Support | ||
| Manual search | Support | ||
| Roaming | Support | ||
| WLAN setup | SSID hiding | Support | |
| Display STA status | Support | ||
| ssid | Support | ||
| WLAN MAC filter | Support | ||
| WiFi channel | Support | ||
| LAN IP Filter | Support | ||
| Virtual Server | Support | ||
| DMZ Service | Support | ||
| Port forwarding | Support | ||
| DHCP setup | DHCP server enabling and disabling | Support | |
| Address pool of the DHCP server setup | Support | ||
| DHCP lease time setup | Support | ||
| Upgrade | Local Update | Support | |
| SETTINGS | Network status display: signal, operator name, network mode | Support | |
| Enhanced Features (U)SIM Card Detection | Support | ||
| PIN management: activate/deactivate PIN, PIN lock, changing PIN, unblocking by using the PUKPIN | Support | ||
| SNTP | Support | ||
| DOS ATTACK | Support | ||
| HTTP | Support | ||
| HTTPS | Support | ||
| Safety | Session Timeout | Support | |
| Wi-Fi On/Off Control | Support | ||
| Incorrect Password Lockout | Support |
| Electrical | |||
| Power consumption (typ.@max power, TBD) | Off | TBD | |
| Average | TBD | ||
| Max power | TBD | ||
| Maximum transmitter power | 5G: Conform to Power Class 3 Definition | ||
| LTE: Conform to Power Class 3 Definition | |||
| WCDMA: Conform to Power Class 3 Definition | |||
| 5G NR (others) | Class 3 | 23dBm+2/-3dB (Class3) | |
| 5G NR (n41/77/78/79) | Class 2 | 26dBm+2/-3dB (Class2) | |
| Receiver sensitivity | 5G: Confirm to 3GPP Requirements | ||
| LTE: Confirm to 3GPP Requirements | |||
| WCDMA: Confirm to 3GPP Requirements | |||
| Environmental | Temperature | Operating: -10°C to +55°C | |
| Storage: -20°C to +60°C | |||
| Battery Charging: 0°C to 45°C | |||
| IPXX | IP52(TBD) | ||
| Humidity | 5% to 95% (non-condensing) | ||
| Electrostatic Discharge | The device shall be able to withstand the following ESD: 8kV contact / 15kV air discharge | ||
| Drop | The device accessories (charger) shall withstand drop from 1m onto hard surface (stone, concrete, metal) without mechanical, electrical, or functional damage, except for slight scratches or mars. | ||
| The housing will withstand drop from 1m onto hard surface stone, concrete, metal) without mechanical, electrical, or functional damage, except for slight scratches or mars. | |||
| Vibration Stability | The device shall be able to withstand the following vibration profile: 10-55Hz, 3 axes. | ||
| Packing List | 5G MiFi | 1 | Standard |
| Type A to Type C USB Cable | 1 | Standard | |
| Charger | 1 | Standard | |
| Ejection Pin | 1 | Standard | |
| Quick Start Guide | 1 | Standard | |
| Safety Information | 1 | Standard | |
Packaging & Shipping
All items are well packed according to the requirement. Packing can be done as per customer's requirement.
Production Lead-time : 2-6 weeks |
