Hdr100 L1 1 LAN Port Outdoor Router Which Support Lte FDD Tdd FDD WCDMA Network

Product Description

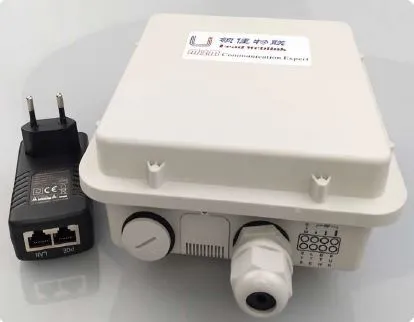

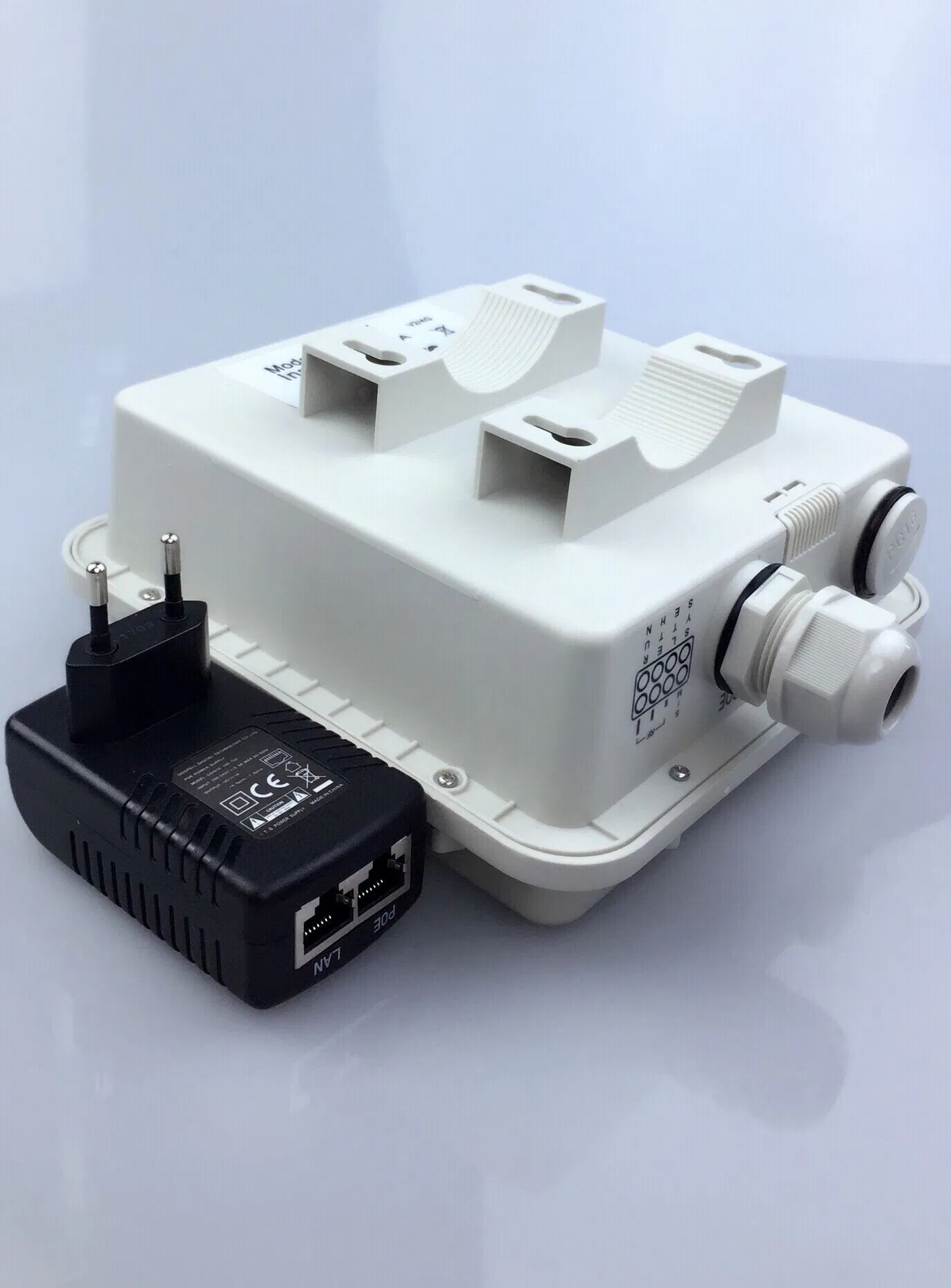

HDR100 L1 1 LAN port outdoor router which support LTE FDD TDD FDD WCDMA network

Product Highlight
• 3G/4G LTE data transmission;
• Active auto connect;
• Embedded watchdog , Auto recovery;
• 2*2 4G/WIFI MIMO antenna;
• 4G LTE antenna gain: >10DBi
• Integrate 3G/4G LTE feature;
• One LAN ports;
• POE power supply;
• With SIM card slot;
• Remote management platform;
• Firmware version: Linux;
• Waterproof,dustproof,lightning protection. Protection level, IP67
. Build-in Antenna is 10 dbi

Hdr100 L1 1 LAN Port Outdoor Router Which Support Lte FDD Tdd FDD WCDMA Network

Item	Product specification
CPU	QualcommMDM9215
MEMORY	FLASH 256MByte, DDR2 32MByte
Embeddedsystem	Linux
Network	FDD LTE,TDD LTE,WCDMA,GPRS,GSM
Data rate	4g: CAT 3, DL 100bps , UL 50Mbps WCDMA HSPA+: DL 42Mbps, UL 5.76Mbps GPRS DL/UL 85.6Kbps
2G/3G/4G Transmitting Power	GSM/GPRS: Class 4 (2W): GSM850,EGSM900 Class 1 (1W): DCS1800,PCS1900 EDGE: Class E2 (0.5W): GSM850,EGSM900 Class E1 (0.4W): DCS1800,PCS1900 UMTS: Class 3 (0.25W): WCDMA Class 3 (0.25W): CDMA2000 Class 2 (0.25W): TD-SCDMA LTE:Class 3 (0.25W)
Hardware interface	1*LAN 10/100Mbps
RF	Built-in 4G LTE antenna
Protocol	PPTP,L2TP,IPSEC VPN,TCP,UDP, DHCP,HTTP,DDNS,TR-069,GRE, HTTPS, SSH, Open VPN,SNMP
LED Indicator	"SYS", "SIM","RF" ,"LTE", "ETH","RUN"
SIM/UIM	Standard draw card interface, support 1.8V/3V SIM/UIM card, built-in ESD protection
Key button	Reset
Standard Power	POE input: DC 18V/1A
Power Supply	POE input: DC +12V~24V
Working current	2A (Max Current), 10W
Temperature	Operating Temperature -40~+80ºC Storage Temperature -45~+85ºC
Environment humidty	95%
Case	Waterproof plastic shell, IP67
Size	172mm165mm90mm
Weight	554g
