Dual Band SIM Mobile WiFi Long Range WiFi Router with Card Slot
Dual Band Sim Mobile Wifi Long Range Wifi Router With Card SlotBrand Wingstel Model CPF903-B Item name 4G LTE CPE Appearance Dimension (L × W × H)132*135*25mmWeight180gHardware Platform HW_VERCPF903-B-V2.0 MTK ChipsetMT6735WMRAM/ROM4GByte EMMC+512MByte DDR2Wi-Fi ChipsetMT6625LWi-......
Send Inquiry
Product Description

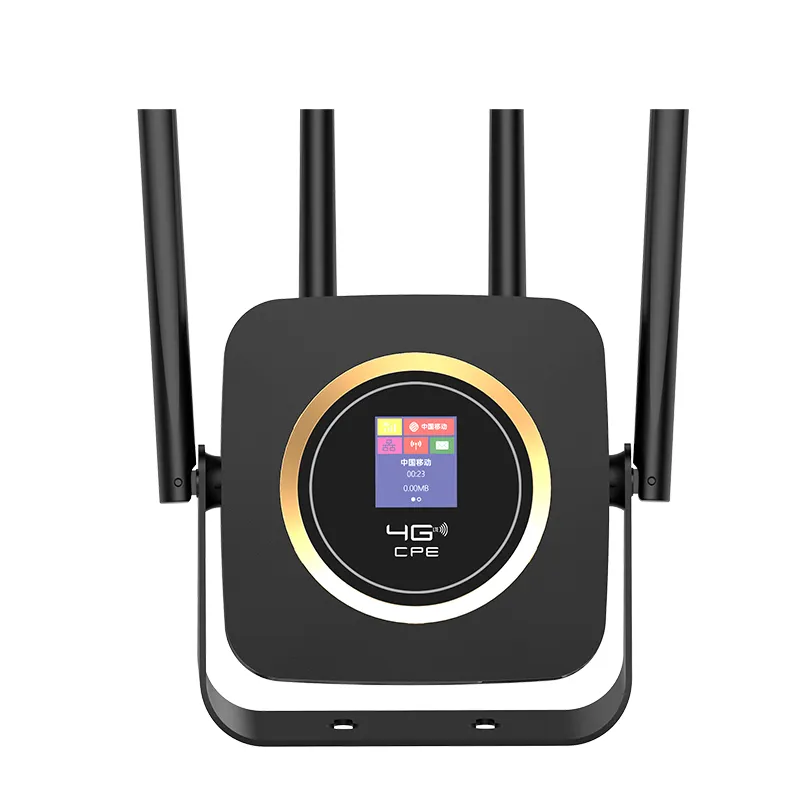

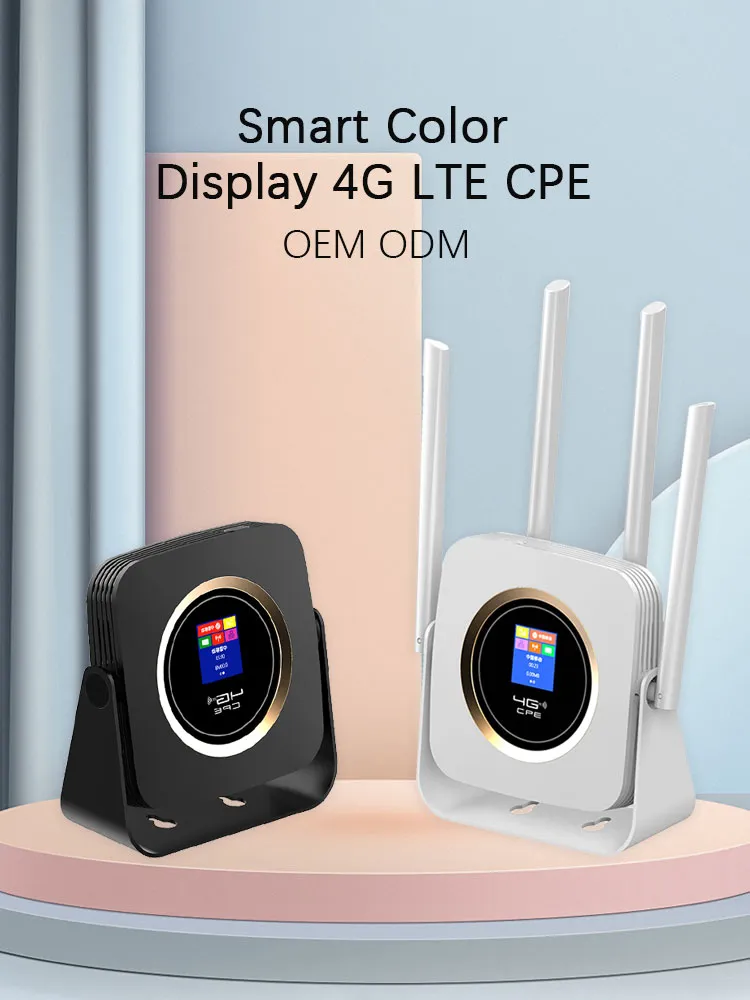

Dual Band Sim Mobile Wifi Long Range Wifi Router With Card Slot
| Brand | Wingstel | ||||||
| Model | CPF903-B | ||||||
| Item name | 4G LTE CPE | ||||||

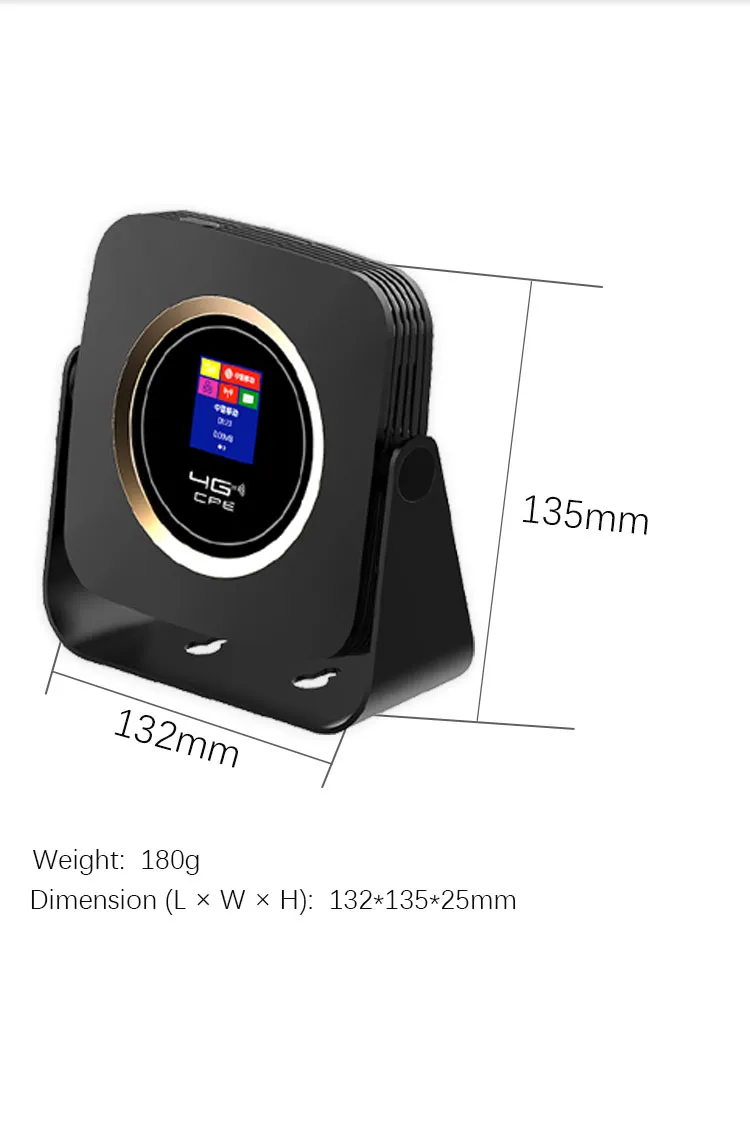

| Appearance | Dimension (L × W × H) | 132*135*25mm | |||||
| Weight | 180g | ||||||
| Hardware Platform | HW_VER | CPF903-B-V2.0 | |||||
| MTK Chipset | MT6735WM | ||||||
| RAM/ROM | 4GByte EMMC+512MByte DDR2 | ||||||
| Wi-Fi Chipset | MT6625L | ||||||
| Wi-Fi | IEEE 802.11b/g/n | ||||||
| Wi-Fi Transfer rate | up to 150Mbps | ||||||
| Encryption | Wi-Fi Protected Access™ (WPA/WPA2)2 | ||||||

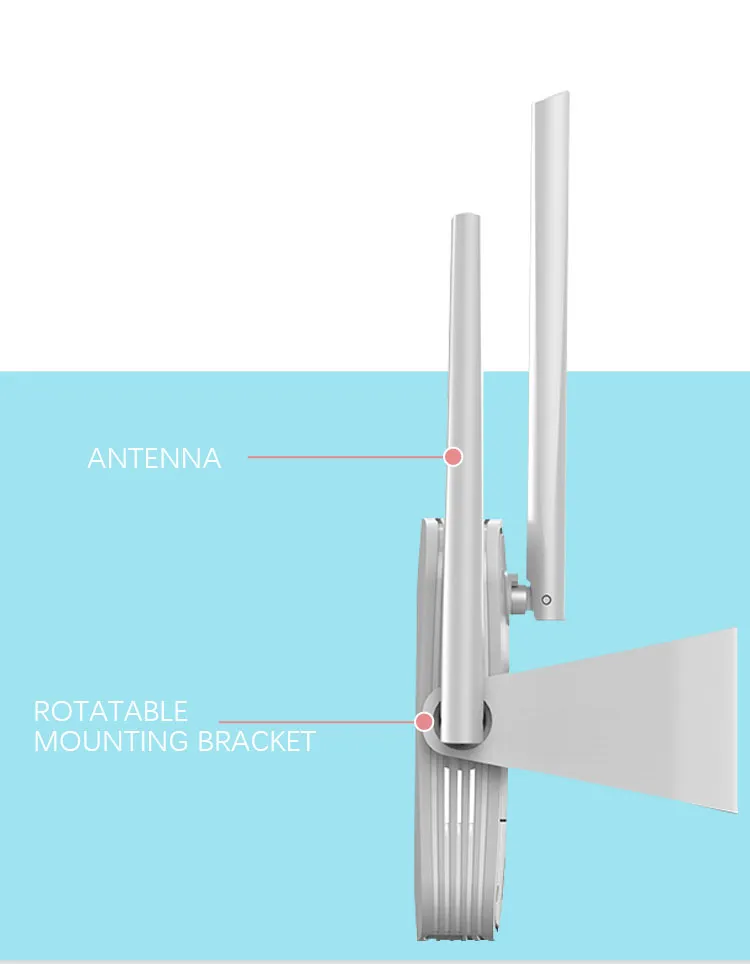

| Antenna | External antenna *4 (2.4G WiFi antenna *2, LTE antenna*2) | ||||||
| Special function | Virtual card | 4G+2G | |||||
| Soft SIM | esim or softsim | ||||||
| Customization | Smart system, strong customization ability | ||||||

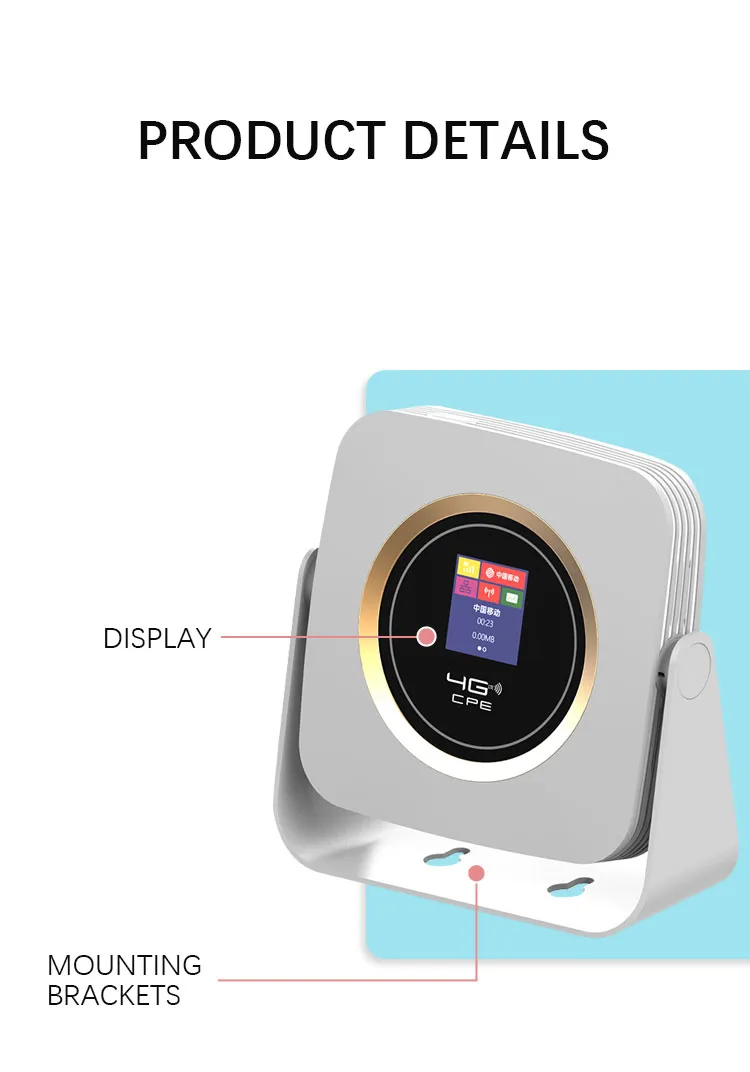

| Display | LCD | Color display | |||||
| LED | LED | ||||||

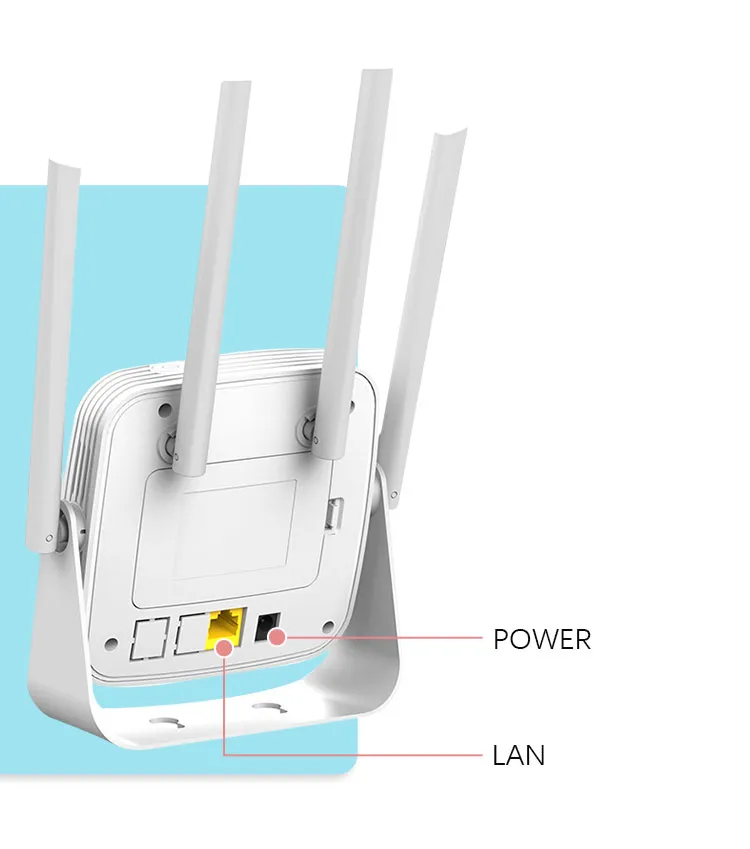

| Port | On/off button | 1 power | |||||
| SIM | 2 SIM | ||||||
| USB | USB TYPE A (5V 1A IN) | ||||||

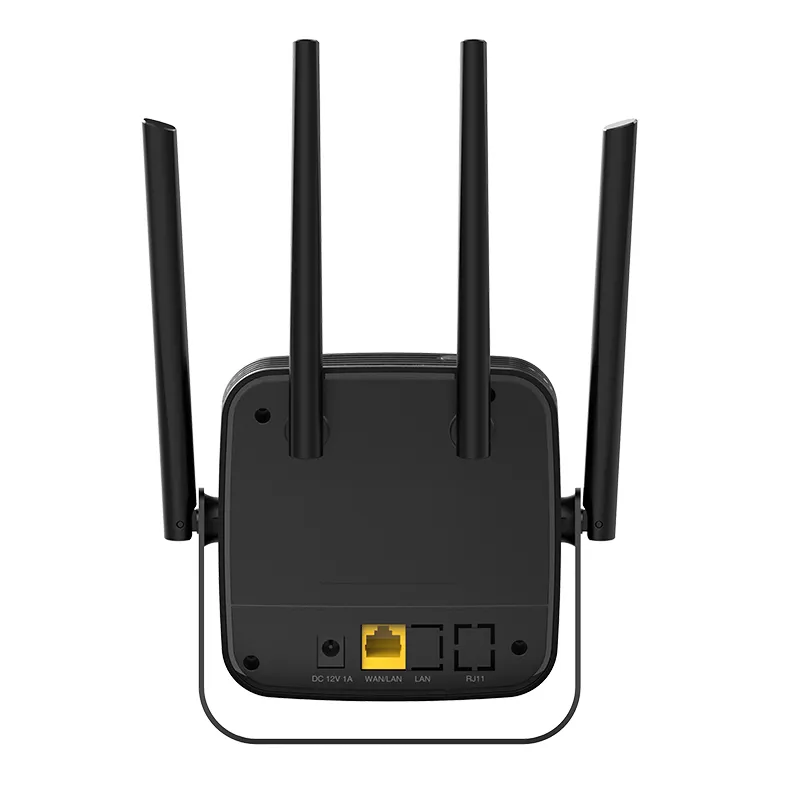

| DC | 12V 1A IN | ||||||
| RJ45 | 1* WAN/LAN | ||||||
| Battery | 3000mAh 6-8hours working time | PS. The battery does not support hot-plug | |||||
| Internet | Wi-Fi | Wi-Fi AP, Max 10 users | |||||
| SSID | 4G-CPE-XXXX(last 4 digits of the IMEI number) | ||||||
| WIF password by default | 1234567890 | ||||||
| Operating Environment | Working temperature | -10°C - 65°C | |||||
| Working height | Current tested max height 3000m (10,000 inches) | ||||||
| Operation system | PC Users: A PC with Windows XP (SP3), Windows Vista (SP1), Windows 7,or Windows 8 WIN10 MAC Users: A Mac with OS X v10.5.7,OS X Lion v10.7.3 or later IPAD Uers: An iPhone, iPad, or iPod touch with iOS 5 or later Android Uers: An mobile Phone or Tablet PC with Android 2.3 or later | ||||||
| Operation Browser | Internet Explorer 8.0 ,Mozilla Firefox 40.0 ,Google Chrome 40.0 ,Safari | ||||||
| Software Platform | System | Android 6.0 | |||||
| WEB | Gateway | http://192.168.199.1 | |||||
| Log in | Password:admin ( passord modification reqested to done at first loging as default setting Language(Chinese/English) | ||||||
| Status | Connection; APN;IP; Signal Strength; Battery Capacity; Conneting time; Users | ||||||
| Networks | APN confirguration: International roaming switch, APN, User name, Password, Authorization type modification, New APN, Restore defaulf APN parameters. Traffic statistics: Traffic Limitation: Afering reaching the set value, limit the speed as set. | ||||||
| Wifi | WLAN configuration: SSID modifiation, encryption methods, encryption password, Maximum user number setting, support PBC-WPS WiFi connection list: check the list that connect to this device, check MAC address, IP address, hostname, forbid and recover access to internet. | ||||||
| Ethernet mode | No ethernet network; LAN mode; WAN mode(Dynamic IP); WAN modern (PPPOE) | ||||||
| System Manage | Login password management: User name, password modification System operation: Restart, Shutdown, Restore factory setting System Information: Check software version, WLAN MAC address, IMEI NO. Phonebook setting: New, modify, look up, delete contact GPS control: GPS function turn on/off | ||||||
| SMS Management | SMS create, delete, send | ||||||
| OTHER | SIM lock | SIM card lock/unlock | |||||
| SIM card compatibility | China Unicom, China Telecom, China Mobile and other 4G SIM cards | ||||||
| Hardware Platform | HW_VER | CPF903-B-V2.0 |
| MTK Chipset | MT6735WM | |
| RAM/ROM | 4GByte EMMC+512MByte DDR2 | |
| Wi-Fi Transfer rate | up to 150Mbps | |
| Antenna | External antenna *4 (2.4G WiFi antenna *2, LTE antenna*2) | |
| Display | LCD | Color display |
| Light | LED Light | |
| Port | SIM | 2 SIM |
| USB | USB TYPE A (5V 1A IN) | |
| DC | 12V 1A IN | |
| Battery | 3000mAh 6-8hours working time | |
| Internet | Wi-Fi | Wi-Fi AP, Max 10 users |
| Packing | Dimension (L*W*H) | 132*135*25mm |
| Weight(with packing box) | 521g | |
| QTY/CTN | 20PCS | |
| Weight/CTN | 1.5KG | |
| Size/CTN | 49.3*39*40.2cm |
