Customized Esim Function 4G Travel WiFi Router
Customized ESIM Portable Pocket Hotspot Mifi 2G 3G 4G LTE Travel Mobile WiFi Router with Battery Bank Product DescriptionMain futures : 1. The WiFi router can support more than 30 frequencies, suitable for operators in more than 120 countries, support frequency customization, OEM & ODM. 2. ......
Send Inquiry
Product Description

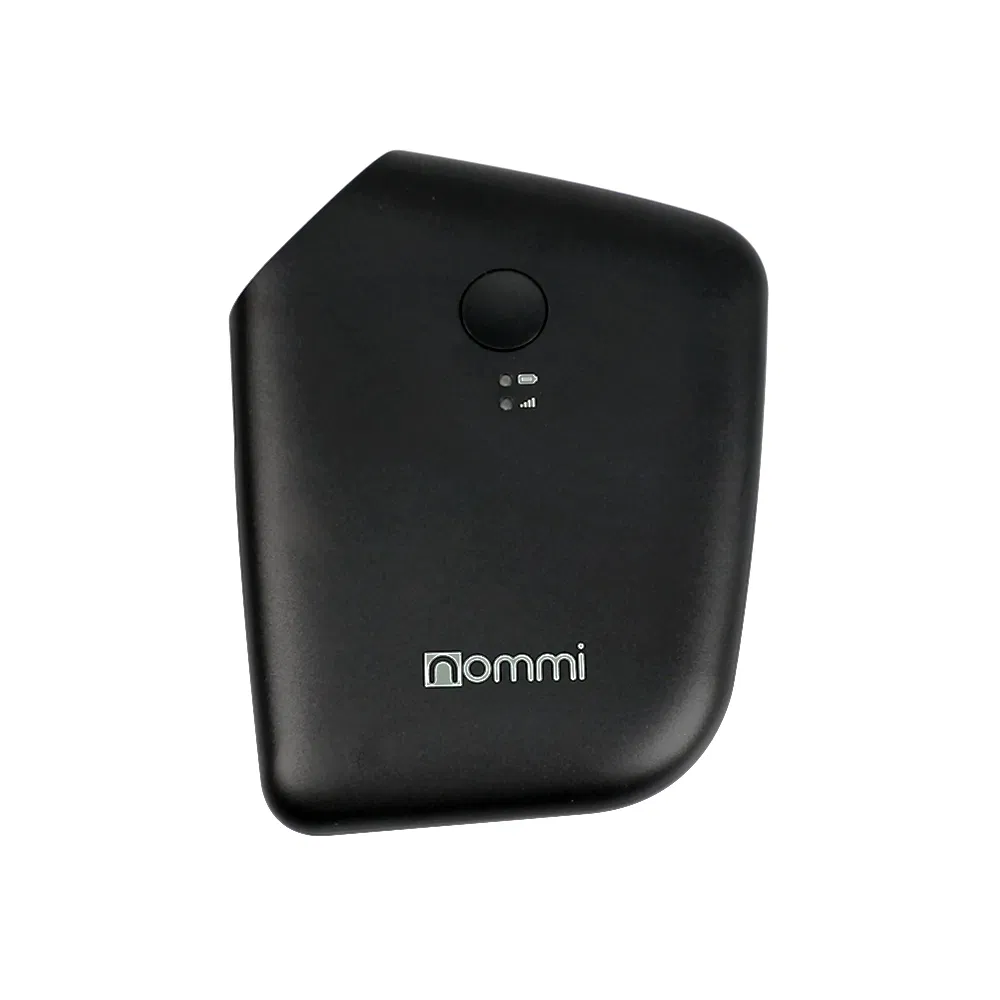

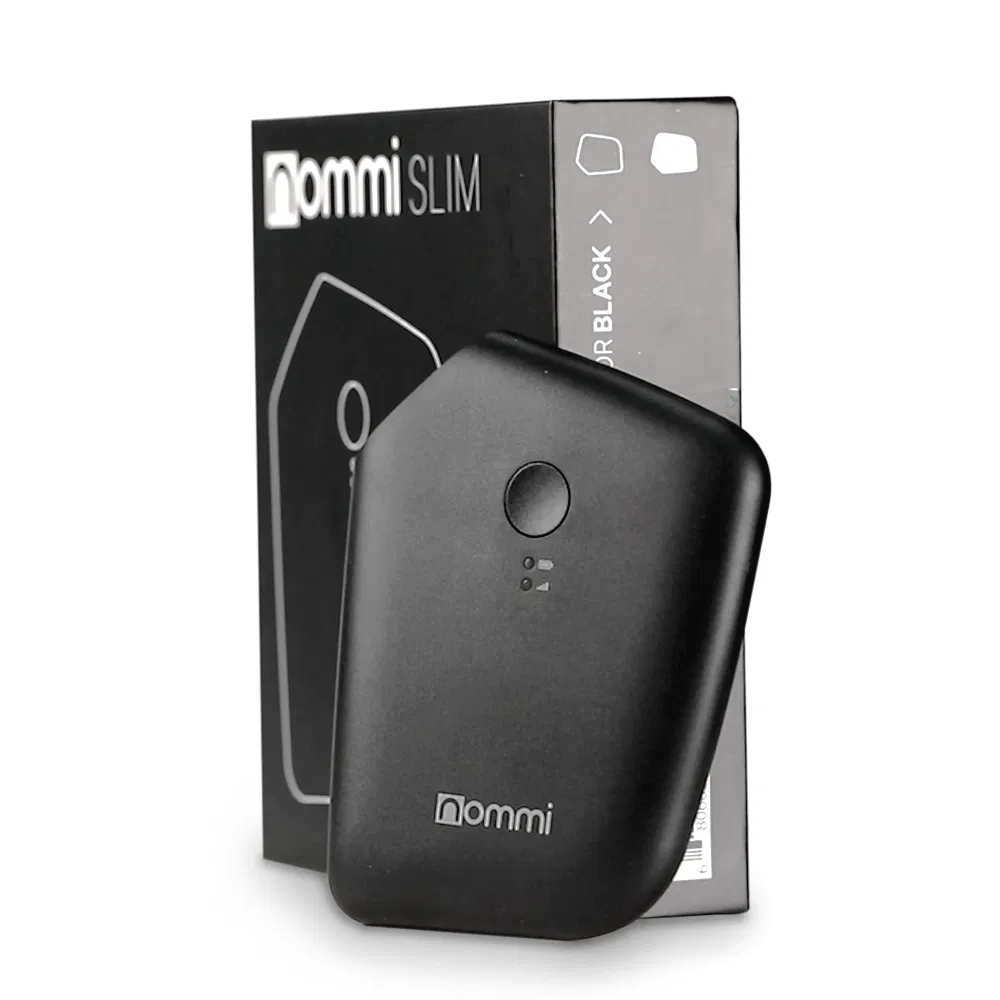

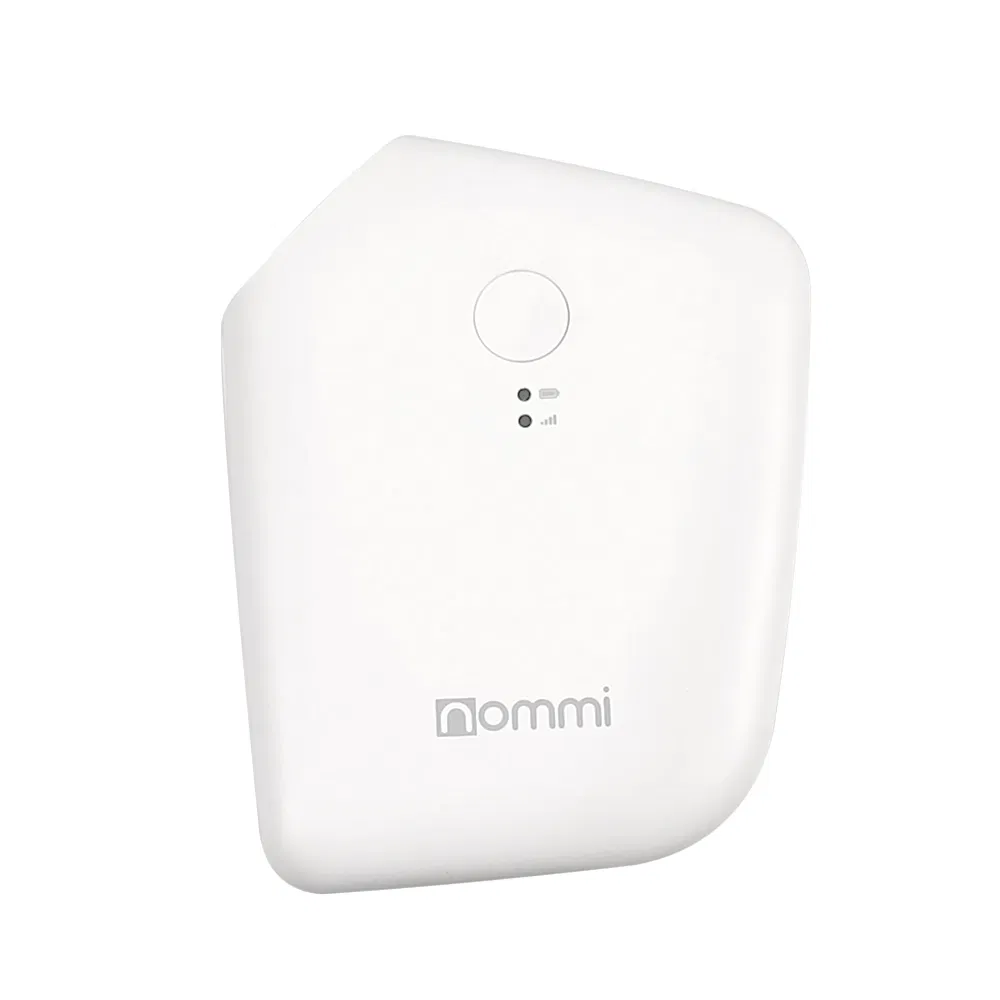

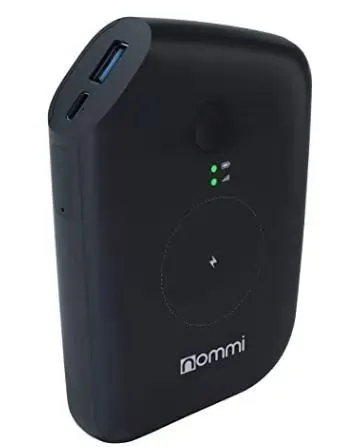

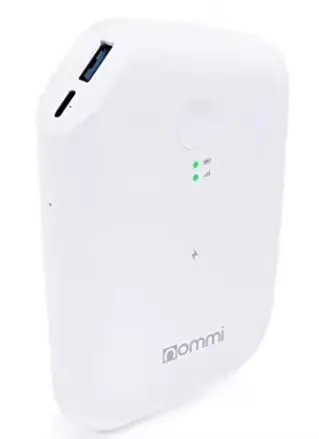

Customized ESIM Portable Pocket Hotspot Mifi 2G 3G 4G LTE Travel Mobile WiFi Router with Battery Bank
♦ Short leading time: 1-2.5 working days for samples or small order, 10-15 working days for bulk order.
♦ One year warranty: for you without trouble of after-sales maintenance.
♦ Quality Guarantee: Return rate is only 0.001.
♦ Support small orders: help your business from small to big.
♦ OEM & ODM are welcome.
Main futures :
1. The WiFi router can support more than 30 frequencies, suitable for operators in more than 120 countries, support frequency customization, OEM & ODM.
2. WiFi hotspot designed with ESIM function and also with sim card slot, more convenient to use. 3. Brand new MDM9x07 chipset, more stable signal and higher speed.
4. Which could achieve download speed to 300Mbps.
5. Design lightweight, easy to carry, indoor or outdoor, enjoy WiFi anytime and anywhere.
6. With LED/LCD screen, working status displayed clearly.
6. With LED/LCD screen, working status displayed clearly.
7. Portable wifi router designed no need SIM Card can use over 120 countries , you can connect directly to a PC device such as a computer.
8. Real 10000mAh battery for device and wireless charger
Parameters:
| 3G/LTE Hardware | ||
| Communication System | Support TD-LTE/LTE FDD/WCDMA/GSM | |
| Hardware Platform | Chipset | MDM9207 |
| Memory | 2Gbit NAND+2Gbit LPDDR2 | |
| Protocol | TD-LTE | CAT4, up to 112Mbps DL and 17Mbps UL |
| LTE FDD | CAT4, up to 150Mbps DL and 50Mbps UL | |
| Frequency | TDD LTE | B38/40/41 |
| FDD LTE | Band1/2/3/4/5/7/8/12/17/20 /28A | |
| WCDMA | Band1/2/5/8 (2100/1900/850/900MHz) | |
| GSM | Band2/3/5/8 (1900/1800/850/900MHz) | |
| Power | LTE/TD-SCDMA | Power Class 3 |
| Antenna | Antenna Connector | Internal Antenna |
| WLAN1 AP Hardware | ||
| Wi-Fi Protocol | Support IEEE 802.11 b/g/n | |
| Hardware Platform | Chipset | RTL8189 |
| Memory | / | |
| Protocol | IEEE 802.11n | Support |
| IEEE 802.11g | Support | |
| IEEE 802.11b | Support | |
| Frequency | 2.4G | 1~13 channel |
| Power | IEEE 802.11n | 11dBm |
| RF Antenna | 1T1R | Internal, WiFi speed up to 150Mbps |
| WLAN2 AP Hardware | ||
| Wi-Fi Protocol | Support IEEE 802.11 b/g/n/ac | |
| Hardware Platform | Chipset | RTL8811 |
| Memory | / | |
| Protocol | IEEE 802.11n | Support |
| IEEE 802.11g | Support | |
| IEEE 802.11b | Support | |
| IEEE 802.11ac | support | |
| Frequency | 2.4G&5.8G | 1~13 channel |
| Power | IEEE 802.11n | 11dBm |
| RF Antenna | 1T1R | Internal, WiFi speed up to 433Mbps |
| Qi Wireless Charger | ||
| Output | DC 5V/1A | |
| Power | 5W | |
| External Interface | ||
| External Interface | SIM card slot | one Standard SIM card,bottom card slot |
| Power interface | Type-C | |
| USB interface | USB 2.0 for output(power bank) | |
| Buttons | Power button | one |
| WPS button | not support | |
| Reset button | one,hole switch | |
| Display | Panel LED indicator | Power,Signal |
| Back LED indicator | / | |
| LCD display screen | not support | |
| Software | ||
| WEB UI | Standard WEB UI(PC) | |
| Network setting | support | |
| Router setting | support | |
| System setting | support | |
| WIFI setting | support | |
| SMS/Phonebook setting | / | |
| LCD UI | / | |
| Gateway | TCP/IP Protocol | Support |
| UDP Protocol | Support | |
| IPv4 | Support | |
| IPv6 | Support | |
| SNTP | Support | |
| DHCP | Support | |
| Static state IP address assighment | Support | |
| DNS Relay | Not support | |
| ALG | Not support | |
| NAT | Support | |
| IP Firewall | Support | |
| VPN Passthrought | Not support | |
| softAP IPv6 | Support | |
| UPnP | Not support | |
| MAC Filter | Support | |
| IP Filter | Support | |
| URL Filter | Support | |
| NAT firewall | Not support | |
| WAN port flow statistics | Support | |
| Power adjustment | support | |
| Auto channel select | support | |
| SSID broadcast | support | |
| WPS | not support | |
| Security/ Encryption | WEP/WPA/WPA2 PSK | |
| MAC address filtering | Selectable support | |
| SMS | WEB UI Managerment | support |
| Security | PIN code lock | support |
| Modify PIN code | support | |
| Administrator password modify | support | |
| System upgrade | Local firmware upgrade | support(via Web UI/APP/PC remote upgrade) |
| Extended function | External Storage | / |
| Drivers | Driver install | / |
| Operation System | Win XP,Vista(32bit/64bit),WIN7(32bit/64bit),WIN8 | |
| Mac OS X10.6 and above version | ||
| Package | Mifi Device | 1 |
| Li-pol Battery | 1(built-in) | |
| Data Cable | 1 | |
| Adaptor | / | |
| Quick Guide | 1 | |
| Environment | Operating Temperature | 0~40ºC |
| Storage Temperature | -10~45ºC | |

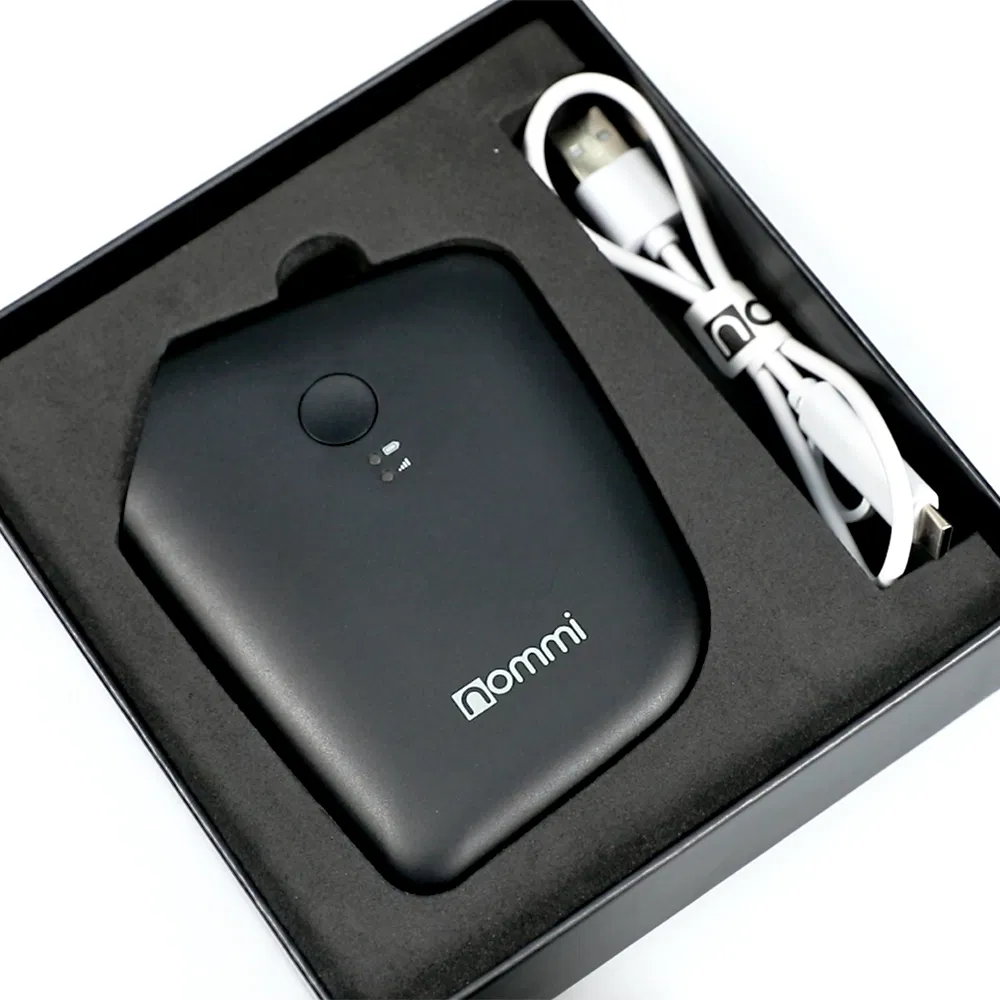

Package contents:
1 x Wireless 4G router
1 x Battery
1 x USB cable
1 x User manual
