CE Certificate Industrial Cellular 4G LTE Routers with VPN WiFi a for Smart Self-Service Kiosk Solution
Product DescriptionSpecificationItemsContentsHardware SystemCPUIndustrial 32 bits CPUFLASH16MB (Extendable to 64MB)SDRAM128MB InterfaceSerial1 RS232 and 1 RS485, 15KV ESD protectionSerial port: 5 PIN industrial terminal, 3.5mm pitchData bits: 5, 6 ,7, 8Stop bits: 1, 1.5(optional), 2Parity: none, eve......
Send Inquiry
Product Description
Product Description
Specification
Items | Contents | |
Hardware System | CPU | Industrial 32 bits CPU |
FLASH | 16MB (Extendable to 64MB) | |
SDRAM | 128MB | |

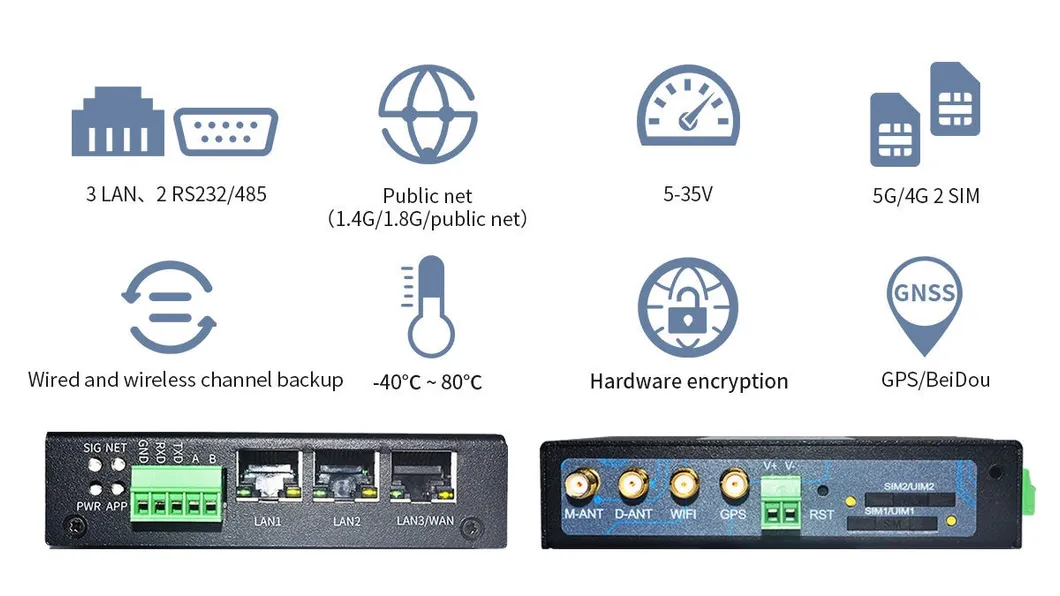

Interface | Serial | 1 RS232 and 1 RS485, 15KV ESD protection Serial port: 5 PIN industrial terminal, 3.5mm pitch Data bits: 5, 6 ,7, 8 Stop bits: 1, 1.5(optional), 2 Parity: none, even, odd, space, mark Baud rate: 110~230400 bps Large serial port data cache:10MB |
WAN/LAN | 1 10/100Mbps WAN(RJ45,can configurable as LAN) port, auto MDI/MDIX, 1.5KV magnetic isolation protection | |
LAN | 2 10/100Mbps Ethernet ports(RJ45), auto MDI/MDIX, 1.5KV magnetic isolation protection | |
Antenna | Cellular/GPS: Standard SMA female interface, 50 ohm WIFI: Standard SMA male interface, 50 ohm | |
SIM/UIM | Standard 3V/1.8V user card interface, 15KV ESD protection | |
Power | 2 PIN industrial terminal, 3.81mm pitch, reverse- voltage and over voltage protection | |
Reset | Press this key for 8 seconds to restore the Router to its original factory default settings | |
Indicator | "PWR","SIG","NET","APP" ,"Link"(RJ45) | |
Network | Wireless Network | GSM/GPRS/EDGE: 850/900/1800/1900MHz CDMA: 800/1900MHz WCDMA/HSUPA/HSPA+: 850/900/1900/2100MHz CDMA2000 1x/ EVDO Rev. A: 800/1900MHz TD-SCDMA: 1880-1920/2010-2025MHz(A/F) TDD-LTE:Band 38/39/40/41& Band 61/62 (Private Network) FDD-LTE:Band1/2/3/4/5/7/8/12/13/17/18/19/20/21/25/26/28/66 |
PPP Protocol | Support PPP Protocol | |
PPP Heartbeat | Maintaining links with the cellular network to prevent forced sleep, to ensure the stability of dial-up link. | |
Network Authentication | Support CHAP/PAP Authentication | |
TCP Heartbeat | Monitor the server connection | |
