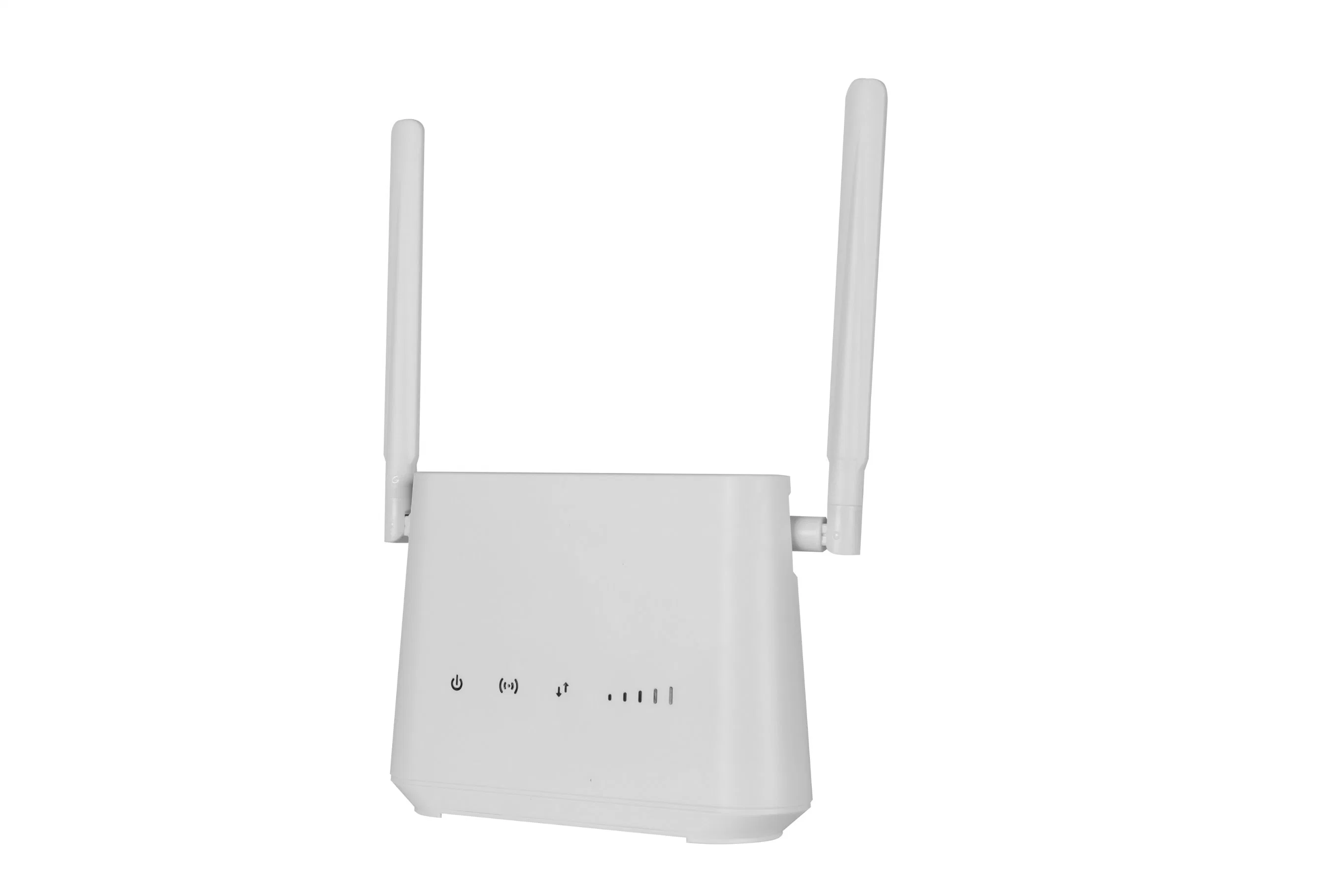

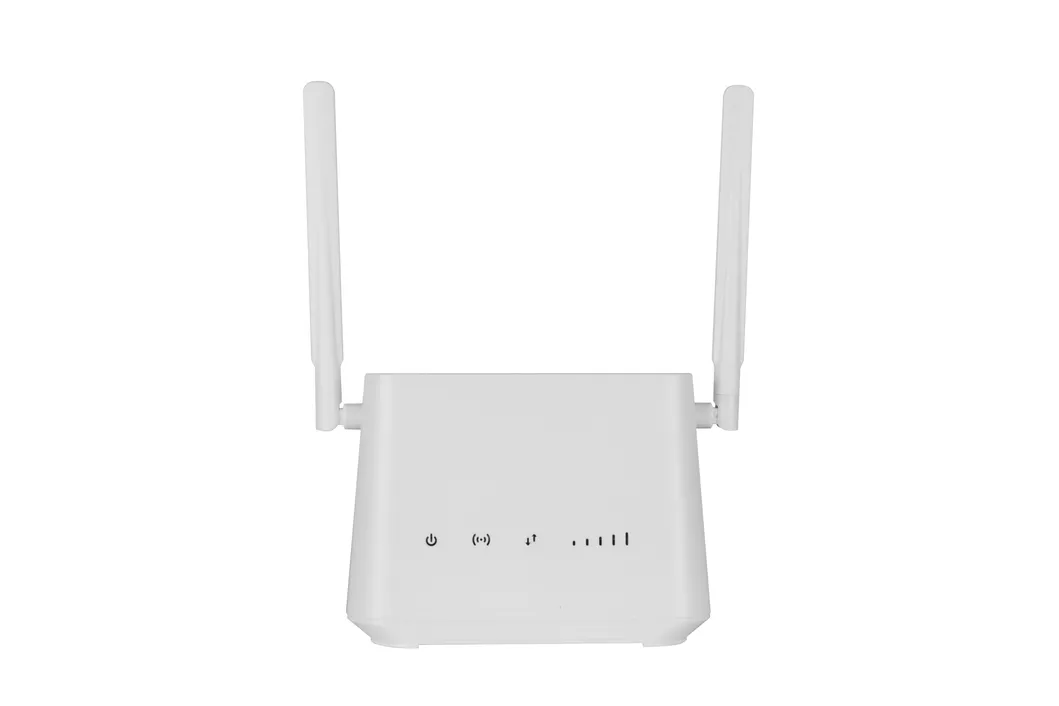

B610 New Released 4G Lte Router CPE

Product Description

B610 Volte 4G LTE Router & CPE

Product Features:
1.Support TDD-LTE/FDD-LTE

2.Support 3GPP Release 8/9 compliant

3.Support 1TX/2RX with TX switched diversity

4.Support UE Category 3/4

5.Support QoS service flow initiated by CPE

6.Built-in web server for web-based configuration

7.Password protected access and configuration

8.Support IEEE 802.3, IEEE 802.3u ,IEEE 802.11 b/g/n

9.USIM Slot

10.Support VPN pass-through

11.Support VOLTE/CSFB/VOIP

12.Support 1*RJ11(Voice)

13.Support 4*RJ45(Ethernet)

14.Support LED indicators

15.Support External Antenna

16.Battery 2000mAh

17.Support TR069

General Specification

Feature	Description	Comments
LTE BB ASIC	ZX297520V3	Sanechips
LTE RF ASIC	zx234220
Flash	512Mbyte	GD
SDRAM	128MB
WIFI	rtl8192es	Realtek

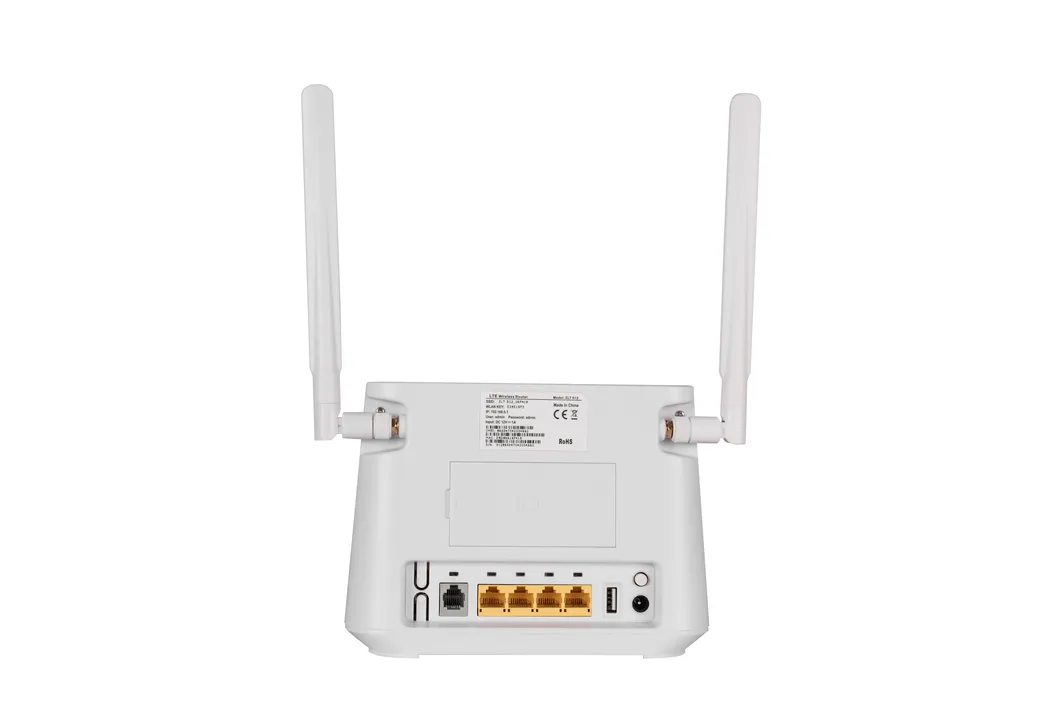

Ethernet LAN port	4 RJ-45 ports 10/100 auto-sensing ,auto -MDX

Voice port	1 RJ-11 port from 1 internal voice port	1 RJ11 port is connected Inside
LED indicators	Signal Strength / Power / WLAN / WPS / BAT / TEL / 4G_LTE
Reset/reboot button	press button	inside box
Powe supply	Input: Universal range 100~240VAC Output: 12V/1A
