Product Description

10km long distance outdoor CPE 2.4G &5GHZ dual band 300Mbps 4G LTE Module router for CCTV camera

High light
13km Long range  LTE data transmission;
• Active auto connect;
  • 4*4 5G MIMO antenna;
• 2*2 4G MIMO antenna;

• 4G LTE /5G antenna gain: >10DBi
• Integrate 3G/4G LTE,WIFI,GPS feature;
• 2 LAN ports;
• With SIM card slot;
• Remote management platform;
• Waterproof,dustproof,lightning protection. Protection level, IP67
   2.4GHZ &5GHZ WIFI
   POE power suppply

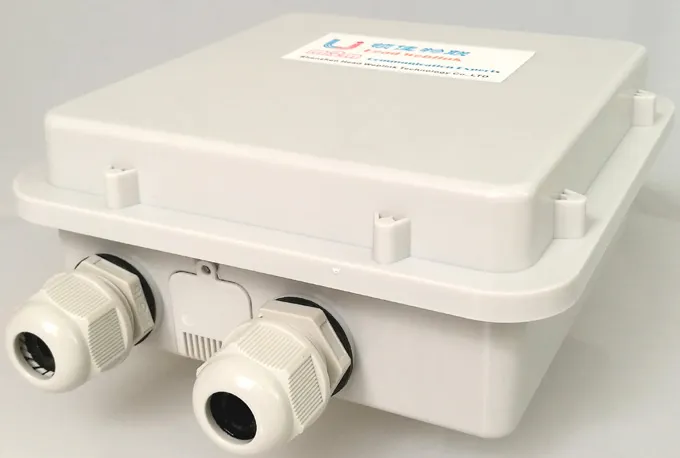

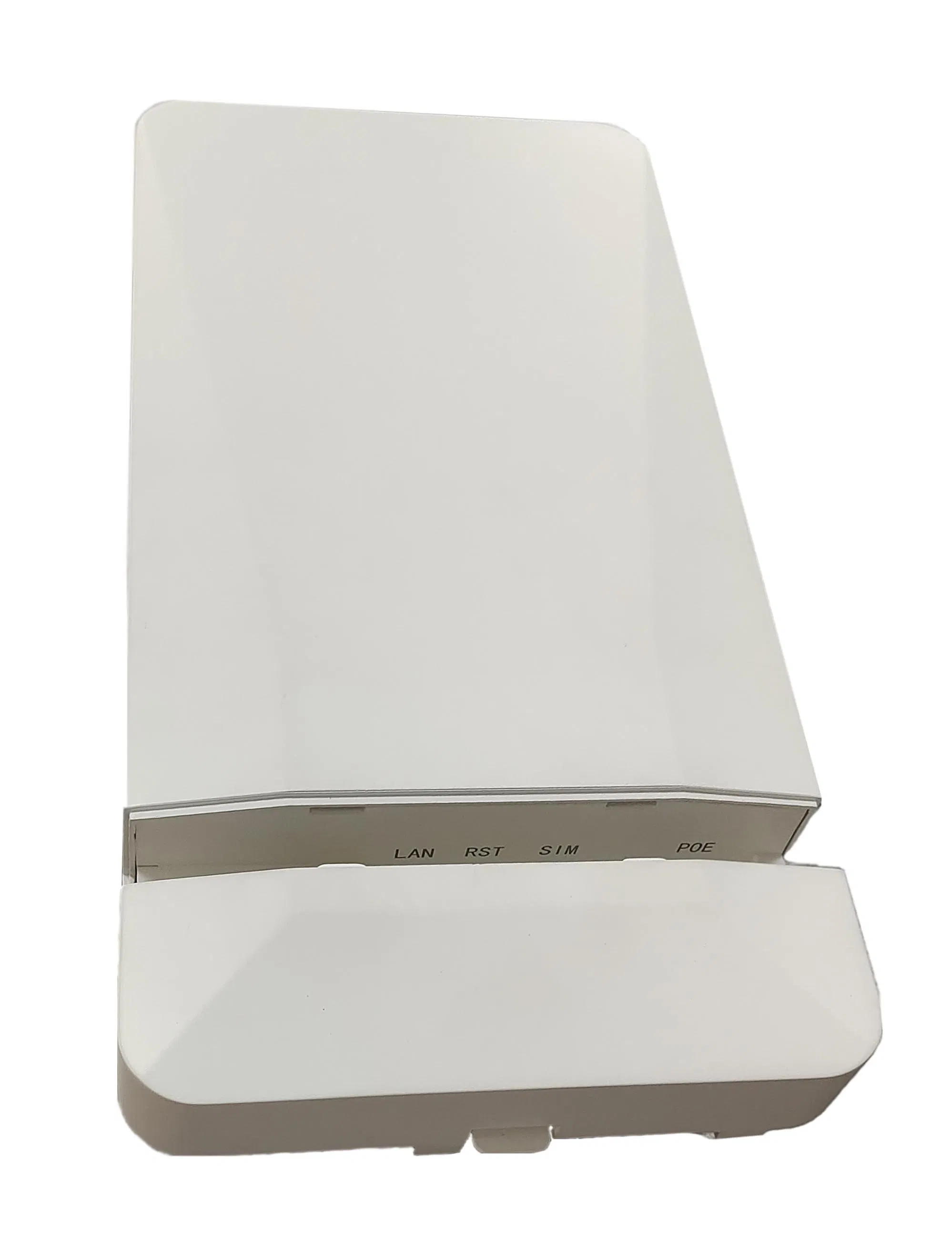

5g 4G Outdoor Industrial Outdoor Waterproof CPE

5g 4G Outdoor Industrial Outdoor Waterproof CPE

HOR205 HOR204 series dual LAN ports 4G LTE /5G outdoor router integrated 2G/3G/4G LTE/5G /WIFI/GPS feature. It's designed waterproof,dustproof,lighting protection feature. Because of the industrial quality and multiple RF band combination.

This router provides stable and reliable data connection for user device such as RTU, Broadband access, intelligent transportation and other remote device management application. In order to achieve permanent online, some key featrues such as watch-dog function, wide temperature and multiple RF band/mode are supported by HDR100 series outdoor router,making it can be used in any environment of worldwide.

Support 5G Frequency band

5G NR:
n1/n2/n3/n5/n7/n8/n20/n28/n41/n66/n71/n77/n78/n79
LTE:
B1/B2/B3/B4(66)/B5(18/19/26)/B7/B8/
B12(17)/B13/B14/B20/B25/B26/B28/
B29/B30/B38/B39/B40/B41/B42/B43/
B46/ B48/B71

DL 4×4 MIMO:
5G NR:
n1/n2/n3/n7/n41/n66/n77/n78/n79
LTE:
B1/B2/B3/B4/B7/B25/B30/B38/B39/B40/B41/B42
/B43/B48/B66
DL 256QAM
UL 64QAM
WCDMA:
B1/B2/B3/B4/B5/B8/B9/B19

Item	Product specification
Chipset	MTK7620N+4G Modem ( CAT 3, MDM9X15. CAT 4 MDM9X07, CAT 6, MDM9330 )
MEMORY	FLASH 16MByte, DDR2 64MByte
Embedded system	Openwrt
Network	FDD LTE,TDD LTE,WCDMA,EVDO,GPRS,GSM,CDMA 1X
WIFI	WIFI 802.11 b/g/n, 300Mbps
Data rate	4g: CAT 3, DL 100bps , UL 50Mbps ( or CAT 4 DL 150Mbps , UL 50Mbps, CAT 6 DL 300Mbps , UL 50Mbps ) WCDMA HSPA+: DL 42Mbps, UL 5.76Mbps GPRS DL/UL 85.6Kbps
WIFI Tx Power	14 dBm(11g),17 dBm(11b),14dBm(11n)
WIFI Rx Sensitivity	<-70 dBm@54Mpbs
2G/3G/4G/5G Transmitting Power	GSM/GPRS: Class 4 (2W): GSM850,EGSM900 Class 1 (1W): DCS1800,PCS1900 EDGE: Class E2 (0.5W): GSM850,EGSM900 Class E1 (0.4W): DCS1800,PCS1900 UMTS: Class 3 (0.25W): WCDMA Class 3 (0.25W): CDMA2000 Class 2 (0.25W): TD-SCDMA LTE: Class 3 (0.25W)
GPS	GPS/GLONASS,Protocol: NMEA
2G/3G/4G/5G Frequency bands	Version C LTE-FDD. B1,3,7,8 LTE-TDD.B38,39,40,41 WCDMA.900/2100MHz TDSCDMA. band A and band B GSM.900/1800MHz Version E. LTE-FDD. B1,3,7,8,20 LTE-TDD.B38,40 WCDMA.900/2100MHz GSM.900/1800MHz Version A. LTE-FDD. B2,4,5,17 WCDMA.850/1900MHz Version SA. LTE-FDD. B1/B3/B5/B7/B8/B28 UMTS/HSDPA/HSPA+ B1/B5 CAT 6 Version. Version E LTE-FDD. B1,B3,B5,B7,B8,B20,B28,B32 LTE-TDD.B38,B40,B41 WCDMA.B1,B3,B5,B8 Version A. LTE-FDD. B2,B4,B5,B12,B13,B25,B26,B29,B30,B66 LTE-TDD. B41 2CA. B2+B2/B5/B7/B12/B13/B25/B26/B29; B4+B4/B5/B12/B13/B26/B29 B7+B5/B7/B12/B13/B26/B29 B25+B5/B12/B13/B25/B26/B29 B30+B5/B12/B13/B26/B29 B66+B5/B12/B13/B26/B29/B66 WCDMA B2/B4/B5 Version LA. LTE-FDD. B2/B3/B4/B5/B7/B8/B20/B28 LTE-TDD.B38,B39,B40,B41 2CA. B1+B3/B8/B18/B19 B3+B5/B19 B7+B5/B7 B21+B19 B38+B38 B39+B39 B39+B41 B40+B40 B41+B41 WCDMA B1/B5/B6/B8/B9/B19 5G NR: n1/n2/n3/n5/n7/n8/n20/n28/n41/n66/n71/n77/n78/n79 LTE: B1/B2/B3/B4(66)/B5(18/19/26)/B7/B8/ B12(17)/B13/B14/B20/B25/B26/B28/ B29/B30/B38/B39/B40/B41/B42/B43/ B46/ B48/B71 DL 4×4 MIMO: 5G NR: n1/n2/n3/n7/n41/n66/n77/n78/n79 LTE: B1/B2/B3/B4/B7/B25/B30/B38/B39/B40/B41/B42 /B43/B48/B66 DL 256QAM UL 64QAM WCDMA: B1/B2/B3/B4/B5/B8/B9/B19
Hardware interface	2*LAN 10/1000Mbps
POE Output	Support second LAN port POE power supply output(Optional) , Same as input power load capacity. It can be select switch on/off on web UI.
RF	Built-in WIFI, 4G LTE, 5G GPS MIMO directional antenna
Security Encryption	Support WEP,WPA,WPA2 encryption ways
Protocol	PPTP,L2TP,IPSEC VPN,TCP,UDP, DHCP,HTTP,DDNS,TR-069,GRE, HTTPS, SSH, Open VPN,SNMP
LED Indicator	"SYS", "Net", "WAN", "LAN",RSSI
SIM/UIM	Standard draw card interface, support 1.8V/3V SIM/UIM card, built-in ESD protection
Standard Power	POE input: DC 18V/1A
Power Supply	POE input: DC 5~48V
Working current	2A (Max Current)
Temperature	Operating Temperature -40~+80ºC Storage Temperature -45~+85ºC
Case	Waterproof plastic shell, IP67
Weight	554g
Environment humidty	95%

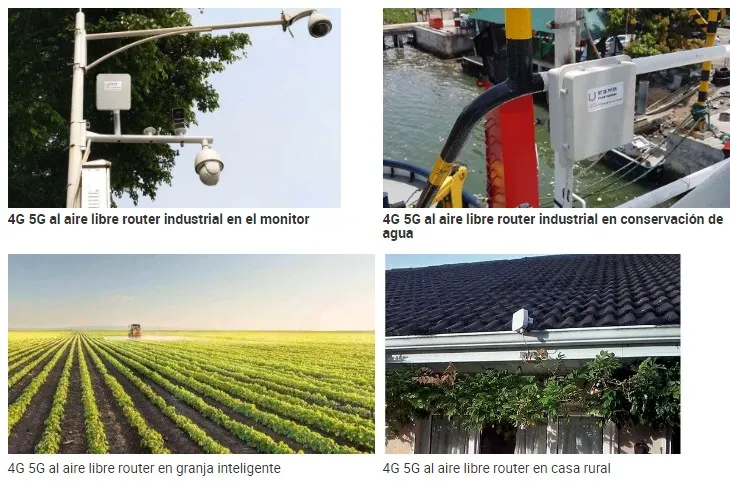

4G 5G industrial outdoor router application

5g 4G Outdoor Industrial Outdoor Waterproof CPE

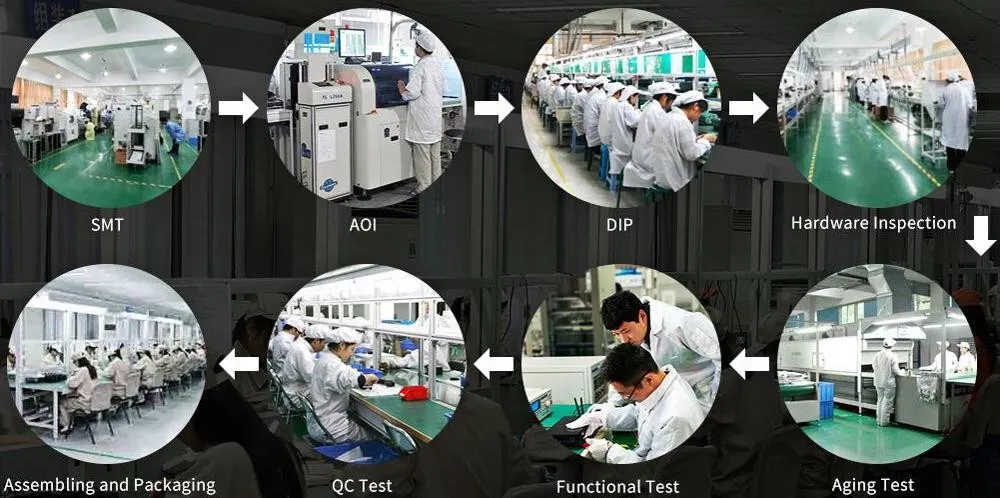

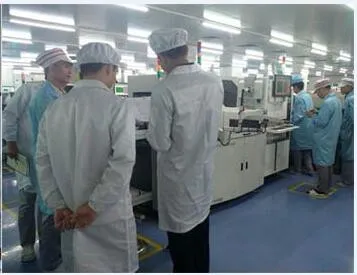

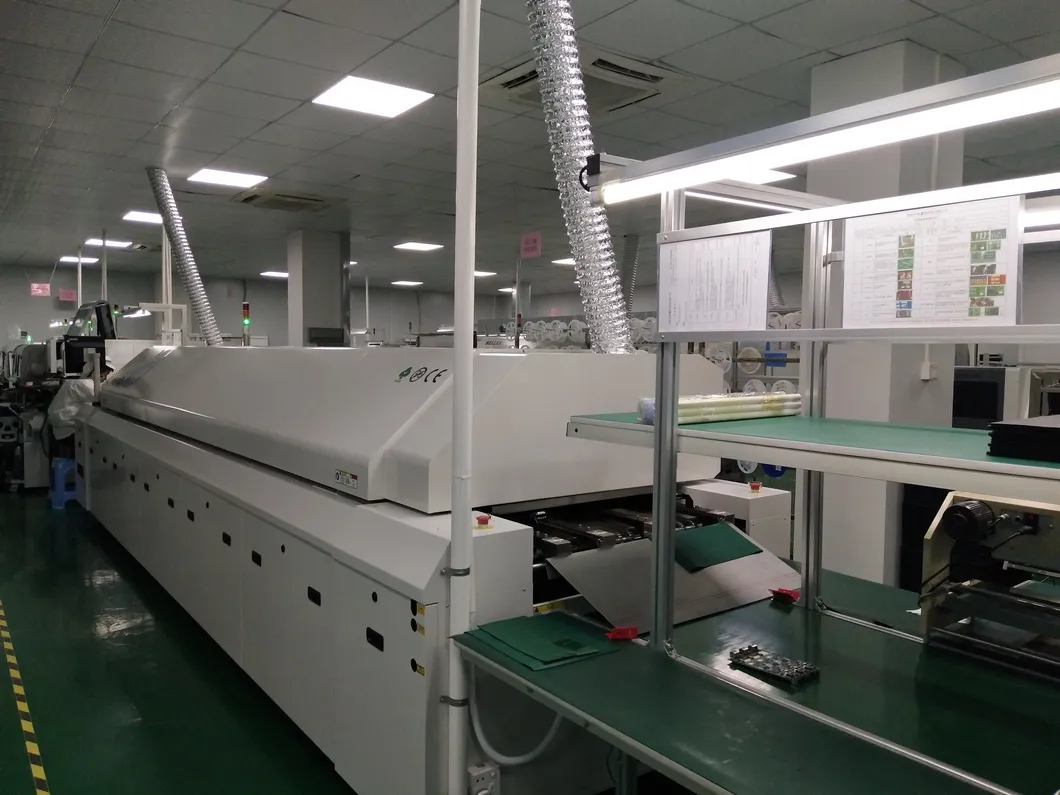

Production of 4g Outdoor Industrial Router

Company profile

Head Weblink Corporation Founded in 2008, as the leading provider of 2G/3G/4G LTE /NBIOT/WIFI industrial router and systems solutions, we have experienced technical teams and professional implementation of industry solutions. With first-class team and technology accumulation, the company independently developed 4G router,4G CPE,4G ODU,4G DTU ,tracker, traveling recorder, DVR, streaming media mirror and other high-quality terminal products.
