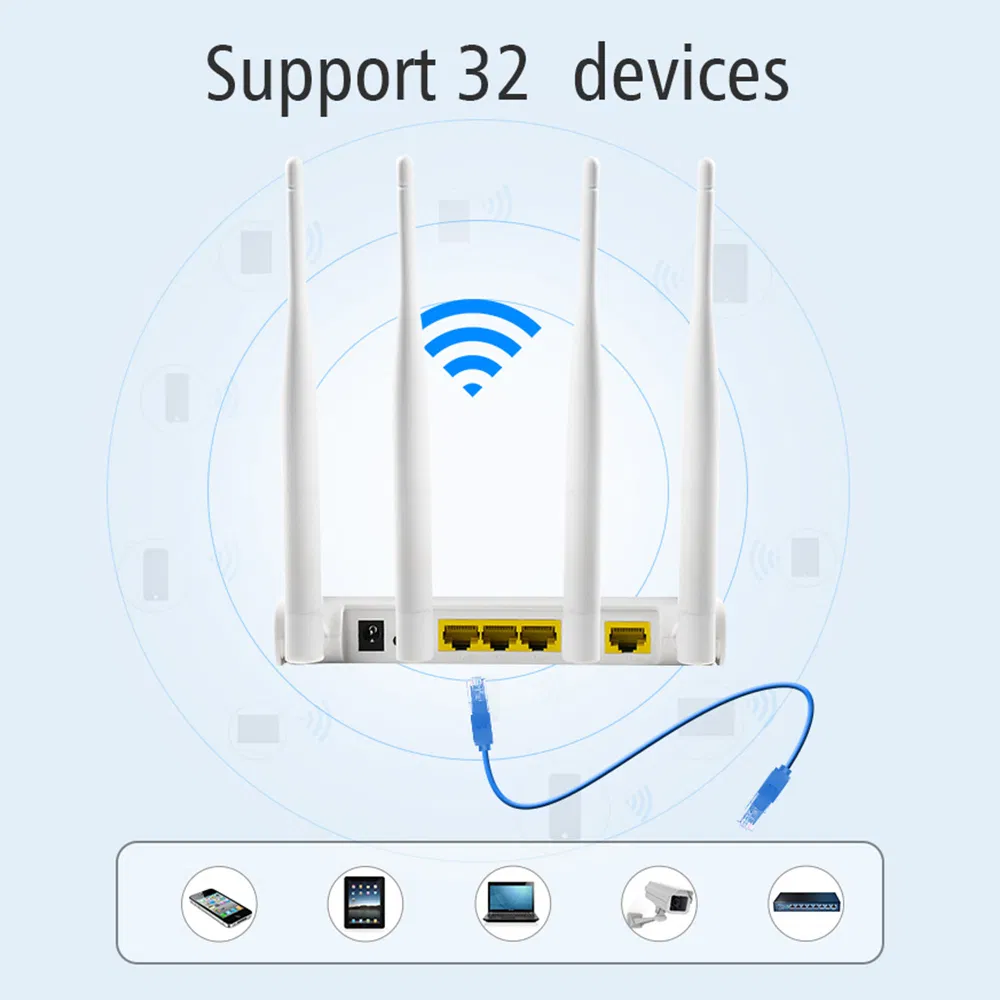

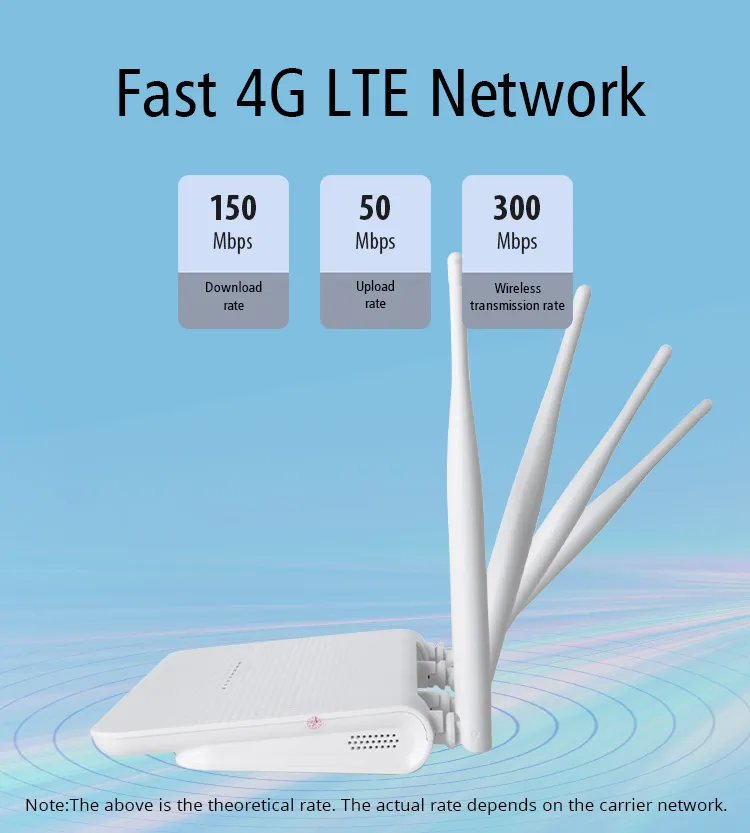

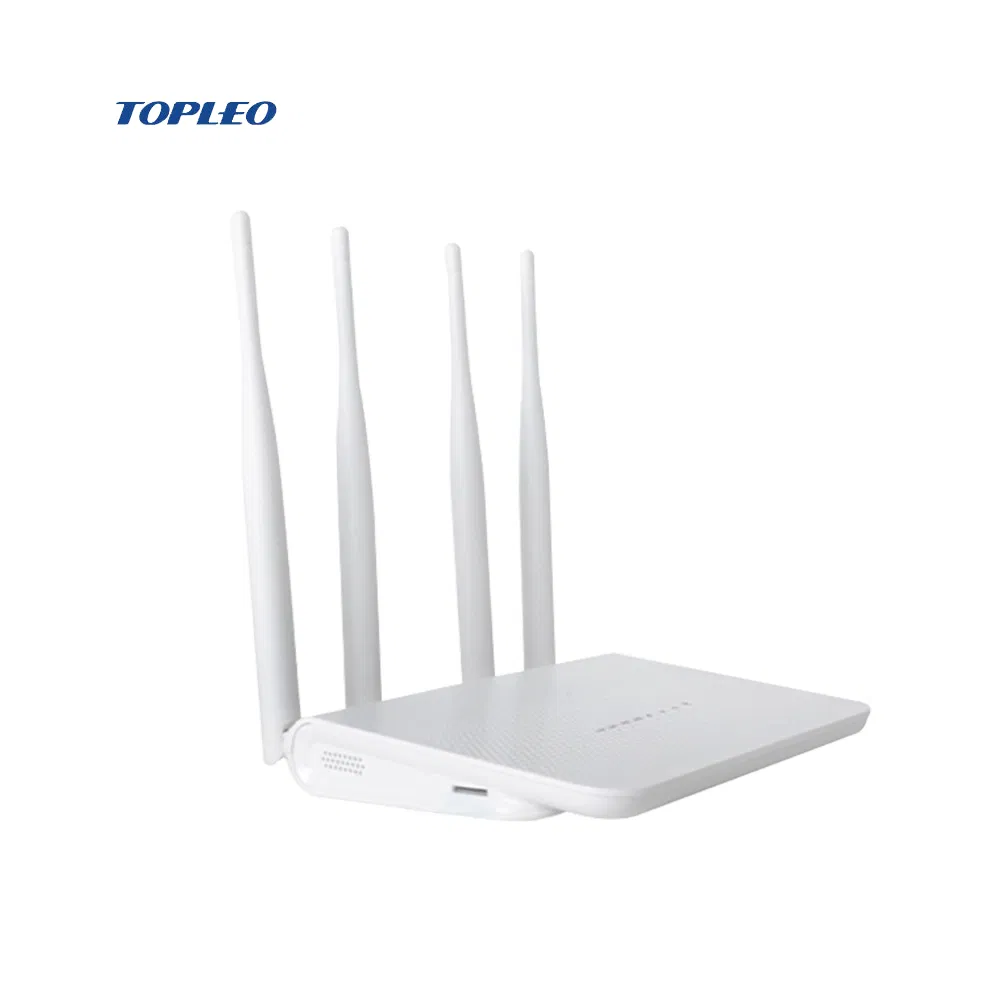

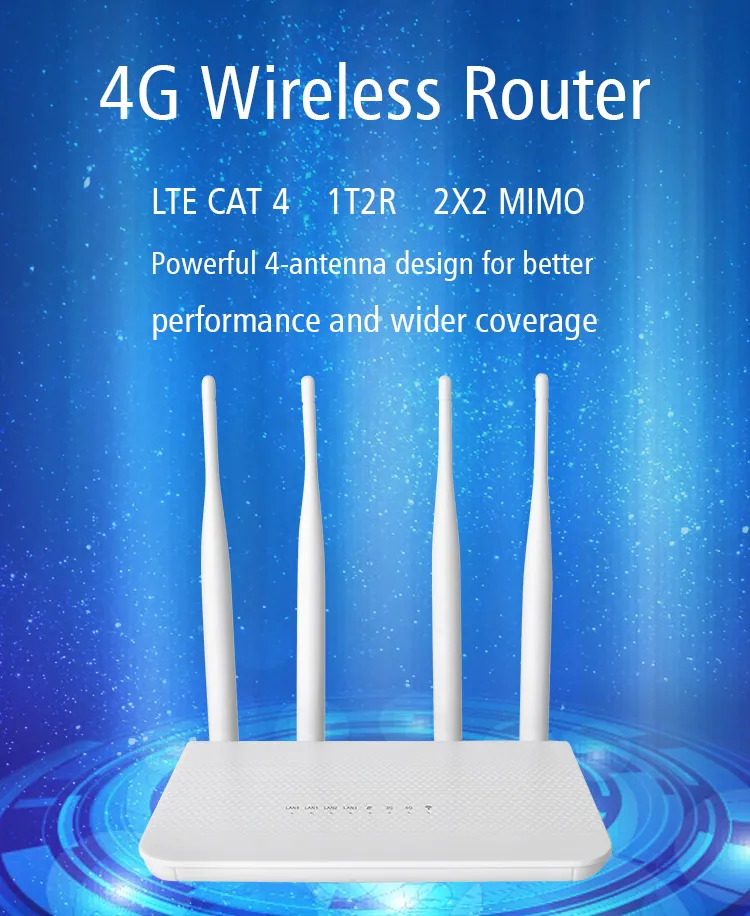

4G SIM Card LTE CPE Wireless Router with 4 Antenna 300Mbps WiFi Speed
4G sim card LTE CPE Wireless Router with 4 Antenna 300Mbps WIFI Speed Product Description Product ParametersModelLT210T RoutersSpecification parameterInterfaceNetwork4*LanSIM2FF SIMButtomResetDC AdapterInput voltage: 12V 1ASolutionRouting and WiFi chipset supplierMTKBASE Routing and WiFi chipset mod......
Send Inquiry
Product Description
| Model | LT210T Routers | |
| Specification parameter | ||

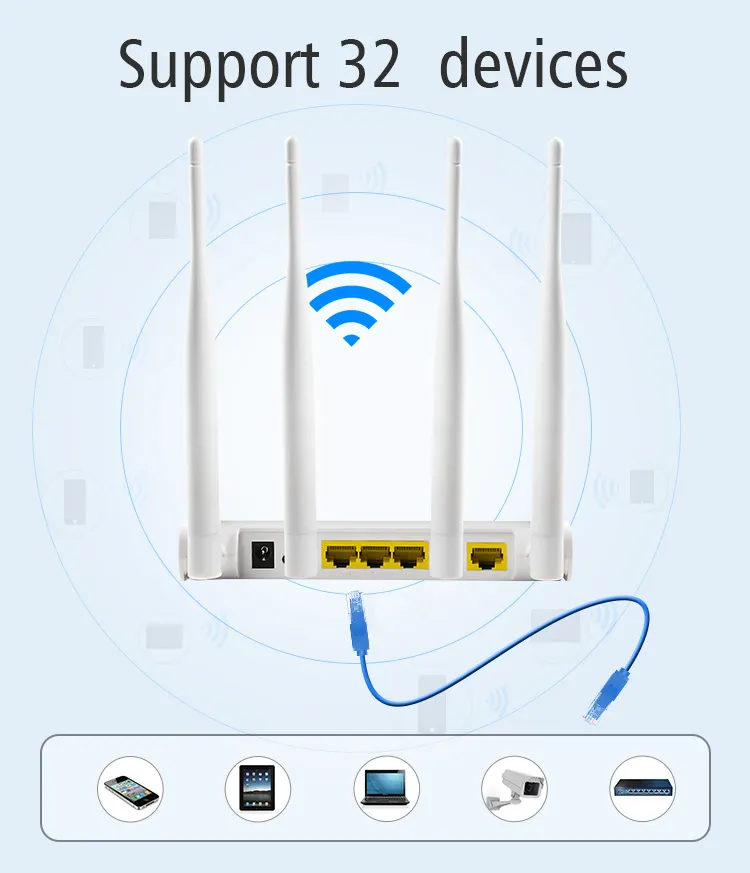

| Interface | Network | 4*Lan |

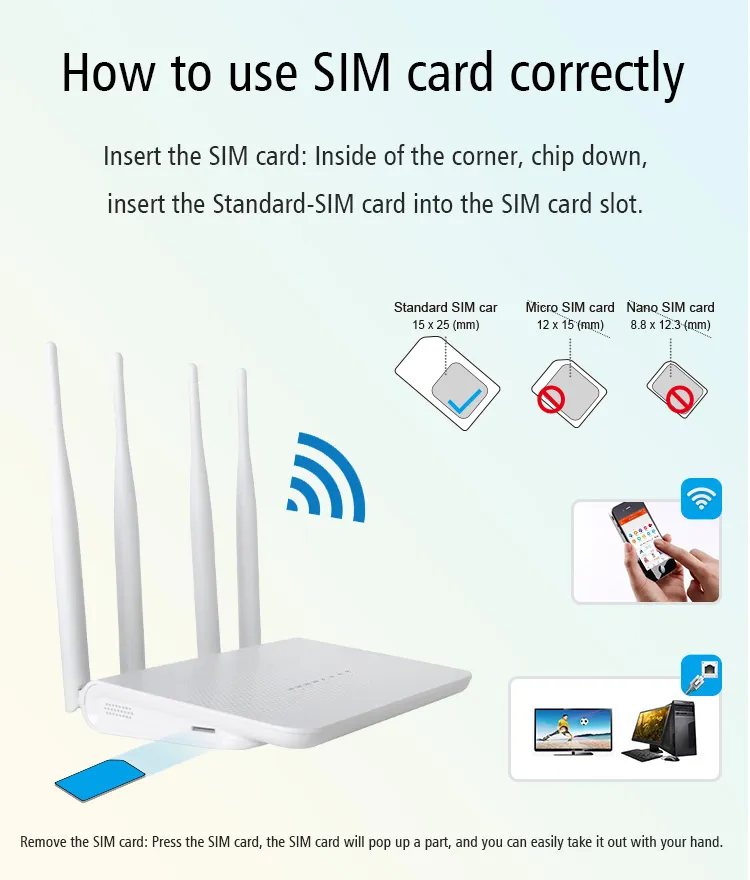

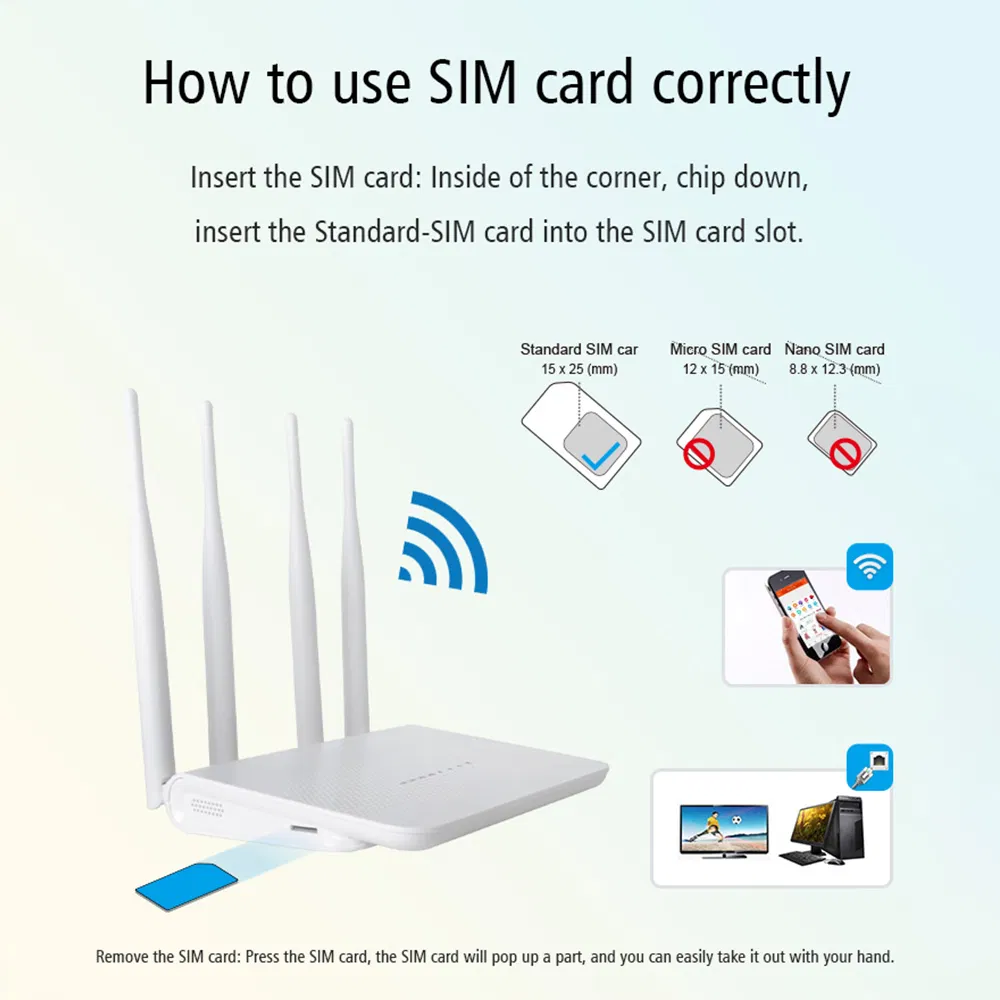

| SIM | 2FF SIM | |
| Buttom | Reset | |
| DC Adapter | Input voltage: 12V 1A | |
| Solution | Routing and WiFi chipset supplier | MTK |
| BASE | Routing and WiFi chipset model | MT7628N
|
| Routing and WiFi processor info | IEEE 802.11 b/g/n
| |
DDR/SPI | 64MBytes/16MBytes
| |
| RF | Main antenna | Internal antenna |
| Receive diversity antenna | Internal antenna | |
WiFi band | 2400MHz-2483.5MHz | |
| MIMO for WiFi | 3dbi X 2 | |
| Max. transmitter power for WiFi | 802.11b 24dBm±2dBm; 802.11g 16dBm±2dBm; 802.11n 15dBm±2dBm; | |
| Software | Language | Chinese&English |
| APN Setting | Supported | |
Device Settings | Supported | |
WIFI Settings | Supported | |
Routing Settings | Supported | |
Firewall Settings | Supported | |
| Technical standard | LED | Supported |
WiFi standard | 802.11b/g/n(2*2 11n features) | |
| WiFi security | WPA/WPA2 | |
| OS | Windows XP,Windows Vista,Windows 7,Windows 10,MAC,Linux | |
| Browser | IE (8.0 and later),Firefox (3.0 and later),Safari (4.0 and later),Opera (10.0 and later),Chrome (10.0 and later) | |
| Envionment | Operating temperature | 0 to 50° C |
| Storage temperature | -40 to 70° C | |
| Humidity | 5% to 95% | |
| Module information | ||
| Solution | Qualcomm solution CAT4 | ASR CAT4 |
| Inteface | LCC | LCC |
| Size | 29.0x32.0x2.4mm | 29.0x32.0x2.4mm |
| Wireless chipset supplier | Qualcomm | ASR |
| Wireless chipset model | MDM9607 | 1802S |
| Wireless processor info | CAT4 | CAT4 |
| USIM/SIM slot | Standard 6 PIN SIM card interface 3V SIM card and 1.8V SIM card | Standard 6 PIN SIM card interface 3V SIM card and 1.8V SIM card |
| Operating temperature | -20 to 60° C | -35 to 75° C |
