4G LTE Wireless Router with SIM Card Slot, Full 4G FDD Tdd Bands Support
Product OverviewLTE-A30 is an indoor 4G wireless router support VPN; Comply with IEEE 802.11b/g/n MIMO standard, the data rate up to 300Mbps, more than 30 end users can access into it; With SIM card slot, build in QUECTEL LTE module, it support FDD-LTE/TDD-LTE for worldwide use with 150Mbps downlink......
Send Inquiry
Product Description
Product Overview
LTE-A30 is an indoor 4G wireless router support VPN; Comply with IEEE 802.11b/g/n MIMO standard, the data rate up to 300Mbps, more than 30 end users can access into it; With SIM card slot, build in QUECTEL LTE module, it support FDD-LTE/TDD-LTE for worldwide use with 150Mbps downlink speed. Beside that, there are 3*10/100Mbps WAN/LAN ports, automatically switch to WAN Ethernet if 4G Ethernet.
1.1 Application
| Serial No. | Content |
| 1 | IP Address: 192.168.188.253 User Name: admin Login Password: admin SSID: A30 Password: None |
| 2 | For more details, pls check the user manual |
Specification
2.1 Hardware
| Name | Details |
| CPU | MT7628 |
| FLASH | 8MB |
| SDRAM | 64MB |
| DC-DC | 12V 0.5A |
2.2 Interface
| Name | Details |

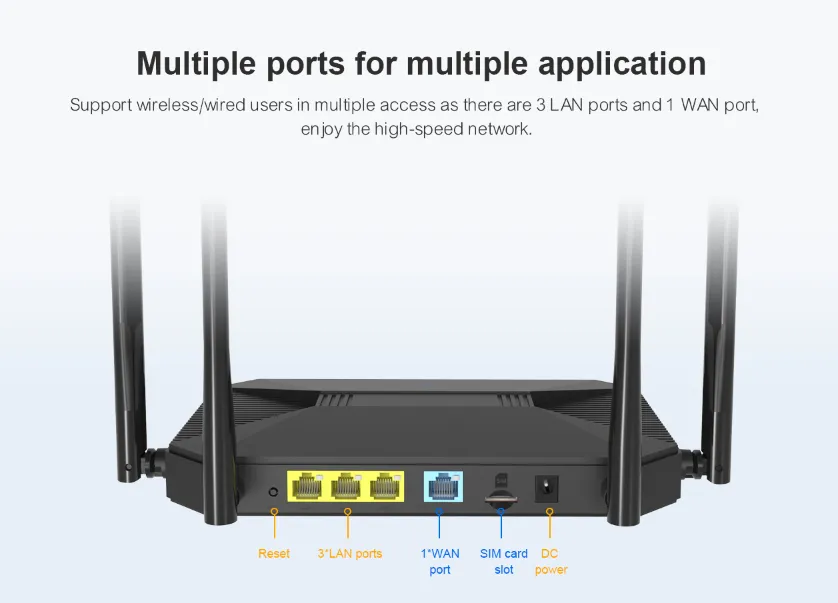

| LAN | 3*10/100M LAN Ports, auto-negotiation |
| WAN/LAN | 1*10/100M WAN/LAN Port, auto-negotiation; It is LAN port when work as 4G Router, WAN port when work as wireless router Support PPPoE, Automatic IP, Static IP, PPTP, L2TP, 4G |
| 4G Antenna Connector (Selective) | External Female SMA Connector, Impedance 50Ω |
| WIFI Antenna | 2*5dbi fixed antenna, Impedance 50Ω |
| SIM Card Slot | Support SIM Card Slot |
| DC Power | 12V/0.5A |
| RESET | Press it 10 seconds, Reset to factory default |
| LED Light | WAN, LAN, Wi-Fi, System |
