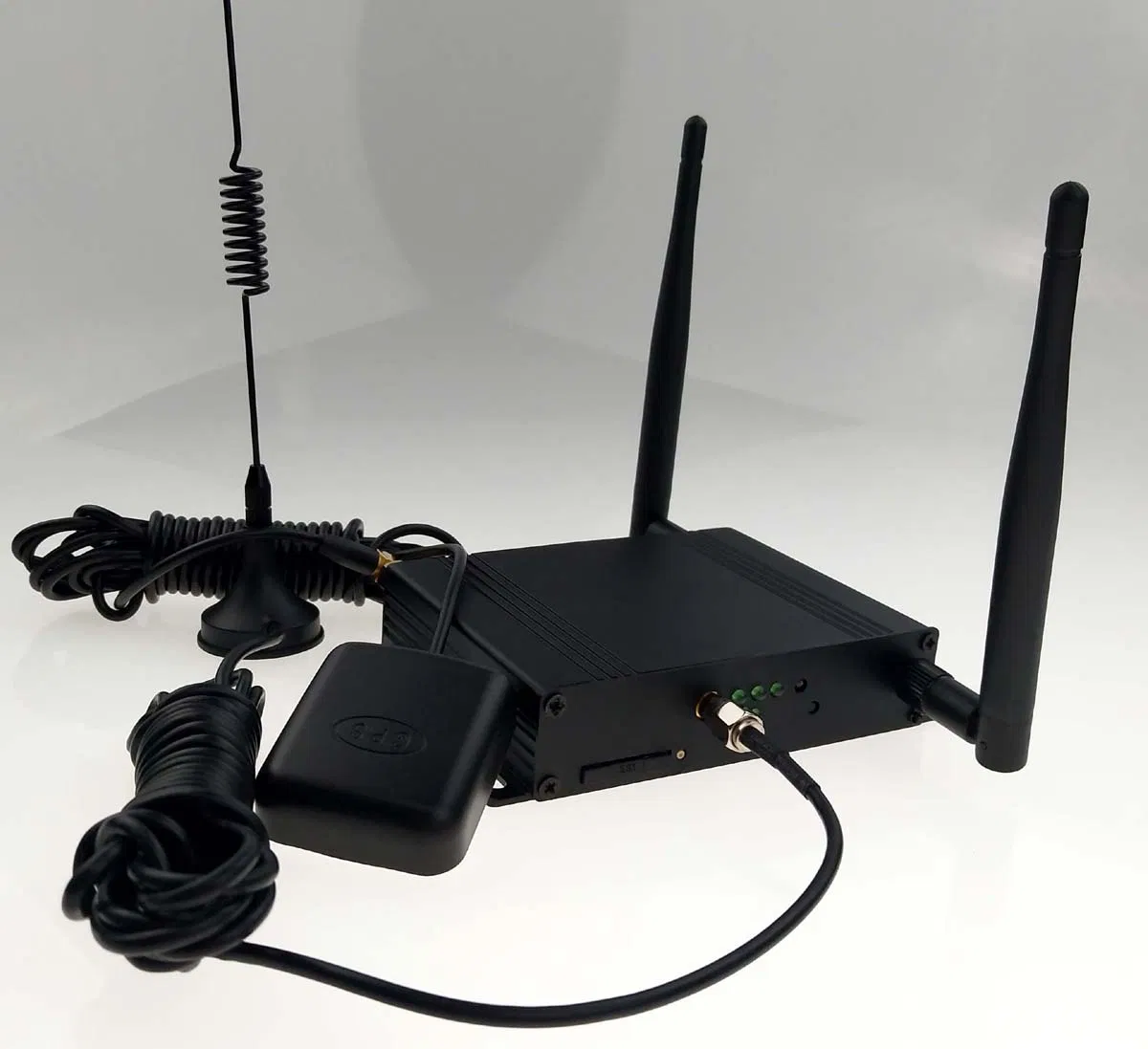

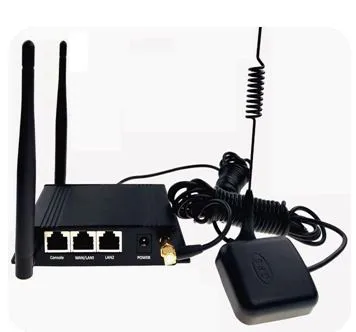

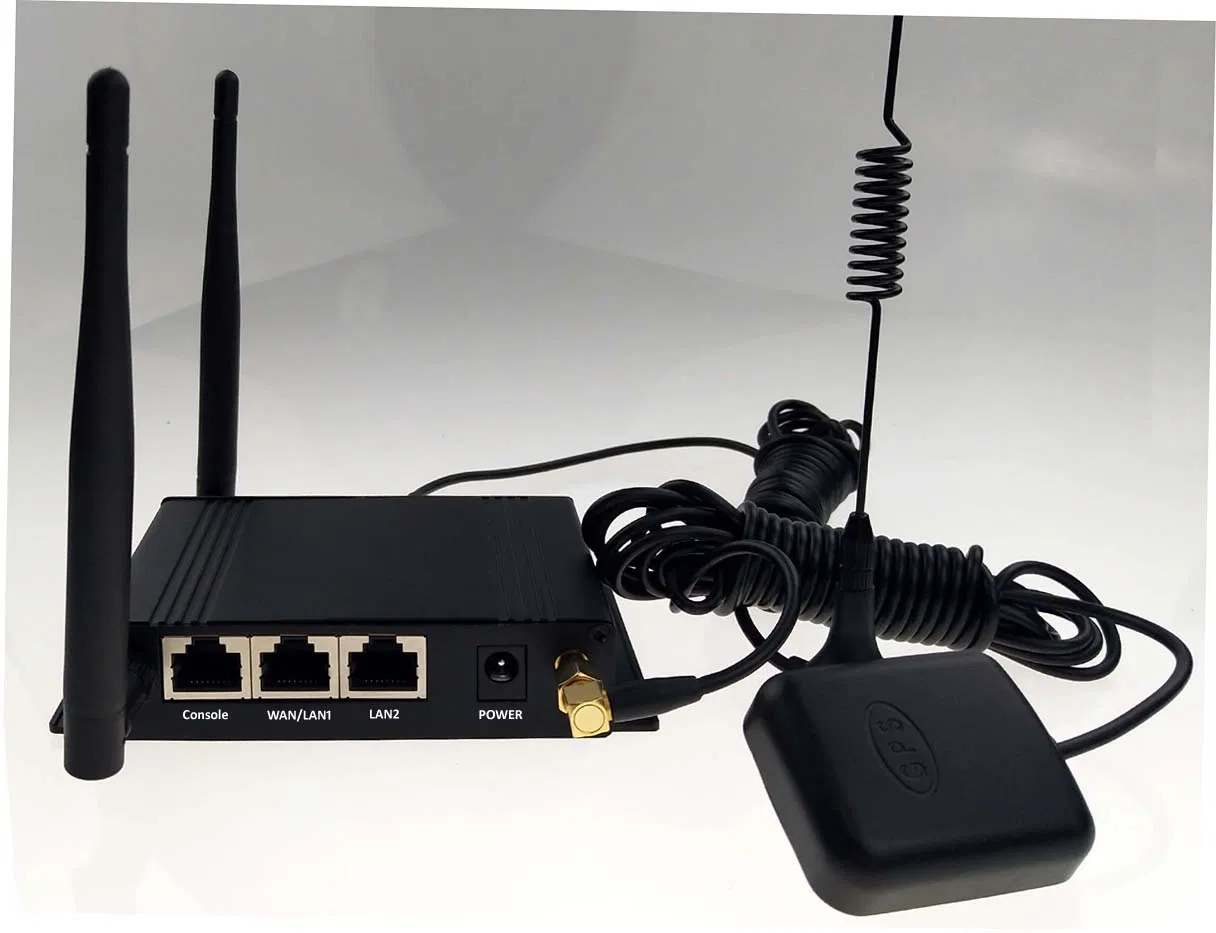

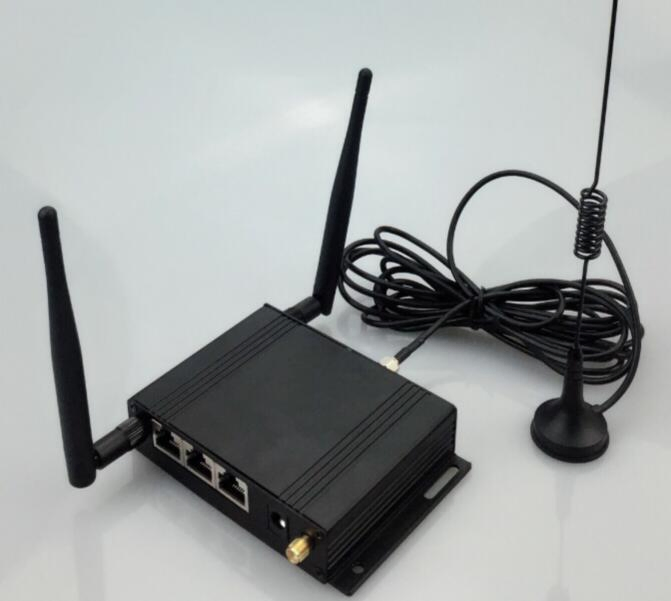

4G Indoor CPE 3G Router SIM Card Slot with External Antenna Support VPN Industry Router
4G indoor cpe 3g router sim card slot with external antenna support vpn industry router Highlight1). 3G/4G LTE data transmission;2). Active auto connect;3). Embedded watchdog , Auto recovery;4). 2*2 4G/WIFI MIMO antenna;5). Integrate 3G/4G LTE,WIFI,GPS feature;6). 4G LTE. Support CAT 3, CAT 4, CAT ......
Send Inquiry
Product Description
4G indoor cpe 3g router sim card slot with external antenna support vpn industry router
Highlight
1). 3G/4G LTE data transmission;
2). Active auto connect;
3). Embedded watchdog , Auto recovery;
4). 2*2 4G/WIFI MIMO antenna;
5). Integrate 3G/4G LTE,WIFI,GPS feature;
6). 4G LTE. Support CAT 3, CAT 4, CAT 6 now.
7). WIFI High quality performance without congestion;
8). 1 WAN/1 LAN or 2 LAN ports, One console port;
9). With SIM card slot;
10). Wide power supply: +6V/2.5A~+48V/0.5A

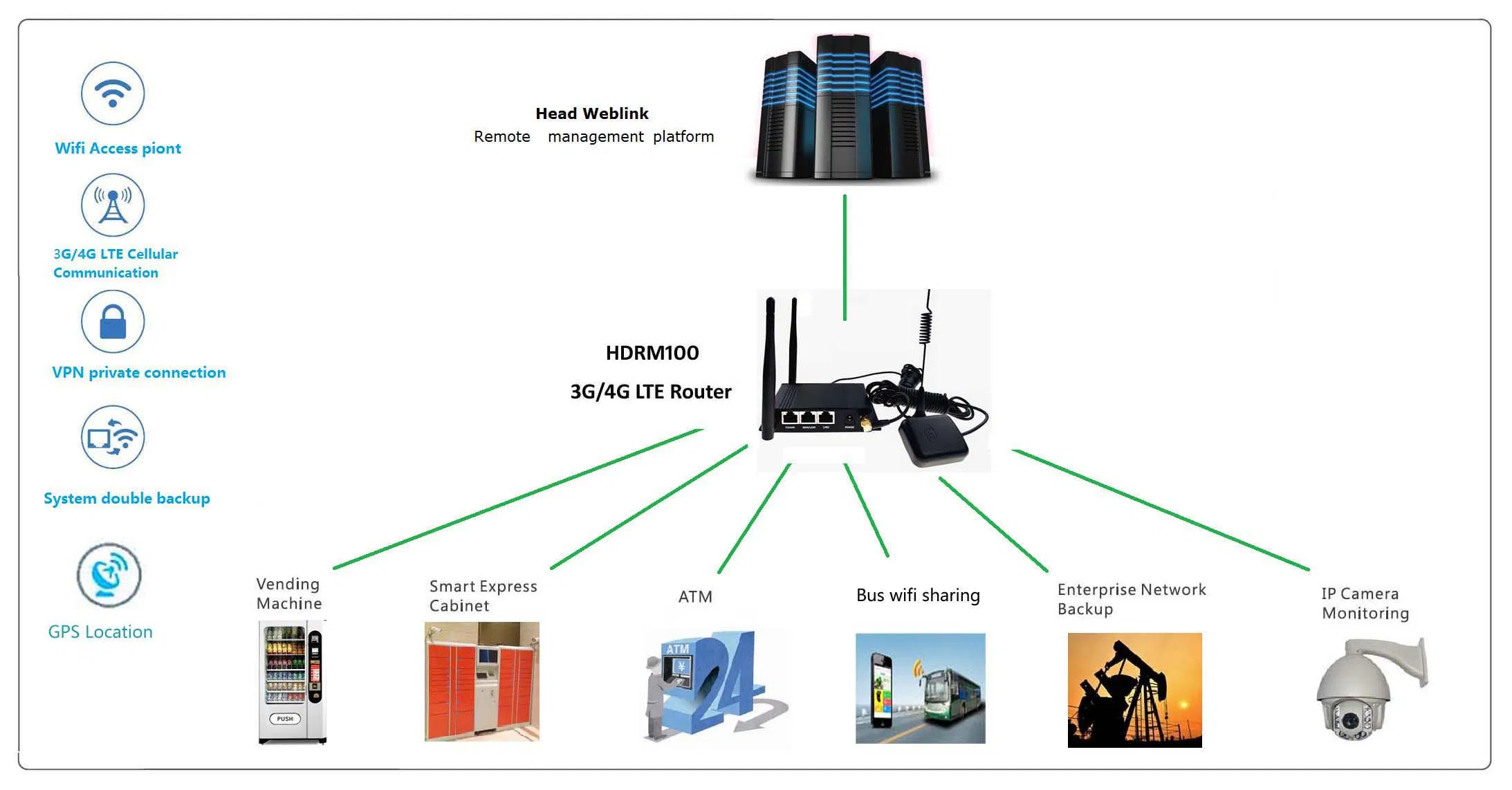

11). Remote management platform;
12). Firmware version: Linux or Openwrt;
13). Small size dimension:115mm*73mm*20mm
| Specification | |||
| ITEM | VERSION | Description | |
| CPU | MTK7628 | ||
| Memory | FLASH 8MByte, DDR2 64MByte | ||
| Network mode | 4G Version | FDD LTE, TDD LTE,HSPA+,WCDMA,GPRS,GSM | |
| 3G version | WCDMA,GPRS,GSM | ||
| EVDO,CDMA 1X | |||
| Frequency bands | 3G version | WCDMA | 850/1900MHz, 850/2100MHz & 900/2100MHz,GSM,850/900/1800/1900MHz |
| EVDO | 800MHz & 800/1900MHz | ||
| 4G Version | Version A. | LTE FDD. B2,4,5,17. UMTS. 850/1900MHz | |
| Version C. | LTE FDD. B1,3,7,8 .LTE TDD B38, B39, B40, B41. | ||
| UMTS. 900/2100MHz. | |||
| TD-SCDMA. 1880~1920MHz & 2010~2025MHz | |||
| GSM. 900/1800MHz | |||
| Version E. | LTE FDD. B1,3,7,8,20 ,LTE TDD B38, B40. | ||
| UMTS. 900/2100MHz. | |||
| GSM. 900/1800MHz | |||
| Version JC | LTE FDD. B1,B3,B8,B18,B19. LTE TDD. B41. | ||
| UMTS. B1,B6,B8. | |||
| GSM. 900/1800MHz | |||
| Version JE | LTE FDD. B1,B8 | ||
| UMTS. B1,B8 | |||
| GSM. 900/1800MHz | |||
| Version SA | LTE-FDD B1/B3/B4/B5/B7/B8/B28, LTE-TDD B38/B40/B41 | ||
| UMTS/HSDPA/HSPA+ B1/B2/B5/B8 | |||
| GSM/GPRS/EDGE B2/B3/B5/B8 | |||
| GPS | Optional, GPS/GNSS/BD,gpsOne Gen 8B;standalone;assisted,XTRA; | ||
| Data rates | |||
| 3G Router | WCDMA | DL 14.4Mbps, UL 5.76Mbps | |
| EVDO | DL 3.1Mbps, UL 1.8Mbps | ||
| 4G LTE router | LTE FDD | DL 100Mbps~300Mbps, UL 50Mbps | |
| LTE TDD | DL 50Mbps, UL 25Mbps | ||
| HSPA+ | DL 42Mbps, UL 5.76Mbps | ||
| TD-SCDMA | DL 2.8Mbps, UL 2.2Mbps | ||
| GPRS | Max. 85.6Kbps(DL), Max. 85.6Kbps(UL) | ||
| WIFI | 802.11b/g/n, 300Mbps | ||
| LAN | 2* LAN Ports, 100Mbps | ||
| Hardware interface | |||
| SIM card | 1*SIM card, Standard draw card interface, support 1.8V/3V SIM/UIM card, built-in ESD protection | ||
| UART | 1*RS232 port | ||
| Power supply | Input. +6V/2.5A~48V/0.5A,Standard Power Supply,DC +12V/1.5A | ||
| LED Indicator | SYS, Net, WAN, LAN,RSSI | ||
| RF connectors | SMA connector , 4G(female),WIFI(male),the characteristic impedance 50Ω . | ||
| Antenna | 2*2 4G/WIFI MIMO antenna; | ||
| Software | |||
| Security Encryption | Support WEP,WPA,WPA2 encryption ways | ||
| Watchdog | Embedded watchdog , System auto recovery; | ||
| Data link | Active auto connect; | ||
| Protocol | PPTP,L2TP,IPSEC VPN,Open VPN,GRE,TCP,UDP, DHCP,HTTP,DDNS,TR-069, HTTPS, SSH,SNMP etc. | ||
| VLAN | Support VLAN feature | ||
| Data backup | Double backup, keep data safe and reliable | ||
| Server | Remote management platform; | ||
| Operating system | Linux or OpenWRT | ||
| Environmental parameters | |||
| Conditions | Operating temperature | -40ºC - +75ºC | |
| Storage temperature | -45ºC - +80ºC | ||
| Operating humidity. | 5%-95% | ||
| Case | Aluminum Alloy Shell | ||
| Dimension | 115mm*73mm*20mm | ||
| Weight | 160g | ||
