4G High Speed 300Mbps Apn/VPN WiFi Hotpot Wireless Router with SIM Card Slot Td LTE and FDD LTE Network
4G High Speed 300Mbps APN/VPN WIFI Hotpot Wireless Router with sim card slot TD LTE and FDD LTE Network Why choose V518?3G/4G Signal To LanInsert relevant SIM card, then you can transmit the 3G/4G signal to Lan3G/4G Signal to WIFI Signal Insert relevant SIM card, then you can transmit 3G/4G signal ......
Send Inquiry
Product Description
4G High Speed 300Mbps APN/VPN WIFI Hotpot Wireless Router with sim card slot TD LTE and FDD LTE Network
 | 3G/4G Signal To Lan Insert relevant SIM card, then you can transmit the 3G/4G signal to Lan |  | 3G/4G Signal to WIFI Signal Insert relevant SIM card, then you can transmit 3G/4G signal to wifi signal |
 | Hardware WatchDog Design support Support anticrash functions. Protect equipment work stable and reliable |  | Worldwide 3G/4G Frequency Customizable 3G/4G bands for a worldwide market |
 | Support VPN VPN, VPDN, PPTP Client, L2TP Client |  | Cloud Unified Management Cloud unified management, control, auto-update, advertising management |
 | Industry Grade Hardware Design Industry grade hardware design keeps device stable working at harsh working conditions |  | Wide Voltage Wide voltage power supply for home use(charging by 110v/220v adaptor) and for the vehicle using 7-35v power supply optional) |
Application:
| Mobile Phone and Computer Game | Free Broadband In the Countryside | Surfing the internet in Shops | Provide the Network to Camera |
| Outdoor Tourism | Webcast | Online Movie | Office Network |
Specification:
| Single Frequency | 2.4GHZ | Channel | 1 - 13 |
| Wireless Mode | 11b/g/n/,11bg mixed(Def) | User Quantities | Wire 254 or Wireless 30 |
| Transmission Distance | Coverage up to about 200m (no obstructions outdoor) | Antenna Interface | 3 ×antenna interface standard SMA antenna interface |
| CPU | Using industrial-grade high-performance embedded MIPS CPU at up to 580MHz | MMU | CPU with MMU Memory Management Unit, which can effectively prevent a memory leak caused by a system exception |
| FLASH | 64 Mbits (memory) | DDR2 | 1024Mbits (cache) |
| Project | T7628 | Shell | Metal |
| Power | 9V/12 V 1.0A-2.0A | Weight | 130g (590g) |
| Operating Temperature | -30ºC ~ +70ºC | Storage Temperature | -40ºC ~ +85ºC |
| Humidity | 95ρw(no condensation) | SIM card port | 1 |

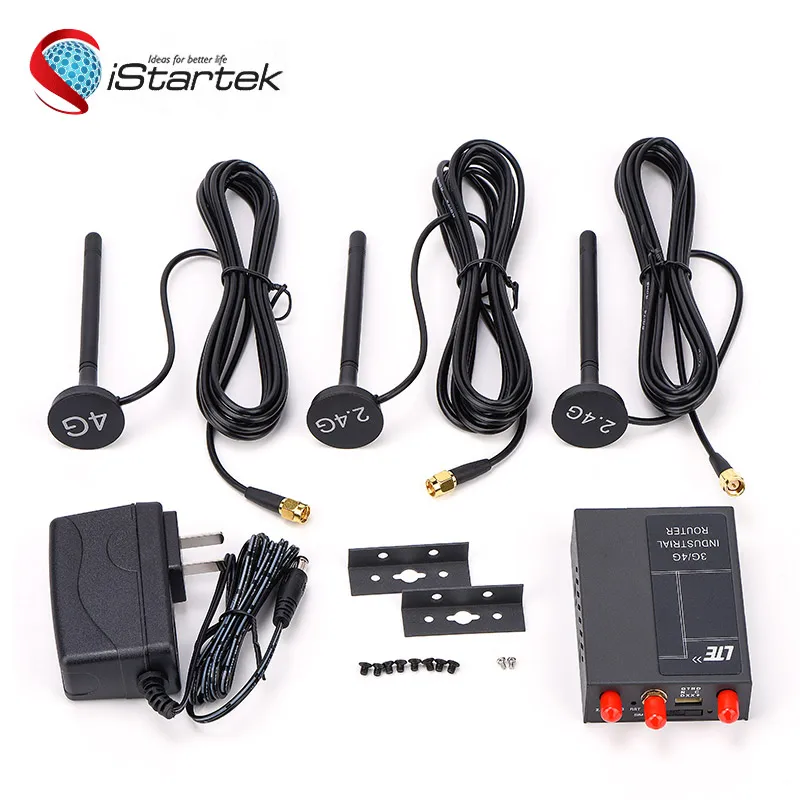

Accessories:
Antenna | Power Supply | Cable(Optional) |
Frequency:
V518-WCDMA: WCDMA/HSDPA/HSUPA/HSPA+: 1940MHz-1955MHz (UL) 2130MHz-2145 (DL) | V518-EVDO: CDMA/EVDO 1920MHz- 1935MHz(UL) 2110-2125MHz(DL) |
V518-LTE5: TD-LTE: BAND38/39/40/41 FDD-LTE: B1/3/7 WCDMA: B1 TD-SCDMA: B34/39 GSM/GPRS/EDGE: B8/3 | V518-LTE7: TD-LTE: B38/39/40/41 FDD-LTE: B1/3 WCDMA: B1/2/5 TD-SCDMA: B34/39 UMTS: B1 EVDO: 800MHz CDMA20001X: 800MHz GSM: B2/3/5/8 |
Features:
• Adopt high grade industrial wireless module.
• Support 3G/4G (WCDMA/CDMA/TD-SCDMA/LTE5/LTE7)
• Adopt metal case IP30 protection grade.
• Wide voltage and current input: DC7-35V/2A.
• Anti-reverse power connection protection surge protection, ESD antistatic protection.
• Software and hardware watch dog design, support anticrash functions. Protect equipment work stable and reliable.
• Automatic detection when network disconnect, automatically restart when dailing fails scheduled reboot, etc.
• Serial transparent transmission function, it can access to order control mode by serial port, control router, and other equipment.
• SMS control dialing, offline and restart function.
• Support socket server and customer end mode.
• Support different types of DDNS service.
• Port mapping, DMZ host function.
• Support VPN, PPTP client, L2TP client.
1. Do you provide customer LOGO?
Yes, we can provide customer LOGO on firmware and hardware.
2. Do you accept PCBA orders only?
Of course, as an OEM/ODM manufacturer, we can provide PCBA in a short time with good quality.
3. Do you provide firmware support?
Sure thing, unlike other companies which are buying solutions from design company, we have our own firmware development team to support you in 100%.
4. Do you....?
Maybe, why don't contact us now! Inquiring us to see if we can, or if we do, to see if we can surprise you!
