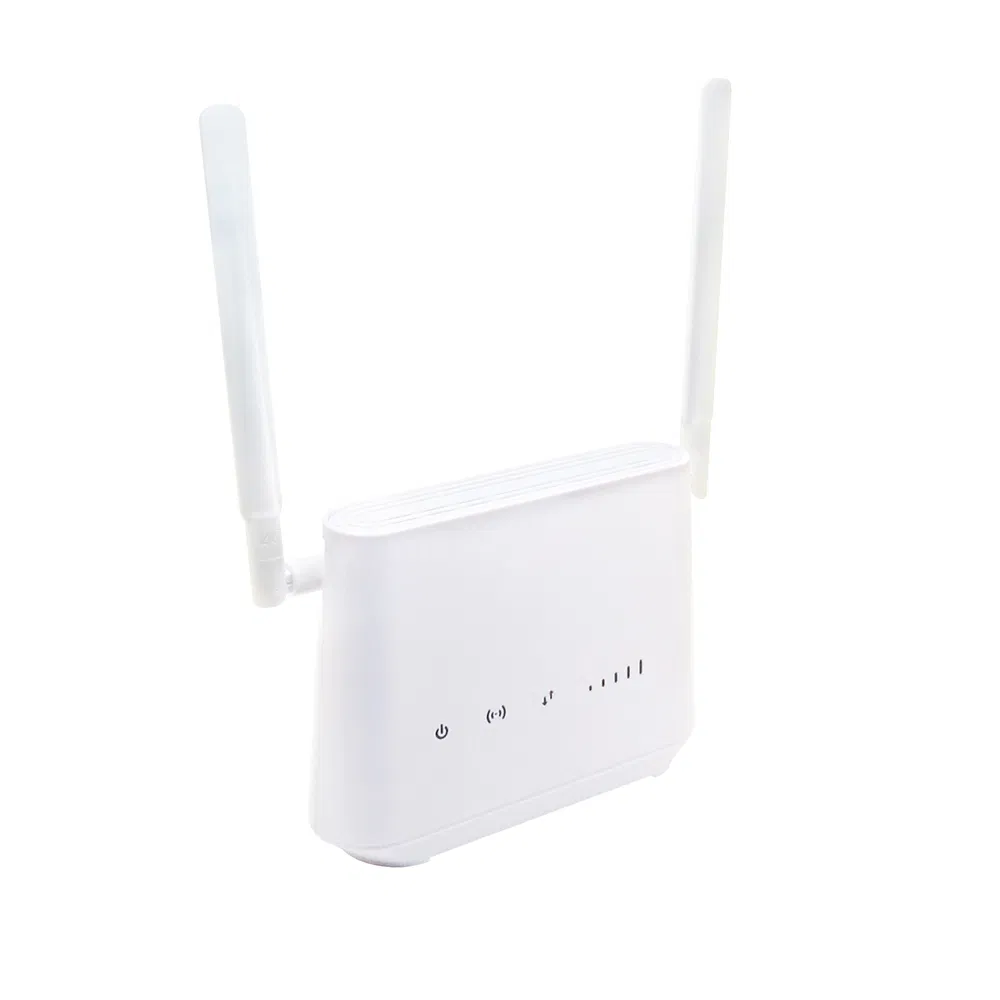

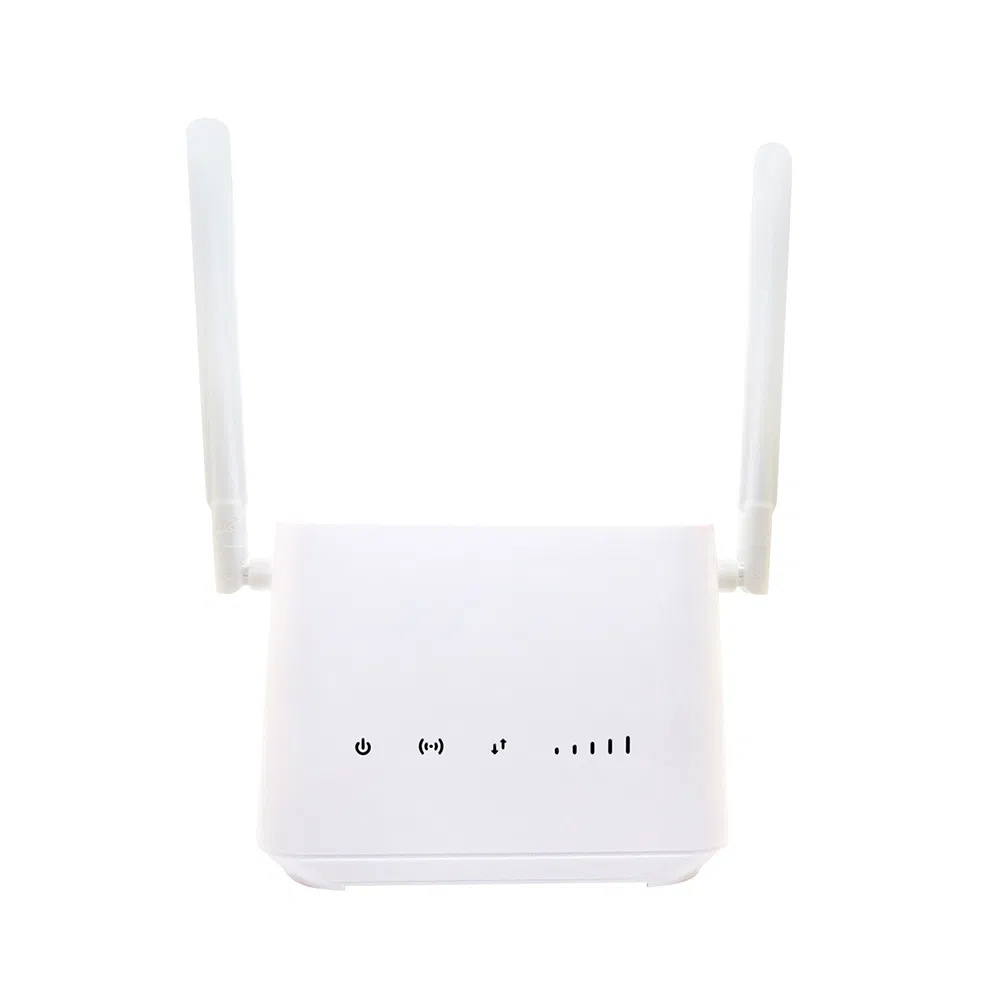

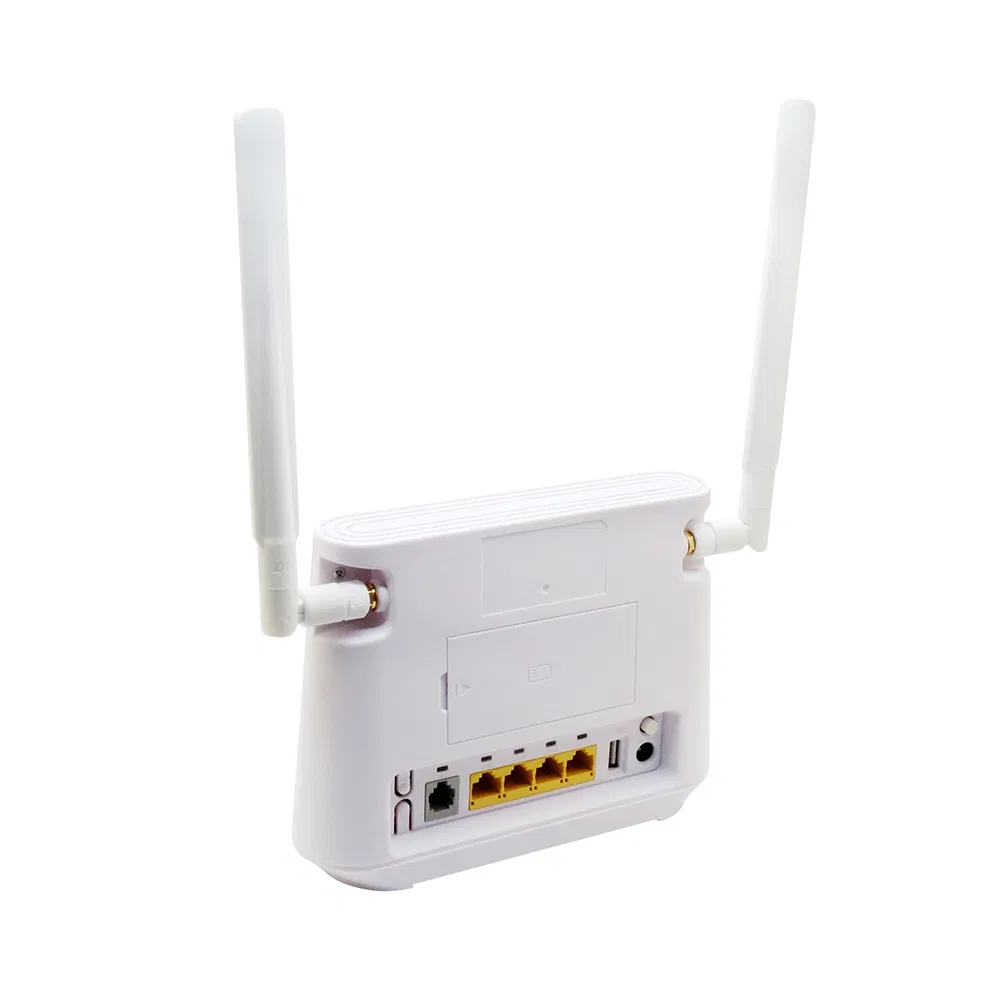

4G CPE Wireless WiFi Router up to 32 User with RJ45 Port
2g 3G 4G CPE Wireless WiFi Router with SIM Card Slot and Rj-11 Port IndoorProduct DescriptionFeatures:1.Powerful 2*5dBi external antennas, with stable performance2. Economical solution, ZTE chip. Rate level DL 150Mbps/UL 50Mbps, getting high speed internet;3. Support WiFi & Cable connecting simu......
Send Inquiry
Product Description
2g 3G 4G CPE Wireless WiFi Router with SIM Card Slot and Rj-11 Port Indoor
♦ Short leading time: 1-2.5 working days for samples or small order, 10-15 working days for bulk order.
♦ One year warranty: for you without trouble of after-sales maintenance.
♦ Quality Guarantee: Return rate is only 0.001.
♦ Support small orders: help your business from small to big.
♦ OEM & ODM are welcome.
Features:
1.Powerful 2*5dBi external antennas, with stable performance
2. Economical solution, ZTE chip. Rate level DL 150Mbps/UL 50Mbps, getting high speed internet;
3. Support WiFi & Cable connecting simultaneous, can support internet browsing with RJ45 ethernet port connected.
| SHFi4G8X6 | Technical specifications |
| 4G Platform | ZX297520 |
| Qualcomm MDM9225 | LTE-FDD/ TDD-LTE/ WCDMA |
| LTE | FDD:B1/B2/B3/B5/B7/B8/B20/B28A TDD:B38/B40/B41 Please confrim your frequencies, frequencies can be customized |
3G/2G | WCDMA:B1/B2/B5/B8 GSM: B2/B3/B5/B8 |
| Rate level | CAT4 DL:150Mbps / UL:50Mbps |
| Transmitting power | 23dBm |
| Antenna | External antenna and internal antenna,Gain>3db |
| WiFi | |
| WiFi Band | 2.4GHz,802.11b/g/n |
| WiFi Rate | Highest rate 300Mbps |
| WiFi Standard | IEEE 802.11b/g/n |
| WiFi RF Characteristics | Highest transmit power 22dBm,sensitivity is better than -77dBm |
| Number of linking users | Maximum 32 user connected |
| CSFB | support |
| Network Features | |
| Networking protocols | PPTP, L2TP, PPPoE, DHCP, Client/Server, NAPT, NTP |
| High-speed router | Built-in DHCP Server, DNS Clinet, support NAT |
| Dialing function | Manual dialing, autodialing, PPPOE dialing |
| SIM card Features | Support 1.8V/3V powered SIM/USIM card, Support encryption card, Support |
| Management | |
| Web smart | support |
| Centralized network management | support |
| TR069 | support |
| Remote Upgrade | support |
| Security | |
| Security Features | Support port filtering, IP filtering, MAC filtering, URL filtering, MAC address binding |
| Speed control | Support UL and DL speed limit , port speed limit |

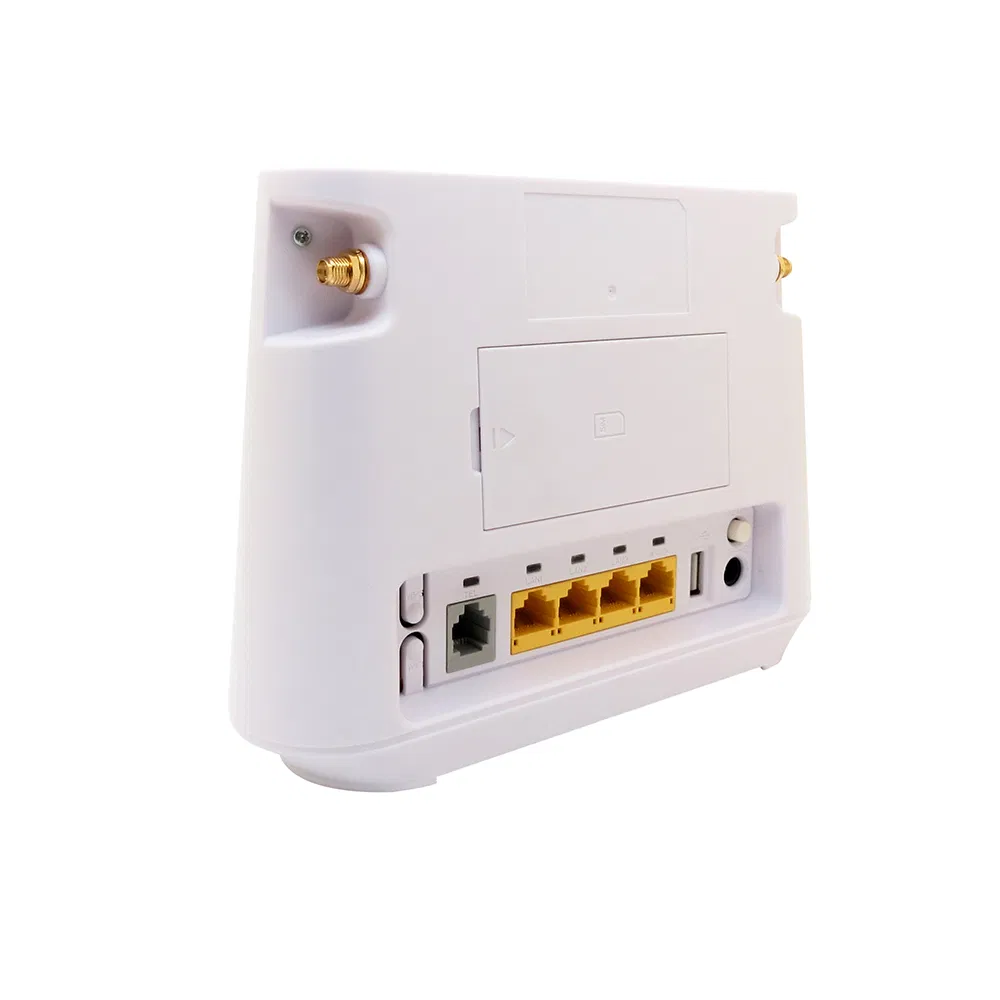

| Hardware | |

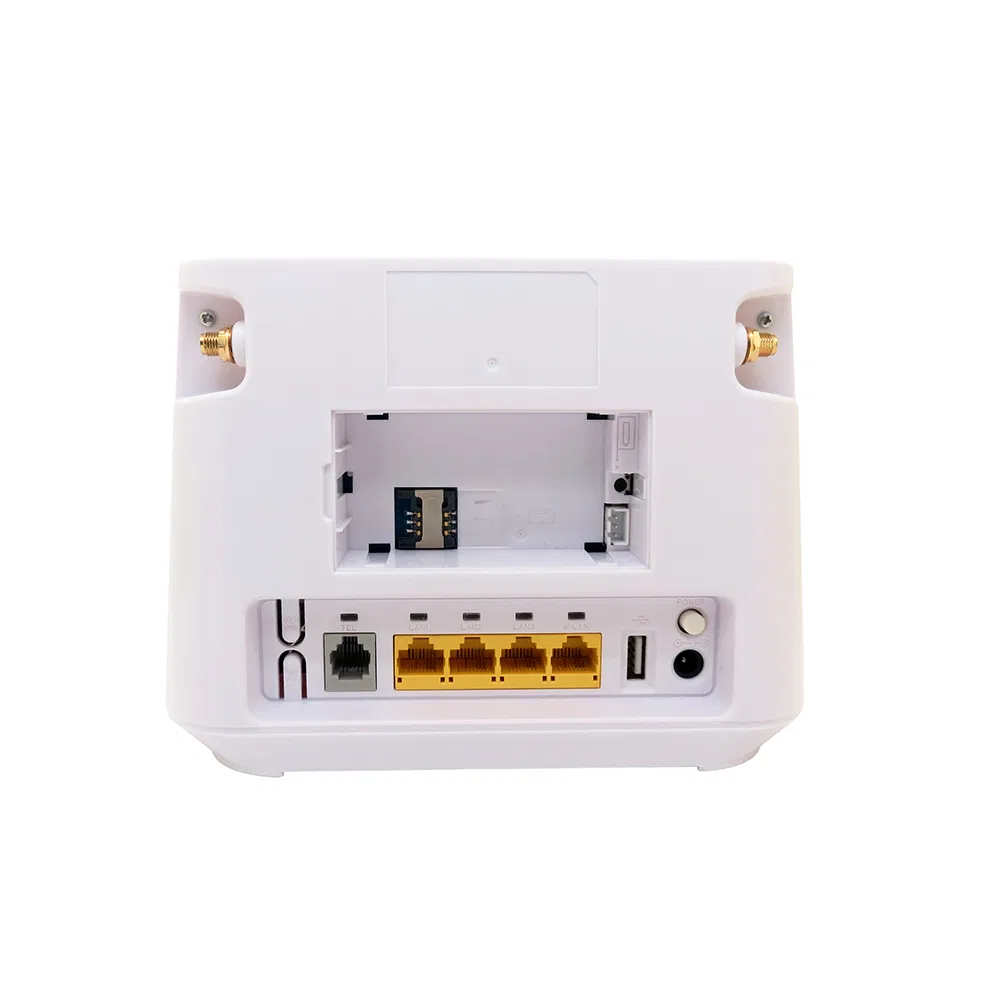

| LAN/WAN | RJ-45x4 |
| FXS | RJ-11x2 by paralleling |
| PSU | DC2.0 12V @ 1000mA |
| Power | 3.0W |
| Light | power, network, signal, LAN |
| Physical Characteristics | |
| Working temperature | -20~50ºC |
| Stock temperature | -40~85ºC |
| Huminity | ≤95% |
Main futures :
1. Support 2G/3G/4G network,LTE bands can be customized
2. SEQUANS chipsets
3. VOIP with RJ11 port optional
4. USB2.0 port
5. 2X2 Internal antenna and External SMA antenna
6. Build-in battery
7. Support web management
8. Support network data traffic statistics .
9. Support more than 32 WIFI devices online simultaneously.
1. Support 2G/3G/4G network,LTE bands can be customized
2. SEQUANS chipsets
3. VOIP with RJ11 port optional
4. USB2.0 port
5. 2X2 Internal antenna and External SMA antenna
6. Build-in battery
7. Support web management
8. Support network data traffic statistics .
9. Support more than 32 WIFI devices online simultaneously.

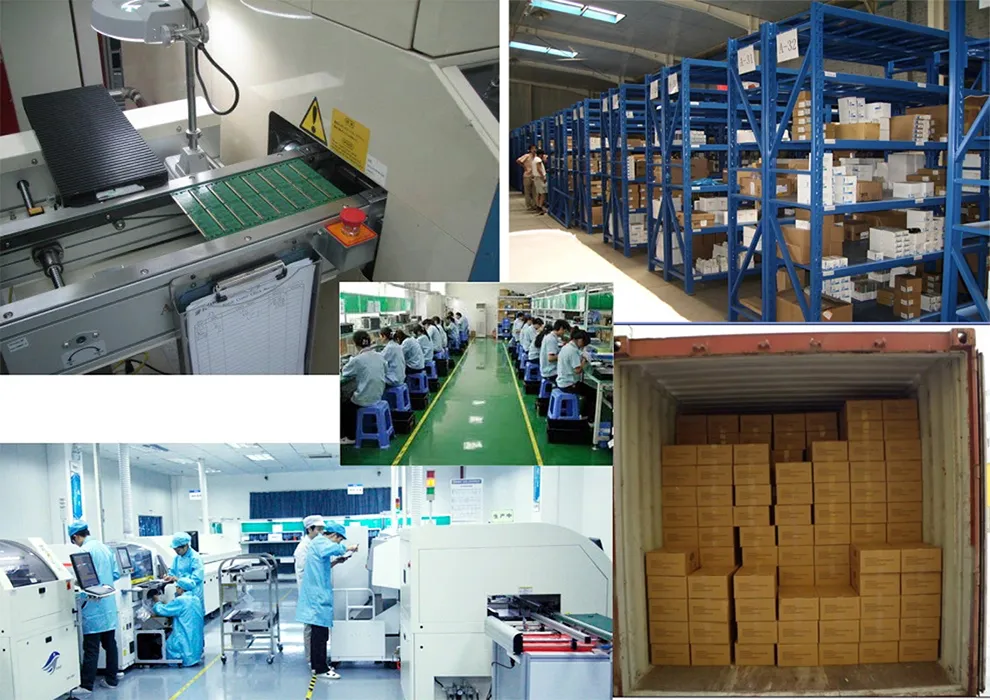

About us
