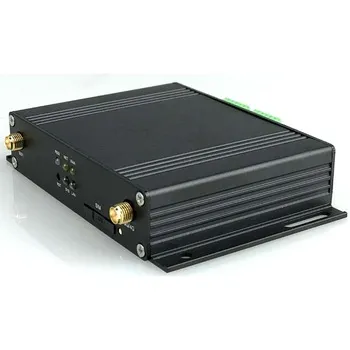

3G 4G Industrial Lte Wireless WiFi Router with SIM Card Slot

Product Description

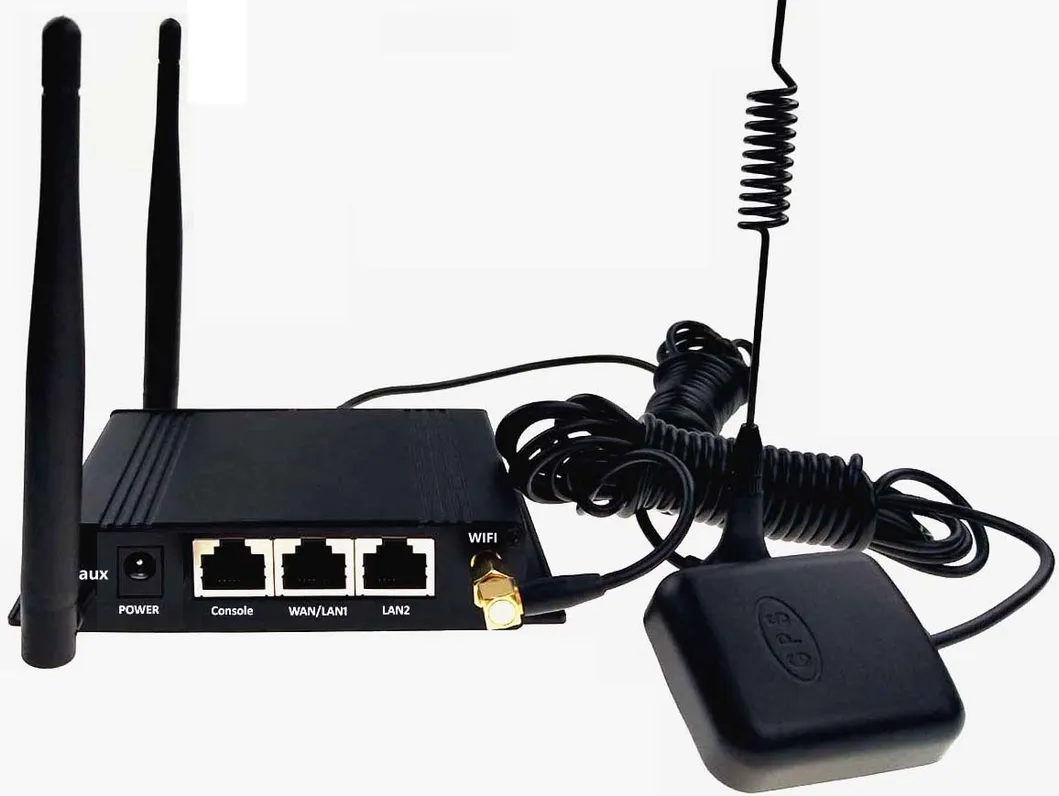

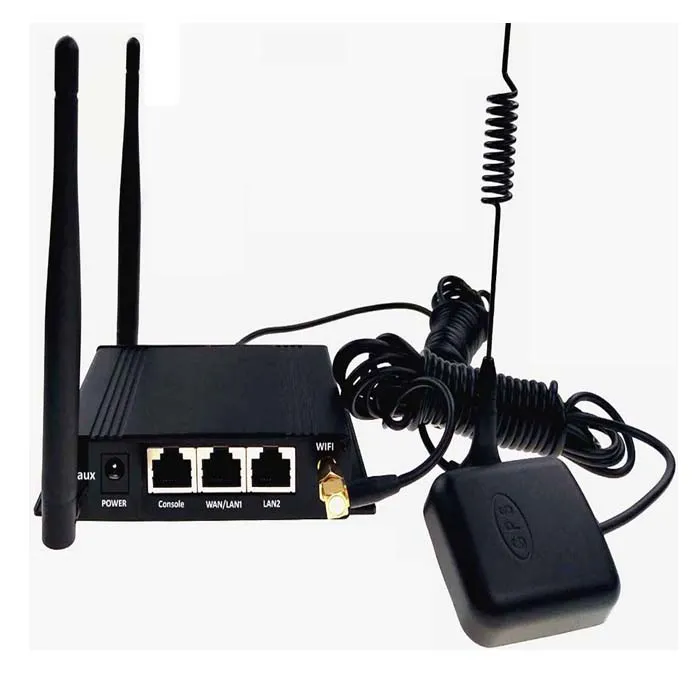

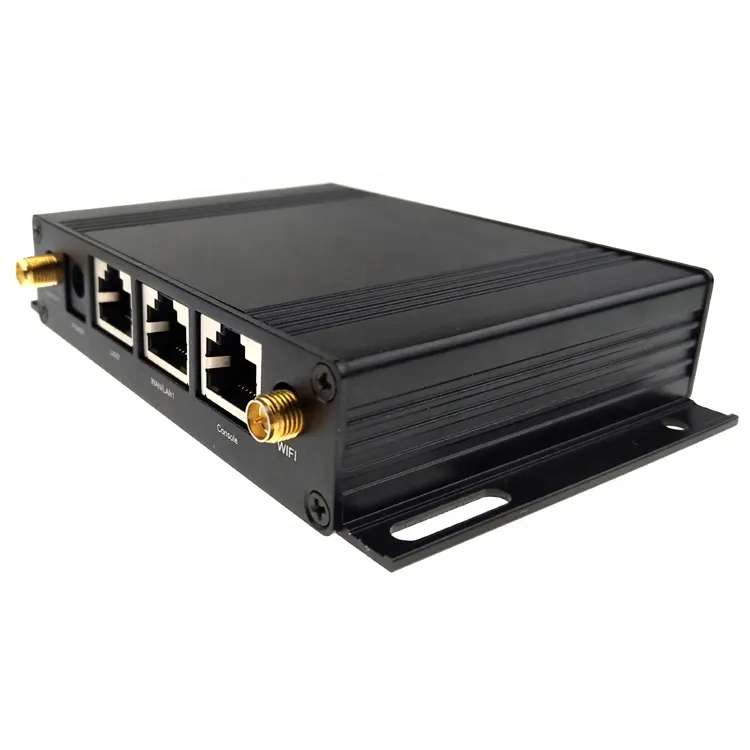

2018 new 3G 4G Industrial lte Wireless WiFi Router with SIM Card Slot

Product Introduction

HDRM100 L2 router and modem integrated machine,is designed for global market,because of the industrial quality and multiple RF band combination.
HDRM100 L2 support 2G/3G/4G LTE ,GPS,WIFI feature, It provides stable and reliable data connection for user device such as RTU,Kiosk, Power Ammeter and other remote device management application. In order to achieve permanent online, some key feature such as watchdog function, wide temperature/voltage range and multiple RF bank/mode are supported by HDRM100 L2,making it can be used in any environment of worldwide.

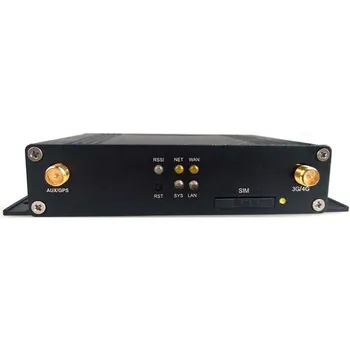

3G 4G Industrial Lte Wireless WiFi Router with SIM Card Slot

Product High light

• 3G/4G LTE data transmission;
• Active auto connect;
• Built-in watchdog, system crashes self-recovery;
• Built-in link maintenance mechanism, data link dropped from self-recovery

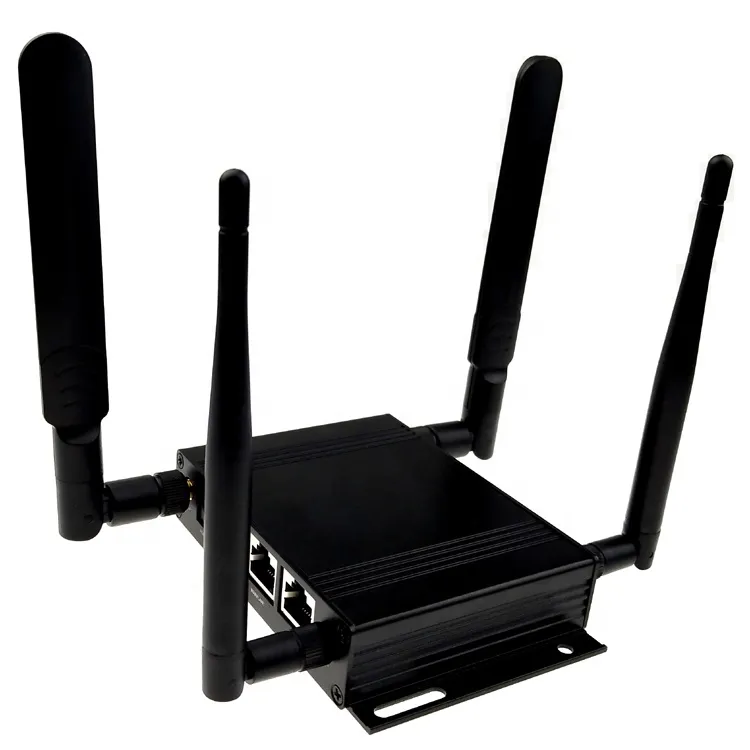

• 2*2 4G/WIFI MIMO antenna;
• Supports 3G/4G LTE,WIFI funtion
• Supports GPS funtion;(Optional)
• 4G LTE. Support CAT 3, CAT 4 now.
• WIFI High quality performance without congestion;
• 1 WAN/1 LAN or 2 LAN ports, One console port;
• With SIM card slot;
• Wide power supply: +5V~+48V/1A
• Remote management platform;
• Firmware version: Linux , Openwrt (Optional);
• Small size dimension:115mm*73mm*20mm

Item	Specification
CPU	MTK7628
MEMORY	FLASH 16MByte, DDR2 64MByte
Embedded system	Linux or Openwrt
Network	FDD LTE,TDD LTE,WCDMA,EVDO,GPRS,GSM,CDMA 1X
WIFI	WIFI 802.11 b/g/n, 300Mbps
Data rate	4G: CAT 3, DL 100bps , UL 50Mbps . Or CAT 4 DL 150Mbps , UL 50Mbps . WCDMA HSPA+: DL 42Mbps, UL 5.76Mbps GPRS DL/UL 85.6Kbps"
WIFI Tx Power WIFI Rx Sensitivity <-70 dBm@54Mpbs	14 dBm(11g),17 dBm(11b),14dBm(11n
WIFI Rx Sensitivity	<-70 dBm@54Mpbs
2G/3G/4G Transmitting Power	2G/3G/4G Transmitting Power "GSM/GPRS: Class 4 (2W): GSM850,EGSM900 Class 1 (1W): DCS1800,PCS1900 EDGE: Class E2 (0.5W): GSM850,EGSM900 Class E1 (0.4W): DCS1800,PCS1900 UMTS: Class 3 (0.25W): WCDMA Class 3 (0.25W): CDMA2000 Class 2 (0.25W): TD-SCDMA LTE: Class 3 (0.25W)"
GPS (Optional)	GPS/GLONASS,Protocol: NMEA
WIFI Frequency	2.4G
2G/3G/4G Frequency bands	Version CE LTE FDD: B1/B3/B5/B8 LTE TDD: B38/B39/B40/B41 WCDMA: B1/B8 TD-SCDMA: B34/B39 CDMA: BC0 GSM: 900/1800MHz Version E. LTE FDD: B1/B3/B5/B7/B8/B20 LTE TDD: B38/B40/B41 WCDMA: B1/B5/B8 GSM: B3/B8 Version A. LTE FDD: B2/B4/B12 WCDMA: B2/B4/B5 Version AF. LTE FDD: B2/B4/B5/B12/B13/B14/B66/B71 WCDMA: B2/B4/B5 Version V. LTE FDD: B4/B13 EC25-AF: LTE FDD: B2/B4/B5/B12/B13/B14/B66/B71 WCDMA: B2/B4/B5 Version J LTE FDD: B1/B3/B8/B18/B19/B26 LTE TDD: B41 WCDMA: B1/B6/B8/B19 Version AU. LTE FDD: B1/B2/B3/B4/B5/B7/B8/B28 LTE TDD: B40 WCDMA: B1/B2/B5/B8 GSM: B2/B3/B5/B8 Version AUT. LTE FDD: B1/B3/B5/B7/B28 WCDMA: B1/B5 Version AUTL. LTE FDD: B3/B7/B28 Version EU. LTE FDD: B1/B3/B7/B8/B20/B28A LTE TDD: B38/B40/B41 WCDMA: B1/B8 GSM: B3/B8 Version EC. LTE FDD: B1/B3/B7/B8/B20/B28A WCDMA: B1/B8 GSM: B3/B8"
Hardware interface	2*LAN 10/100Mbps, Console port(Be used as DTU, is available to connect serial devices)
RF connectors	SMA connector , 4G(female),WIFI(male),the characteristic impedance 50Ω
Security Encryption	Support WEP,WPA,WPA2 encryption ways
Protocol	PPTP,L2TP,IPSEC VPN,TCP,UDP, DHCP,HTTP,DDNS,TR-069,GRE, HTTPS, SSH,Open VPN,SNMP

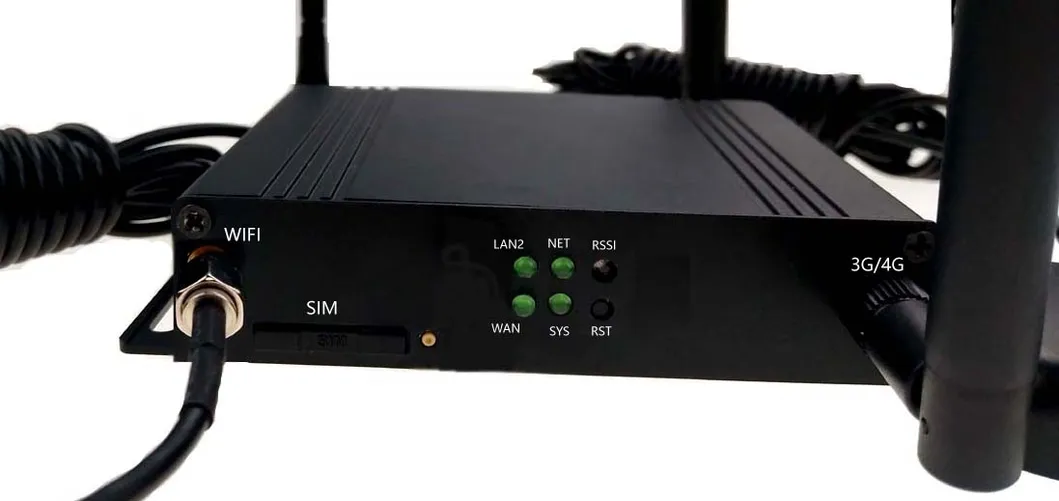

LED Indicator	"SYS", "Net", "WAN", "LAN",RSSI
SIM/UIM	Standard draw card interface, support 1.8V/3V SIM/UIM card, built-in ESD protection
Standard Power	DC 12V/1A
Power Supply	DC 5~48V
Working current	2A (Max Current)
Temperature	"Operating Temperature -40~+75ºC Storage Temperature -45~+85ºC"
Environment humidty	95%
Case	Aluminum Alloy Shell
Weight	160g

Our Company

3G 4G Industrial Lte Wireless WiFi Router with SIM Card Slot

Head Weblink Corporation Founded in 2008, as the leading provider of 2G/3G/4G LTE /NBIOT/WIFI industrial router and systems solutions, we have experienced technical teams and professional implementation of industry solutions. With first-class team and technology accumulation, the company independently developed 4G router,4G CPE,4G ODU,4G DTU ,tracker, traveling recorder, DVR, streaming media mirror and other high-quality terminal products.

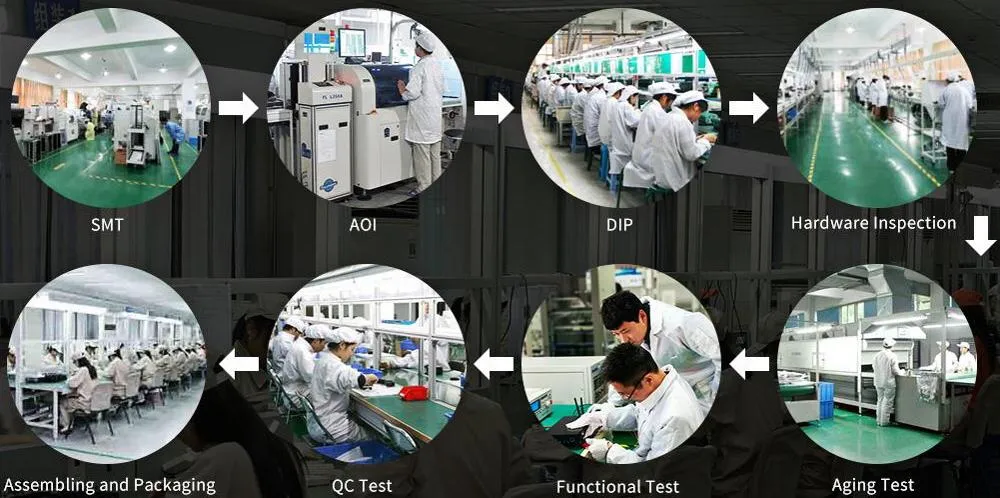

Production line
3G 4G Industrial Lte Wireless WiFi Router with SIM Card Slot
