300Mbps Data Rate with Qualcomm Chipset Mu Dual Band Wireless Access Point Muti Ssid and LAN Port Tag Vlan
300Mbps data rate with Qualcomm Chipset Mu Dual Band wireless access point Muti SSID and LAN Port tag VLAN Product DescriptionDescription:It is an in wall AP comply with IEEE 802.11b/g/n standard, with 300Mbps data rate with Qualcomm Chipset, with 3*RJ45 ports and 1*RJ11 port, designed for hotel/hom......
Send Inquiry
Product Description
Description:

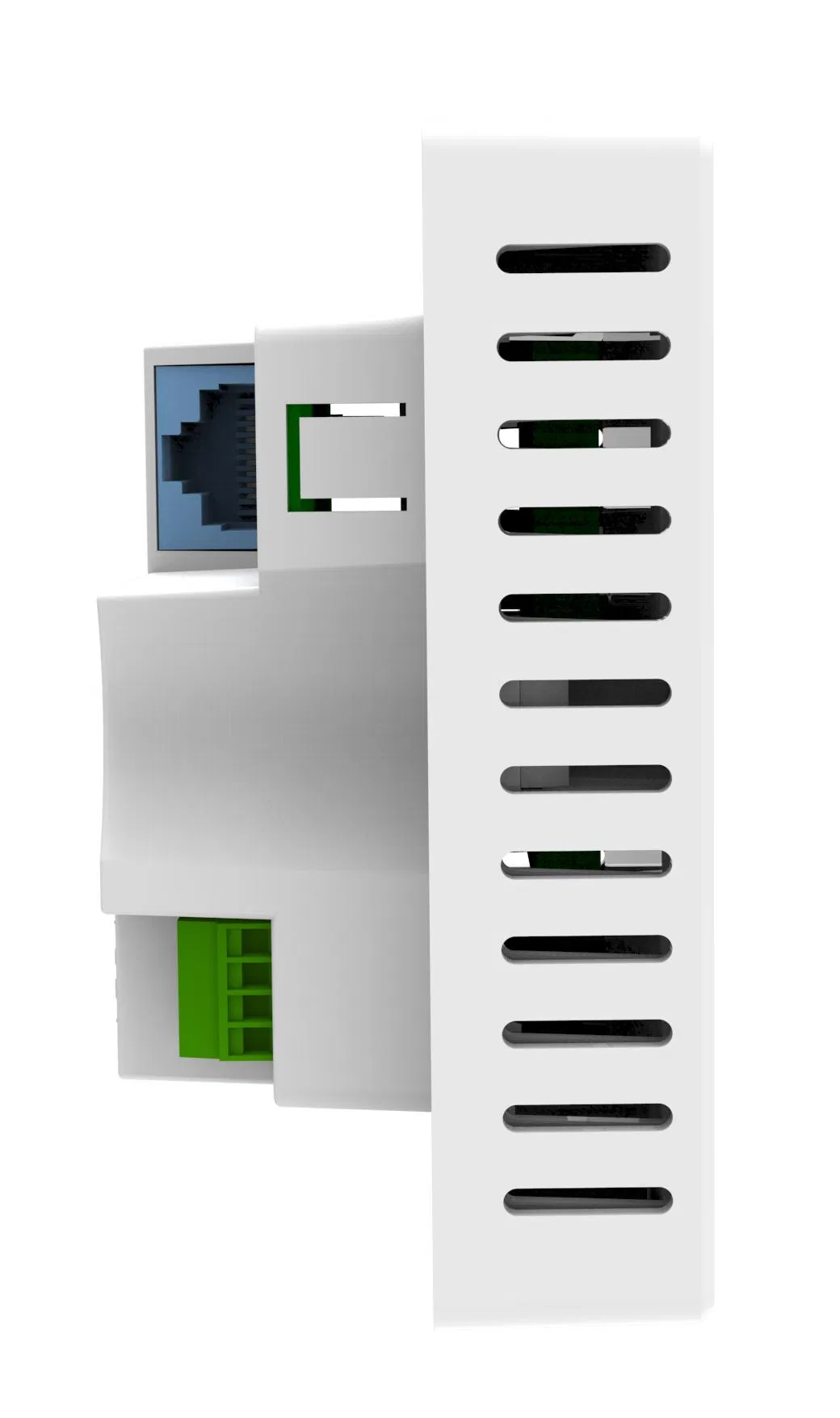

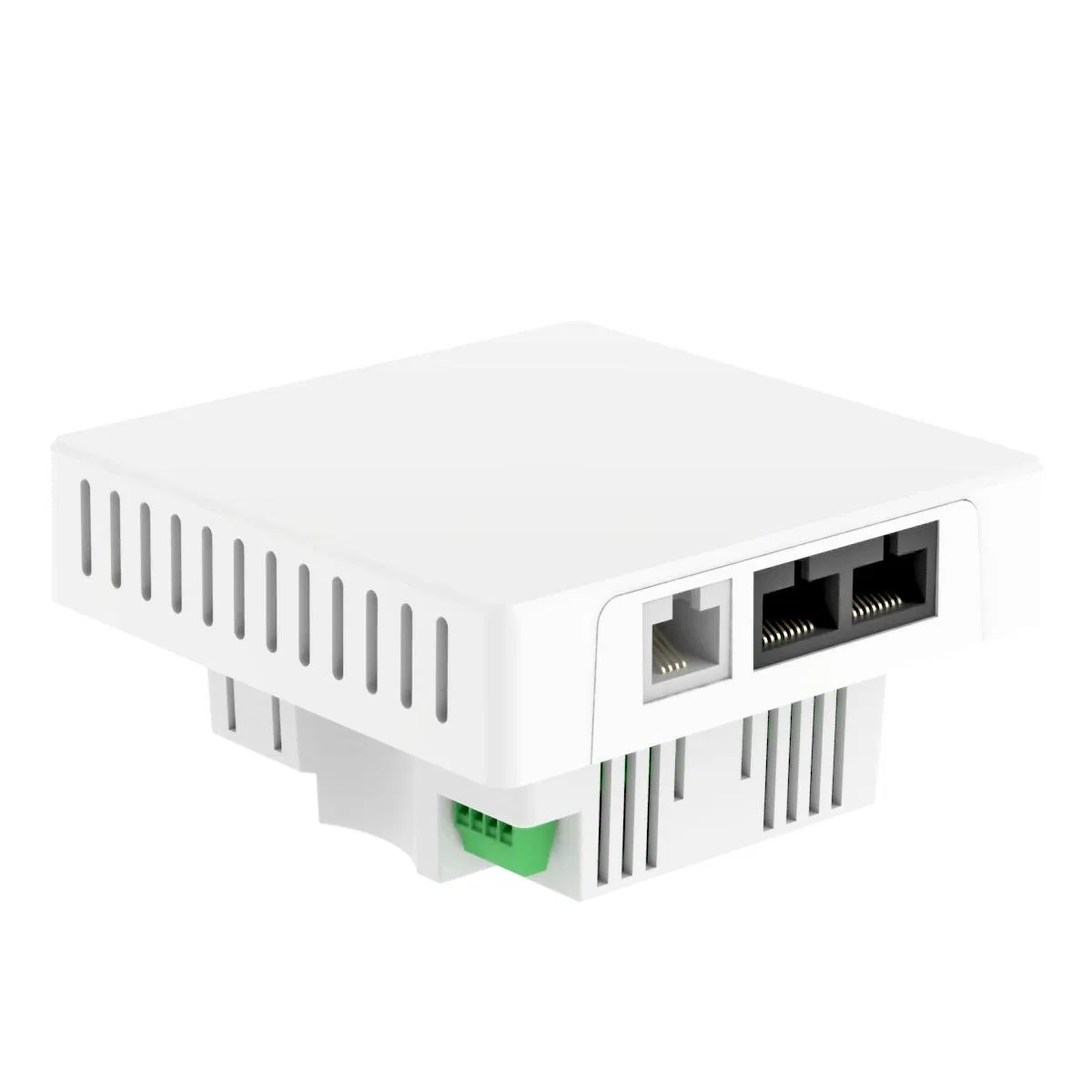

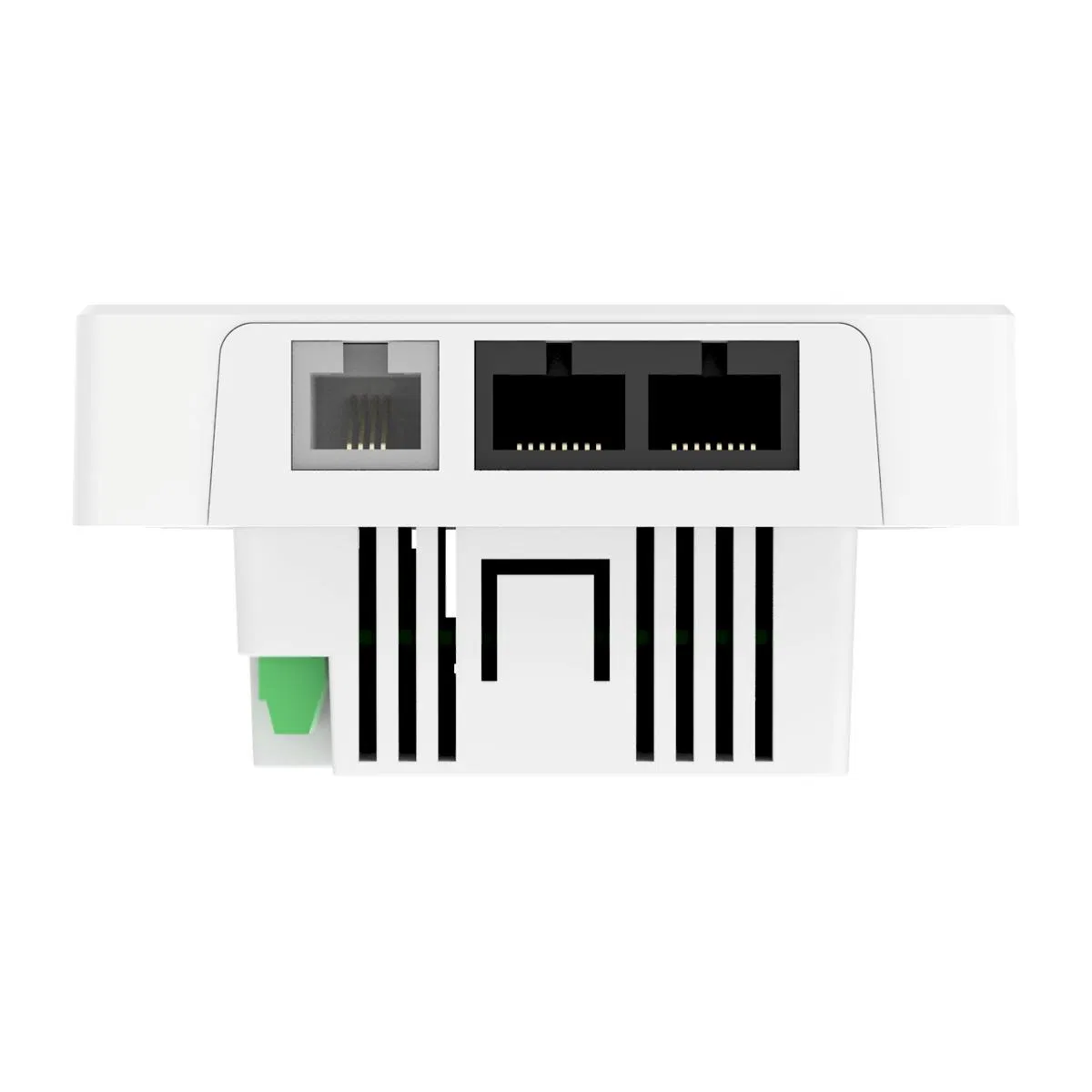

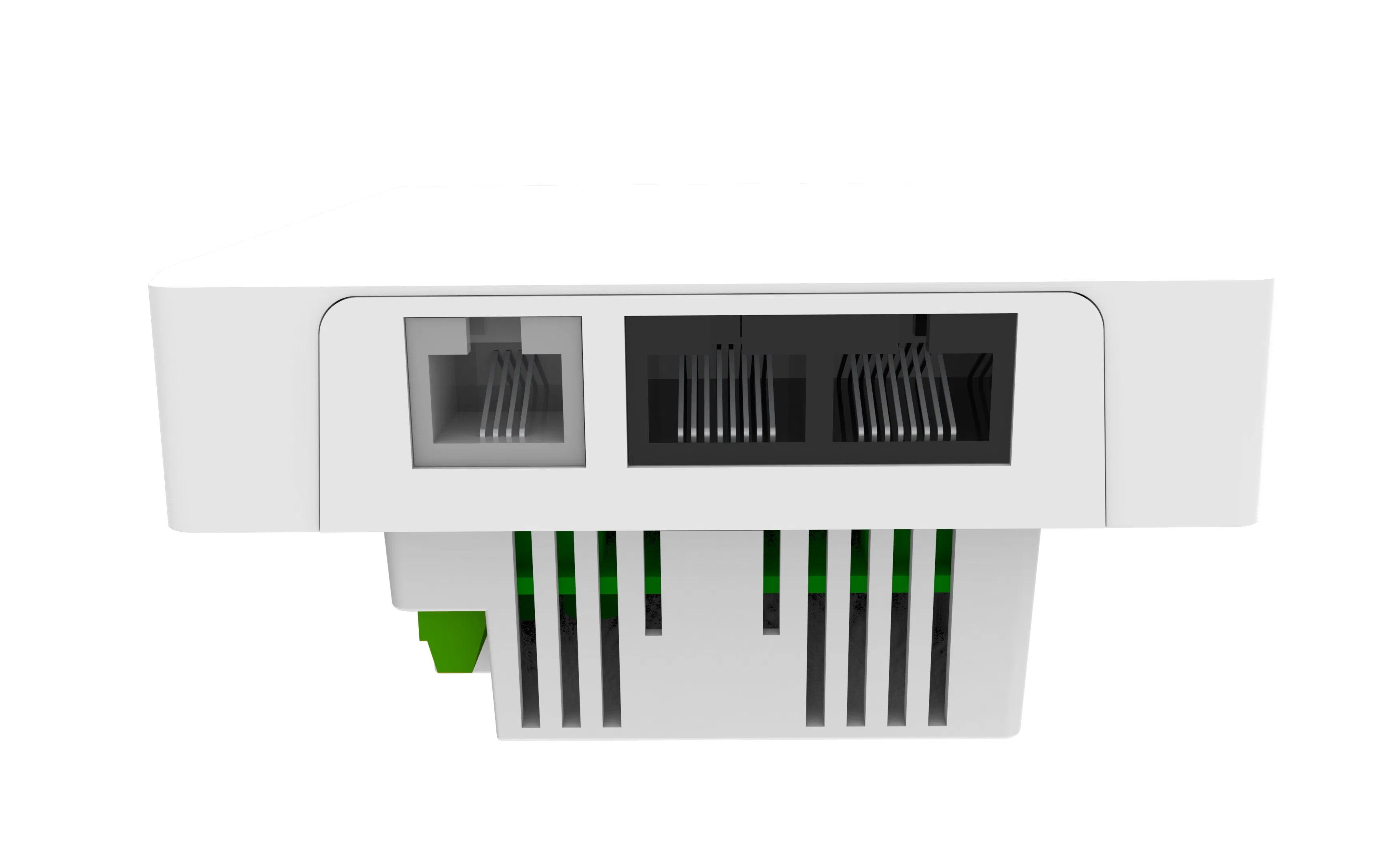

It is an in wall AP comply with IEEE 802.11b/g/n standard, with 300Mbps data rate with Qualcomm Chipset, with 3*RJ45 ports and 1*RJ11 port, designed for hotel/home mainly to provide Wi-Fi Internet access for users and LAN internet for TV/PC... in hotel room, guest room, living room and lobby.
It support 802.3af PoE, compliant with any 802.3af Power over Ethernet equipment, easy in setting and complete the full Wi-Fi coverage.
Muti SSID and LAN Port tag VLAN support: PW550 support 4 SSID, each SSID can be named and assigned to different users, then internet data is isolated. Then build in Smart Channel Analysis Tool, help to select the less Wi-Fi Interference channels, ensure the stability wireless signal.
Work with WLAN controller and PoE switch, plug and play, then allow administrator to manage it in centrally and remotely, suit for hotel, school, hospital, provide stable wireless access, promote advertisement and collect user information for second time sales.
Work with multiple function smart router, plug and play, easy to provide high security dual band wireless access for end users and gigabit Ethernet for IPTV. Then all cable is embedded in the wall, safety, tidy and perfectly comply with home/villa decoration.
SPEC:
| HARDWARE FEATURES | |
| Chipset | QCA9531 |
| Flash | 16M Flash |
| DDR | 64M DDR |
| Interface | 1*10/100Mbps WAN port 2*10/100Mbps LAN ports 1*RJ11 port |
| Power Supply | 48V PoE, IEEE 802.3af standard |
| Maxi power consumption | < 8W |
| Dimensions (W X D X H) | 86*86*35mm |
| Antenna Type | Build in dual band 2dBi antenna |
| WIRELESS FEATURES | ||||||||||
| Wireless Standards | IEEE 802.11n/g/b 2.4GHz | |||||||||
| Frequency | 2.4GHz: 2.4GHz - 2.484GHz | |||||||||
| Signal Rate | 2.4GHz: Up to 300Mbps | |||||||||
| RF Power (2.4GHz) | 802.11b | 11M | 16±2dBm | 1M | 18±2dBm | |||||
| 802.11g | 54M | 15±2dBm | 6M | 17±2dBm | ||||||
| 802.11n HT20 | MCS7 | 14±2dBm | MCS0 | 16±2dBm | ||||||
| 802.11n HT40 | MCS7 | 13±2dBm | MCS0 | 15±2dBm | ||||||
| Receive Sensitivity (2.4GHz) | 802.11b | 11M | -85dBm | 1M | -94dBm | |||||
| 802.11g | 54M | -72dBm | 6M | -90dBm | ||||||
| 802.11n HT20 | MCS7 | -70dBm | MCS0 | -88dBm | ||||||
| 802.11n HT40 | MCS7 | -68dBm | MCS0 | -86dBm | ||||||
| Wireless | Auto-Channel selection | |||||||||
| Distance Control (802.1x Ack timeout) | ||||||||||
| Multiple SSID up to 4 | ||||||||||
| BSSID | ||||||||||
| EVM | 2.4G: 802.11b: ≤-10 dB; 802.11g: ≤-25dB; 802.11n: ≤-28 dB | |||||||||
| PPM | ±20ppm | |||||||||
| Max Access Users | 64 | |||||||||
| Operation Mode | Wireless AP, Gateway, Wi-Fi Repeater | |||||||||
| Wireless Security | 64/128-bit WPA / WPA2, WPA-PSK/ WPA2-PSK encryption | |||||||||
| LED Status | Wi-Fi, LAN, SYS | |||||||||
| Management | ||||||||||
| System Settings | Web-based configuration (HTTP/Telnet) | |||||||||
| Firmware Upgrade | Upgrade firmware via web browser or TFTP | |||||||||
| Administration | Admin Password can be configured | |||||||||
| System monitoring | Watch dog, Status in hand, useful statistic and Event log | |||||||||
| Logs | Supports local logs, logs host, logs file export | |||||||||
| Reset | Reset or factory defaults | |||||||||
| Backup | Restore settings & configuration of the device to local file, Scheduled reboot | |||||||||
| OTHERS | |
| Package Contents | 300Mbps Dual Band wireless access point Quick Installation Guide Setting Accessory |
| System Requirements | Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, Windows 8, Windows 10, MAC OS, NetWare, UNIX or Linux |
| Environment | Operating Temperature: -20~55 ºC Extreme Temperature: -30~55 ºC Storage Temperature: -40~70 ºC Humidity: 5%~95% non-condensing |
