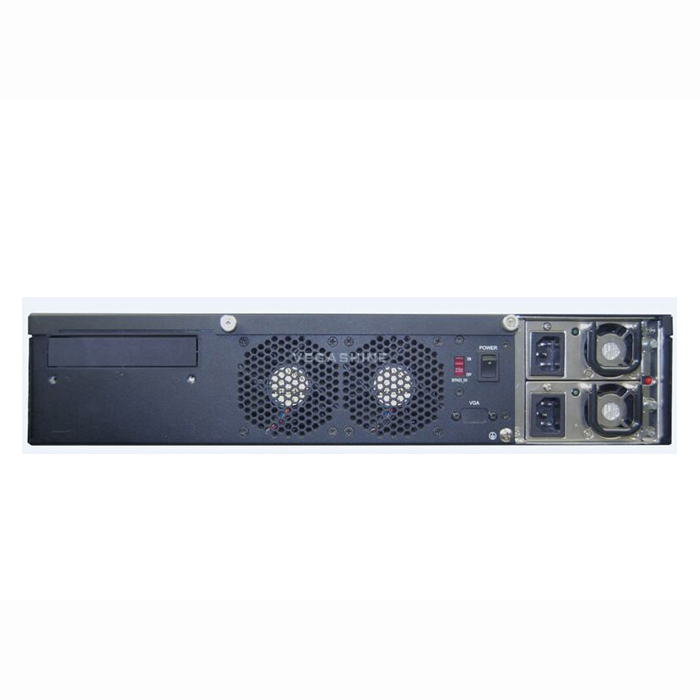

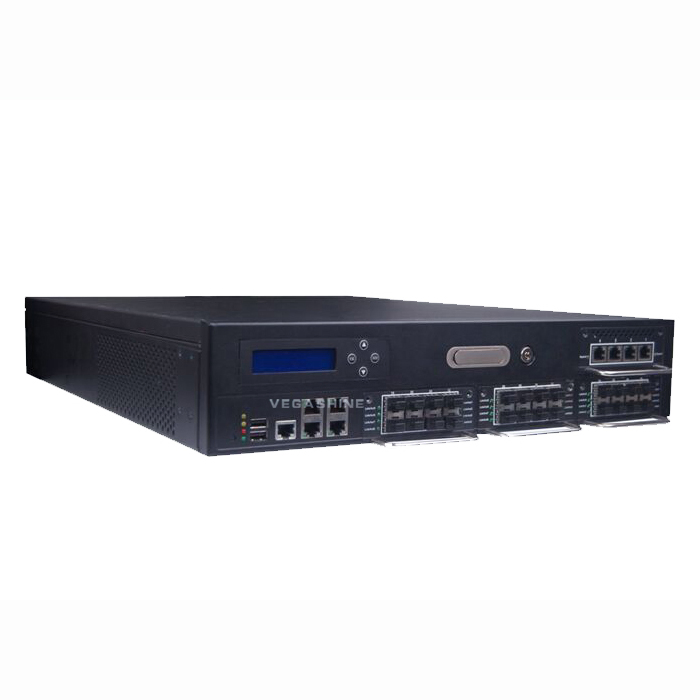

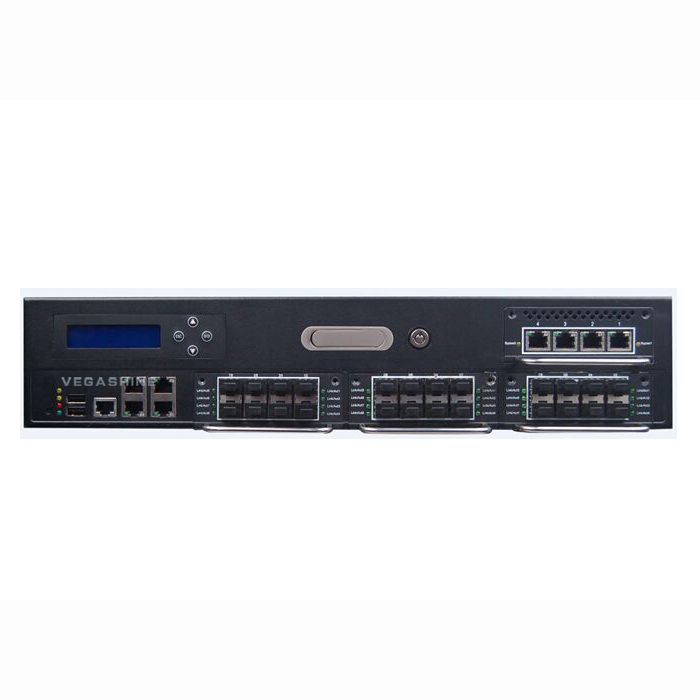

2u Rackmount 24 Gigabit LAN 8 Cores Intel Atom C2758 CPU Firewall Appliance/Route
2U rackmount 24 gigabit LAN 8 cores Intel Atom C2758 CPU Firewall appliance/Route Quick DetailsProduct name : Firewall appliance/RouterIncluded 2U Rackmount server chassis +Motherboard+ Intel Atom C2758 CPU+Power supplyAtom C2758 Rangeley processo......
Send Inquiry
Product Description
2U rackmount 24 gigabit LAN 8 cores Intel Atom C2758 CPU Firewall appliance/Route
Quick Details
Product name : Firewall appliance/Router
Included 2U Rackmount server chassis +Motherboard+ Intel Atom C2758 CPU+Power supply
Atom C2758 Rangeley processor with 8 cores
Support DDR3 / DDR3L Max. up to 64GB
1* VGA
Integrated 24* Intel I347 10/100/1000Mbps Ethernet
Supporting Wake-on-LAN , PXE function , BYPASS
4*SATA II
1* 44pin IDE slot
1* CF card slot
1* COM(CISCO Standard Interface)
1*RS232 header
4* USB 2.0 port
--24* RJ45 LAN port
Dimension : 2U rackmount 550mm(L)* 440mm(W)* 88mm(H)
Power supply AC 110~240V / 50Hz
Specifications
Warranty : 1 Year
Quick Details
Product name : Firewall appliance/Router
Included 2U Rackmount server chassis +Motherboard+ Intel Atom C2758 CPU+Power supply
Atom C2758 Rangeley processor with 8 cores
Support DDR3 / DDR3L Max. up to 64GB
1* VGA
Integrated 24* Intel I347 10/100/1000Mbps Ethernet
Supporting Wake-on-LAN , PXE function , BYPASS
4*SATA II
1* 44pin IDE slot
1* CF card slot
1* COM(CISCO Standard Interface)
1*RS232 header
4* USB 2.0 port
--24* RJ45 LAN port
Dimension : 2U rackmount 550mm(L)* 440mm(W)* 88mm(H)
Power supply AC 110~240V / 50Hz
Specifications
| CPU | Intel Atom C2758 Rangeley processor with 8 cores (4M Cache, 2.40 GHz) |
| Memory | Support 4* 240 Pin DDR3 / DDR3L slots up to 64GB |
| Display | 1* VGA header |
| Network Function | 24* Intel I347 10/100/1000Mbps Ethernet Support bypass |
| Supporting Wake-on-LAN and PXE function | |
| Storage | 4*SATA II |
| 1* 44pin IDE slot | |
| 1* CF card slot | |
| Expansion slots | 2*PCIE x8 slots,support x4 function 3*PCIE x8 slots to expand network |
| Status LED lamp | 2 *bypass LED 1* POWER_LED, HDD_LED Indicator |
| Digital I/O | 8 Channels digital IO, 4* Digital Input, 4* digital Output |
| I/O | 1* COM(CISCO Standard Interface) 1*RS232 Header inside 4* USB 2.0 ( 2* USB2.0 ports in front panel, 2*USB2.0 header inside 1*PS/2 Header inside |
| Size | 2U rackmount 550mm(L)* 440mm(W)* 88mm(H) |
| Operating Temp. | -0°C~45°C |
| Storage Temp. | -10°C~55°C |
| Humidity | 5%-95% (relative humidity; non-condensing) |
| Anti vibration | 5~300Hz/random operating |
| Power | AC 110~240V / 50Hz |
Warranty : 1 Year
