2021 Cheap High Spead WiFi Hotspot FDD Outdoor CPE 4G Lte Wireless Router SIM Card
2020 cheap high spead wifi hotspot fdd outdoor cpe 4g lte wireless router sim card WHY CHOOSE OUR WR11S? 4G Signal to WIFI Signal 4G Signal To Lan 2.4G, 300Mbps WI-FI Rate Support 3G 4G LTE Network Support WPS, VPN, Port Mapping Use ZX297520V3E Chip Support VOLTE Function......
Send Inquiry
Product Description
2020 cheap high spead wifi hotspot fdd outdoor cpe 4g lte wireless router sim card
| WHY CHOOSE OUR WR11S? |
 | 4G Signal to WIFI Signal |  | 4G Signal To Lan | |||
 | 2.4G, 300Mbps WI-FI Rate |  | Support 3G 4G LTE Network | |||
 | Support WPS, VPN, Port Mapping |  | Use ZX297520V3E Chip | |||

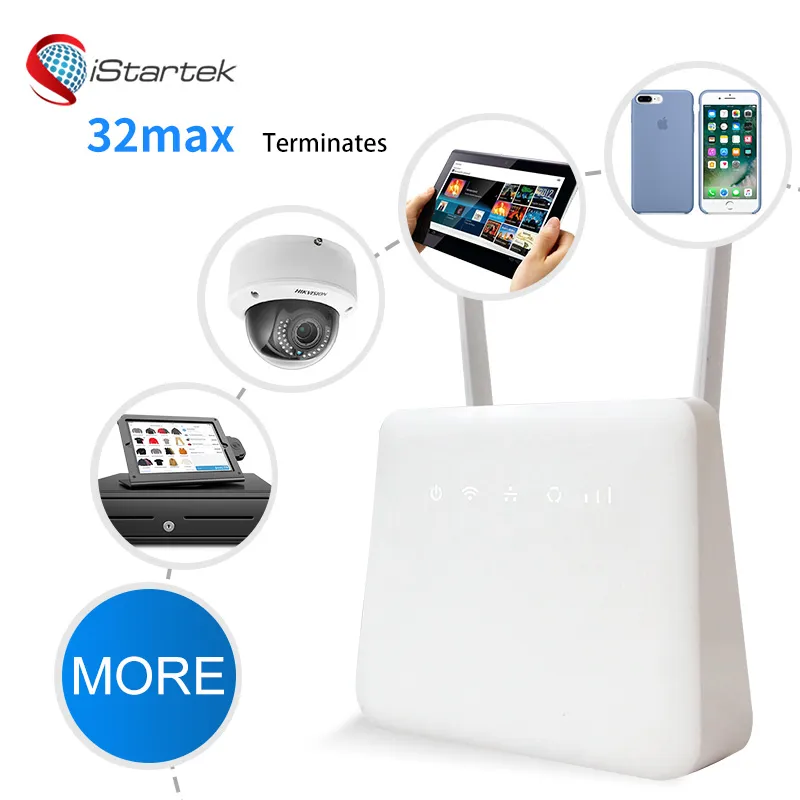

 | Support VOLTE Function |  | Support 32 MAX Terminates |
| SPECIFICATIONS |
1.1 Basic Specifications
Item | Description |
Dimensions | 120mm (H) x 150mm (W) x 50mm (D) |
Power Supply | Input: Universal range 100V~240V AC Output: 12V DC/1A |
power consumption | <12W |
Memory | RAM 512Mb / ROM 1GMb |
Slic | slic Le9641 |
USIM/SIM Slot | 2FF SIM card support SIM/USIM/UIM, standard 6 PIN SIM card interface, support 3V SIM card and 1.8V SIM card; internal |

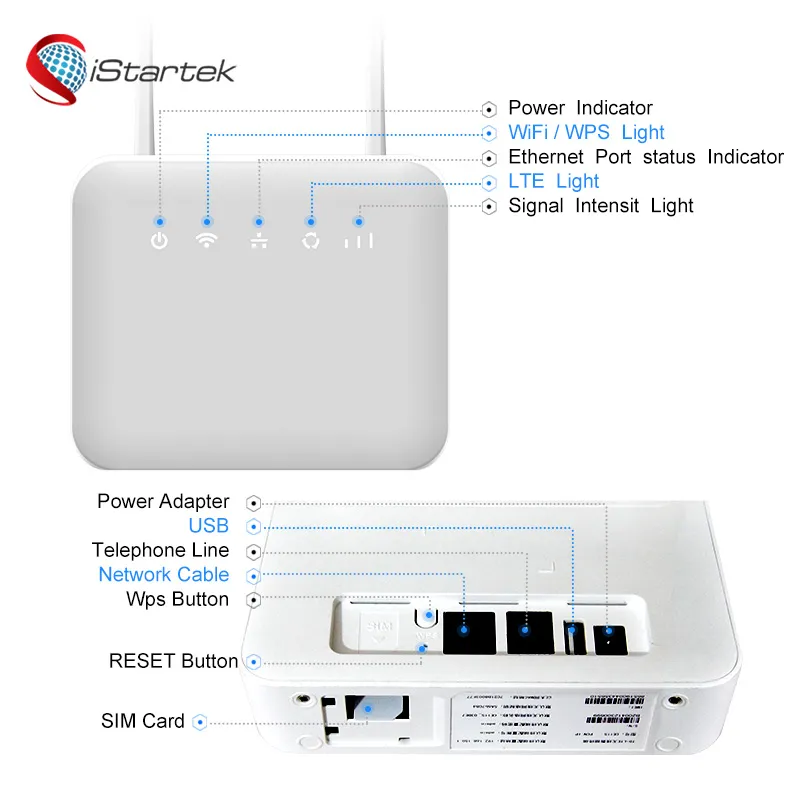

LED Indicators | Power LED×1 WPS/WLAN LED×1 LAN LED×1 LTE Internet LED×1 Signal LED×3 |
WPS Button | WPS Button×1 |
Reset Button | Tactile button. Long press over 10s to restore the factory settings |
Ethernet Port | RJ45×1, 10/100M auto-sensing, LAN/WAN |
Voice Port | RJ11×1 |
USB Port | USB 2.0×1 |
Antenna | 4G/3G/2G:Internal Antenna OR External antenna(optional); WIFI: Internal Antenna |
ESD | ESD Protection circuit; Contact±4KV, Air±8KV |
Operating Temperature | -20ºC ~ 60ºC |
Storage Temperature | -25ºC ~ 70ºC |
Operating Humidity | 5% ~ 95% |
1.2 4G/3G/2G Technical Specifications
Item | Description |
Wireless Access Technology | TD-LTE/FDD/WCDMA/TD-SCDMA/GSM/GPRS/EDGE/EGPRS |
Bands(Max) | Four standard configurations(Optional): WR11S-Xce(Asia): LTE:B1/B3/B5/B8/B38/B39/B40/B41;WCDMA:B1/B8;TD-SCDMA:B34/B39
WR11S- P (Asia): LTE:B1/B2/B3/B5/B7/B8/B28A/B28B/B38/B39/B40/B41;WCDMA:B1/B2/B5/B8;TD-SCDMA:B34/B39;GSM850/GSM900/GSM1800/GSM1900
WR11S-E (Europe & Africa): LTE:B1/B2/B3/B5/B7/B8/B20/B28A/B34/B38/B39/B40/B41;WCDMA:B1/B2/B5/B8;TD-SCDMA:B34/B39;GSM850/GSM900/GSM1800/GSM1900
WR11S-A (Latin America): LTE:B2/B3/B4/B5/B7/B8/B28A/B28B/B66;WCDMA:B2/B4/B5/B8;GSM850/GSM900/GSM1800/GSM1900
More bands can be customized. |
Data Rate | LTE FDD:Max 150Mbps(DL)/ Max 50Mbps(UL); LTE TDD:Max 130Mbps(DL)/ Min 35Mbps(UL); WCDMA:Max 21Mbps(DL)/ Max 5.76Mbps(UL); TD-SCDMA:Max 4.2Mbps(DL)/ Max 2.2Mbps(UL); EDGE: Max 236.8kbps(DL)/ Max 118kbps(UL); GPRS: Max 85.6kbps(DL)/ Max 85.6kbps(UL); GSM: Max 9.6kbps (DL)/ Max 2.7kbps (UL); |
Receive Sensitivity | Compliance with 3GPP standard |
MAX Output Power | LTE FDD:23dBm±2dB; LTE TDD:23dBm±2dB; WCDMA:24dBm+1dB/-3dB; TD-SCDMA:24dBm+1dB/-3dB; GSM B5/8: +33 ±2dBm(Power class 4); GSM B2/3: +30 ±2dBm(Power class 1); |
Antenna Type | Internal Antenna/External Antenna |
Antenna Gain | 2~3dBi |
| ACCESSORIES |
| Router | Power Adapter | User Manual |
