1200Mbps 4G LTE Router Comply with IEEE 802.11b/G/N/AC Standard with SIM Card Slot
1200Mbps 4G LTE Router Comply with IEEE 802.11b/g/n/ac Standard with SIM card slotLTE-A60 is an 11ac standard dual band indoor 4G wireless router support VPN; Comply with IEEE 802.11ac/b/g/n MIMO standard, the data rate up to 1200Mbps, more than 80 end users can access into it; With SIM card slot, b......
Send Inquiry
Product Description
1200Mbps 4G LTE Router Comply with IEEE 802.11b/g/n/ac Standard with SIM card slot

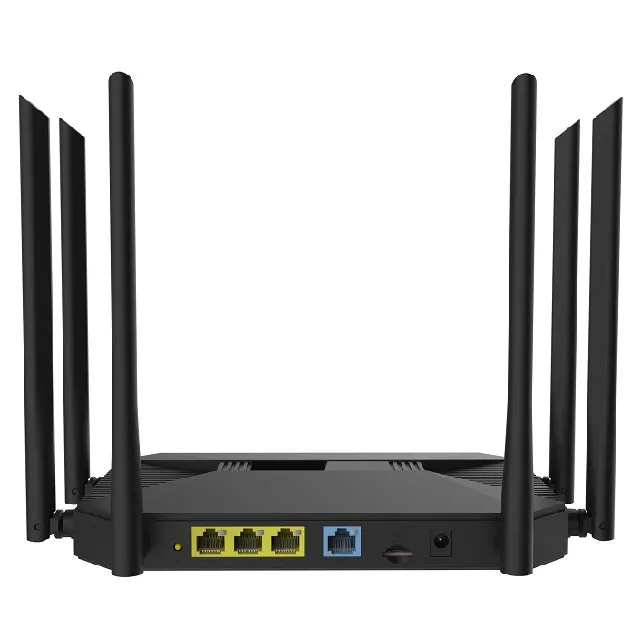

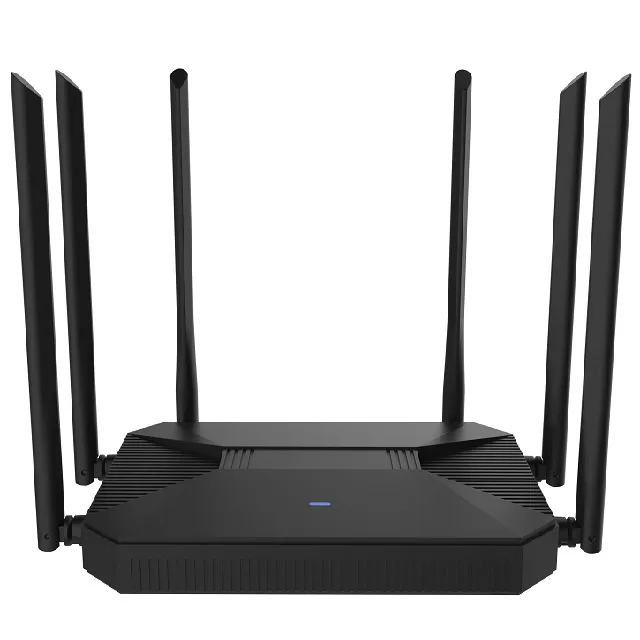

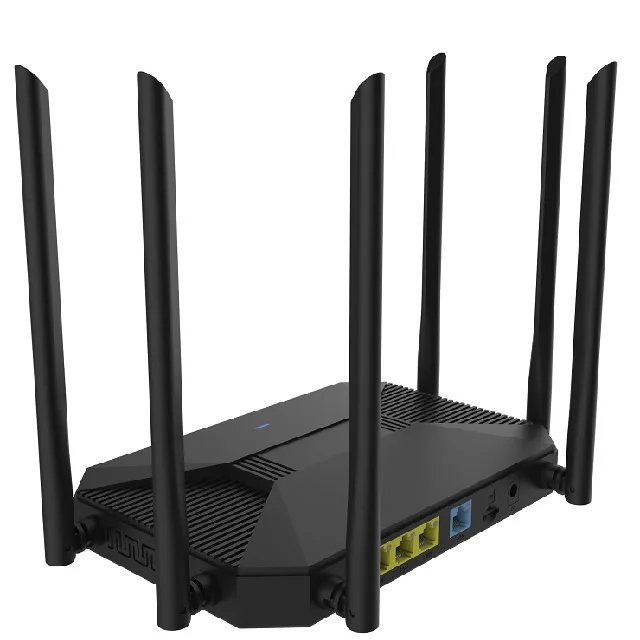

LTE-A60 is an 11ac standard dual band indoor 4G wireless router support VPN; Comply with IEEE 802.11ac/b/g/n MIMO standard, the data rate up to 1200Mbps, more than 80 end users can access into it; With SIM card slot, build in QUECTEL LTE module, it support FDD-LTE/TDD-LTE for worldwide use with 150Mbps downlink speed. Besides that, there are 3*10/100Mbps WAN/LAN ports, automatically switch to WAN Ethernet if 4G network existed.
Main Features:
1. Comply with IEEE 802.11b/g/n/ac Standard, 2.4GHz and 5.8GHZ frequency, the data rate is 1200Mbps for faster Wi-Fi speed.
2.Build in 3G/4G SIM card slot, support LTE-TDD/LTE-FDD, WCDMA/CDMA and GSM networking. The band is adjustable, can comply with all operator in the world.
3.High RF power design, with omni 2.4G/5.8G/4G antenna, more wireless coverage, better signal strength and more stable performance.
4. It support VPN(L2TP, PPTP, auto VPN), meet with industrial applications such as chain stores, ATM...
5. Firmware support cloud remote configure and management, hardware with watchdog function, device can auto-reboot and auto-recovery if have problems, no extra maintenance fee.
3.High RF power design, with omni 2.4G/5.8G/4G antenna, more wireless coverage, better signal strength and more stable performance.
4. It support VPN(L2TP, PPTP, auto VPN), meet with industrial applications such as chain stores, ATM...
5. Firmware support cloud remote configure and management, hardware with watchdog function, device can auto-reboot and auto-recovery if have problems, no extra maintenance fee.
Hardware Spec:
| 4G Module information | ||||||||
| LTE Module Model | Quectel EC25, LTE-CAT4 as example (Also support other module) Quectel EC200 Quectel EC20 R2.1 B1/B3/B5/B7/B8/B20@FDD LTE, B1/B5/B8@WCDMA; B2/B3/B5/B8@GSM Quectel EC25 R2.1 B2/B4/B12@FDD LTE; B2/B4/B5@WCDMA; or B2/B4/B5/B12/B13/B14/B66/B71@LTE FDD,B2/B4/B5@WCDMA | |||||||
| Band Support | GSM/WCDMA/LTE-FDD/LTE-TDD | |||||||
| LTE Data Rate | LTE-FDD: max 150(DL)/Max 50(UL) ,LTE-TDD: max 130(DL)/Max 35(UL) | |||||||
| Name | Details | |||||||
| CPU | MT7628+MT7613AE | |||||||
| FLASH | 8MB | |||||||
| SDRAM | 64MB | |||||||
| DC-DC | 12V 1A | |||||||
| Name | Content | |||||||
| Working Temperature | -30ºC ~ +55ºC | |||||||
| Max Working Temperature | -40ºC ~ +85ºC (Throughput some decrease) | |||||||
| Storage Temperature | -40ºC ~ +70ºC | |||||||
| Humidity | 5%~95% (No Condensation) | |||||||
| Name | Content | |||||||
| Wi-Fi | Support Auto Channal, Guest SSID, SSID hide, Wireless MAC filter, white and black list | |||||||
| Net | PPPoE, Automatic IP, Static IP, L2TP, PPTP, 4G | |||||||
| Support automatically switch between WAN/ISP and 4G | ||||||||
| Support VPN server and VPN client: PPTP, L2TP and OpenVPN | ||||||||
| Support AP+Client | ||||||||
| Firewall | Support NAT, URL Filter, MAC Filter and Network Service Filter | |||||||
| Support DoS attack protection, SYN flood attack | ||||||||
| WAN PING,SSH, HTTP Access | ||||||||
| Other functions | NTP and account setup; Port forwarding,Virtual Server,Watchdog,DMZ,DDNS | |||||||
| 2.4G RF Power | 802.11b | 11M | 17±2dBm | 1M | 19±2dBm | |||
| 802.11g | 54M | 16±2dBm | 6M | 18±2dBm | ||||
| 802.11n HT20 | MCS7 | 15±2dBm | MCS0 | 17±2dBm | ||||
| 802.11n HT40 | MCS7 | 15±2dBm | MCS0 | 17±2dBm | ||||
| 5.8G RF Power | 802.11a | 54M | 17±2dBm | 6M | 19±2dBm | |||
| 802.11n HT20 | MCS7 | 16±2dBm | MCS0 | 18±2dBm | ||||
| 802.11n HT40 | MCS7 | 15±2dBm | MCS0 | 17±2dBm | ||||
| 802.11AC | MCS9 | 14±2dBm | MCS0 | 16±2dBm | ||||
| 2.4G Receive Sensitivity | 802.11b | 11M | -85dBm | 1M | -94dBm | |||
| 802.11g | 54M | -72dBm | 6M | -90dBm | ||||
| 802.11n HT20 | MCS7 | -70dBm | MCS0 | -88dBm | ||||
| 802.11n HT40 | MCS7 | -68dBm | MCS0 | -86dBm | ||||
| 5.8G Receive Sensitivity | 802.11a | 54M | -68dBm | 6M | -86dBm | |||
| 802.11n HT20 | MCS7 | -68dBm | MCS0 | -86dBm | ||||
| 802.11n HT40 | MCS7 | -65dBm | MCS0 | -83dBm | ||||
| 802.11AC | MCS9 | -55dBm | MCS0 | -73dBm | ||||
| 2.4G EVM | 802.11b: ≤-10dB; 802.11g: ≤-25 dB; 802.11n: ≤-28 dB | |||||||
| 5.8G EVM | 802.11a_54M: ≤-25 dB; 802.11n_MCS7: ≤-28 dB; 802.11AC_MCS9:≤-32dB | |||||||
| PPM | ±20ppm | |||||||
| Channel | 1~13, Support auto channel | |||||||
| Standard | 802.11b/g/n | |||||||
| Bandwidth | HT20, HT40, HT80, HT20/HT40/HT80 | |||||||
| Security | Open System, Shared key, WPA-Personal, WPA2-Personal, WPA-Auto-Personal, WPA-Enterprise(Radius), WPA2-Enterprise(Radius), WPA-Auto-Enterprise(Radius), Radius with 802.1x | |||||||
| RF Power Adjustable | Support | |||||||
Antenna Specifications
| Item | Specifications | |
2.4G Antenna | Frequency Range | 2.4GHz~2.5 GHz |
| Gain | 5dBi | |
| V.S.W.R | ≤1.9 | |
| Impendance | 50Ω | |
| Polarization | Vertical | |
| Radiation | Omni | |
