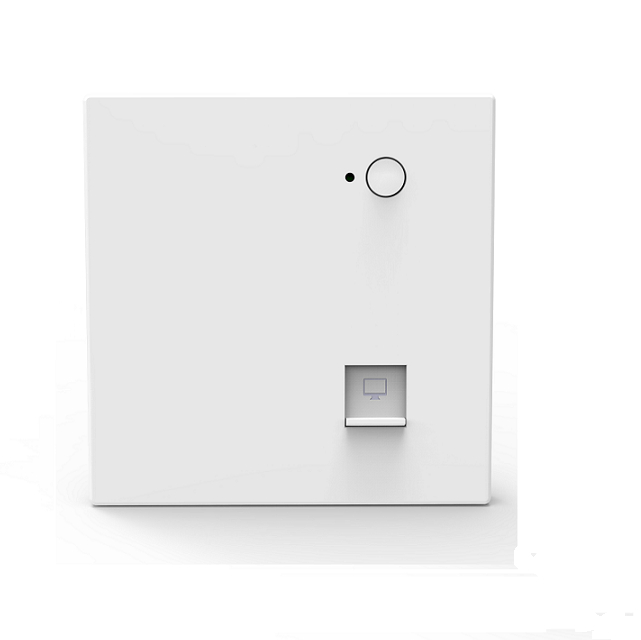

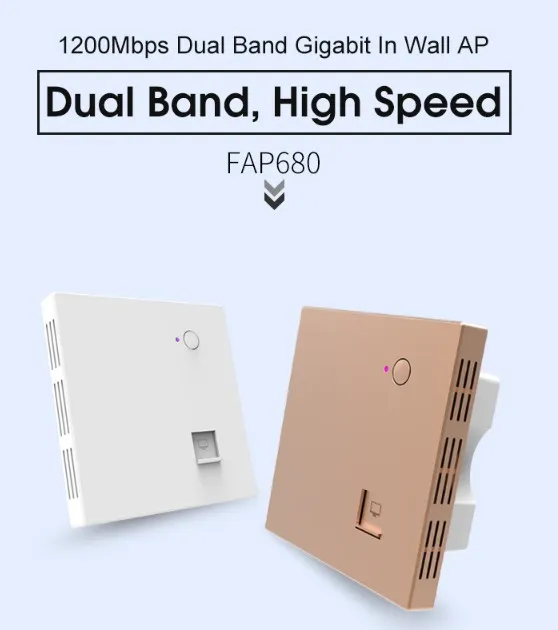

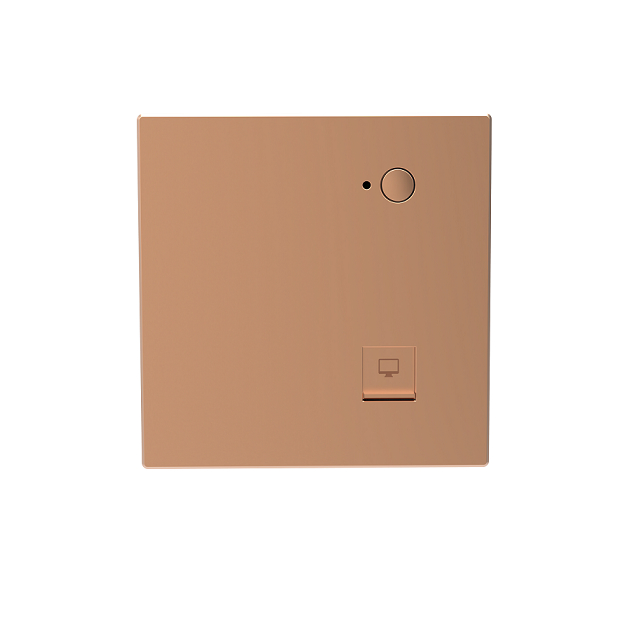

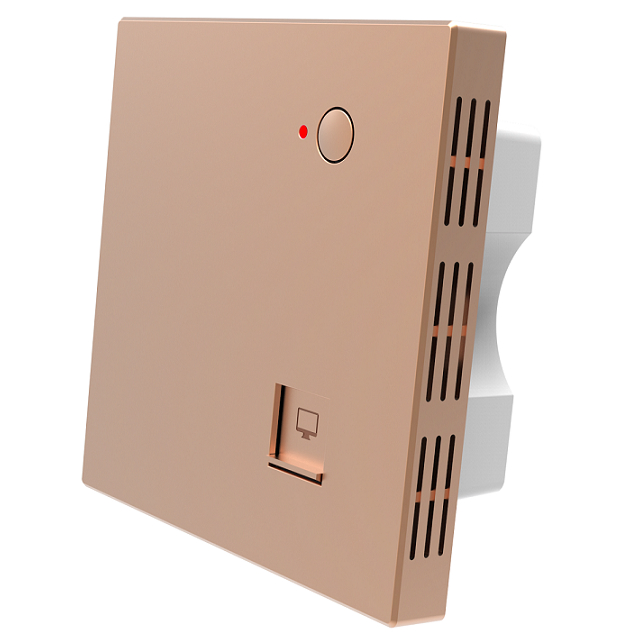

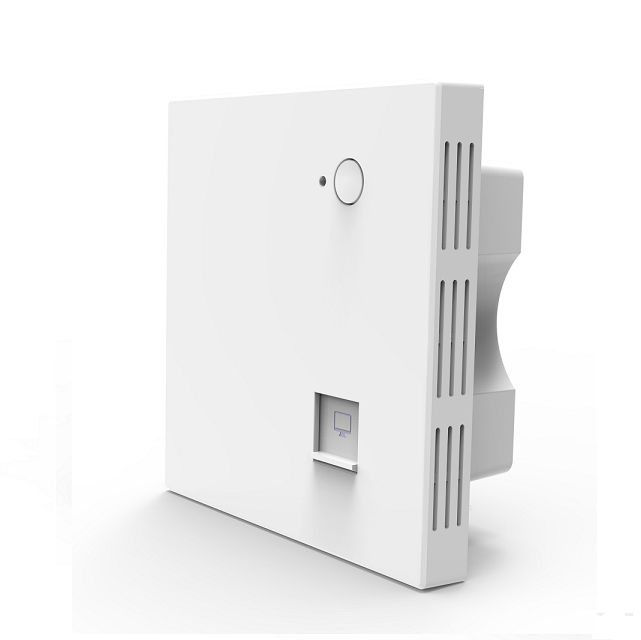

11AC 1200Mbps Wall WiFi Access Point with Qualcomm Chipset for Hotel/School/Home, Dual Band
Product specHARDWARE FEATURESChipsetQCA9563 + QCA9882 +QCA8334Flash16M FlashDDR128M DDRInterface1*10/100/1000Mbps WAN port1*10/100/1000Mbps LAN ports1*WiFi Switch On/Off button1*Reset buttonPower Supply48V PoE, IEEE 802.3af standardMaxi power consumption< 10WDimensions (W X D X H)87*86*35.8mm ......
Send Inquiry
Product Description
Product spec
| HARDWARE FEATURES | |
| Chipset | QCA9563 + QCA9882 +QCA8334 |
| Flash | 16M Flash |
| DDR | 128M DDR |
| Interface | 1*10/100/1000Mbps WAN port 1*10/100/1000Mbps LAN ports 1*WiFi Switch On/Off button 1*Reset button |

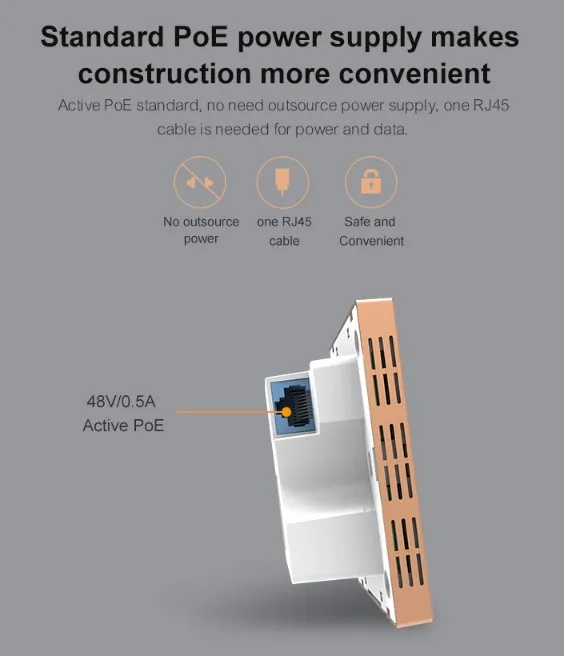

| Power Supply | 48V PoE, IEEE 802.3af standard |
| Maxi power consumption | < 10W |
| Dimensions (W X D X H) | 87*86*35.8mm |
| Antenna Type | On board WiFi antenna 2.4G: 3dBi omni antenna 5.8G: 5dBi omni antenna |
| WIRELESS FEATURES | |||||||||||
| Wireless Standards | IEEE 802.11ac/n/a 5GHz; IEEE 802.11n/g/b 2.4GHz | ||||||||||
| Frequency | 5GHz : 5.150GHz~5.850GHz 2.4GHz: 2.4GHz - 2.484GHz | ||||||||||

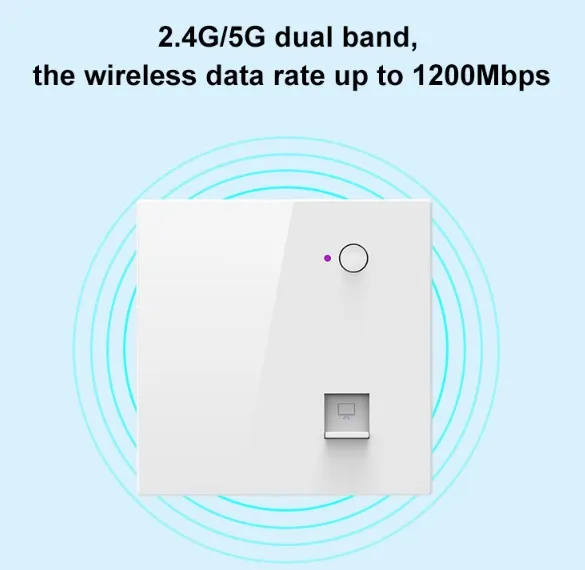

| Signal Rate | 5GHz: Up to 900Mbps; 2.4GHz: Up to 300Mbps | ||||||||||
| RF Power (2.4GHz) | 802.11b | 11M | 15±2dBm | 1M | 15±2dBm | ||||||
| 802.11g | 54M | 15±2dBm | 6M | 15±2dBm | |||||||
| 802.11n HT20 | MCS7 | 15±2dBm | MCS0 | 15±2dBm | |||||||
| 802.11n HT40 | MCS7 | 14±2dBm | MCS0 | 15±2dBm | |||||||
| RF Power (5GHz) | 802.11a | 54M | 15±2dBm | 6M | 15±2dBm | ||||||
| 802.11n HT20 | MCS7 | 15±2dBm | MCS0 | 15±2dBm | |||||||
| 802.11n HT40 | MCS7 | 14±2dBm | MCS0 | 15±2dBm | |||||||
| 802.11ac HT80 | MCS9 | 13±2dBm | MCS0 | 15±2dBm | |||||||
| Receive Sensitivity (2.4GHz) | 802.11b | 11M | -83dBm | 1M | -94dBm | ||||||
| 802.11g | 54M | -72dBm | 6M | -90dBm | |||||||
| 802.11n HT20 | MCS7 | -70dBm | MCS0 | -88dBm | |||||||
| 802.11n HT40 | MCS7 | -68dBm | MCS0 | -86dBm | |||||||
| Receive Sensitivity (5GHz) | 802.11a | 54M | -72dBm | 6M | -90dBm | ||||||
| 802.11n HT20 | MCS7 | -70dBm | MCS0 | -88dBm | |||||||
| 802.11n HT40 | MCS7 | -68dBm | MCS0 | -86dBm | |||||||
| 802.11ac HT80 | MCS9 | -58dBm | MCS0 | -80dBm | |||||||
| Wireless | Auto-Channel selection | ||||||||||
| Distance Control (802.1x Ack timeout) | |||||||||||
| Multiple SSID (4 SSID for 2.4G, 4 SSID for 5.8G) | |||||||||||
| BSSID | |||||||||||
| EVM | 2.4G: 802.11b: ≤-10 dB; 802.11g: ≤-25dB; 802.11n: ≤-28 dB 5G: 802.11a: ≤-25 dB; 802.11n: ≤-28 dB; 802.11ac: ≤-32 dB | ||||||||||
| PPM | ±20ppm | ||||||||||
| Max Access Users | 128 | ||||||||||
| Operation Mode | Wireless AP, Gateway, Wi-Fi Repeater | ||||||||||
| Wireless Security | 64/128-bit WPA / WPA2, WPA-PSK/ WPA2-PSK encryption and RADIUS 802.1x | ||||||||||
| ESD - I | Contact Discharge:±6KW, Air discharge:±8KV | ||||||||||
| ESD- II | Contact Discharge:±8KW, Air discharge:±16KV | ||||||||||
| LED Status | WAN, LAN, SYS | ||||||||||
| Management | |||||||||||

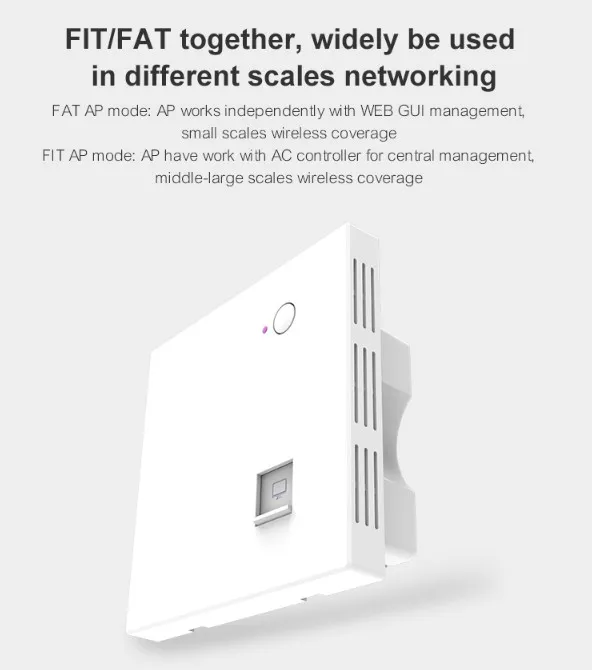

| System Settings | Web-based configuration / Software AC controller and Hardware AC controller management | ||||||||||
| Firmware Upgrade | Upgrade firmware via web browser or AC controller | ||||||||||
| Administration | Admin Password can be configured | ||||||||||
| System monitoring | Watch dog, Status in hand , useful statistic and Event log | ||||||||||
| Logs | Supports local logs, logs host, logs file export | ||||||||||
| Reset | Reset or factory defaults | ||||||||||
| Backup | Restore settings & configuration of the device to local file, Scheduled reboot | ||||||||||
