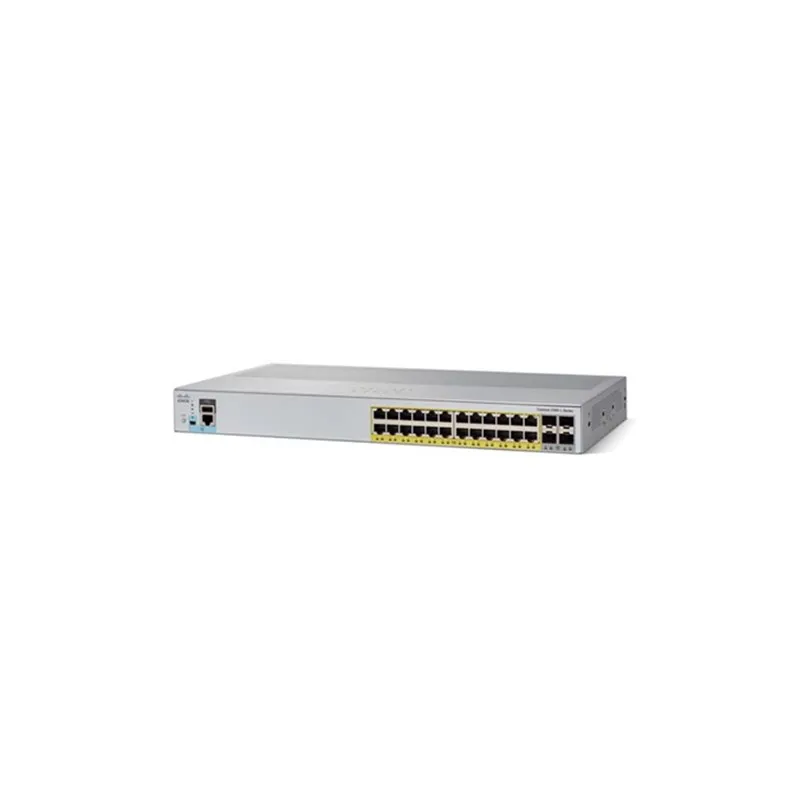

WS -C2960L-24PS-LL Cisco 2960-L Series 24 Port Poe Switches
Product Description WS-C2960L-24PS-LL WS-C2960L-24PS-LL offering 24 x GigE PoE+ ports, 4 x 1G SFP and LAN Lite, is one of the Cisco Catalyst 2960-L Series Switches. These 2960-......
Send Inquiry
Product Description
Product Description
WS-C2960L-24PS-LL
WS-C2960L-24PS-LL
Compare to Similar Items
Payment Term & Delivery
Our Company
Our Inventory
Certification

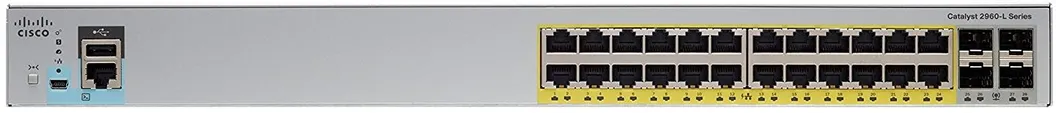

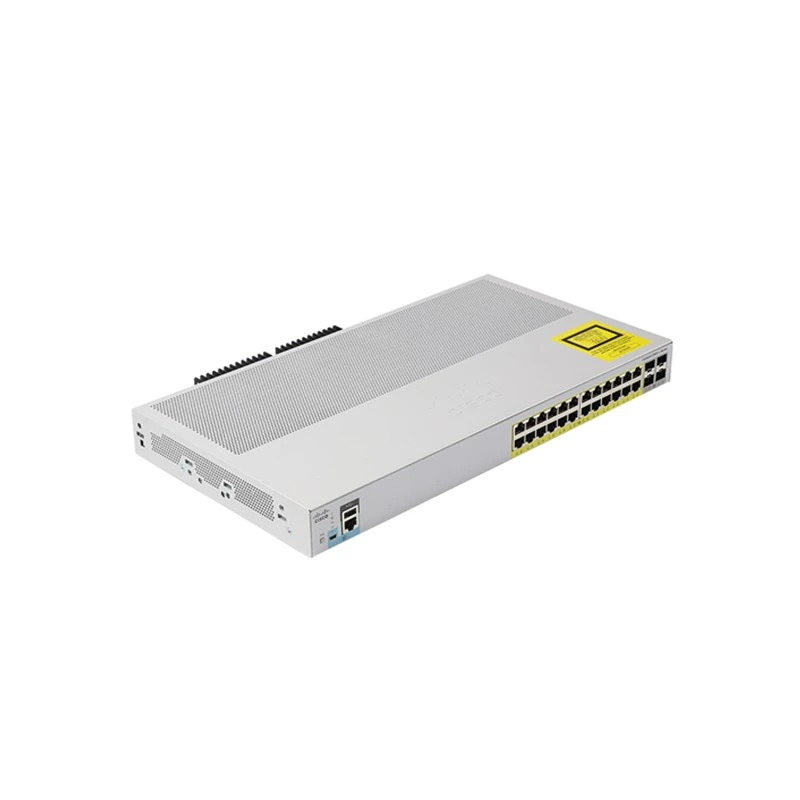

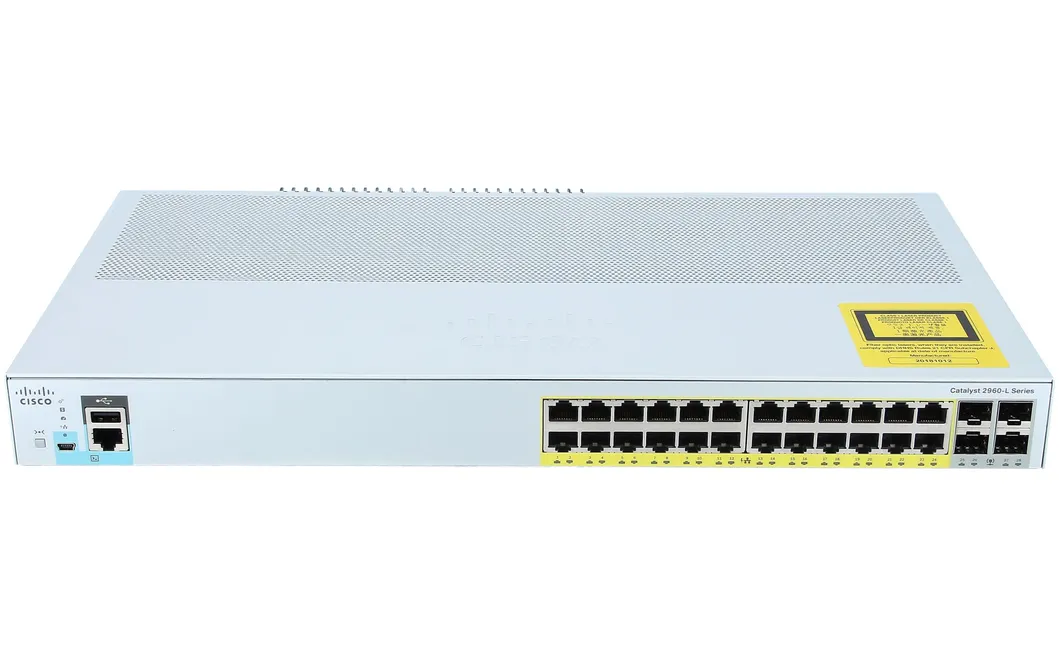

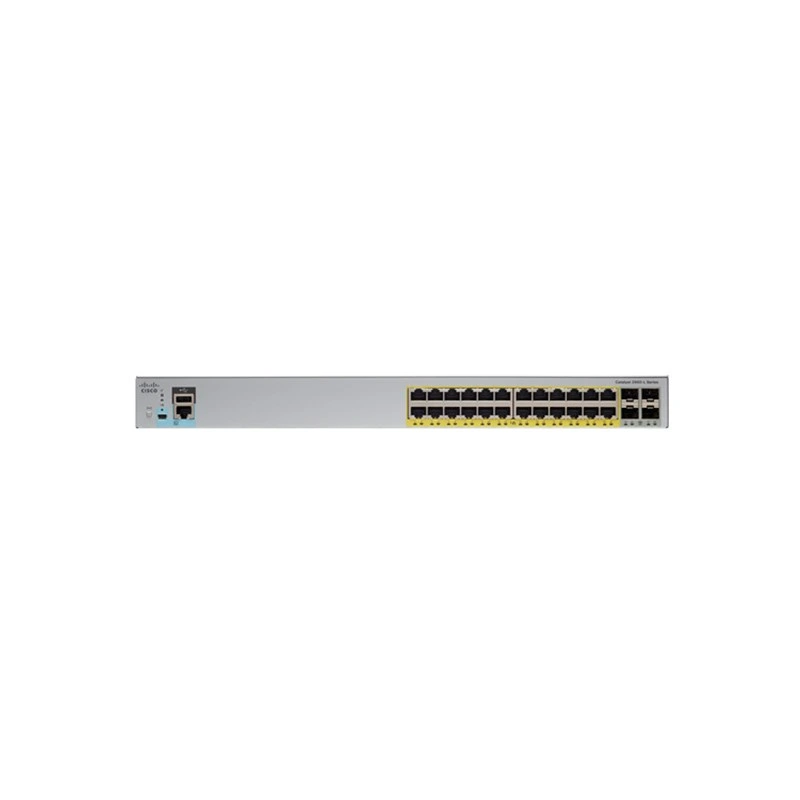

WS-C2960L-24PS-LL
WS-C2960L-24PS-LL offering 24 x GigE PoE+ ports, 4 x 1G SFP and LAN Lite, is one of the Cisco Catalyst 2960-L Series Switches. These 2960-L switches are fixed-confifiguration, Gigabit Ethernet switches that provide entry-level enterprise-class Layer 2 access for branch offices, conventional workspaces, and out-of-wiring closet applications. Designed for operational simplicity to lower total cost of ownership, they enable secure and energy-efficient business operations with a range of Cisco IOS Software features.
WS-C2960L-24PS-LL
IOS | LAN Lite |
Forwarding bandwidth | 28 Gbps |
Switching bandwidth | 56 Gbps |
10/100/1000 Ethernet Ports | 24 PoE+ Ports |
Available PoE Power | 195W |
Uplink Interfaces | 4 x 1G SFP |
Fanless | Y |
DRAM | 512 MB |
Flash memory | 256 MB |
Dimensions (H x D x W) | 1.73 x 10.45 x 17.5 in. (4.4 x 26.5 x 44.5 cm) |
Net Weight | 7.63 lb (3.46 kg) |
The Accessories
Model | Description |
CAB-CONSOLE-USB | Cisco CAB-CONSOLE-USB Console Cable 6 ft with USB Type A and mini-B |
CAB-CONSOLE-RJ45 | Cisco CAB-CONSOLE-RJ45 Console Cable 6ft with RJ45 and DB9F |
CAB-ACE= | CAB-ACE= AC Power Cord (Europe), C13, CEE 7, 1.5M |
CAB-ACU= | CAB-ACU= AC Power Cord (UK), C13, BS 1363, 2.5m |
WS-C2960L-24PS-LL
Product Specifications
WS-C2960L-24PS-LL | |
Configurations | |
10/100/1000 Ethernet Ports | 24 |
Uplink Interfaces | 4 SFP |
Available PoE Power | 195W |
Fanless | Y |
Dimensions (H x D x W) | 1.73 x 10.45 x 17.5 in. (4.4 x 26.5 x 44.5 cm) |
Net Weight | 7.63 lb (3.46 kg) |
Console Ports | |
RJ45 Ethernet | 1 |
USB mini-B | 1 |
USB-A port for storage and Bluetooth console | 1 |
Memory and Processor | |
CPU | ARMv7 800 MHz |
DRAM | 512 MB |
Flash memory | 256 MB |
Performance | |
Forwarding bandwidth | 28 Gbps |
Switching bandwidth | 56 Gbps |
Forwarding rate (64-byte L3 packets) | 41.67 Mpps |
| Unicast MAC addresses | 8K |
Maximum active VLANs | 64 |
VLAN IDs available | 4094 |
Maximum STP instances | 64 |
Maximum SPAN sessions | 1 |
MTU-L3 packet | 9198 bytes |
Jumbo Ethernet frame | 10,240 bytes |
MTBF in hours (Data) | 2,412,947 |
MTBF in hours (PoE) | 909,838 |
Environment | |
Operating temperature | |
Up to 5,000 ft | 23ºF to 113ºF (-5ºC to 45ºC) |
Up to 10,000 ft | 23ºF to 104ºF (-5ºC to 40ºC) |
Operating altitude | 10,000 ft (3000m) |
Operating relative humidity | 5% to 90% at 40ºC |
Storage temperature | -13º to 158ºF (-25º to 70ºC) |
Storage altitude | 15,000 ft (4500m) |
Storage relative humidity | 5% to 95% at 65ºC |
Storage altitude | Minimum ambient temperature for cold start is 0°C (32°F) |
Electrical | Data |
Voltage (autoranging) | 110 to 220V AC in |
Frequency | 50 to 60 Hz |
Current | 0.21A to 0.26A |
Power rating (maximum consumption) | 0.24 kVA |
Power consumption (watts) 0% traffic 10% traffic 100% traffic Weighted average | 25.9 32.9 32.9 30.6 |
Safety and Compliance | |
Safety | UL 60950-1 Second Edition, CAN/CSA-C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, AS/NZS 60950-1 |
EMC: emissions | 47CFR Part 15 (CFR 47) Class A, AS/NZS CISPR22 Class A, CISPR22 Class A, EN55022 Class A, ICES003 Class A, VCCI Class A, EN61000-3-2, EN61000-3-3, KN22 Class A, CNS13438 Class A |
EMC: immunity | EN55024, CISPR24, EN300386, KN24 |
Environmental | Reduction of Hazardous Substances (RoHS) including Directive 2011/65/EU |
Telco | Common Language Equipment Identifier (CLEI) code |
U.S. government certifications | USGv6 and IPv6 Ready Logo |
Connectors and Interfaces | |
Ethernet interfaces | 10BASE-T ports: RJ-45 connectors, 2-pair Category 3, 4, or 5 unshielded twisted-pair (UTP) cabling |
100BASE-TX ports: RJ-45 connectors, 2-pair Category 5 UTP cabling | |
1000BASE-T ports: RJ-45 connectors, 4-pair Category 5 UTP cabling | |
1000BASE-T SFP-based ports: RJ-45 connectors, 4-pair Category 5 UTP cabling | |
Indicator LEDs | Per-port status: link integrity, disabled, activity, speed, and full duplex |
System status: system, PoE, and link speed | |
Console cables | CAB-CONSOLE-RJ45 Console cable 6 ft. with RJ-45 |
CAB-CONSOLE-USB Console cable 6 ft. with USB Type A and mini-B connectors | |
Power | Use the supplied AC power cord to connect the AC power connector to an AC power outlet |
WS-C2960L-24PS-LL
Compare to Similar Items
Model | WS-C2960L-24TS-LL | WS-C2960L-24PS-LL |
IOS | LAN Lite | LAN Lite |
Forwarding bandwidth | 28 Gbps | 28 Gbps |
Switching bandwidth | 56 Gbps | 56 Gbps |
10/100/1000 Ethernet Ports | 24 | 24 |
Available PoE Power | N/A | 195W |
Uplink Interfaces | 4 x 1G SFP | 4 x 1G SFP |
