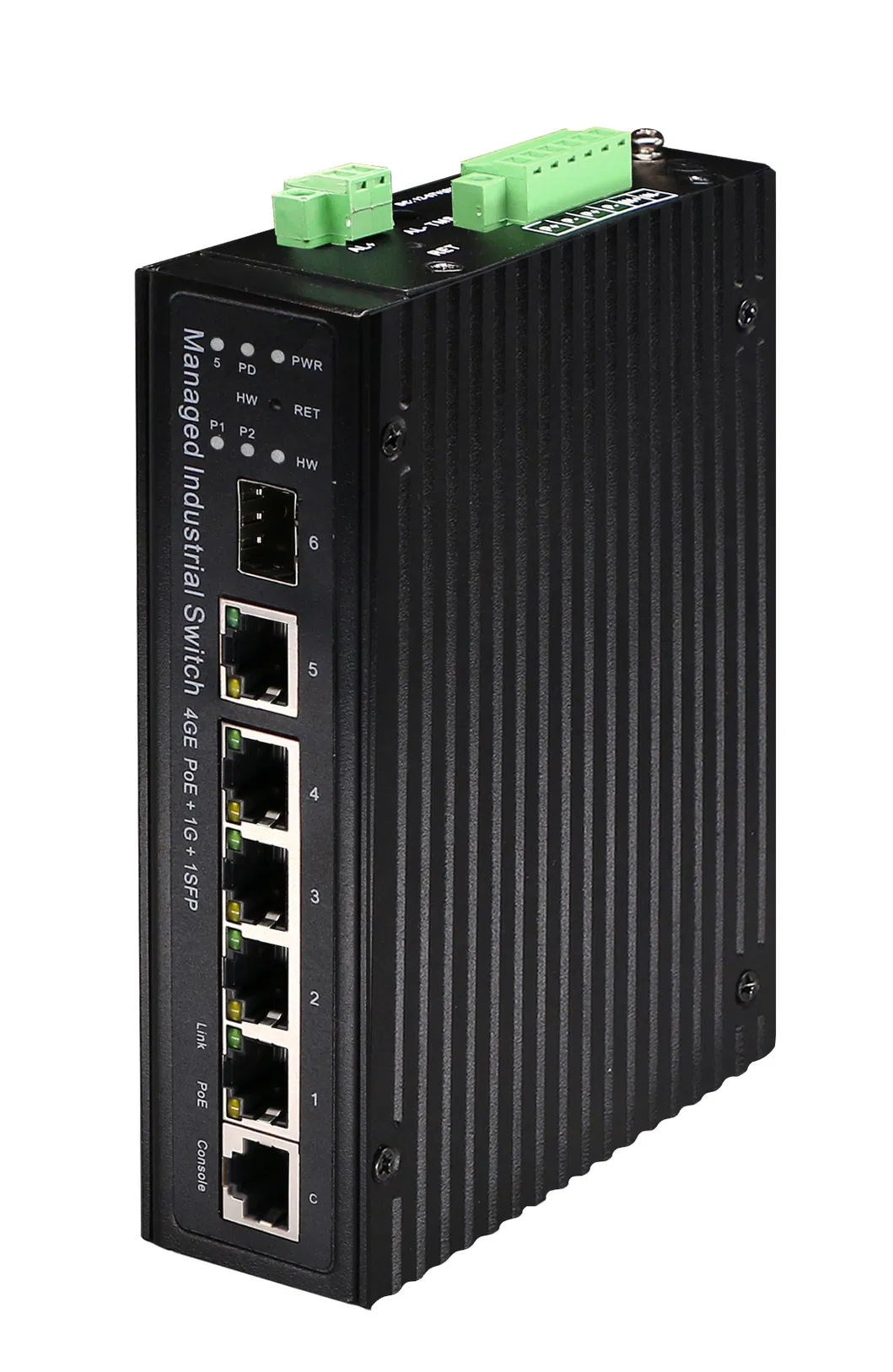

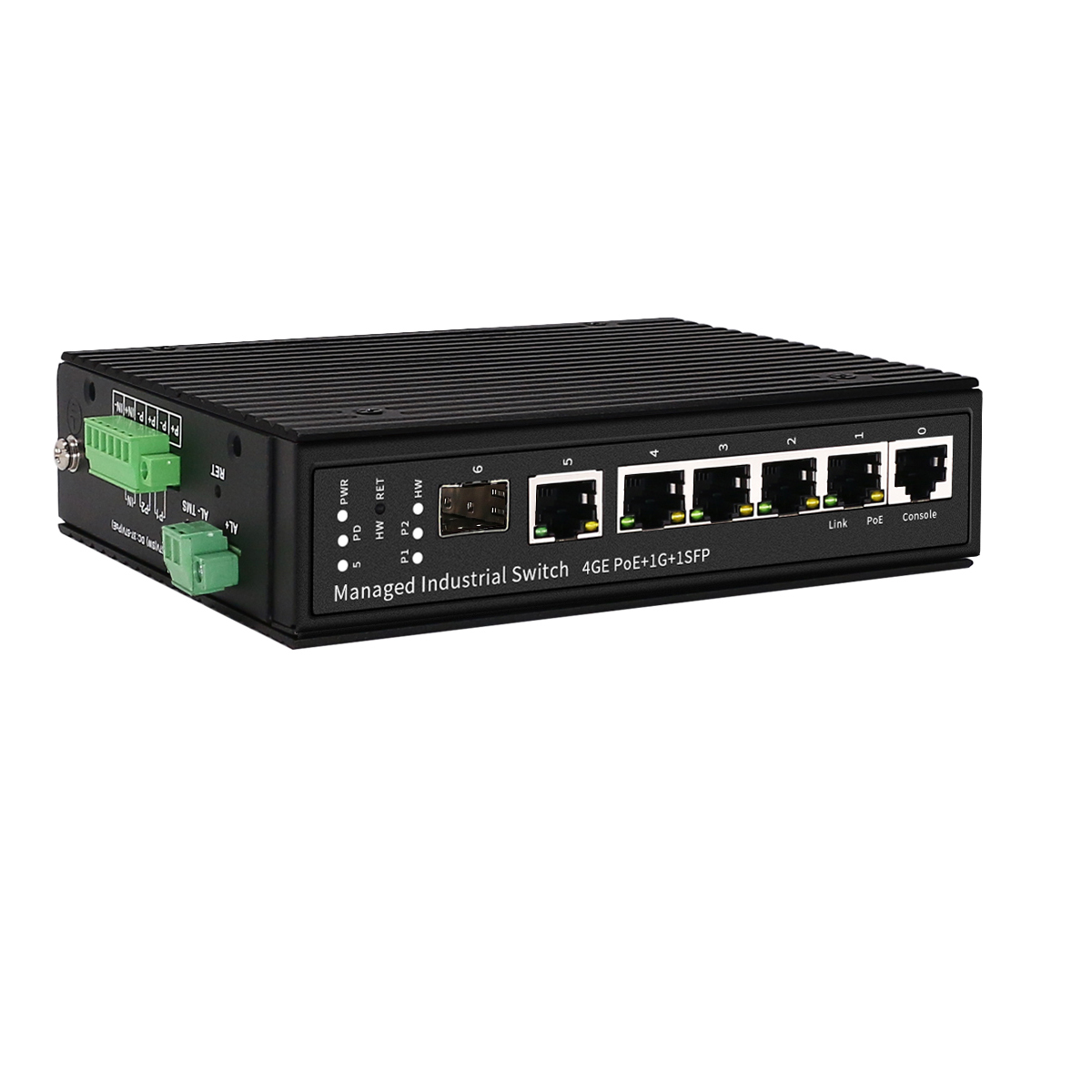

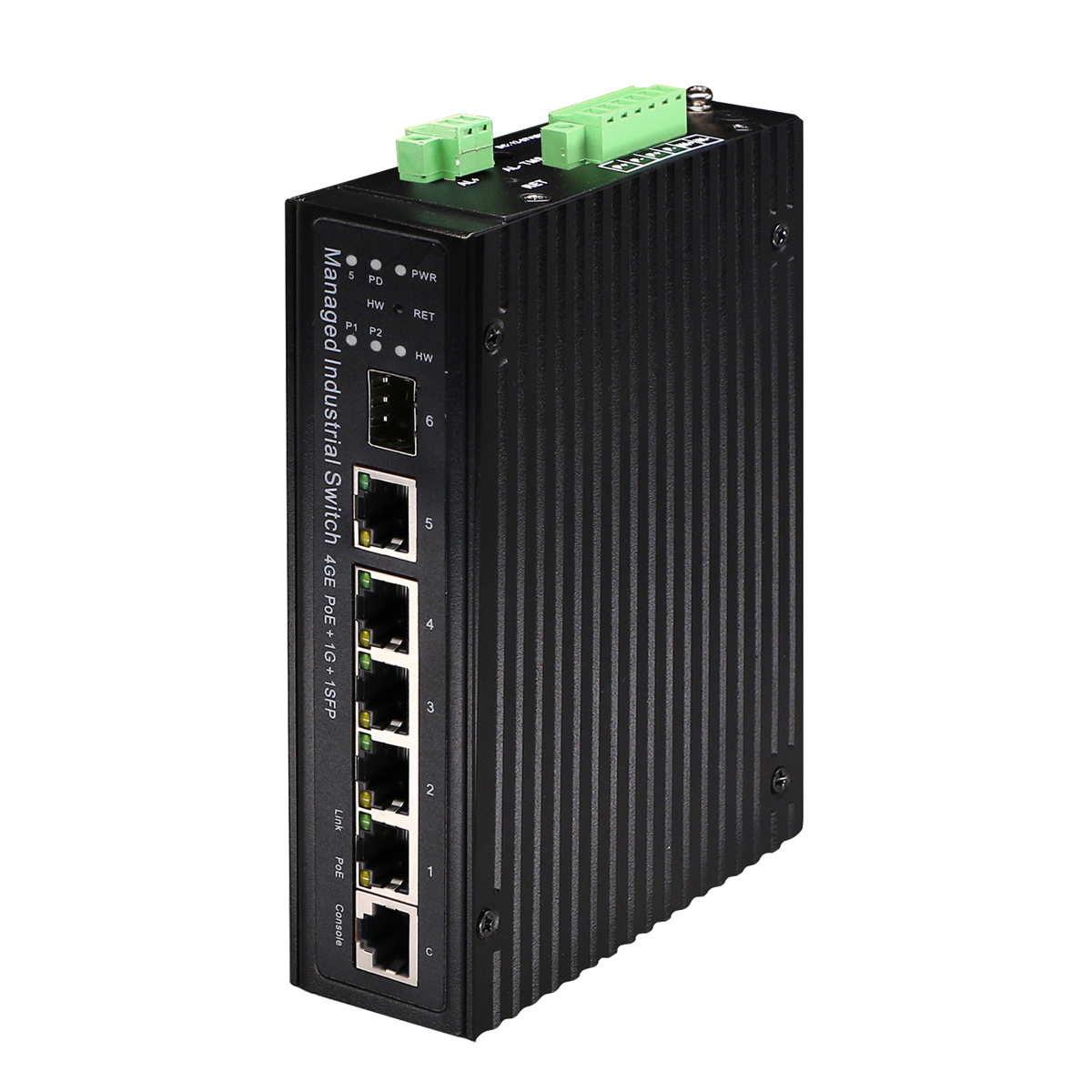

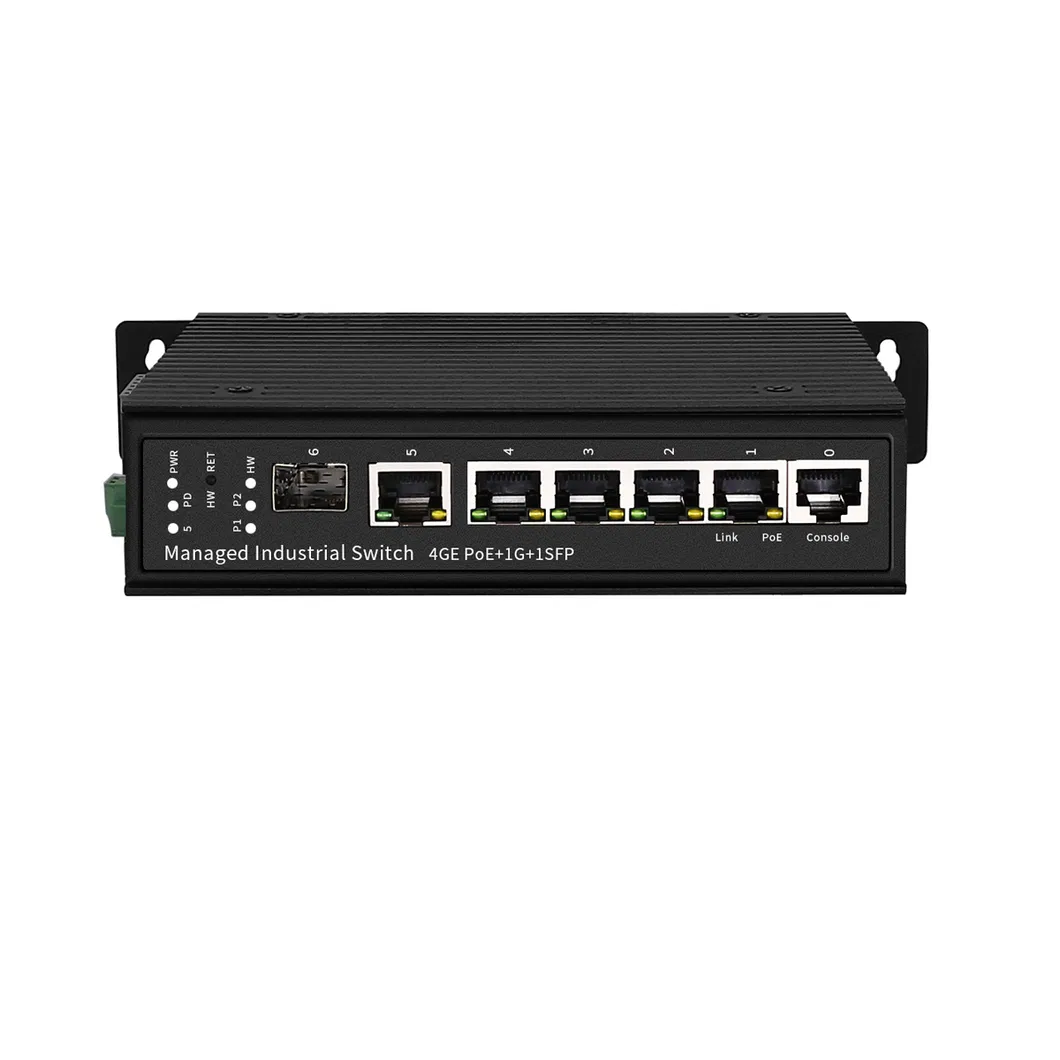

Reverse Poe Industrial Switch with 4 Ports 10/100/1000Mbps +1 Giga SFP Fiber Port

Product Description

Model

G06PM4G1TS

Ports

4*10/100/1000Base-TX RJ45 POE
1*10/100/1000M PD port(POE input)
1*1000M SFP

Console

1*console Port for management

Reset

1

Power input

2*independent power input,DC 12-57V

Environment detection

1 set of environmental temperature and humidity detection input

Feature function

1: industrial switch monitoring platform One-key set up a ring network
2: 2 group independent power inputs with undervoltage and overvoltage protection
3:1 group wide pressure alarm input, input range DC5-57V
4:1 group alarm output relay output, can define various custom conditions trigger
5:1 group environment temperature and humidity detection, real-time monitoring of environmental conditions
6: Real-time system key voltage monitoring and alarm output function
7: real-time system temperature, ambient temperature, environment humidity alarm output function
8: Real-time input voltage, current, power detection and display
9: A variety of custom port control, intelligent management

Network protocol

IEEE 802.3x
IEEE 802.3,IEEE 802.3u,IEEE 802.3ab,IEEE 802.3z
IEEE 802.3ad
IEEE 802.3q ,IEEE 802.3q/p
IEEE 802.1w,IEEE 802.1d ,IEEE 802.1S
IEEE 802.3z 1000BASE-X
STP(Spanning Tree Protocol)
RSTP/MSTP( Rapid Spanning Tree Protocol)
EPPS ring network protocol

EAPS ring network protocol

Network port

1-5 port 10/100/1000BaseT(X)adaptive, Full/half duplex MDI/ MDI-X adaptive

Forward mode

Store-and-forward (full-line speed)

Backplane bandwidth

56/128Gbps ( Non-blocking )

Packet forwarding rate

40.32Mpps

MAC table

8K

Packet
forwarding cache

4.1M

Medium

10BASE-T : Cat3,4,5 UTP(≤250 meter)
100BASE-TX : Cat5 or later UTP(≤100 meter)
1000BASE-TX : Cat6 or later UTP(≤1000 meter)
1000BASE-SX:62.5μm/50μm MMF(2m~550m)
1000BASE-LX:62.5μm/50μm MM(2m~550m) or 10μm SMF(2m~5000m)

FLASH

16M

RAM

128M

Power consumption

≤15W

LED indicator
