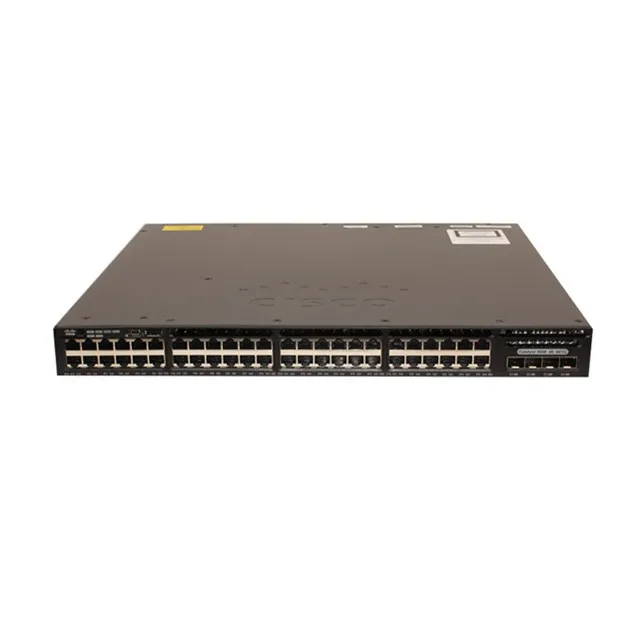

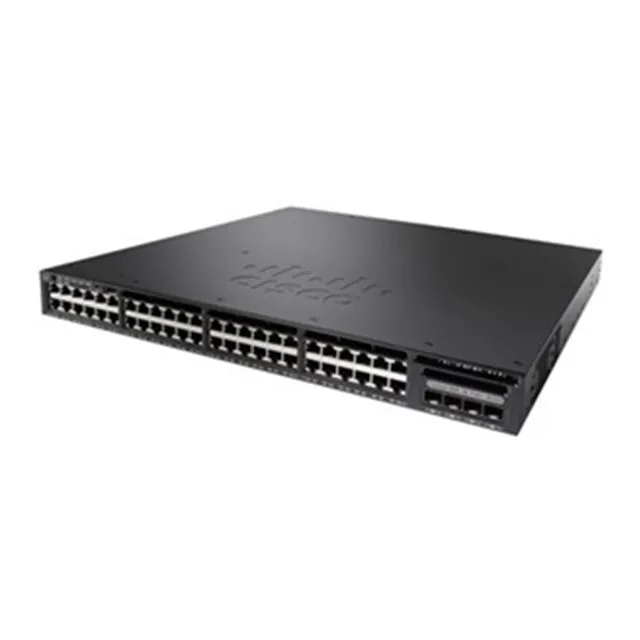

Original New Cisco POE Switch 3650 Gigabit Ethernet Network Switch 48 Ports WS -C3650-48PS-S
Product DescriptionOverviewStandalone with Optional Stacking 48 10/100/1000 Ethernet PoE+ and 4x1G Uplink ports, with 640WAC power supply, 1 RU, IP Basefeature setProduct CodeWS-C3650-48PS-SEnclosure TypeRack-mountable 1UFeature SetIP BaseUplink Interfaces2 x 10G SFP+ or 4 x 1G SFPPorts48 x 10/100/1......
Send Inquiry
Product Description
Product Description
Overview
Standalone with Optional Stacking 48 10/100/1000 Ethernet PoE+ and 4x1G Uplink ports, with 640WAC power supply, 1 RU, IP Base
feature set
feature set
Product Code | WS-C3650-48PS-S |
Enclosure Type | Rack-mountable 1U |
Feature Set | IP Base |
Uplink Interfaces | 2 x 10G SFP+ or 4 x 1G SFP |
Ports | 48 x 10/100/1000 Ethernet ports |
Stack bandwidth | 160 Gpbs |
Forwarding Performance | 68.45Mpps |
Switching Capacity | 392 Gbps |
RAM | 4 GB |
Flash Memory | 2 GB |
Number of AP per switch/stack | 50 |
Number of wireless clients per switch/stack | 1000 |
Dimensions | 44.5 cm x 44.5 cm x 4.4 cm |
Package Weight | 7.6 Kg |
Product Details
| Environmental Parameters | |
| Min Operating Temperature | 23 °F |
| Max Operating Temperature | 113 °F |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Min Storage Temperature | -40 °F |
| Max Storage Temperature | 158 °F |
| Header | |
| Compatibility | PC |
| Manufacturer | CISC0 Systems |
| Packaged Quantity | 1 |
| Product Line | Catalys t |
| Model | 3650-48PS-S |
| Brand | CISC0 |
| Interface Provided | |
| Interface | 48 |
| Connector Type | Management (mini-USB) |
| Comments | Type B |
| Type | Management |
| Miscellaneous | |
| Compliant Standards | BSMI CNS 13438 Class A, CISPR 22 Class A, CISPR 24, CSA C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, EN 61000-3-2, EN 61000-3-3, EN55022 Class A, EN55024, FCC Part 15 A, GOST, ICES-003 Class A, IEC 60950-1 Second Edition, ISO 7779, KCC, KN22 Class A, KN24, NOM, RoHS, UL 60950-1 Second Edition, VCCI Class A |
| Authentication Method | RADIUS, Secure Shell (SSH), TACACS+ |
| MTBF | 661,800 hours |
| Height (Rack Units) | 1 |
| Color Category | Black |
| Networking | |
| Type | Switch |
| Connectivity Technology | Wired/Wireless |
| Remote Management Proto | HTTP, RMON 1, RMON 2, SNMP 1, SNMP 2c, SNMP 3, Telnet, TFTP |
| Compliant Standards | IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Status Indicators | Active, Port duplex mode, Port transmission speed, Status, System |
| Ports Qty | 48 |
| Features | Access Control List (ACL) support, ARP support, Auto-negotiation, Auto-sensing per device, Auto-uplink (auto MDI/MDI-X), BOOTP support, Broadcast Storm Control, DHCP snooping, DHCP support, DiffServ support, Dynamic IP address assignment, Dynamic Trunking Protocol (DTP) support, IGMP snooping, IPv6 support, Layer 2 switching, Link Aggregation Control Protocol (LACP), Load balancing, MAC Address Notification, Multicast Storm Control, Multiple Spanning Tree Protocol (MSTP) support, Port Aggregation Protocol (PAgP) support, Port Security, Power over Ethernet (PoE), Quality of Service (QoS), Rapid Spanning Tree Protocol (RSTP) support, Remote Switch Port Analyzer (RSPAN), Syslog support, Unicast Storm Control, VLAN support |
| Subcategory | Network hubs and switches |
| MAC Address Table Size | 32000entries |
| Stackable | Stackable |
| Subcategory | Network hubs and switches |
| Power Over Ethernet (PoE) | POE+ |
| Advanced Switching | Layer 3 |
| Manageable | Yes |
| Form Factor | Desktop, Rack-mountable |
| Jumbo Frame Support | Jumbo Frame Support 9198 bytes |
| Subtype | Gigabit Ethernet |
| Power Device | |
| Frequency Required | 50/60 Hz |
| Nominal Voltage | 640 Watt |
| Installed Qty | 1 |
| Max Supported Qty | 2 |
| Nominal Voltage | AC 120/230 V |
| Power Redundancy | Optional |
| Power Redundancy Scheme | 1+1 (with optional power supply) |
| Type | Internal power supply |
| Service | |
| Support Details Type | Technical support |
| Support Details Service Inc | Consulting |
| Support Details Full Contract Period | 1 years |
| Slot Provided | |
| Type | Expansion slot |
| Total Qty | 1 |
| Free Qty | 1 |
| Software | |
| Type | CISC0IOS IP Base |
| Dimensions & Weight | |
| Width | 17.5 in |
| Depth | 17.6 in |
| Height | 1.7 in |
| Weight | 16.15 lbs |
| Service & Support | |
| Type | Limited lifetime warranty |
| Capacity | |
| Type | VLANs supported |
| Value | 1000 |
| Flash Memory | |
| Installed Size | 2G |
| Performance | |
| Type | Switching capacity |
| Value | 176 Gbps |
| Ports | |
| Qty | 48 |
| Type | 10/100/1000 |
| RAM | |
| Installed Size | 4 GB |
3:shows some modules,licenses and accessories of this switch.
| Models | Description |
| C3650-STACK- KIT | CISC0 Catalys t 3650 Stack Module Spare |
| L-C3650-24-L- E= | C3650-24 LAN Base to IP Services Electronic RTU License |
| L-C3650-24-L- S= | C3650-24 LAN Base to IP Base Electronic RTU License |
| PWR-C2- 1025WAC= | 1025W AC Config 2 Secondary Power Supply |
| PWR-C2- 640WDC= | 640W DC Config 2 Secondary Power Supply |
| CAB-CONSOLE-RJ45 | Console Cable 6ft with RJ45 and DB9F |
| CAB-CONSOLE-USB | Console Cable 6 ft with USB Type A and mini-B |
Related Product Models
Company Profile
Cooperation Clients
FAQ
1.Why choose us?
Helpyou Group Co.,Ltd is the leading global supplier of quality networking equipments and we have over 11 years experience in this field.
Extensive&Real Inventory
Save up 50%-99% off the Globel price list
Fully tested and Guaranteed
Flexible payment&Shipment
Unparalleled Experience&Service
2.What's the quality of the products?
All the items are brand original with full test before shipping.
3. What about warranty?
1 year warranty for new products.
3 months warranty for used products.
Lifetime warranty for Cisco small business series.
4. How to place an order?
After customer confirm the order , we will create an order as your request. We accept many terms of trade such as T/T, Western Union, Money Gram, Alibaba and PayPal.
5. How about the shipment?
We deliver products by FEDEX, DHL, ARAMEX, EMS, UPS, TNT and Ocean transportation. We are also able to deliver goods to your forwarder in China if you need.
6. How about the delivery time?
Goods usually would be shipped out within 2days after receive the payment. Except futures order.
Our Sevices
| Condition: 100% new original Aruba item |
| Warranty: 1 year |
| Payment ways: T/T; West Union; Paypal; L/C |
| Chose for logistics: DHL; Fedex; TNT; UPS; Some special logistics |
| Produce for after-sale problem: |
| 1.Provide product model and serial number. |
| 2.Describe which problem the products appear |
| 3.Analyze product problems and propose solutions |
| 4.Repair the machine and return it to the customer |
Packing & Delivery
For Packing:
Original Factory Sealed Box (packaging) + Extra Carton Protection + Tape Seal = Waterproof + Anti-collision
Payment Method
1.T/T,Western Union, Alipay and Money Gram will be accept.Faster payment will help you to get the items earlier.
2.Remittance bank charges shall be borne by the remitter,and the collecting bank fees shall be borne by the beneficiary.
3.As the market changes and price fluctuation, please kindly pay the order within 3 days.

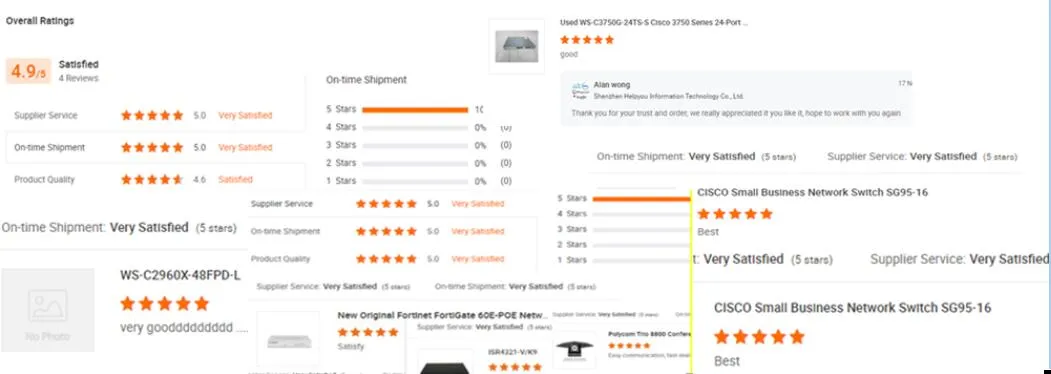

Customer Feedback
