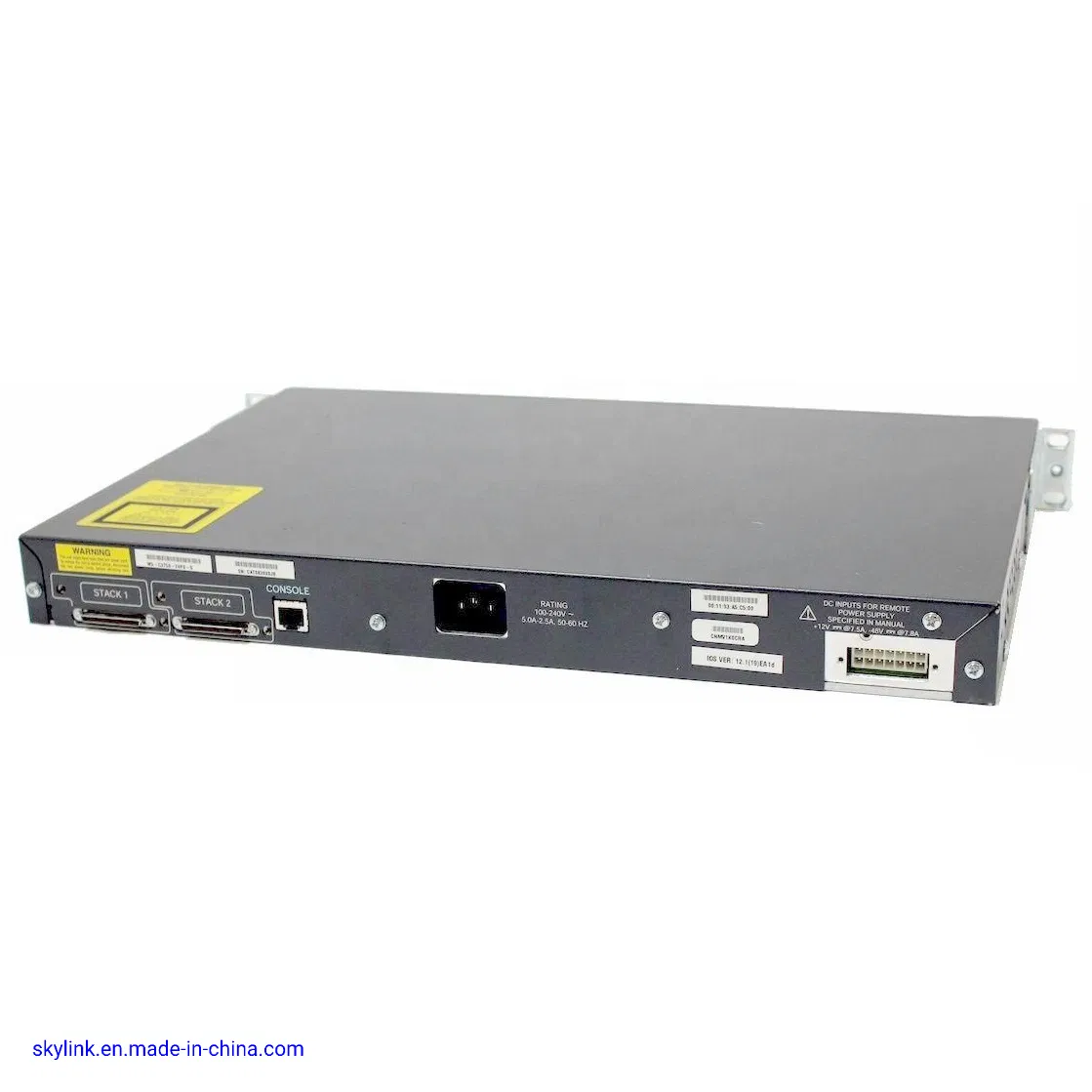

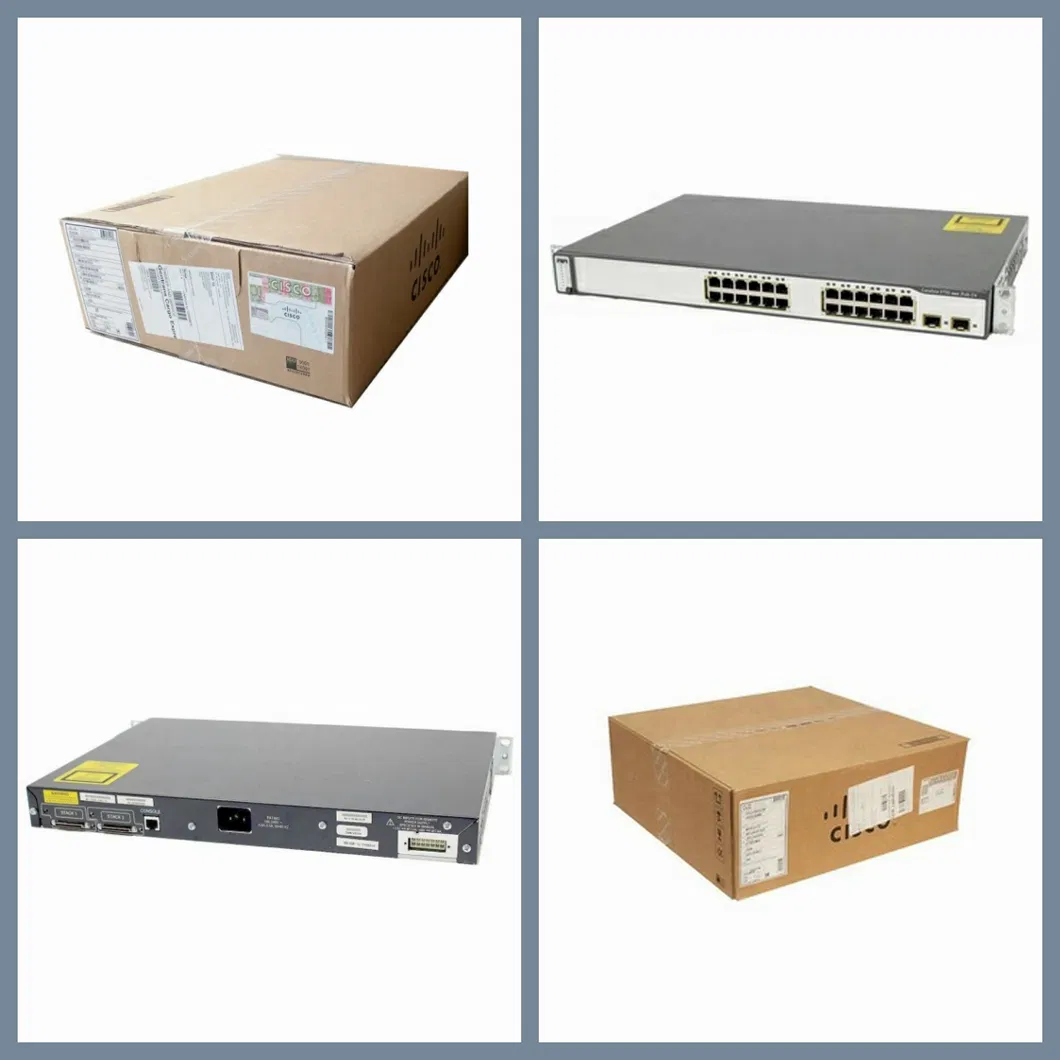

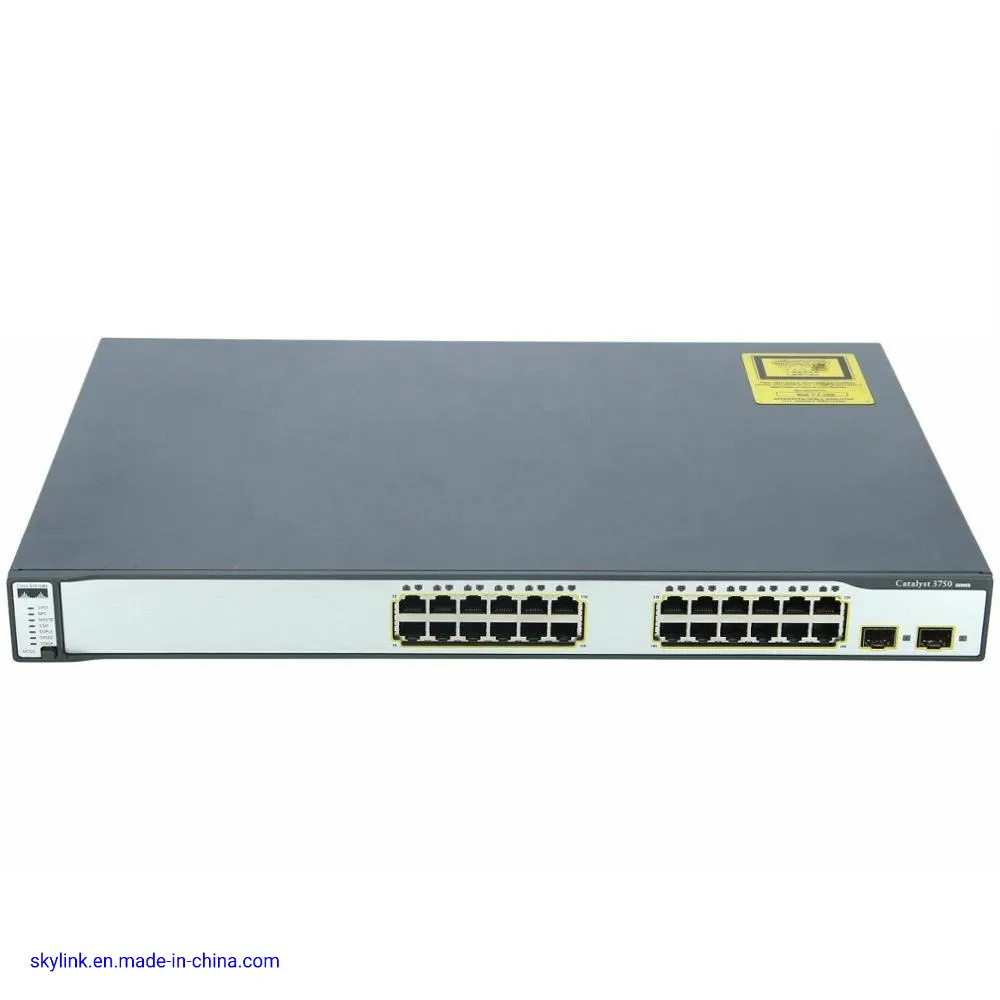

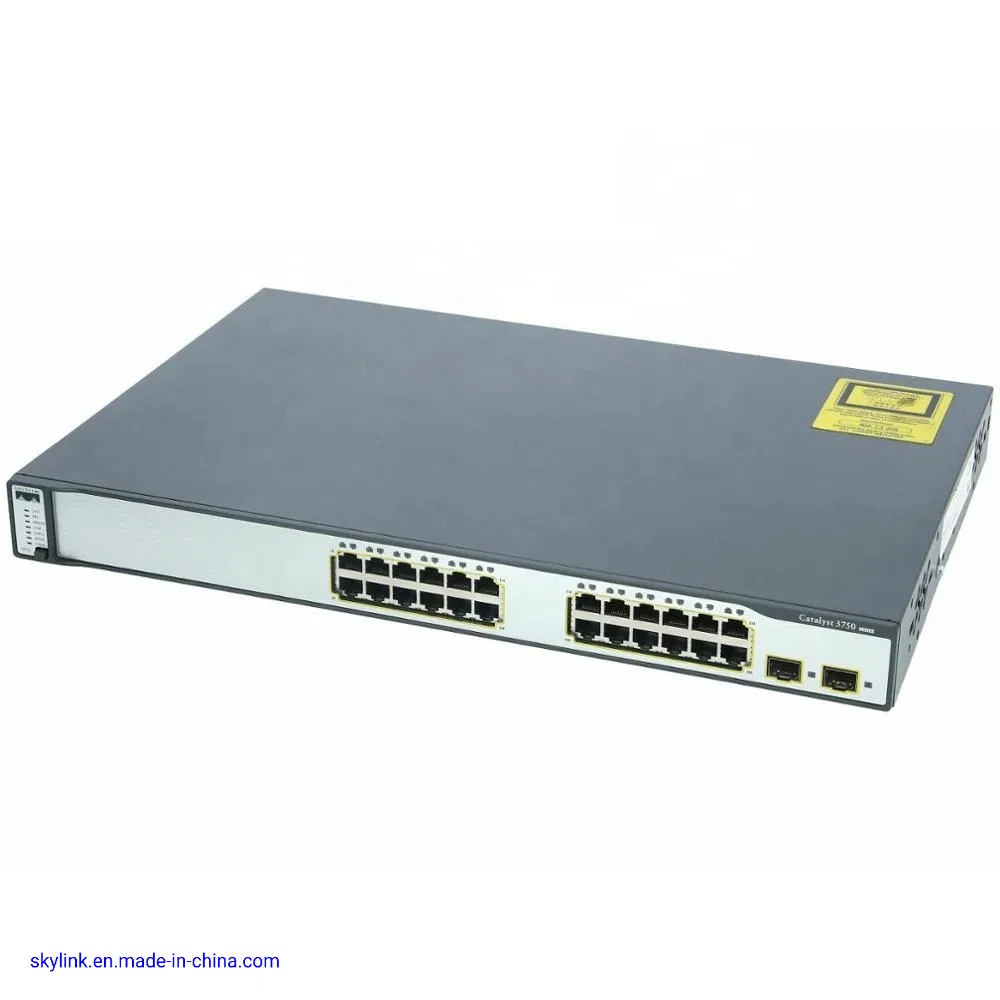

Original Cisco 3750X 24 Port Gigabit Switch LAN Lite Ws-C3750X-24t-L
The Cisco Catalyst 3750-X Series Switches are enterprise-class lines of stackable switches. The switches provide high availability, scalability, security, energy efficiency, and ease of operation. The switch provides 24 SFP fiber port for your local network. WS-3750X-24S-E stackable switch provide a......
Send Inquiry
Product Description
The Cisco Catalyst 3750-X Series Switches are enterprise-class lines of stackable switches. The switches provide high availability, scalability, security, energy efficiency, and ease of operation. The switch provides 24 SFP fiber port for your local network. WS-3750X-24S-E stackable switch provide alternative solution with lower the cost for those who require lot of fiber connections, such as centralizing uplink connections, CCTV or server virtualization using fiber connections. By using the stack cable interconnect with multiple switches to active stacking feature -- such the multiple switches act as single switching system to manage - which simplify the network management and troubleshoot.
| Manufacturer Part Number | WS-C3750X-24T-L |
| Product Type | Switch - 24 ports - Managed - stackable |
| Form Factor | Fixed, Rack Mountable 1U, Stackable/Clustering |
| Switch Port density - Uplinks | 24 x 10/100/1000 Ethernet Ports |
| Performance | Switching capacity : 160 Gbps Forwarding performance : 65.5 Mpps |
| Capacity | Virtual interfaces (VLANs) : 1005 |
| Jumbo Frame Support | 9216 |
| Max Number of Stacks | 9 |
| Remote Management Protocol | SNMP 1, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, SSH, CLI |
| Authentication Method | Kerberos, Secure Shell (SSH), RADIUS, TACACS+ |
| Features | Hot swap module replacement, Layer 2 switching, dynamic IP address assignment , DHCP support, auto-negotiation, ARP support, trunking, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, traffic shaping, Broadcast Storm Control, High Availability, Multicast Storm Control, Unicast Storm Control, Rapid Spanning Tree Protocol (RSTP) support, DHCP snooping, Dynamic Trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS), Jumbo Frames support, Virtual Route Forwarding-Lite (VRF-Lite), MLD snooping, Dynamic ARP Inspection (DAI), Per-VLAN Spanning Tree Plus (PVST+), Uni-Directional Link Detection (UDLD), Shaped Round Robin (SRR), Link Aggregation Control Protocol (LACP), Remote Switch Port Analyzer (RSPAN) |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s |
| DRAM Memory | 256 MB |
| Flash Memory | 128 MB Flash |
| LED Status Lights Indicators | Port status, link activity, port transmission speed, port duplex mode, power, system |
| Interfaces | 24 x 10Base-T/100Base-TX/1000Base-T - RJ-45 USB : 1 x 4 PIN USB Type A 1 x console - mini-USB Type B - management 1 x RS-232 - RJ-45 - management 1 x 10Base-T/100Base-TX - RJ-45 - management Network stack device : 2 x |
| Expansion Slot(s) | 1 (total) / 1 (free) x Expansion Slot |
| Power Device | Power supply - redundant - plug-in module |
| Installed Qty | 1 (installed) / 2 (max) |
| Power Redundancy | Optional |
| Power Redundancy Scheme | 1+1 (with optional power supply) |
| Voltage Required | AC 120/230 V ( 50/60 Hz ) |
| Features | Redundant Power System (RPS) connector |
| Width | 44.5 cm |
| Depth | 46 cm |
| Height | 4.5 cm |
| Weight | 7.1 kg |
