              Product Description

              Product description

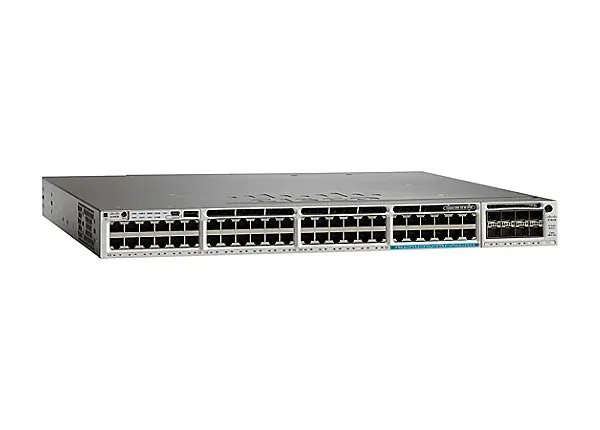

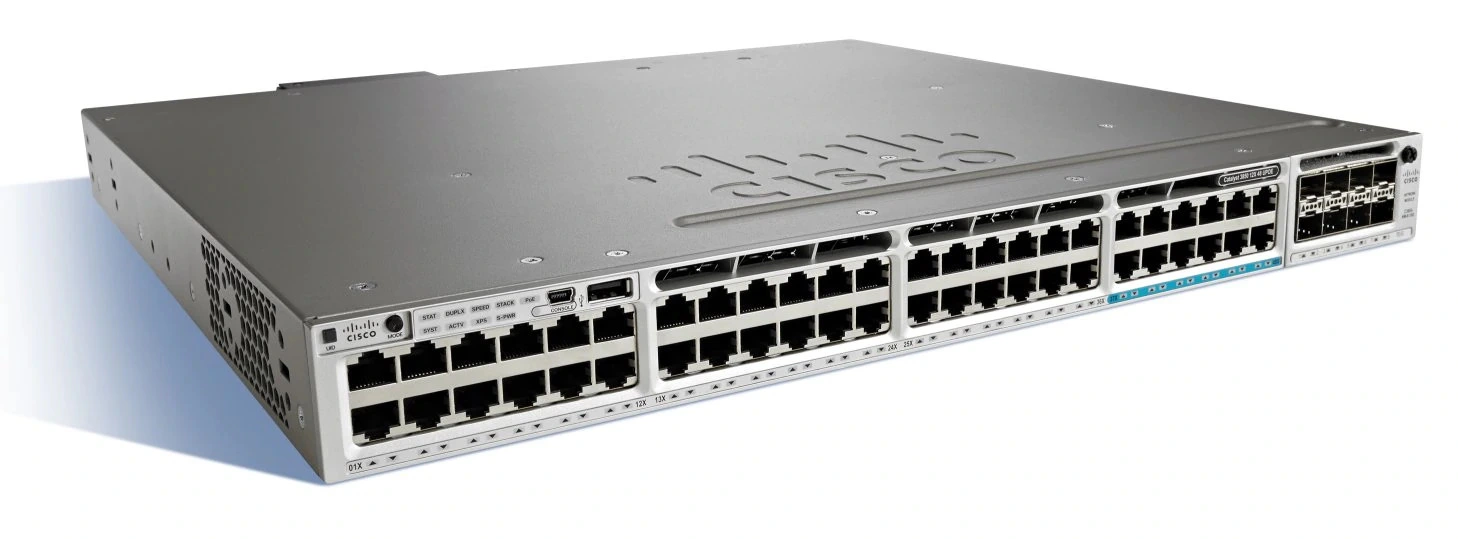

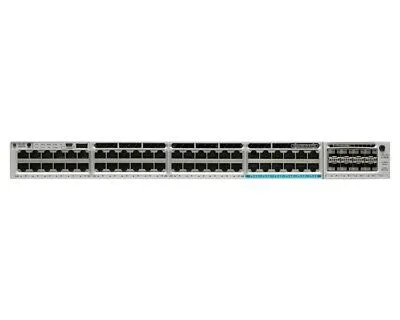

              New Original CISCO Catalyst 3850 Series 48 Port (12 mGig+36 Gig) PoE Services Network Switch WS-C3850-12X48U-E

              The Cisco Catalyst 3850 Series is enterprise-class stackable Ethernet and Multigigabit Ethernet access and aggregation layer switches that provide full convergence between wired and wireless on a single platform. Cisco-*-s Unified Access Data Plane (UADP) application-specific integrated circuit (ASIC) powers the switch and enables uniform wired-wireless policy enforcement, application visibility, flexibility and application optimization. This convergence is built on the resilience of the improved Cisco StackWise-480 technology. The Cisco Catalyst 3850 Series Switches support full IEEE 802.3at Power over Ethernet Plus (PoE+), Cisco Universal Power over Ethernet (Cisco UPOE), modular and field-replaceable network modules, RJ45 and fiber-based downlink interfaces, and redundant fans and power supplies. With speeds that reach 10Gbps, the Cisco Catalyst 3850 Multigigabit Ethernet Switches support current wireless speeds and standards (including 802.11ac Wave 2) on existing cabling infrastructure.

              New Original CISCO Catalyst 3850 Series 48 Port (12 mGig+36 Gig) PoE Services Network Switch WS-C3850-12X48U-E
              New Original CISCO Catalyst 3850 Series 48 Port (12 mGig+36 Gig) PoE Services Network Switch WS-C3850-12X48U-E
              New Original CISCO Catalyst 3850 Series 48 Port (12 mGig+36 Gig) PoE Services Network Switch WS-C3850-12X48U-E

              Product
              Description
              3850 48 Port (12 mGig+36 Gig) UPoE IPServices
              Service CategoryC
              Compliant StandardsAS/NZS 3548 Class A, AS/NZS CISPR 22, BSMI Class A, CAN/CSA C22.2 No. 60950-1, CCC, CISPR 22 Class A, CISPR 24, CNS 13438, EN 300386, EN 55022
              Class A, EN 60950-1, EN 60950-1 Second Edition, EN 61000-3-2, EN 61000-3-3, EN
              61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN
              61000-6-1, EN50082-1, EN55024, FCC CFR47 Part 15, FCC Part 15 A, ICES-003 Class A, IEC 60950-1, IEC 60950-1 Second Edition, KCC, KN22 Class A, KN24, NOM,
              RoHS 5/6, UL 60950-1, UL 60950-1 Second Edition, VCCI Class A
              Authentication
              Method
              Kerberos, RADIUS, Secure Shell (SSH), TACACS+
              MTBF202,030 hours
              Height (Rack
              Units)
              1
              Color CategoryGray
              Flash Memory2gb
              Dimensions17.5 x 19.2 x 1.8in
              Weight17.64 lbs
              Environmental Parameters
              Min Operating
              Temperature
              23 °F
              Max Operating
              Temperature
              113 °F
              Humidity Range
              Operating
              10- 95% (non-condensing)
              Min Storage
              Temperature
              -40 °F
              Max Storage
              Temperature
              158 °F
              Interface Provided
              CommentsManagement
              Qty36
              TypeManagement (mini-USB)
              Connector TypeType B
              PoE Power60 W
              Networking
              TypeSwitch
              Data Link
              Protocol
              Ethernet, Fast Ethernet, Gigabit Ethernet
              Remote Management
              Protocol
              CLI, RMON 1, RMON 2, SNMP 1, SNMP 2c, SNMP 3, SSH, Telnet, TFTP

              Compliant StandardsIEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE
              802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
              Status IndicatorsActive, PoE, Port duplex mode, Port transmission speed, Power, Status, System
              Ports Qty48
              Features802.1x authentication, Access Control List (ACL) support, ARP inspection, ARP support, Bridge protocol data unit (BPDU), Cisco
              StackPower technology, Cisco StackWise-480 technology, Control plane protection (CoPP), DHCP snooping, DHCP support, Dynamic Trunking Protocol (DTP) support, Energy Efficient Ethernet, Link Aggregation Control Protocol (LACP), Multiple Spanning Tree Protocol (MSTP) support, PIM snooping, Port Aggregation Protocol (PAgP) support, Quality of Service (QoS), Radio resource management (RRM), Rapid
              Per-VLAN Spanning Tree Plus (PVRST+), Remote Switch Port Analyzer (RSPAN), Shaped Round Robin (SRR), SSH support, Syslog support, Trivial File Transfer Protocol (TFTP) support, Uni-Directional Link Detection (UDLD), Virtual Route Forwarding-Lite (VRF-Lite), Virtual Routing and Forwarding (VRF), VLAN Trunking
              Protocol (VTP), Weighted Tail Drop (WTD)
              Routing ProtocolBGP-4, EIGRP, EIGRP for IPv6, IGMP, IGMPv2, IGMPv3, IS-IS, MLD, MLDv2, OSPF, OSPFv3, PIM-DM, PIM-SM, PIM-SSM, Policy-based routing (PBR), RIP-1, RIP-2,
              RIPng
              SubcategoryNetwork hubs and switches
              Power Over
              Ethernet (PoE)
              UPOE
              ManageableYes
              Form FactorDesktop, Rack-mountable
              Jumbo Frame
              Support
              9198 bytes
              SubtypeGigabit Ethernet
              PoE Budget630 W
              Power Device
              Frequency
              Required
              50/60 Hz
              Power Provided1100 Watt
              Nominal VoltageAC 120/230 V
              Power Redundancy
              Scheme
              1+1 (with optional power supply)
              TypeInternal power supply
              Packing and Delivery
              Packaging DetailsOrigial Box Packing
