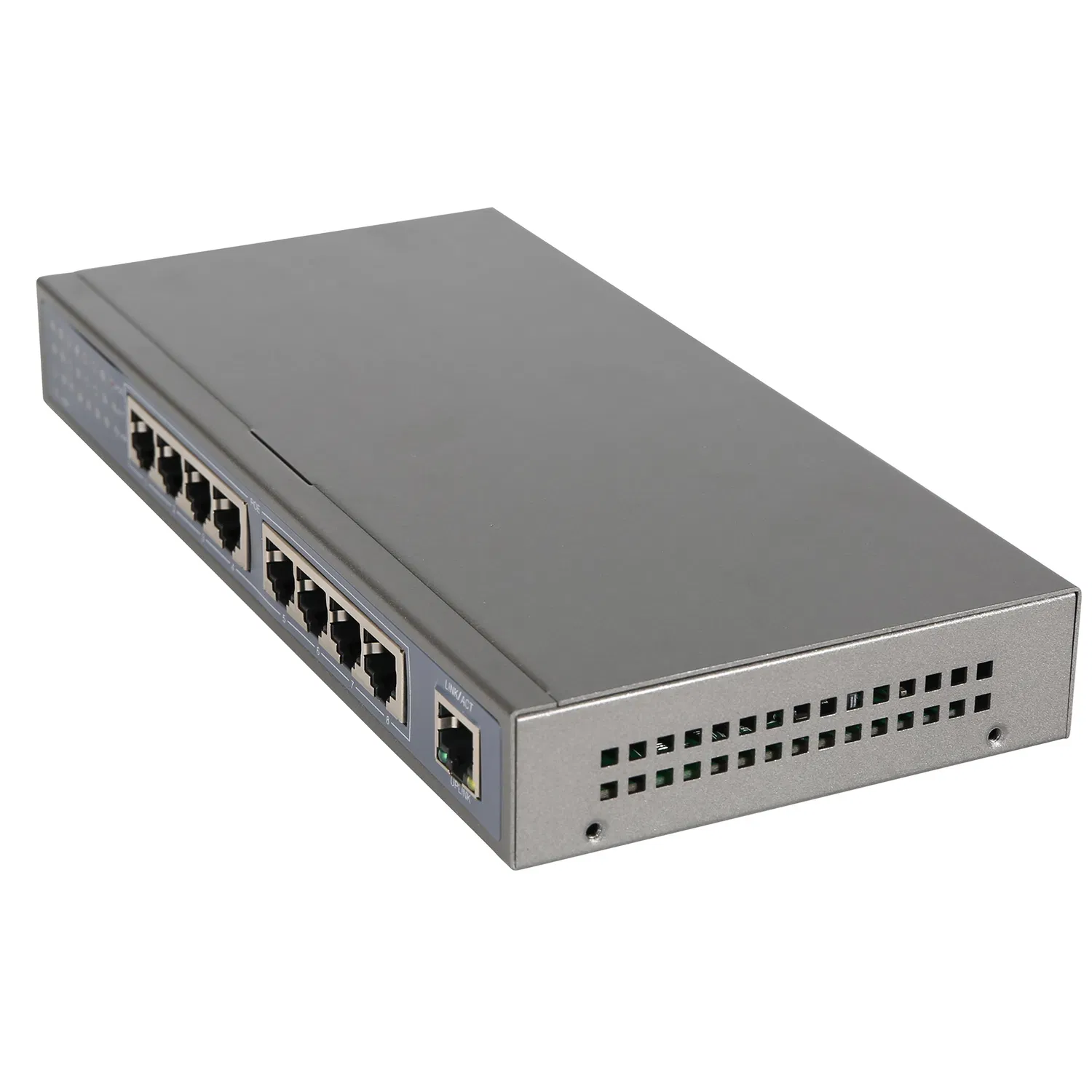

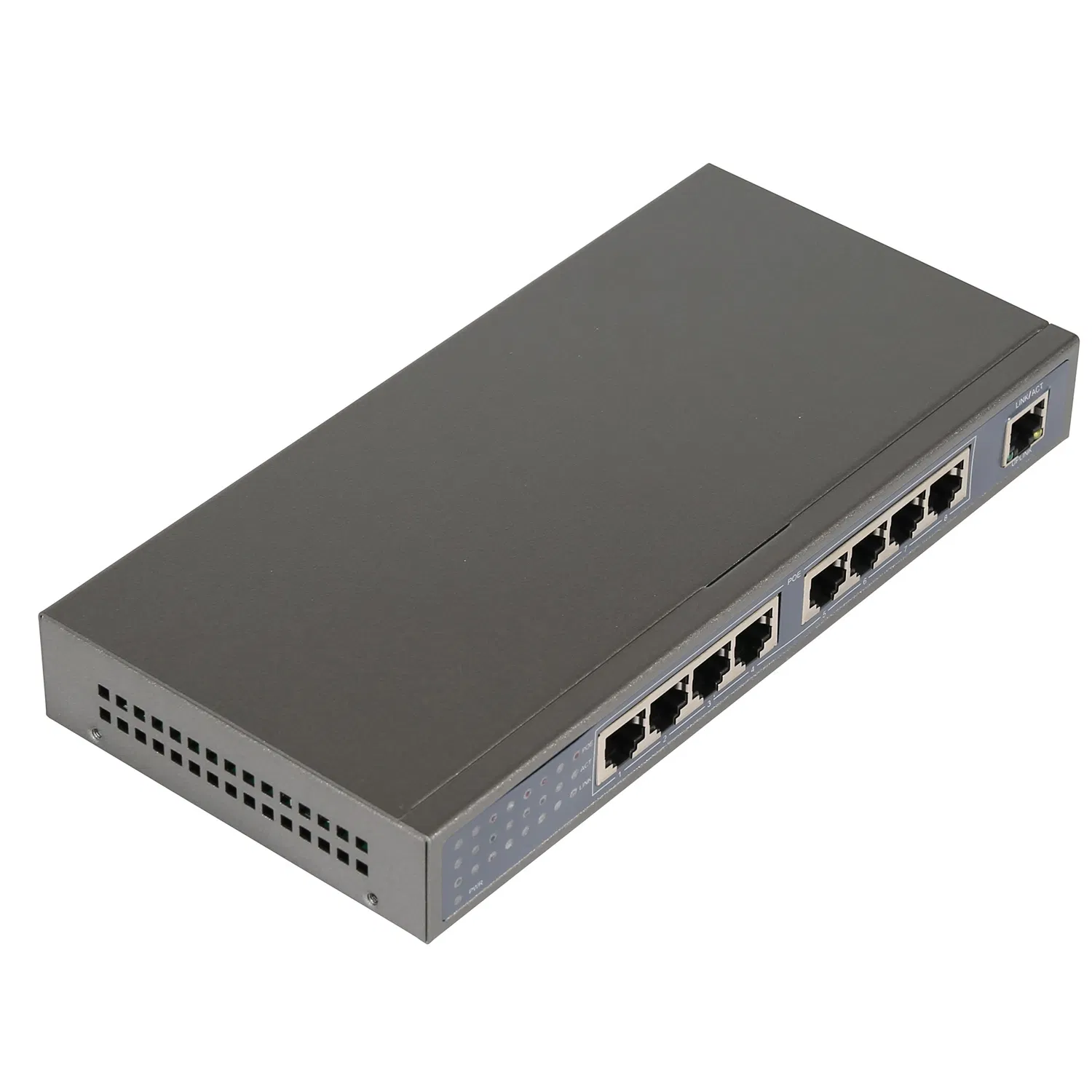

New 8ports 48V Gigabit Poe Switch
TechnologyNetwork Standards ·IEEE802.3i 10BASE-T ·IEEE802.3u 100BASE-TX ·IEEE802.3x Flow ControlPoE power ·15.4W per port(IEEE802.3af);25.5W per port(IEEE802.3at)·Wiring:Data & power provided over pairs1/2and 3/6 or 4/5(+)and 7/8(-)&mid......
Send Inquiry
Product Description
| Technology | |
| Network Standards | ·IEEE802.3i 10BASE-T ·IEEE802.3u 100BASE-TX ·IEEE802.3x Flow Control |
| PoE power | ·15.4W per port(IEEE802.3af);25.5W per port(IEEE802.3at) ·Wiring:Data & power provided over pairs1/2and 3/6 or 4/5(+)and 7/8(-) ·Cable:UPT cat.5 or higher |
| Power Input | ·AC90-260V input |
| PoE power consumption | ·Max 15.4W / 30W per port |
| Power budget | ·96W/120W |
| Mechanical | |
| Casing | ·Metal case |
| Dimension | ·218x105x30mm(LxWxH) |
| Weight | ·610G |
| LED Indicators | ·System:Power,PoE Maximum power ·Per port:Link,Activity,Speed PoE active,PoE error |
| Installation | ·Desk Top |
| Environment specifications | |
| Operating Temperature | ·-10~45ºC |
| Storage Temperature | ·-10~70ºC |
| Operating Humidity | ·90% max relative humidity, on-condensing |
| Storage Humidity | ·90% max relative humidity, on-condensing |
| Certification | ·CE/ROHS/FCC |
| Warranty | ·1 year |
