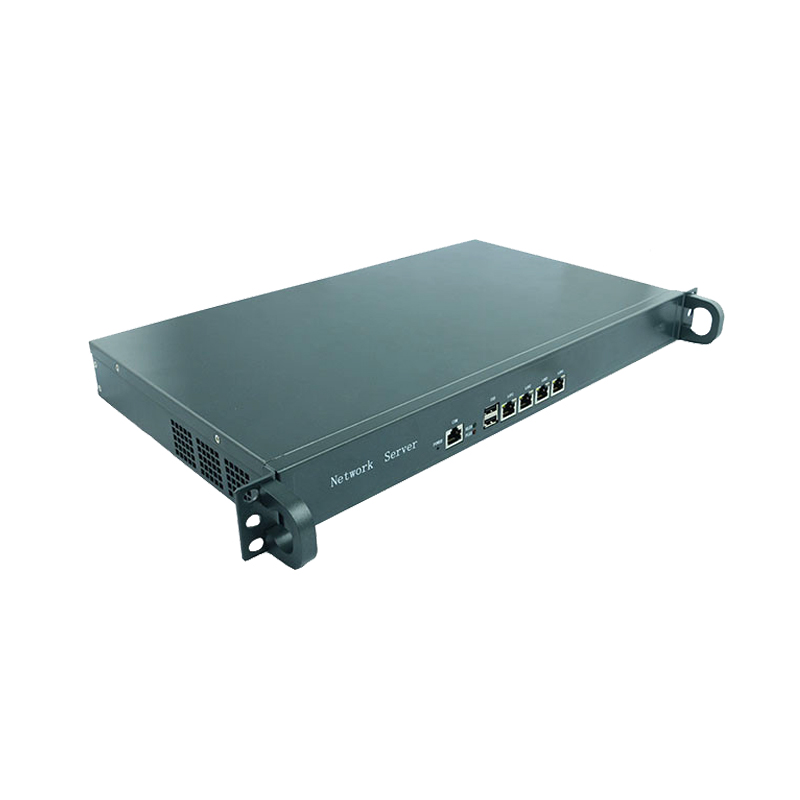

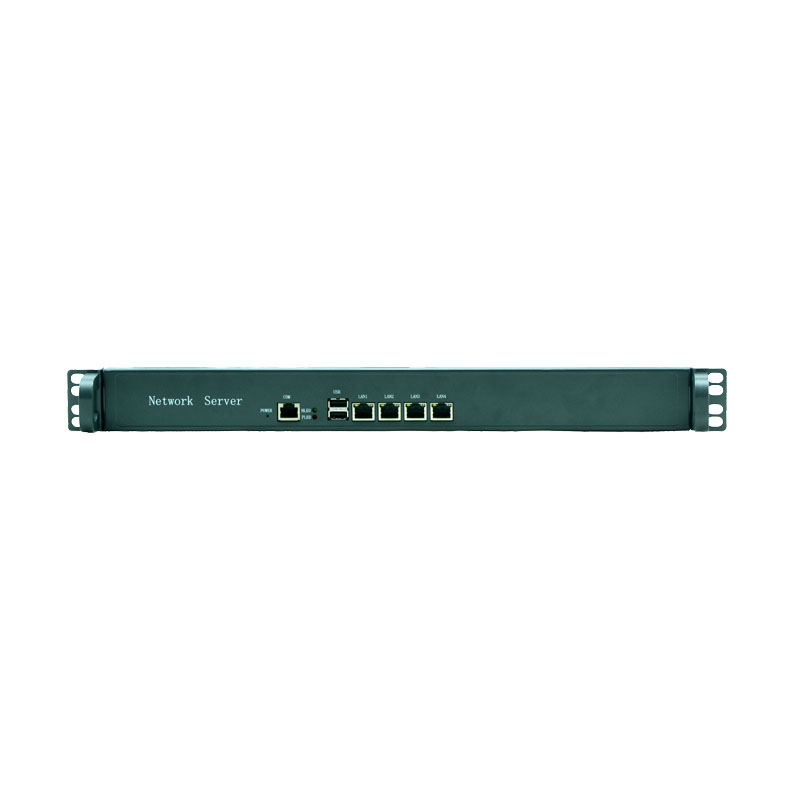

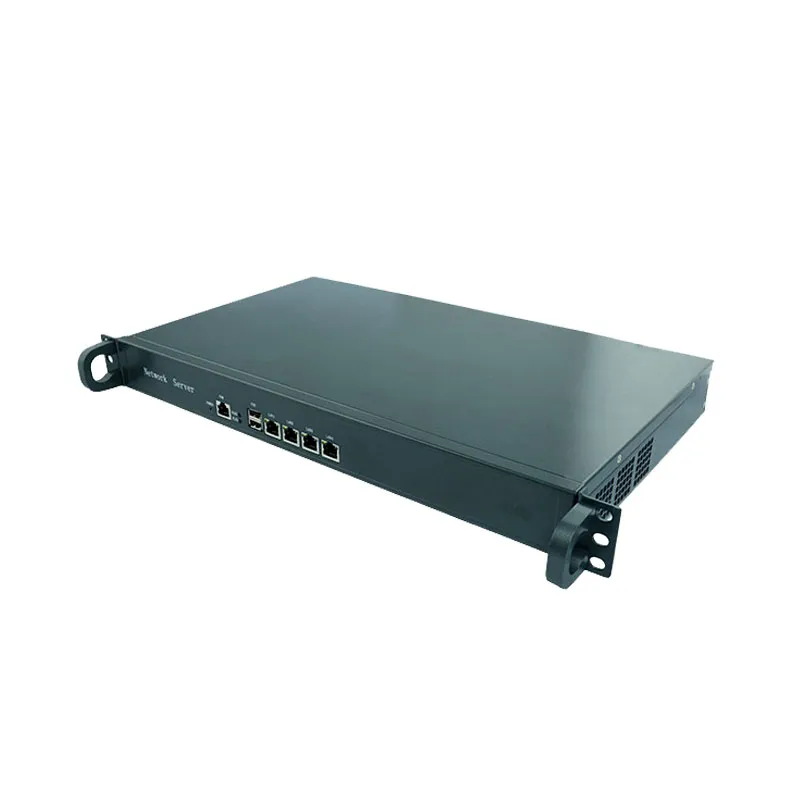

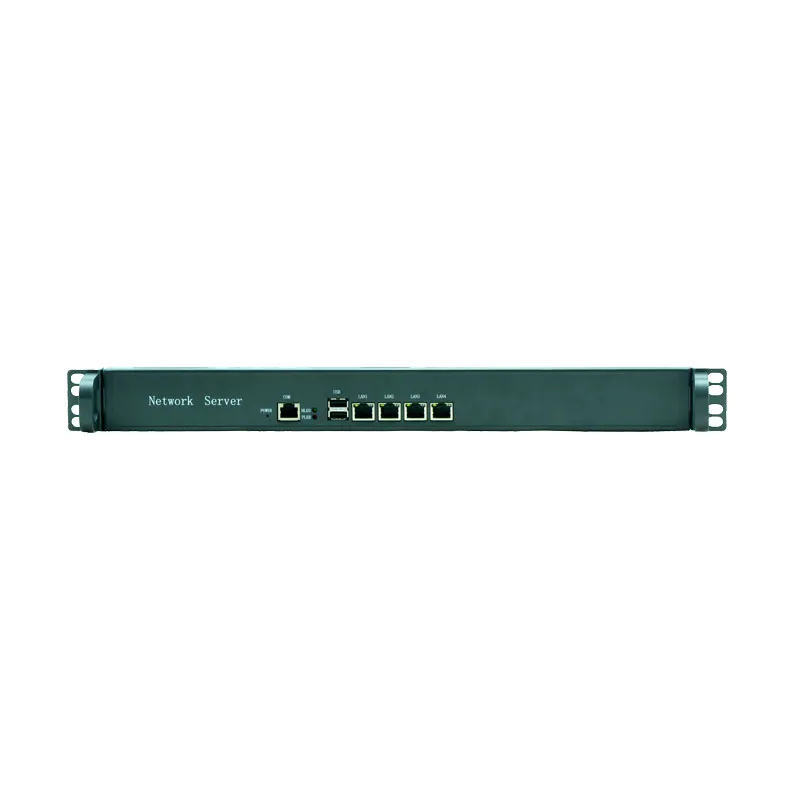

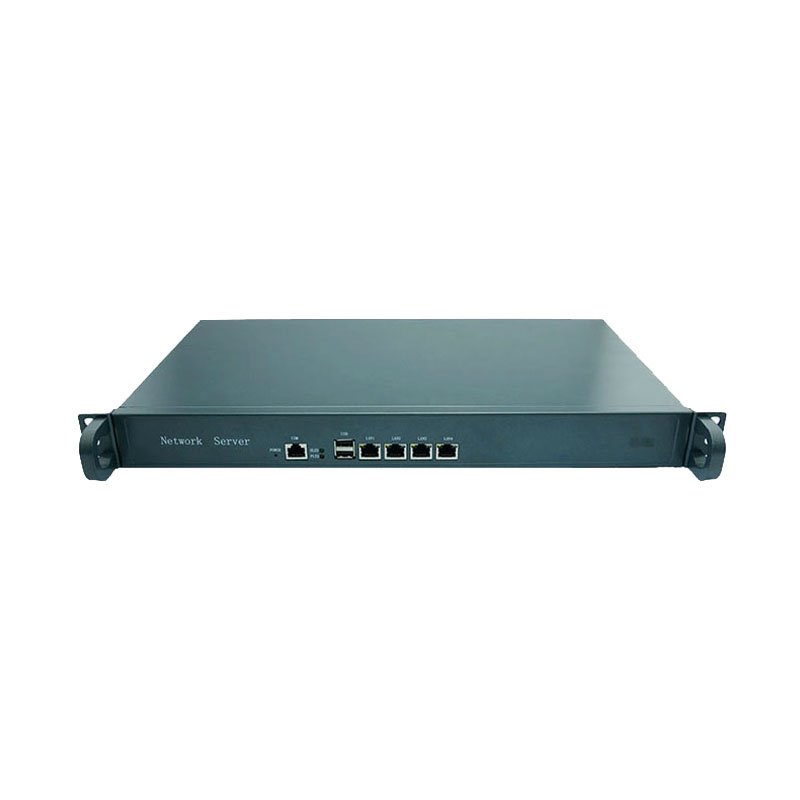

Network Server 1u J1900 Pfsense
1U standard enclosure,High quality galvanized steelIntel® Celeron J1900/2.0GHz quad core processor1xVGA+2xUSB2.0+4*Intel 82583V Gigabit LAN+ 1*CISCO standard RJ-45 serial port430mm*250mm*46mmSpecificationProcessorCPU Intel® Celeron J1900 quad-core, 4-thread processor Frequency2.00GHz......
Send Inquiry
Product Description
1U standard enclosure,High quality galvanized steel
Intel® Celeron J1900/2.0GHz quad core processor
1xVGA+2xUSB2.0+4*Intel 82583V Gigabit LAN+ 1*CISCO standard RJ-45 serial port
430mm*250mm*46mm
Specification
About Us
Founded in 2010, Brand as "DOWGE", R&O Industrial Technology Co., Limited is committed to be your trustworthy partner in supplying quality industrial computing systems and OEM/ODM service, With extensive industrial computing experience, a talented R&D team and an effective management system, a quality assurance system, R&O develop near one hundreds of products for use in ATM/POS, industrial Control, Network and Communication Solutions, surveillance, digital signage, gaming, and other embedded applications.
Forms part of the global market, R&O already has a more and richer and wider range of experience in the production of Industrial Motherboard Series, Mini PC series, Network Server, thin client, mini PC, PC station, mini itx HTPC XBMC, cloud terminal etc.
More Information ,welcome visit : www dowgetech com
Intel® Celeron J1900/2.0GHz quad core processor
1xVGA+2xUSB2.0+4*Intel 82583V Gigabit LAN+ 1*CISCO standard RJ-45 serial port
430mm*250mm*46mm
Specification
| Processor | CPU | Intel® Celeron J1900 quad-core, 4-thread processor |
| Frequency | 2.00GHz~2.42GHz(MAX) | |
| Power | TDP 10W | |
| Chipset | SOC | |
| BIOS | 64Mb Flash ROM | |
| RAM | 1*SODIMM DDR3L 1600/1333MHz,Max Up to 8GB | |
| Display | Graphics | Intel®HD Graphics |
| Display | 1*VGA,2560X1600@60Hz | |
| Ethernet | 4* Intel 82583V Gigabit Ethernet, support Wake On LAN/PXE | |
| Audio | Audio | N/A |
| I/O Port | COM Port | 1* CISCO standard RJ-45 serial port |
| USB | 2* USB2.0 | |
| Storage | SATA | 1*2.5"HDD Expansion |
| MSATA | 1* MSATA SSD, transmission rate up to 3Gbps | |
| OS Support | Windows | Windows 7/Windows10,64bit(not include OS code) |
| Linux | Ubuntu | |
| Power Supply | Power Type | External open power supply |
| Voltage Input | AC 110~220V | |
| Power Output | AC to DC,60W | |
| Structure | Structure | 1U standard enclosure, high quality galvanized steel |
| Installation | 1U Rackmount | |
| Dimension | 430*250.2*46 (mm) | |
| Environment | Working Temp. | -10ºC~60ºC |
| Storage Temp. | -20ºC~70ºC | |
| Relative Humidity | 5%-95% relative humidity, non-condensing | |
| Working Vibration | 0.5g rms/5-500HZ/random/operating |
About Us
Founded in 2010, Brand as "DOWGE", R&O Industrial Technology Co., Limited is committed to be your trustworthy partner in supplying quality industrial computing systems and OEM/ODM service, With extensive industrial computing experience, a talented R&D team and an effective management system, a quality assurance system, R&O develop near one hundreds of products for use in ATM/POS, industrial Control, Network and Communication Solutions, surveillance, digital signage, gaming, and other embedded applications.
Forms part of the global market, R&O already has a more and richer and wider range of experience in the production of Industrial Motherboard Series, Mini PC series, Network Server, thin client, mini PC, PC station, mini itx HTPC XBMC, cloud terminal etc.
More Information ,welcome visit : www dowgetech com
