Intel J1900 4 LAN Desktop Bypass Firewall Router Linux Pfsense
Desktop fanless cooling compact enclosure,High quality galvanized steelIntel® Celeron J1900/2.0GHz Dual-core processor1xVGA+2xUSB2.0+4*Intel I211 Gigabit LAN+ 1*CISCO standard RJ-45 serial port200mm*175mm*44mmOEM X86 Intel J1900 4 Lan Desktop Fanless Firewall hardware barebone mini pc router......
Send Inquiry
Product Description
Desktop fanless cooling compact enclosure,High quality galvanized steel
Intel® Celeron J1900/2.0GHz Dual-core processor
1xVGA+2xUSB2.0+4*Intel I211 Gigabit LAN+ 1*CISCO standard RJ-45 serial port

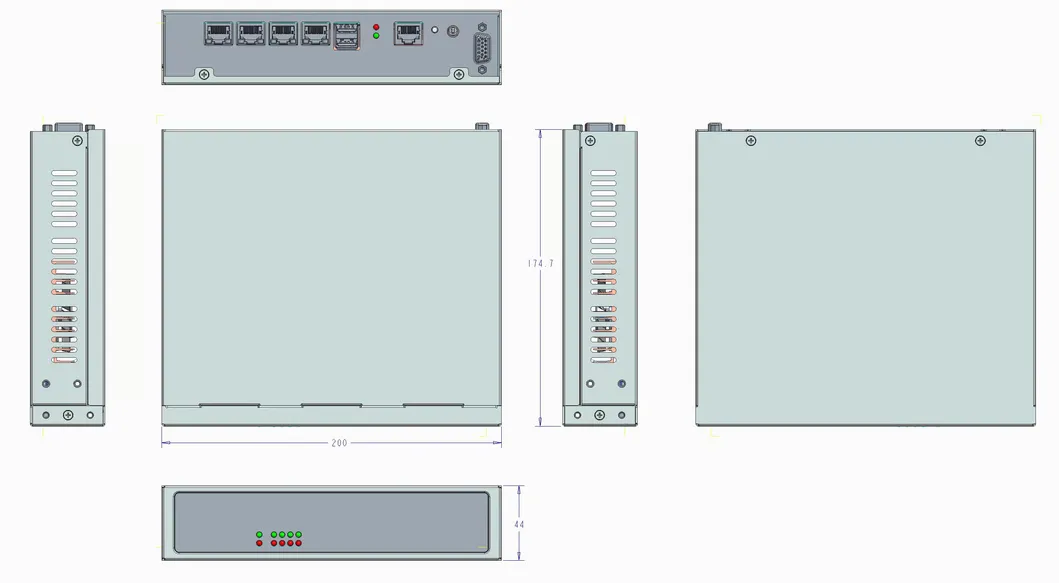

200mm*175mm*44mm
OEM X86 Intel J1900 4 Lan Desktop Fanless Firewall hardware barebone mini pc router Pfsense
Specification
Intel® Celeron J1900/2.0GHz Dual-core processor
1xVGA+2xUSB2.0+4*Intel I211 Gigabit LAN+ 1*CISCO standard RJ-45 serial port
200mm*175mm*44mm
OEM X86 Intel J1900 4 Lan Desktop Fanless Firewall hardware barebone mini pc router Pfsense
Specification
| Processor | CPU | Intel® Celeron J1900 quad-core, 4-thread processor |
| Frequency | 2.00GHz~2.42GHz | |
| TDP | 10W | |
| Chipset | SOC | |
| BIOS | 64Mb Flash ROM | |
| RAM | RAM | DDR3L 1600/1333MHz |
| Max Capacity | 8GB | |
| Slot | 1*SODIMM | |
| Display | Graphics | Intel®HD Graphics |
| CRT | 1*VGA,2560X1600@60Hz | |
| Ethernet | LAN1~LAN4 | 4* Intel i211 Gigabit Ethernet, support Wake On LAN/PXE |
| Audio | Audio | N/A |
| I/O Port | COM Port | 1*CISCO standard RS232 serial |
| USB | 2* USB2.0 | |
| Expansion | Mini PCIE | N/A |
| Storage | SATA | 1*2.5"HDD |
| MSATA | 1* MSATA SSD, transmission rate up to 3Gbps | |
| OS | Windows | Windows 7/Windows10,64bit(not include OS code) |
| Linux | Ubuntu | |
| Power Supply | Power Type | External power adaptor |
| Voltage Input | DC 12V 3A | |
| Power Output | AC 110V-220V | |
| Structure | Structure | Fanless cooling structure, high quality galvanized steel |
| Installation | Desktop | |
| Dimension | 200mm*175mm*44mm | |
| Environment | Working Temp. | 0ºC~45ºC |
| Storage Temp. | -20ºC~70ºC | |
| Relative Humidity | 5%-95% relative humidity, non-condensing | |
| Working Vibration | 0.5g rms/5-500HZ/random/operating |
