Dual Fiber Poe Media Converter, RJ45 Ethernet to Fiber Optic Media Switch
Dual Fiber Poe Media Converter, RJ45 Ethernet to Fiber Optic Media SwitchModel: TELEFLY-PW001 SeriesOverviewTELEFLY feature rich PoE Media Converters transparently connect copper to fiber while providing Power over Ethernet ( PoE ) to standards-based PoE and PoE+ compliant devices such as IP cameras......
Send Inquiry
Product Description

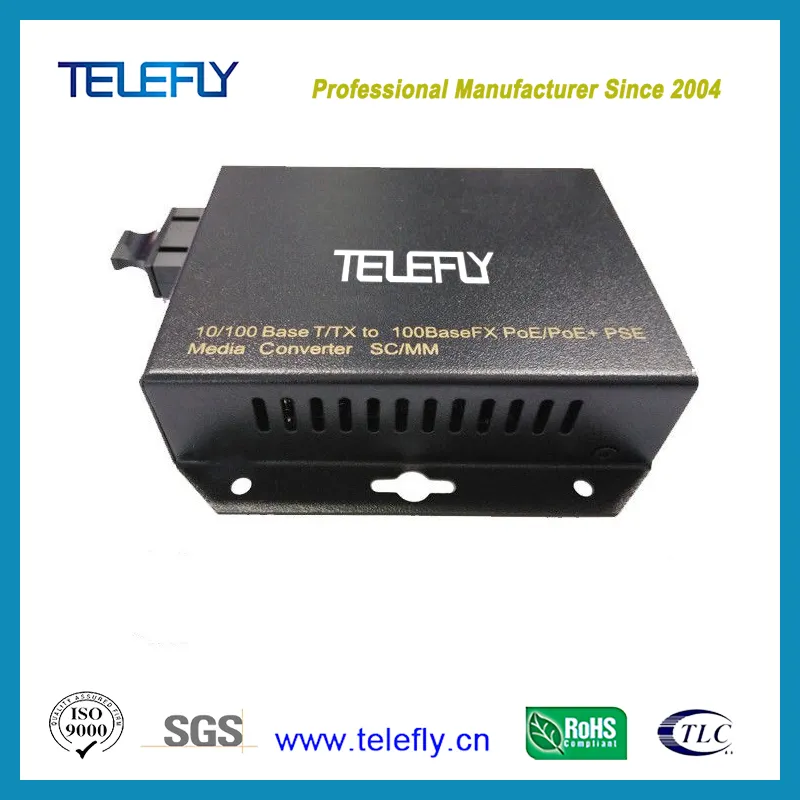

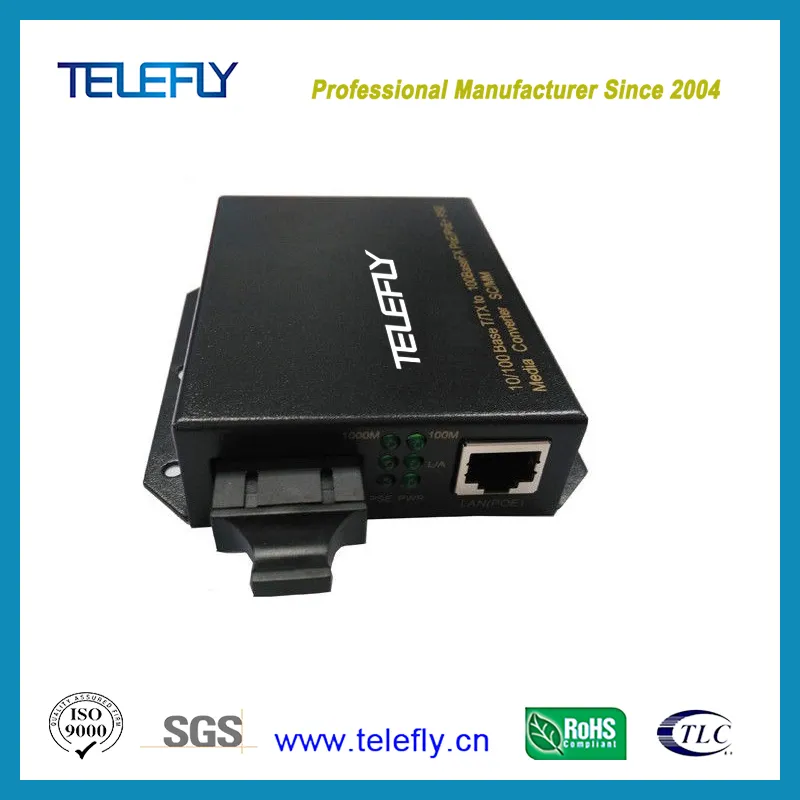

Dual Fiber Poe Media Converter, RJ45 Ethernet to Fiber Optic Media Switch
Model: TELEFLY-PW001 Series
OverviewTELEFLY feature rich PoE Media Converters transparently connect copper to fiber while providing Power over Ethernet ( PoE ) to standards-based PoE and PoE+ compliant devices such as IP cameras, VoIP phones and wireless access points.
TELEFLY-PW001 series wall-mounted media converters are 10/100BaseT/TX to 100BaseFX Power over Ethernet (PoE) devices that serve as Power Sourcing Equipment (PSE),which allows the converter to provide power to IEEE802.3af /at PoE standard-compliant Powered Devices (PDs) using the twisted pair connection. Power transmitted along with data in one single cable (RJ45) allows you to expand your network where there are no power lines or outlets, where you wish to fix devices such as Wifi -Aps, IP Cameras or IP Phones, etc.
Features
10/100Base-TX to 100Base-X Fiber
Fiber to copper Ethernet converter and PoE injector all in one device
Extend network distances up to 120km
Supply PSE power to PoE and PoE+ compliant devices
IEEE 802.3af and IEEE802.3at compliant
Provide 15.4 to 30 Watts of PoE power
IEEE802.3af with max. Power 15.4 W, IEEE802.3at with max. Power 30W.
Support Wall-mounted Installation
Technical Indexes
| Parameter | Specifications |
| Standard | IEEE802.3i 10Base-T; |
| IEEE802.3u 100Base-TX; | |
| IEEE802.3 100Base-FX; | |
| IEEE802.3x Flow Control; | |
| IEEE802.3af/at Power over Ethernet | |
| Fiber Type | Single mode (SM): 9/125μm |
| Distance | Single Mode: 20/40/60/80/100/120 km; |
| Category-5 twisted pairs: 100m | |
| Date Rate | 10/100Mpbs |
| Connector | RJ45, SC |
| Wavelength | 1310nm |
| Diagnostic LED | Power, Link/Activity |
| Power | DC48V, 1.25A |
| Power Consumption | <3W |
| Temperature | 0~50ºC (Operating); -20~70ºC (Storage) |
| Humidity | 5% ~ 90% non-condensing |
| Dimension | 88x49x21mm |
Ordering Information
| Model | Description |
| TELEFLY-PW001 | 1xRJ45, 1xSC, 10/100Mbps, IEEE802.3af, POE power: 15.4W, MM Dual Fiber, 2KM |
| TELEFLY-PW001-20 | 1xRJ45, 1xSC, 10/100Mbps, IEEE802.3af, POE power: 15.4W, SM Dual Fiber, 20KM |
| TELEFLY-PW001T | 1xRJ45, 1xSC, 10/100Mbps, IEEE802.3at, POE+ power: 25.5W, MM Dual Fiber, 2KM |
| TELEFLY-POE00T-20 | 1xRJ45, 1xSC, 10/100Mbps, IEEE802.3at, POE+ power: 25.5W, SM Dual Fiber, 20KM |
Typical Application
