DIN Rail 10/100m 6 Port 4 Port Industrial Poe Switch with 2 Uplink Ethernet for Harsh Environment Industrial Poe Network Switch
1. Product nameDin Rail 10/100M 6 Port 4 Port Industrial PoE Switch With 2 Uplink Ethernet For Harsh Environment industrial poe network switch2. Description1 100M fiber port + 4 100M ports unmanaged layer 2 industrial Ethernet switch, offer max up to 5 ports, which can be configured flexibly. It'......
Send Inquiry
Product Description
1. Product name

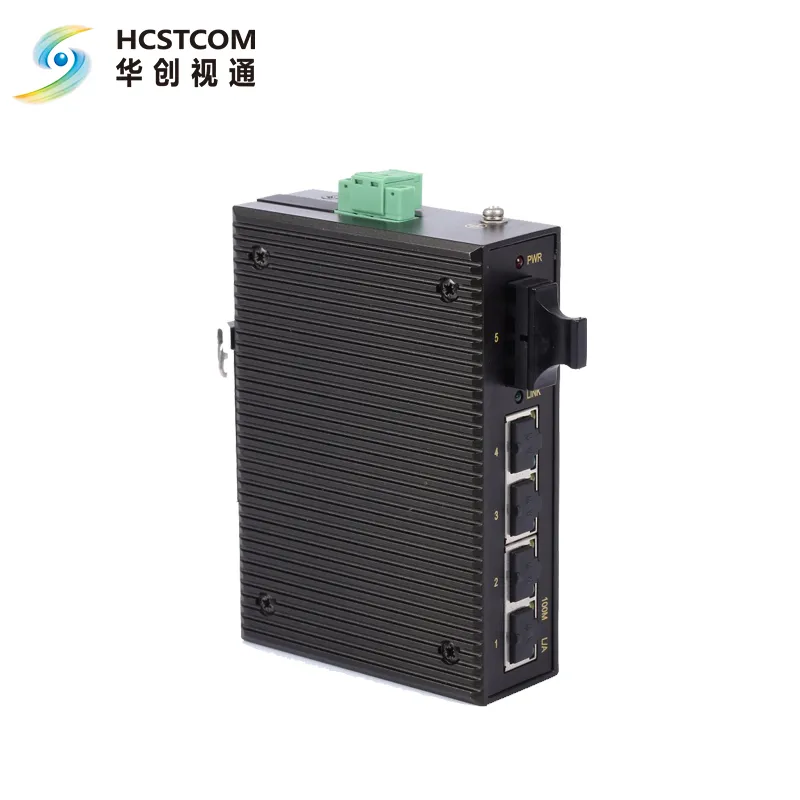

Din Rail 10/100M 6 Port 4 Port Industrial PoE Switch With 2 Uplink Ethernet For Harsh Environment industrial poe network switch
2. Description
1 100M fiber port + 4 100M ports unmanaged layer 2 industrial Ethernet switch, offer max up to 5 ports, which can be configured flexibly. It's plug and play, adapt wide working temperature -40ºC~+85ºC, relative humidity 5~95%(no condensing), equipped with performance of dust/salt fog proof, make it completely suitable for harsh environment.
3. Features
4x10/100Base-Tx ports,1x100Base-Fx port Fiber port
supports multimode or single mode SC/ST/FC/LC optional
Transmission could be up to 80KM
Comply with electromagnetic compatibility requirements with industrial 4 grade
10/100M, half/full duplex, MDI/MDI-X auto-negotiation
Green industry series without fan and low-power design
Variety input voltage for optional Wide
operating temperature: -40ºC~+85ºC
Meet the stringent electrical environment and work requirements Alarm output of power control
IP40 protection grade,metal shell DIN Rail/Wall mounting CE, FCC, RoHS certification
4. Specifications
5. Company
Din Rail 10/100M 6 Port 4 Port Industrial PoE Switch With 2 Uplink Ethernet For Harsh Environment industrial poe network switch
2. Description
1 100M fiber port + 4 100M ports unmanaged layer 2 industrial Ethernet switch, offer max up to 5 ports, which can be configured flexibly. It's plug and play, adapt wide working temperature -40ºC~+85ºC, relative humidity 5~95%(no condensing), equipped with performance of dust/salt fog proof, make it completely suitable for harsh environment.
3. Features
4x10/100Base-Tx ports,1x100Base-Fx port Fiber port
supports multimode or single mode SC/ST/FC/LC optional
Transmission could be up to 80KM
Comply with electromagnetic compatibility requirements with industrial 4 grade
10/100M, half/full duplex, MDI/MDI-X auto-negotiation
Green industry series without fan and low-power design
Variety input voltage for optional Wide
operating temperature: -40ºC~+85ºC
Meet the stringent electrical environment and work requirements Alarm output of power control
IP40 protection grade,metal shell DIN Rail/Wall mounting CE, FCC, RoHS certification
4. Specifications
| Standard & Protocol | IEEE 802.3 for 10Base-TX IEEE 802.3u for 100Base-TX and 100Base-FX |
| Interface | Copper port: 10/100Base-T(X), RJ45, Automatic Flow Control, Full/half Duplex Mode, MDI/MDI-X Autotunning Fiber port: 1000Base-FX, SC/ST/FC optional |
| LED Indicator | Port Indicator, Power Supply Indicator |
| Switch Property | Transmission mode: store and forward MAC address: 1K Packet buffer size: 0.5Mbit Backplane bandwidth: 0.744 Mpps Switch time delay: < 5μs |
| Power Requirement | 12~48VDC, 3-pin 7.62mm pitch terminal blocks Support nonpolarity, reverse polarity protection |
| Environmental Limit | Operating temperature range: -40~75ºC Storage temperature range: -40~85ºC Relative humidity: 5%~95%(no condensation) |
| Physical Characteristic | Housing: IP40 protection, metal Installation: DIN-Rail mounting Dimension (W x H x D): 35mm×110mm×95mm Weight: ≤370g |
| Industrial Standard | IEC 61000-4-2 (ESD),Level 4 Air discharge: ±15kVl Contact discharge: ±8kVl IEC 61000-4-4 (EFT), Level 3 Power supply: ±2kVl Ethernet interface: ±1kVl IEC 61000-4-5 (Surge), Level 4 Power supply: common mode ±4kV, differential mode ±2kVl Ethernet interface: ±4kVl Shock: IEC 60068-2-27 Free fall: IEC 60068-2-32 Vibration: IEC 60068-2-6 |
| Certification | CE, FCC, RoHS |
| Warranty | 5 years |

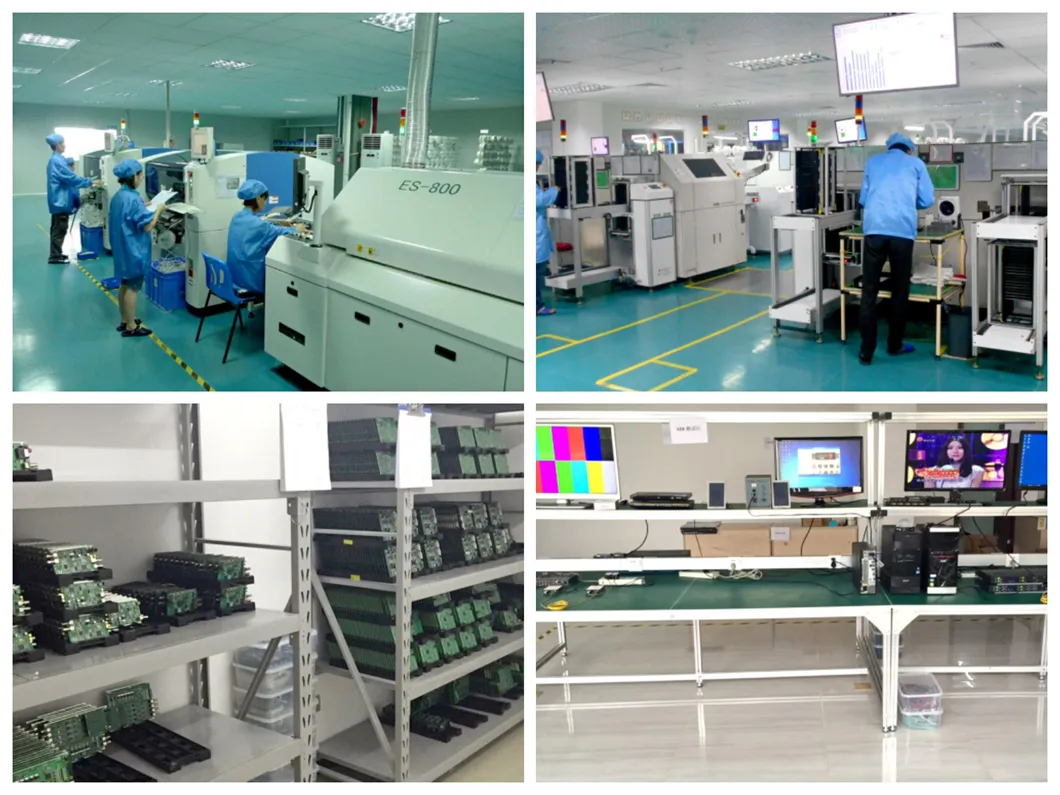

5. Company
