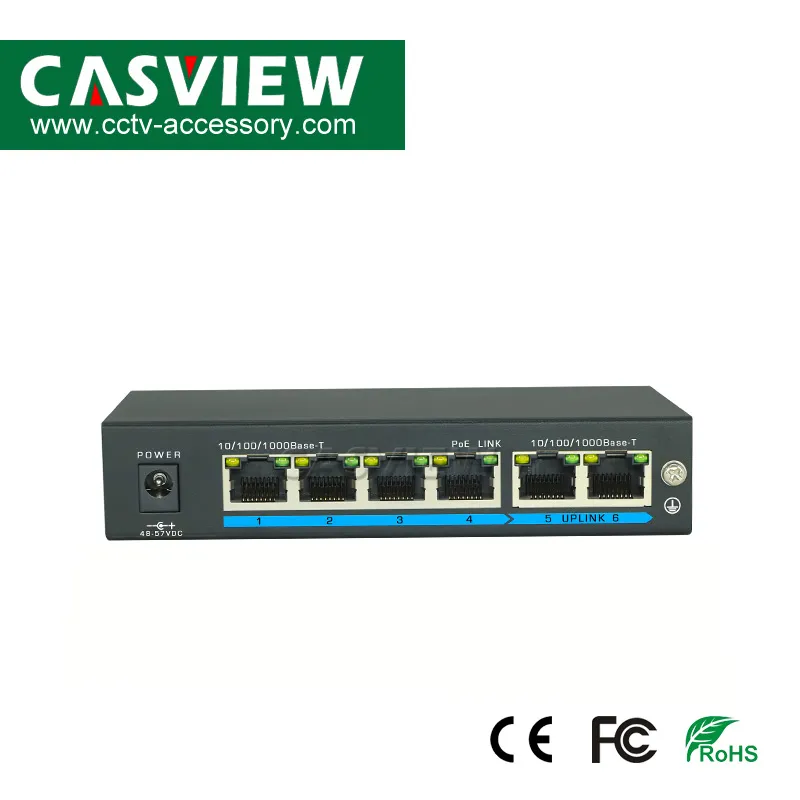

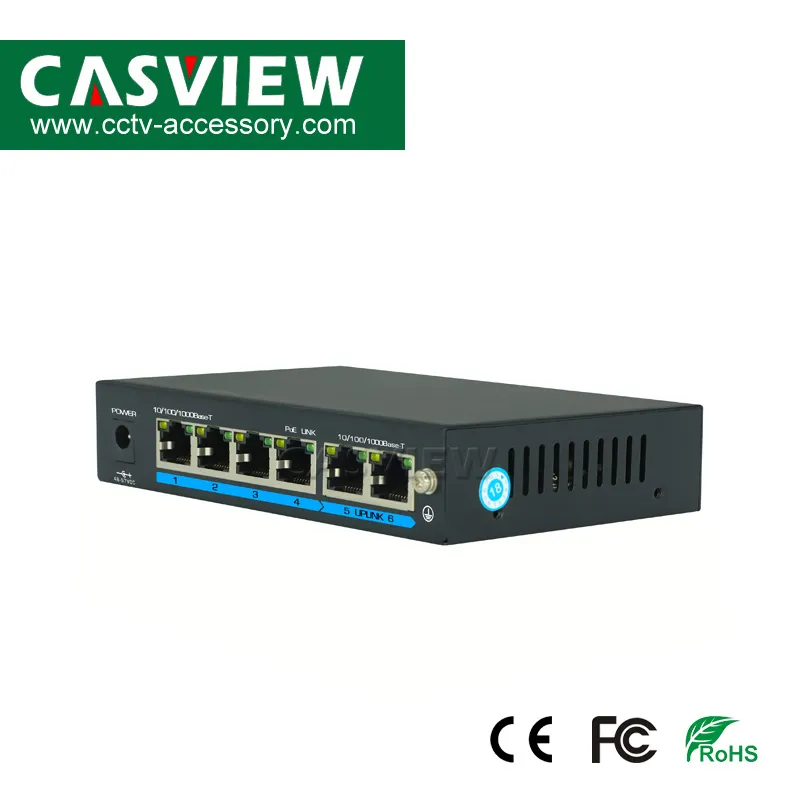

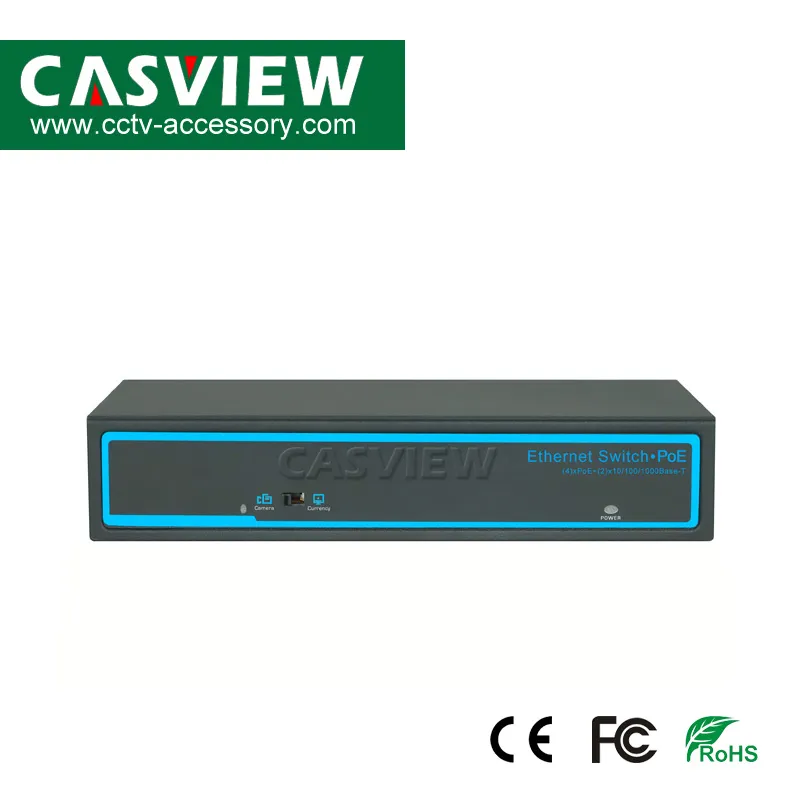

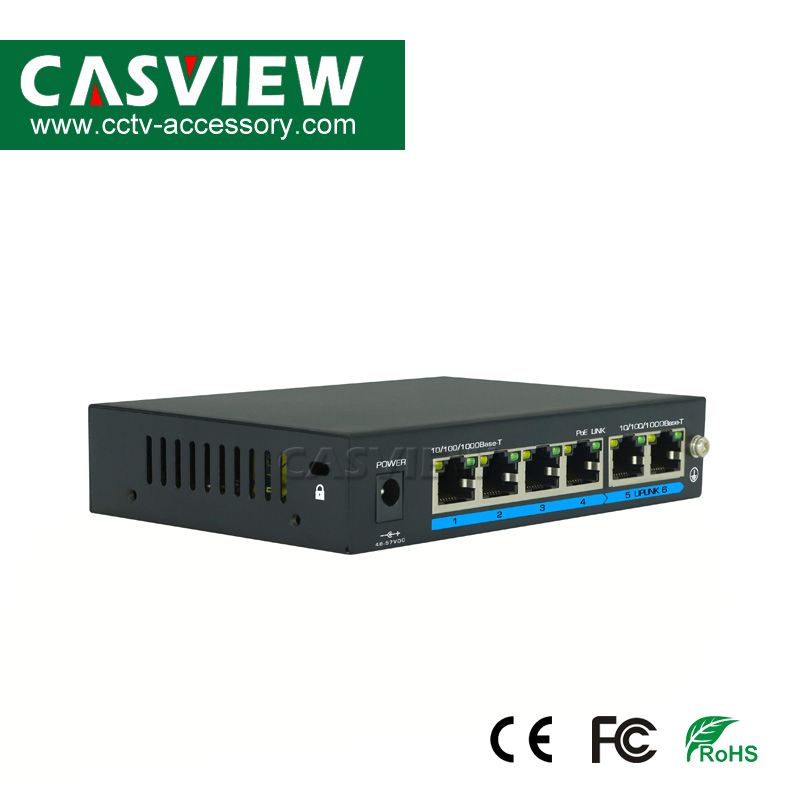

CPE-G4204 6 Ports 10/100/1000Mbps Poe Switch; 4*10/100/1000Mbps Poe Ports; 2*10/100/1000Mbps Uplink Port; External 52V 1.25A 65W Power
6 Ports 10/100/1000Mbit POE Switch:with 4*10/100/1000Mbps PoE ports& 2*10/100/1000Mbps uplink port;with External 52V 1.25A 65W Power Supply Supports port auto-ip (Auto MDI/ MDIX); Maximum power of single PoE port: 15.4W/30W; Adopts store-and-forward architecture; IEEE 802.3af power on up to 4 po......
Send Inquiry
Product Description
6 Ports 10/100/1000Mbit POE Switch:with 4*10/100/1000Mbps PoE ports& 2*10/100/1000Mbps uplink port;
with External 52V 1.25A 65W Power Supply
Supports port auto-flip (Auto MDI/ MDIX);
Maximum power of single PoE port: 15.4W/30W;
Adopts store-and-forward architecture;
IEEE 802.3af power on up to 4 ports;
With anti-theft lock;
Protection: Excellent anti thunder, anti static and anti interference;
External power supply, fanless, natural cooling, small, compact and quiet design, suitable for desktop or wall
Description:

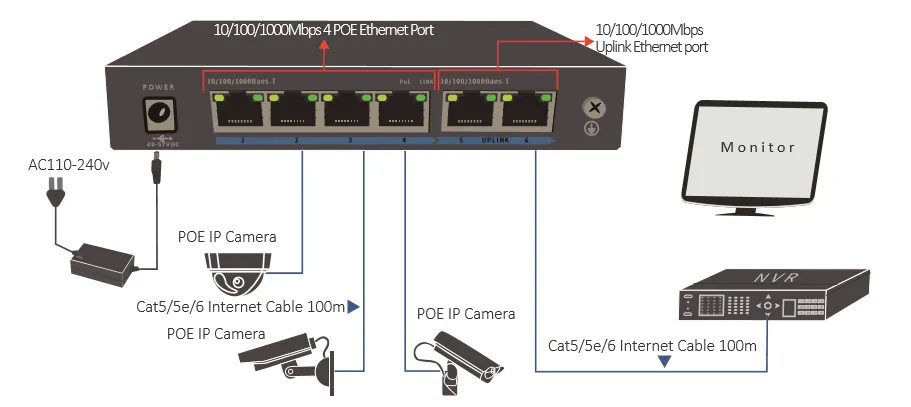

The 6 Ports Full Gigabit PoE Switch is specially designed for the application of high definition network security surveillance system. The PoE switch provides 4 Gigabit downlink PoE ports support 802.3at and 2 Port Gigabit uplink ports. The total PoE power output is up to 65 watts. It's widely used in survelliance monitor and Ethernet network solution.
Specifications:
| Model | CPE-G4204 | ||
| Power | Power Adapter Voltage | 48-57V | |
| Consumption | 75W/120W | ||
| Network Connector | Network port | POE Ethernet Port | 1~4 Port: 10/100/1000Mbps |
| Ethernet Port | Uplink Port: 10/100/1000Mbps | ||
| Transmission Distance | 1~4 Port: 0~100m | ||
| Uplink Port: 0~100m | |||
| Transmission Medium | Cat5/5e/6 standard network cable | ||
| Network Switch | Network Standard | IEEE 802.3/802.3u, IEEE 802.3x, IEEE 802.3ab | |
| Switch Capacity | 12Gbps | ||
| Packet Forwarding Rate | 8.93 Mbps | ||
| MAC Table | 2K | ||
| Power Over Ethernet | POE Standard | IEEE 802.3af/at(PSE/PD) | |
| PoE Power Supply Type | End-Span(1/2+;3/6-) | ||
| POE Power Consumption | af/at=15.4W/30W(every port) | ||
| LED Status Indicator VLAN/Extend | PoE Ethernet LED Indicator Indicator | Power: 1 red light indicates that the power normal work; | |
| POE: 4 yellow lights indicate that the POE is power on; | |||
| Ethernet: 6 green lights indicate that the Ethernet link and act; | |||
| Environmental | Working temperature | 0ºC~55ºC | |
| Relative Humidity | 20~95% | ||
| Storage Temperature | -20ºC~70ºC | ||
| Mechanical | Dimension (L×W×H) | 135mm*89mm*27mm | |
| Color | Black | ||
| Weight | 282g | ||

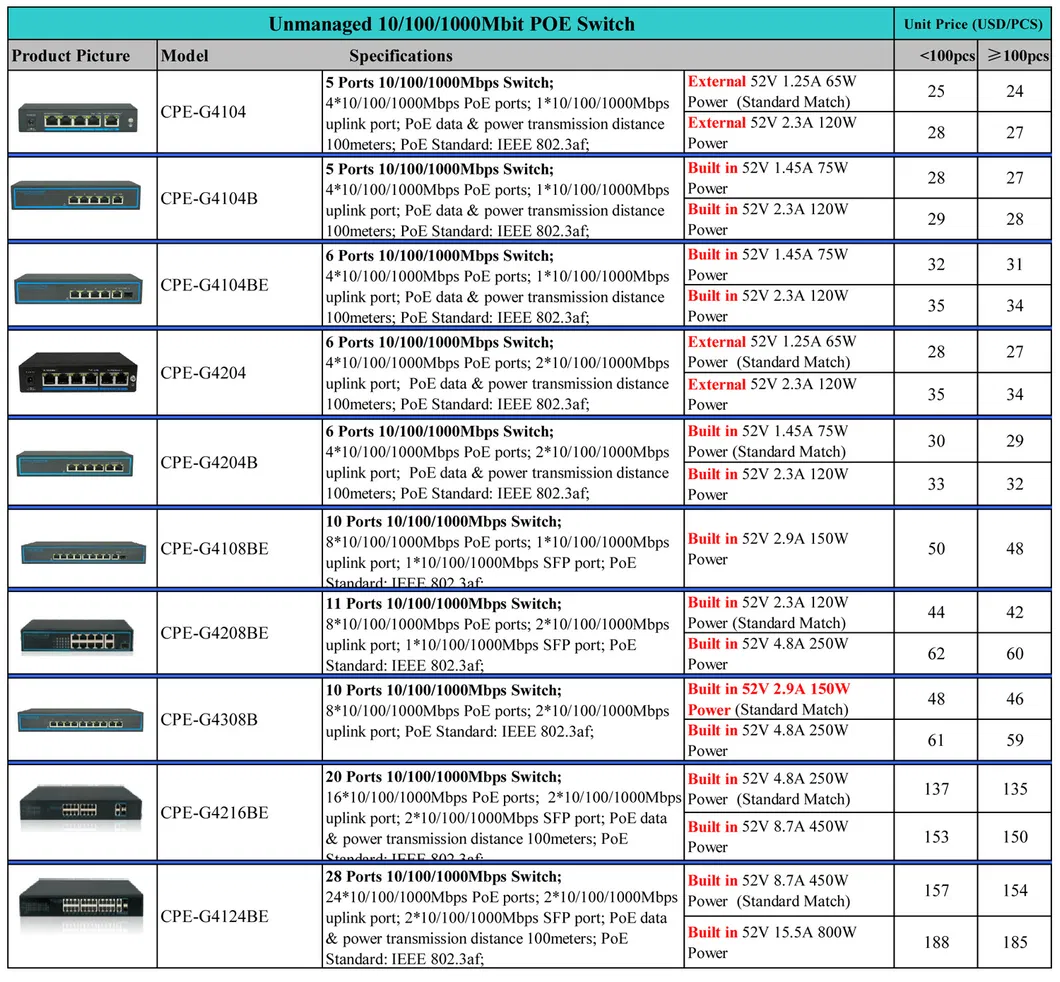

Optional Models:
