              Product Description

              CPE-G4124be 28 Ports 10/100/1000Mbps Poe Switch; 24*10/100/1000Mbps Poe Ports; 2*10/100/1000Mbps Uplink Port; 2*10/100/1000Mbps SFP Port; Built in 52V 8.7A 450W

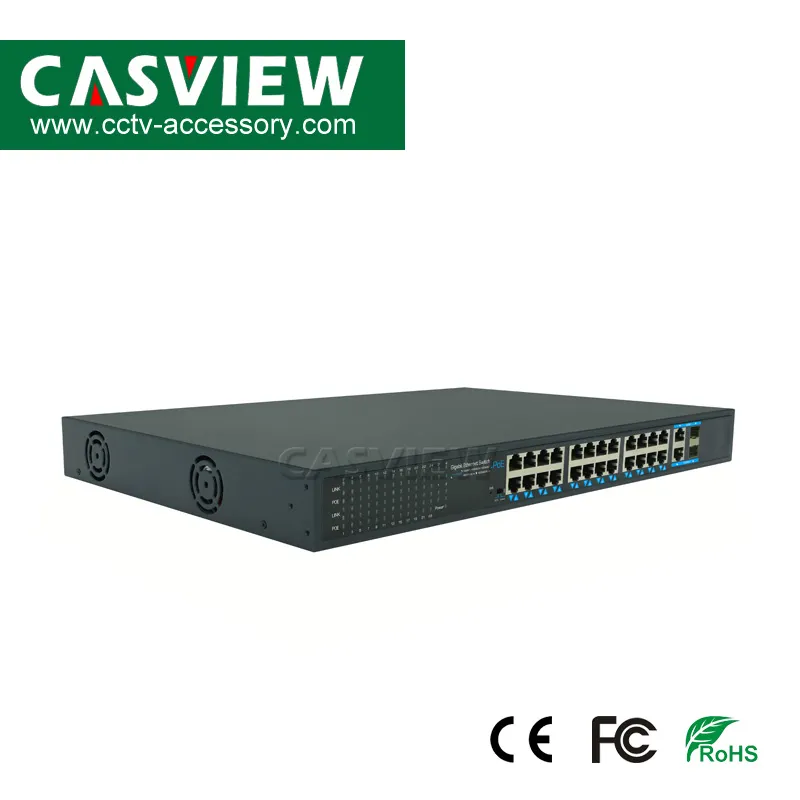

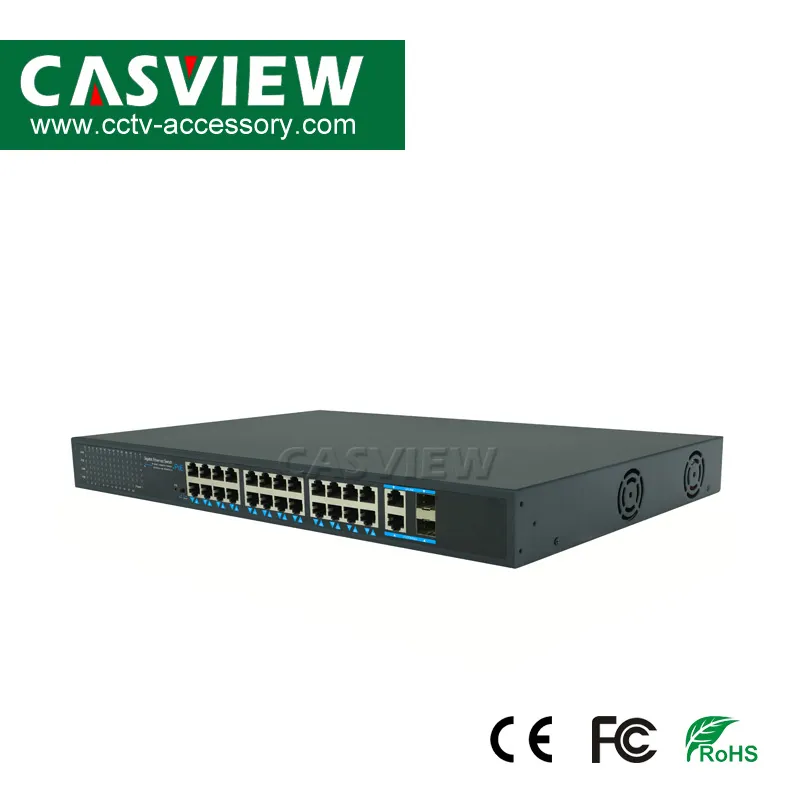

              28 Ports 10/100/1000Mbit POE Switch:
              With 24*10/100/1000Mbps PoE ports, 2*10/100/1000Mbps uplink port, and 2*10/100/1000Mbps SFP port
              With Built in 52V 8.7A 450W Power  Supply

              Supports port auto-flip (Auto MDI/ MDIX);
              Maximum power of single PoE port: 15.4W/30W;
              Adopts store-and-forward architecture;
              IEEE 802.3af power on up to 24 ports;
              With anti-theft lock;
              Protection: Excellent anti thunder, anti static and anti interference;


              Description:
              The 28 Ports Full Gigabit PoE Switch is an unmanaged Ethernet Switch designed for Gigabit Ethernet access and PoE applications. It provides 24 Gigabit downlink ports, 2 Gigabit uplink Ethernet port, and 2*10/100/1000Mbps SFP port. The 8 downlink ports support 802.3af/at standard and feature Max 30W PoE power output of single port, Max 250W of whole machine.  It can be widely used in security surveillance, hotels, schools,  engineering and other occasions.


              Specifications:
              ModelCPE-G4124BE
              PowerPower Adapter VoltageAC110-240V
              Consumption450W
              Network ConnectorNetwork port1~24 Port: 10/100/1000Mbps  1~24: POE Ethernet Port
              Uplink Port: 2 Ethernet 1000Mbps,  2 SFP 1000Mbps
              Transmission Distance1~24 Pot: 0~100m
              SFP: depends on the optical module
              Transmission MediumCat5/5e/6 standard network cable
              Network SwitchNetwork StandardIEEE 802.3, IEEE 802.3u, IEEE 802.1ab, IEEE 802.3x
              Switch Capacity20Gbps
              Packet Forwarding Rate14Mbps
              MAC Table4K
              Power Over EthernetPOE StandardIEEE 802.3af/at
              PoE Power Supply TypeEnd-Span(1/2+;3/6-)
              POE Power Consumptionaf/at=15.4W/30W(every port)
              LED Status Indicator VLAN/ExtendPoE Ethernet LED Indicator IndicatorPower: 1 red light indicates that the power normal work;
              POE: 24 yellow lights indicate that the POE is power on;
              Ethernet: 24 green lights indicate that the Ethernet link and act;
              EnvironmentalWorking temperature0ºC~55ºC
              Relative Humidity20~95%
              Storage Temperature-20ºC~70ºC
              MechanicalDimension (L×W×H)285mm*180mm*44mm
              ColorBlack
              Weight1750g

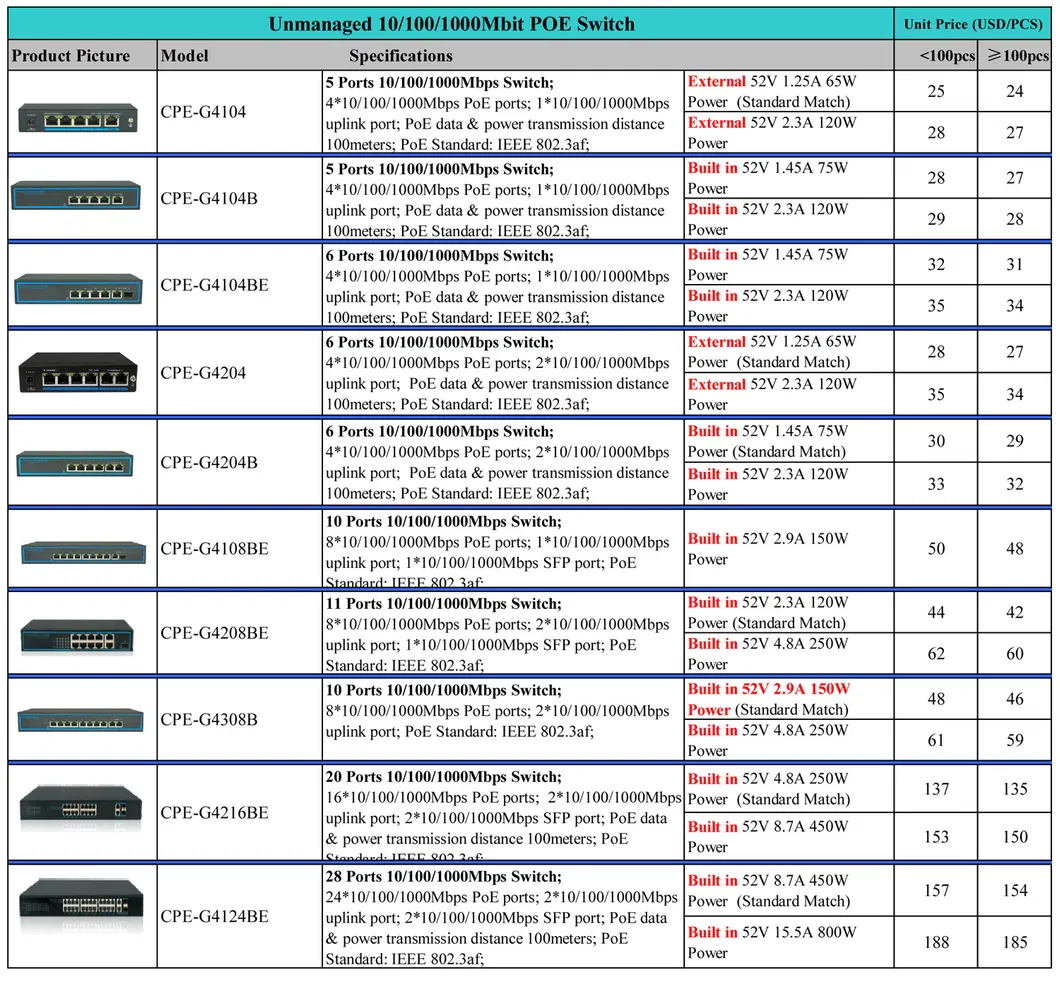

              Optional Models:
