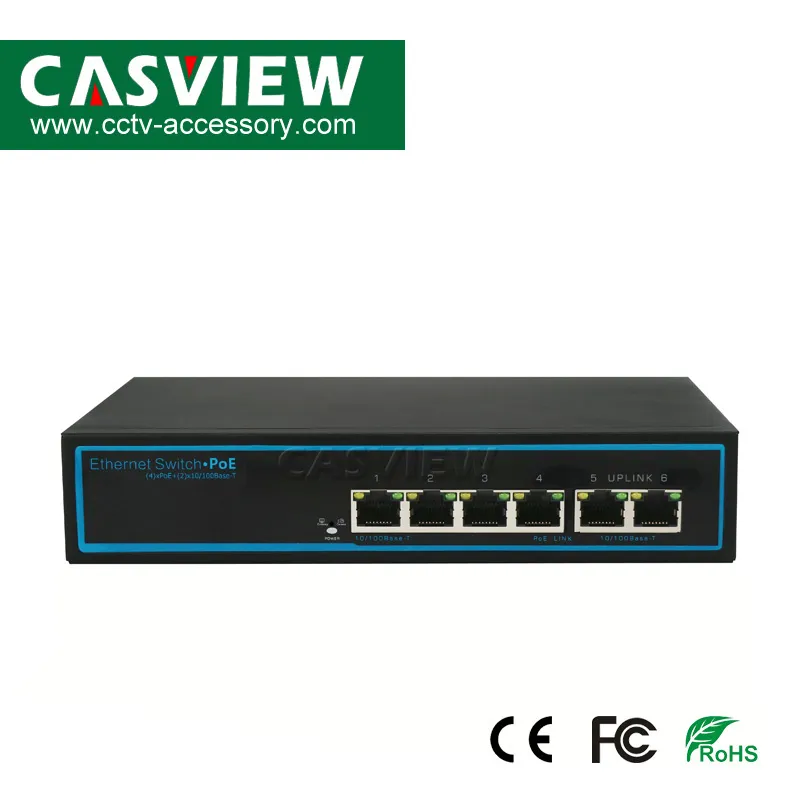

CPE-4204b 6 Ports 10/100Mbps Poe Switch; 4*100/100Mbps Poe Ports; 2*10/100Mbps Uplink Port;
6 Ports 10/100 Switch with 4 Ports POE, with Build-in 52V 1.45A 75W Power Supply 4x10/100Mbps PoE ports, 2x uplink port; Unique Feature:one-key CCTV mode,which can restrain network storm,realize VLAN function and 1~4 downlink ports only able to communicate with uplink ports. The communication dista......
Send Inquiry
Product Description
6 Ports 10/100 Switch with 4 Ports POE, with Build-in 52V 1.45A 75W Power Supply
4x10/100Mbps PoE ports, 2x uplink port;
Unique Feature:one-key CCTV mode,which can restrain network storm,realize VLAN function and 1~4 downlink ports only able to communicate with uplink ports. The communication distance extends to 250 meters;
Supports port auto-flip (Auto MDI/ MDIX);
Built-in power supply;
Maximum power of single PoE port: 15.4W;
Maximum PoE power: 75W;
Adopts store-and-forward architecture;
IEEE 802.3af power on up to 4 ports;
Fanless, natural cooling, small , compact and quiet design, suitable for desktop or wal
Description:
CPE-4204B is a compact 4+1 port Poe switch,with 4* 10/100 Mbps PoE Ports, and 2 *10/100Mbps Uplink Port,The 4 POE ports can automatically detect and provide power for any connected 802.3af Powered Device(PD), such as VOIP phones,IP Cameras,All POE ports support the IEE802.3af standard,with a maximum output of 15.4w each port.
Specifications:
| Model | CPE-4204B | ||
| Power | Power Adapter Voltage | AC110V-240V | |
| Consumption | 75W | ||
| Network Connector | Network port | POE Ethernet Port | 1~4 Port: 10/100Mbps |
| Ethernet Port | Uplink Port: 10/100Mbps | ||
| Transmission Distance | 1~4 Pot: 100Mbps:0~100m | ||
| Uplink Port: 0~100m | |||
| Transmission Medium | Cat5/5e/6 standard network cable | ||
| Network Switch | Network Standard | IEEE802.3/802.3u, IEEE802.3x,IEEE802.1D | |
| Switch Capacity | 1Gbps | ||
| Packet Forwarding Rate | 0.74 Mbps | ||
| MAC Table | 2K | ||
| Power Over Ethernet | POE Standard | IEEE 802.3af | |
| PoE Power Supply Type | End-Span(1/2+;3/6-) | ||
| POE Power Consumption | af=15.4W(every port) | ||
| LED Status Indicator VLAN/Extend | PoE Ethernet LED Indicator Indicator | Power: 1 red light indicates that the power normal work; | |
| POE: 4 yellow lights indicate that the POE is power on; | |||
| Ethernet: 6 green lights indicate that the Ethernet link and act; | |||
| Surveillance Module Ligh | 1pcs(Green), green indicates Camera | ||
| Environmental | Working temperature | 0ºC~55ºC | |
| Relative Humidity | 20~95% | ||
| Storage Temperature | -20ºC~70ºC | ||
| Mechanical | Dimension (L×W×H) | 201mm*120mm*41mm | |
| Color | Black | ||
| Weight | 605g | ||
Optional Models:
Shenzhen CASVIEW Technology is the professional supplier of CCTV Accessories, which includes CCTV Power Supply, BNC connector, Video Balun, POE Switch, Wireless Bridge, CCTV cables, CCTV Tester, Video Multiplexer, Optical Transciver, Video Converter, HDMI Switcher/Splitter/Extender/Matrix, Surge Protector, Sound Monitor, Anti-interference, IR Illuminator, CCTV Lens, Bracket, and Housing, etc.
Our products are CE, FCC approved and with two year warranty. Quality is the most import point we focus on. We choose the best material for our products and do strict quality control from IQC(Incoming Quality Control), IPQC(In-production Quality Control), FQC(Final Quality Control) to OQC(Outgoing Quality Control).
Our R&D and technical persons are with over 10year experience in the CCTV Industry. That is why we can well meet your OEM/ODM request, and give you the professional technical support anytime.
And our professional sales team will give you the best pre-sale, on-sale and after-sale service. They are a group of enthusiastic, positive, hard-working and responsible people ready to answer your questions and help you any time.
Our product delivery time 1-7days for small order and 7-15days for big order. The goods can be sent by Sea, by Air, by DHL/Fedex/TNT/UPS upon your choice. And you can choose to use your own forwarder agent or ours. If use ours, we will check the most economic cost, fastest, and the safest way for you.
Until now, we had exported to over 70countries. It is our honor to be trusted with long-term cooperation by valuable customers. We strive to provide one-stop solution for all the CCTV Accessories that you may need. If there are some items that are not in our product ranges, we can also support to you get. Please do not hesitate to contact us now, CASVIEW will be your best choice for the CCTV Accessories.
